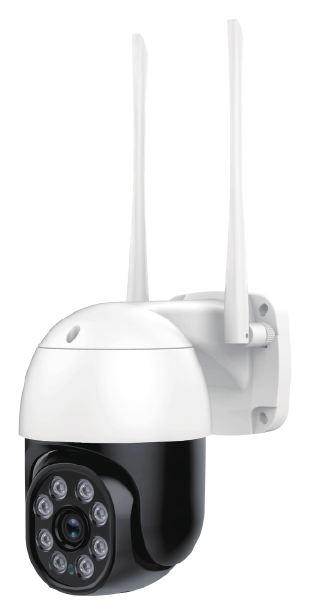

Wireless IP Camera User’s Manual KAMEP Note: Due to the continuous updating of the product and software, there may be a discrepancy between the operating guide and the APP interface. All the instructions are subject to the actual operation interface.
Contents Ⅰ.Introduction We’d like to thank you for buying Wireless IP Camera. You will soon find that you love everything that this fantastic security camera offered. In this user guide, we’ll cover everything you want to know about the camera, including how to download the MIPC app, how to connect your home network in different ways, how to control it and more. With this manual, you will find that it is very easy to us. 1.1.
Ⅱ.Introduction 2.1 Downloading the MIPC App There are several ways to download the MIPC application. These include: ● Scan QR code with the phone, to download and install the application " MIPC " ● Download ' MIPC ' APP from APP Store(iOS ) or Google Play Store(Android). ● PC users please download our APP: www.mipcm.com. 2.2 Creating an Account To use the camera, you will need to set up an account with MIPC. To create an account: ● In the MIPC app on your mobile device,press I am a new user Sign up .
2.3. Wi-Fi Connection Setup through Wi-Fi Mode Before connecting to your camera, please confirm your home Wi-Fi network is 2.4G. Meanwhile, please choose 2.4G WiFi to connect your phone. Additionally, please put this camera more close to your router, it will help you to connect your home Wi-Fi successfully. 1. After successfully register and sign in, you should be brought to the camera list screen. You can see it’s initially empty because you have not added any camera for it (Figure 1); 2.
4
Ⅲ.Using Apps for iPhone and Android 3.1 Camera List Previews The camera list panel contains all cameras you have added to your account. Each preview picture has various indicators for online, password changed status,offline or alarm.
3.2 More (Account Settings) The MIPC app offers you access to view, monitor and configure your devices.The app also has an option to view or configure your Account information. MIPC enables you to configure two types of settings: Account settings and Device settings.
3.3 Watch a Camera’s Live Video When the first time you watch the live video, APP will prompt user to set the camera password (please remember this password), then click Next into the next step to set the camera name, then skip the cloud storage buying, when finish above settings it will auto back to the camera list.
1.Back button 2.Camera name 3.Video playback shortcut button 4.Camera settings 5.Time stamp 6.Current network speed 7.Speaker switch 8.Screen adjustment (brightness, contrast, saturation, sharpness) 9.Resolution button 10.Full screen 11.Record(Record to the album) 12.Take photos(Storage to the album) 13.Microphone(Hold the button to speak) 14.Alarm bells 15.Cloud recording 16.SD recording 17.Playback button 3.4 Pan, Tilt, Zoom ● Pan: Touch and swipe to the left or right to rotate the camera left or right.
3.5 Camera settings 1 4 2 3 5 6 7 8 10 11 9 12 17 18 20 13 14 15 16 21 19 22 23 1.About (include camera name, model, firmware version, camera ID) 2.Date (Set the date, time and time zone) 3.Upgrade (Update the firmware version) 4.Restart 5.Factory Reset 6.Device PW (User could set or change the camera password, and set the guest password. Camera admin password can change the camera settings, guest password can only watch the video) 7.
14.WIFI 15.Flip the Screen 16.OSD (Can set the time stamp) 17.Sound (Adjust the volume of speaker and MIC. Also the tone) 18.Frequency (50HZ/60HZ) 19.Motion (Turn on the motion detection and adjust the sensitivity) 20.Indicator light (Some product don’t have this) 21.Alarm (To sound away intruders or animals) 22.Video streaming 23.Remove the device 3.
And now the notification detection, select “motion detection” to turn on the notification, click “+” to set the time of make notification, click Save to finish the motion detection setting.
3.7 Sound detection setting Select the Peripheral in settings, click the Sound Detection (Users can turn on or off sound detection as needed, also the sensitivity 0-100, 0 is the lowest, 100 is the highest), then click Save to finish. Now the Alarm, select the Sound Detection and turn on the switch, select “+” to set the time to make alarm, then click Save to finish.
Attention: After turn on the sould detection, you must turn on the alarm and set the time, otherwise there will be only the video but don’t make alert 3.8 Human detection settings Select the Peripheral in settings, click the Human Detection (Users can turn on or off human detection as needed, also can turn on or off the detection frame), then click Save to finish.
Now the Alarm, select the Human Detection and turn on the switch, select “+” to set the time to make alarm, then click Save to finish.
3.9 Record setting Select the Record in Settings, choose the Continuous Recording or Alarm Recording, choose the event recording, then set the time and save to finish.
3.10 Camera password and camera sharing Select the Device PW in Settings, users can change the password and visitor setting here. 3.10.1 Visitor settings and user sharing Enable the Visitor settings, enter the camera admin password, then set the visitor password (visitor password is used to share watching video), then click “A click to generate the QR code”. Other users need to download “MIPC” APP, register and login, add the camera, scan the QR code.
4.1 Playback Enable APP, choose the camera in camera list, select Cloud Recording or SD Recording, then choose the record to playback. 1 2 3 4 5 6 7 8 9 1.Record location 2.Date (User can choose the playback date as needed) 3.Filtering (Users can choose the format, category and duration of playback according as needed) 4.Timeline playback mode 5.Play/Pause button 6.Full screen 7.Sound switch 8.Download (Users can choose to download and save to the album) 9.Delete the video 4.1.
4.1.2 Filtering 4.1.
Ⅴ.Using the MIPC PC client 5.1 PC client download Download MIPC client from your PC Windows or Mac as directed from this website: www.mipcm.
5.2 Log In & Sign Up ● Log on to the MIPC PC client. The following window appears: ● Enter your User name and Password, and click Sign in.（If you are a new user, Select “Sign up” and create a Username and Password.） ● The website interface opens. If devices have been added, the current image for each active device is shown in the dashboard.
5.3 View a camera’s live video To view a camera’s live video, touch a preview picture. Click on the video screen will show a navigation bar with Buttons of record, snapshot, microphone and Image setting. The following icons are located on each video image on the screen: ①Record：to initiate a live recording. ②Snapshot：to create a snapshot image of the current view. ③Microphone：to transmit your voice through the device.
5.4 Pan, Tilt （<>︿﹀）On computers only: move camera left, right, up and down using directional controls. These controls are only available as you move the mouse to hover over the display edges (top,bottom, left and right in the middle). Not all cameras provide the full range of rotation, panning, tilting, etc. Note:The screen can not be zoomed on the computer. 5.5 History access If you do not have an SD card in your camera, this will be a blank screen.
● Day: Quickly view video time ● Edit: Delete the video ● Snapshot: Clicking on one of the pictures will open up the image into a separate popup, making it larger and easier to see. ● Record：Under the Records column, it will show you whether the record indicates video. ● Event: Display motion detection video. ● Duration: Select the length of each video recording, the default is half an hour. 5.6 Settings ● About：Provides information about your device. ● Nickname：Set a user-friendly name for your device.
5.7 More (Account Settings) The Settings page contains the following options: ● Software Version – View the current version of the software ● Account Admin Password – This enables you to change your account password. ● Account Guest Password – If you wish to allow someone access to your camera, you can assign them a user guest password, which can be disabled at any time.
Q&A: Q: Do I have to subscribe cloud service to use the camera? A: No! We never force customers to subscribe the cloud service. Just connect to the power then you can see the live stream on your phone. Q: Does the camera need to connect the power supply? A: Yes, it needs to be plugged into an outlet for continuous power. Wireless means that this Wi-Fi camera transmits data via 2.4 GHz WiFi. The Adapter and power cord are included in the package. Q: Does the camera support other APP? A: No.
