User's Manual

Part Number:
730-9502-0308 Rev A
© 2010 All rights reserved.
AT-330 Asset Tag
Introduction
The Newbury AT-330 asset tag, is a battery powered,
802.11b/g, Wi-Fi compatible, sensor platform that is
capable of being networked in a WLAN environment.
The AT-330 can receive and send Wi-Fi compatible
messages at user defined intervals. The Wi-Fi sensor
platform serves as a means to become an active RFID
tag where the RFID platform can send messages with
unique ID’s and/or data encoded from several sensors
which are part of the tag. The AT-330 seamlessly
becomes part of the users wireless network
infrastructure in that the tag becomes just another user
on the WLAN network. The AT-330 and its inherent
sensors can be configured to the application best suited
by the user.
Product Specification
The following table summarizes the allowed
performance characteristics of the Newbury AT-330
asset tag:
Parameter Description
Frequency Band 2.412 to 2.462 GHz
Connectivity Protocol DSSS 802.11 b/g
Modulation
CCK, BPSK, QPSK,
OFDM
Transmit Power 18 dBm
Input Power 3.6 V Lithium Battery
Message Length Variable
Transmission Interval Variable
Duty Cycle 25% Maximum
Hardware Description
Integrated WiFi Module:
• Low power 802.11 b/g system module with
support for WEP/WPA/WPA2 encryption
Integrated Sensors:
• Onboard Temperature Sensor
• Motion Detection
• Magnetic Detachment Detection
Input/Output:
• 2 LEDs
• 2 Push-button switches
Power:
• 1000mAh Thionyl Chloride Lithium Battery
• 6 month to 2 year battery life (depending upon
configuration)
Operating Conditions
AT-330 Operating conditions specifications:
Temperature:
• Operating temperatures: -20C to +70C
• Storage temperatures: -40C to +70C
Humidity:
• Operating: 10% to 95% non-condensing
Power:
• Input voltage range: 2.7v to 3.7v
• Maximum continuous current: 10mA
• Rated 1 Sec Pulse: 20mA
Additional Documentation
For more details on how to use the AT-330 Asset Tag
with Newbury Active Asset, refer to the Newbury Active
Asset User’s Guide.
Notice To User: Newbury AT-330 asset tag is to be
configured by Professional Installers only who have
received training on the proper configuration that
can and will affect the tags operation and
performance.
Contacting Newbury Networks
For most current issue of this document, complete
regulatory guide and more information on Newbury's
products and services, please contact your local
Newbury certified channel partner or a Newbury
Networks representative at 617-867-7007 or via email at
[e-mail].

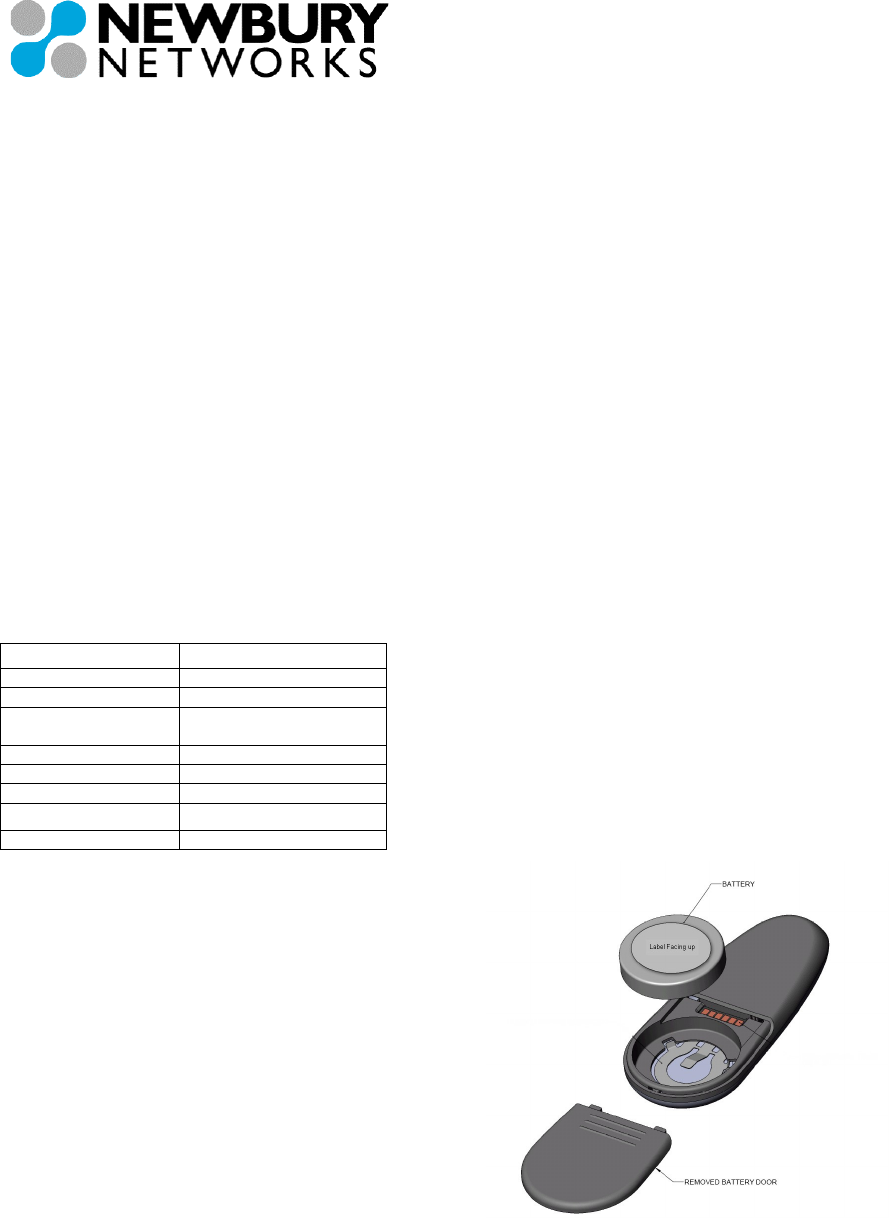

Battery Installation
The AT-330 battery included with the AT-330 asset tag
must be installed prior to tag operation. Remove the rear
battery door using the raised thumb grips on the battery
door, and place the included battery (label facing up)
inside the battery compartment. Close the battery door,
by pressing down and forward with the thumb grips. See
the illustration below:
