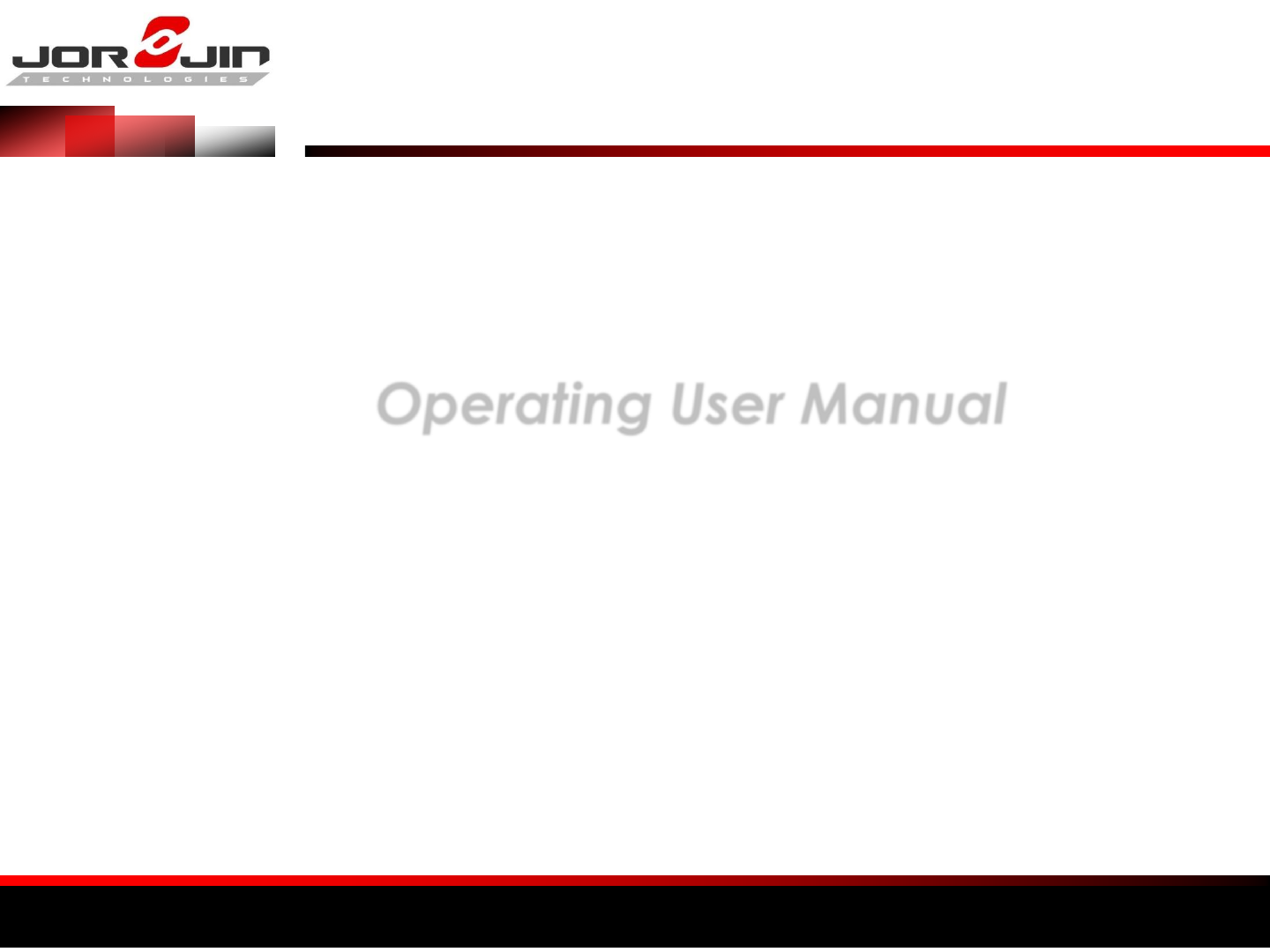

a module solution provider Operating User Manual WG7831DELF
a module solution provider Software lnstallation (1) Executive TI Wireless Tools HDK2.0.
a module solution provider Evaluation Board Description - 1 Jumper insertion position for the red box
a module solution provider Evaluation Board Description - 2 BT Test Connection USB WIFI Test Connection USB
a module solution provider Evaluation Board Description - 3 BT ON : R28 BT OFF : R31 WIFI ON : R29 WIFI OFF : R32
a module solution provider WG7831DELF Reference Schematics
a module solution provider COM PORT Setting 1. Install TI Wireless Tools 2. When the hardware is connected to the PC, it is possible to find the port number for communication. Under the Device Manager, select Ports (Com & LPT). 3. Run “RTTT” to start WiFi test software. The USB ports are Com7 and Com8. Normally, the first port, Com7, is the communication port, while the next port, Com8, is the debug port.
a module solution provider (1) Select WL18XX WIFI RTTT Setting – 1 (2) SET COM PORT (3) SET Baud Rate ( 921600 ) (4) SET Board Type : HDK
a module solution provider WIFI RTTT Setting – 2 Set file path Firmware file : C:\Program Files (x86)\Texas Instruments\Wireless Tools\RTTT\Clients\TrioScope\18xx\wl18xx-fw-mc.bin INI file : C:\Program Files (x86)\Texas Instruments\Wireless Tools\RTTT\Clients\TrioScope\18xx\INI Files\WL8_INI_2ANT.ini TS DLL : C:\Program Files (x86)\Texas Instruments\Wireless Tools\RTTT\Clients\TrioScope\18xx\ts18x.
a module solution provider WIFI RTTT Setting – 3 Click Connect Connected without FW
a module solution provider WIFI RTTT Setting – 4 Click “Load” to download Firmware Download Success
a module solution provider WIFI RTTT Setting – 5 Select TX or RX Set channel Select Channel BW Select Modulation and data rate Set ANT Set Power Switch TX ON/OFF
a module solution provider WIFI RTTT Setting – 6 NOTE: Chain 1 Express DUT ANT2, Chain 2 EXpressDUT ANT1 Select dBm, Do not select dBPsat Click SoC Limits, Power Limit Will be locked the Dut settings.
a module solution provider BT HCI Tester Setting – 1 (1) Execute HCI_Tester (2) Select View Options (3) SET COM PORT and Baud Rate
a module solution provider BT HCI Tester Setting – 2 (1) Add NEW XML file
a module solution provider BT HCI Tester Setting – 3 (1) Select NEW (3) Select “ServicePack_18xx_3P1.
a module solution provider BT HCI Tester Setting – 4 (1) File Open, Select “ServicePack_18xx_3p1_switch3w_Xtal.
a module solution provider 台灣NCC符合性聲明 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅 自變更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信 法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫 療用電波輻射性電機設備之干擾。 Note: 系統廠商應於平台上標示「本產品內含射頻模組: (NCC ID) 」字樣 XXXyyyLPDzzzz-x
a module solution provider Regulatory information/warning Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules.
a module solution provider Regulatory information/warning - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
a module solution provider Regulatory information/warning Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
a module solution provider Regulatory information/warning End Product Labeling When the module is installed in the host device, the FCC/IC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved.
a module solution provider Regulatory information/warning In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC/IC authorization is no longer considered valid and the FCC ID/IC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC/IC authorization.
