Recommend to choose an Monitoring dedicated Hard Drive in SATA III 3.5",

1-2TB .The hard disk is installed on the device for the first time, and the hard

disk needs to be formatted.

Steps:

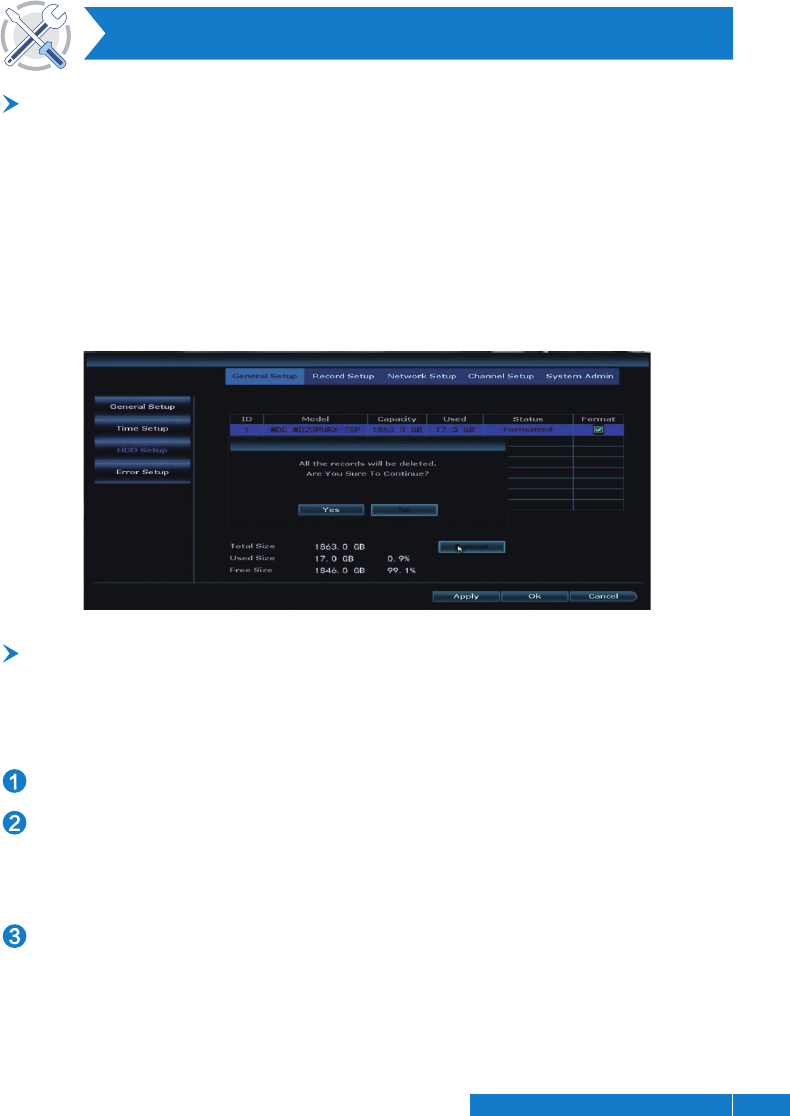

After installing HDD, boot up the NVR -> Right click -> System Setup ->

General Setup -> HDD Setup -> format the HDD.

Steps: Right click -> System Setup -> Record Setup -> Record Plan.

The recording function can only be used after installing a hard disk.

Users can set up any period of time they want，When NVR detects hard

disk, the default setting will be 24hours 7 days recording.

NVR system operation

Format the hard disk

Note:

Notes:

The record time depends on the capacity of hard drive.When the hard

drive is full,the new video overwrite the old one automatically. For exam-

ple, if the hard drive is full after 7 days,then the 8th day video will cover

the 1st day.

Video Record

technicalreply@qacctv.com

Summary of content (8 pages)

PAGE 1
NVR system operation Format the hard disk Steps: After installing HDD, boot up the NVR -> Right click -> System Setup -> General Setup -> HDD Setup -> format the HDD. Note: Recommend to choose an Monitoring dedicated Hard Drive in SATA III 3.5", 1-2TB .The hard disk is installed on the device for the first time, and the hard disk needs to be formatted. Video Record Steps: Right click -> System Setup -> Record Setup -> Record Plan.
PAGE 2
Time Recording: Click "Time" and put mouse icon on the upper left corner (for example "T" as picture shows), press and drag the mouse to the right to choose the time. The selected area will turn to red. Motion Recording: Click “Motion” and put mouse icon on the upper left corner (for example "T" as picture shows), press and drag the mouse to the right to choose the time. The selected area will turn to green.
PAGE 3
Video search condition area: You can select the date, time, channel, and event type to query the video, and click "search" to query. Video search result area: Display the video search results under the search conditions you set. Different colors represent different event types.
PAGE 4
Motion Detection Steps: Right click -> System Setup -> Channel Setup -> Video Detection Select the channel to enable motion detection and set the channel detection type (movement, video loss, video occlusion, etc). When the alarm sensitivity is too high or too low, the sensitivity can be adjusted to achieve the best effect. When a moving object is detected, the alarm information can be received by means of buzzer, mail, app, etc.
PAGE 5
Step 2: enter settings and enable SMTP/IMAP service and set a authorization code(available in some email settings,not all). Step 3: Add the email address and password to the NVR, you have to input the authorization code as password if the code is unavailable. MENU Function （other function） Right click the mouse to show the main Menu bar as shown below, right click again to return or exit the current menu. Split Screen: change the numbers of the channels showing in the same screen.
PAGE 6
Channel Setup: change encode mode, camera resolution, motion detection ect. System Admin: system version, set password, edit users, simple restore ect. Video Playback: playback recorded videos. Video Backup: backup recorded videos. Color Adjust: adjust the brightness, contrast, sharpness ect. Of the picture in each channel. PTZ Control: enter PTZ control to control camera. (requires camera to support this function.) Volume: adjust volume of audio cameras.(works only for audio cameras.
PAGE 7
Notes: Please place the NVR far away from the devices that are easy to interfere the connection, such as microwave oven, TV ect. Make sure the obstacles between the NVR and the cameras are as few as possible. Repeater Setup As picture shown above, when IPCAM1 is put somewhere out of NVR WIFI range, and there is IPCAM2 between them with strong WIFI signal, users can put IPCAM1 close to NVR and power it, setup IPCAM1 repeated by IPCAM2, and then install IPCAM1 to the presupposed place.
PAGE 8
Step 2: Click + to select the channel with the stronger signal value to connect to the NVR, and the weaker signal value to connect to the channel with stronger signal value. As shown in the picture, the signal values of CH1 and CH2 are strong. We can connect CH3 and CH4 behind CH1 and CH2. Step 3: Click “Apply” to finish the cascading connection. Click “Refresh” to check if it’s set successfully. To cancel selection, click on the seleted channel, then click “Apply” and “Ok”.
