CBMSeries

Installation Operation

& Maintenance

Model: CBM-225

69 Ferry Street - Units 17 - 20

Easthampton, MA 01027 | 413-527-1893

2400 Feather Sound Drive, Clearwater, FL 33762

413-427-3373

jjmboilerworks.com

Revised - August, 2016

Acidic Condensate Waste Water pH Treatment Tube

Summary of content (5 pages)

PAGE 1

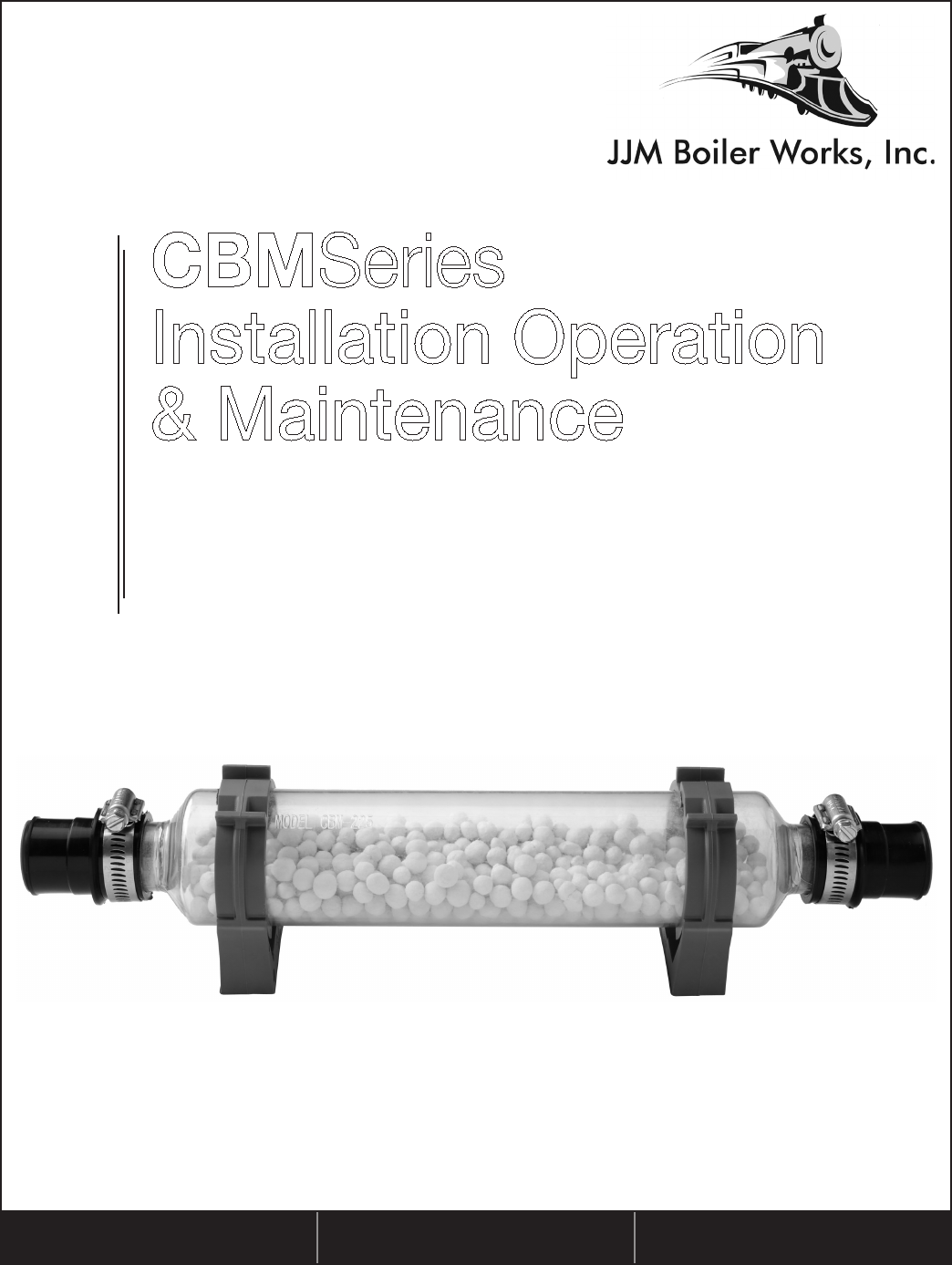

Revised - August, 2016 CBMSeries Installation Operation & Maintenance Model: CBM-225 Acidic Condensate Waste Water pH Treatment Tube 69 Ferry Street - Units 17 - 20 Easthampton, MA 01027 | 413-527-1893 2400 Feather Sound Drive, Clearwater, FL 33762 413-427-3373 jjmboilerworks.
PAGE 2
CBMseries Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance Overview Read before proceeding What is pH? The pH measurement of a fluid is an indicator of the acidity or alkalinity. Neutral fluids have pH of 7.0. Acid fluids have pH below 7. And alkaline fluids have pH above 7 (up to 14). The pH can be easily measured using a digital pocket pH probe. Failure to comply with these guidelines could result in severe personal injury, death or substantial property damage.
PAGE 3
CBMseries Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance CBM-225 dimensions Installation Figure 1 1'-3" Features and dimensions 11" 13 16" 2" 31 4" 212" 11116" 1 " 4 CBM-225 dimensions, without end barbs. 1'-67 8" 1'-3" Figure 2 11" 13 CBM-225 WITH DIRECT SCH40 COUPLING CONNECTIONS 16" ---- 07/23/16 31 4" CBM-225 dimensions JJM BOILER WORKS INC. 212" 2" D:\6_praca\firmy\YourSpreadsheets\_ icons and history\YS logo.
PAGE 4
Figure 7 CBMseries Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance Installation (continued) Y-fitting By-pass with Wall Mounted Heating Unit Piping Options - Make sure the installation complies with all local code requirements. Piping for multiple boilers/furnaces/vent Never install the CBM in a vertical position as show in Figure 5. Follow the guidelines on page 2, do not connect a flue pipe with multiple boilers or furnaces.
PAGE 5
CBMseries Acidic Condensate pH Treatment Kits –– Installation/Operation & Maintenance Replacement Instructions 1. Use protective rubber or plastic gloves and eye protection. 2. The neutralizer tube must be changed on a yearly basis minimum for heating systems and domestic hot water systems or if pH at the outlet falls below 5.0pH. 3. Remove electrical power from the hot water heater, boiler or furnace. 4. Remove inlet and outlet piping and fittings from pH treatment tube. 5.
