Quick Start Guide VZ-X Wireless, HDMI & USB Document Camera Copyright© 2019 IPEVO Corp.
Table of Contents The Basics 2 Getting to Know Your VZ-X 3-6 Charging VZ-X 7 Connecting Wirelessly to Your Devices 8-9 Connecting to Your HDMI Displays 10 Connecting to Your Computer via USB 11 Accessing VZ-X’s Advanced Settings 12 Resetting VZ-X 13 Product Safety Certification 14 The Basics VZ-X Wireless, HDMI & USB Document Camera features three connection modes －Wi-Fi, HDMI and USB－that let you capture and stream real-time images to your computer, iOS/Android devices, TV, projector or m

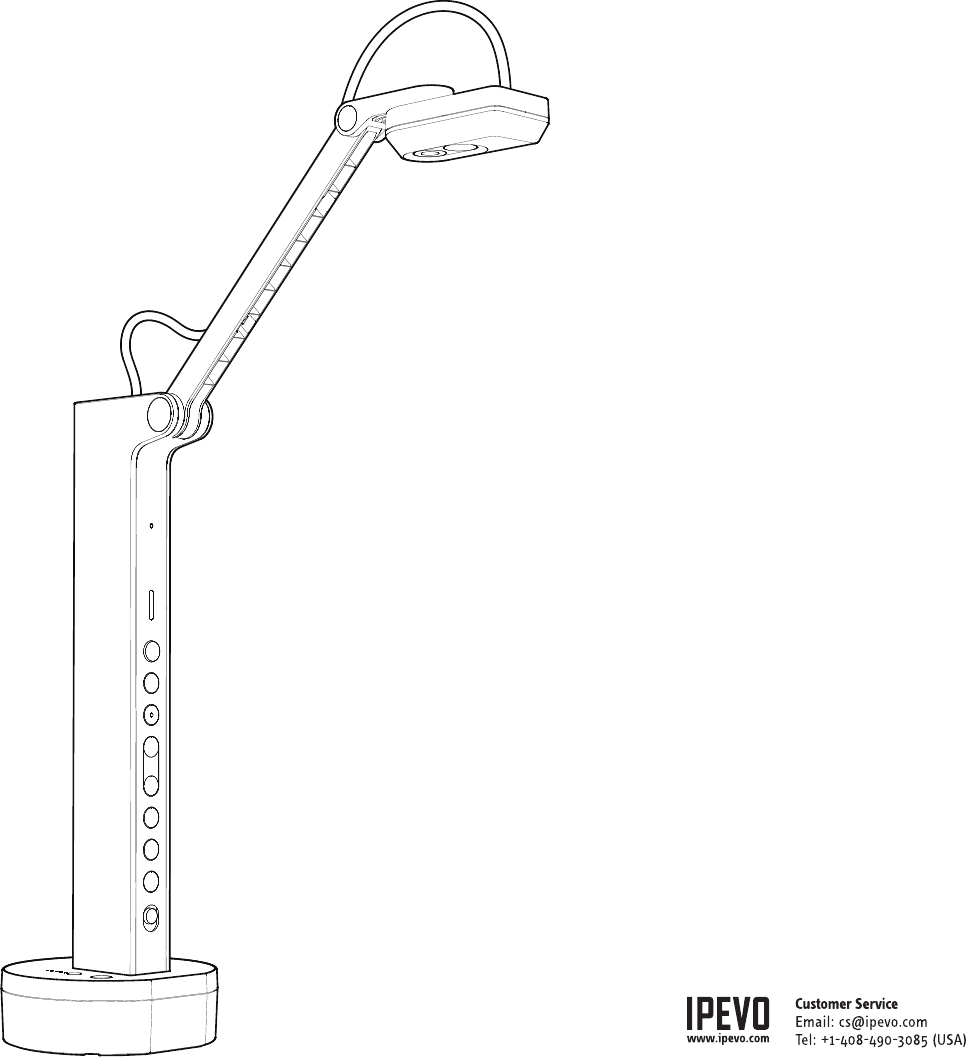

Getting to Know Your VZ-X Camera 8 megapixel camera. Camera head can be swiveled for customizing orientation. Display up to 3264 x 2448 when used in USB mode with IPEVO Visualizer software. Display up to 1920 x 1080 when used in standalone HDMI mode or Wi-Fi mode (with IPEVO Visualizer software). Multi-jointed Stand Gives you the freedom to quickly and easily position the camera at different heights, angles, and various orientations for capturing material.
Getting to Know Your VZ-X Microphone Built-in microphone for video conferencing, recording lessons and more. Note: The microphone is only functional in USB mode. Light Turn the built-in LED light on/off. Filter Apply a video filter to the live image. Three colors – Green, Amber and White. Green indicates that VZ-X is powered on. Amber indicates that VZ-X is in Wi-Fi mode. White indicates that VZ-X is in use and providing an image. Rotate Increase Exposure Rotate the live image.
Getting to Know Your VZ-X Mode Switch Switch between Wi-Fi and USB/HDMI mode. Frequency Switch Change the frequency to 50Hz or 60Hz. Micro-USB Port Plug in the included Micro-USB cable here to: Connect VZ-X to a computer for using in USB mode. Provide power for VZ-X in HDMI mode. Charge VZ-X’s battery. HDMI Port Connect your HDMI cable (not included) here.
Getting to Know Your VZ-X Battery Status Indicators Indicate the battery level or charging status. All five indicators will light up Green when VZ-X is on a full charge or has been fully recharged. Battery Check Button You can check VZ-X’s battery level by pressing this. Action Button Perform the primary function of the respective function mode that is available in IPEVO Visualizer. Note: The Action Button is functional in both Wi-Fi and USB modes.
Charging VZ-X Please charge VZ-X before using to make sure you have sufficient battery power for your session. The steps for charging VZ-X are as below : 1 Connect the included Micro-USB cable to the Micro-USB port of VZ-X. Next, connect the other end of the cable to a 5V/2A USB power adapter (not included). Then, plug the adapter to an outlet for charging.
Connecting Wirelessly to Your Devices VZ-X can be used wirelessly with your iOS/Android devices (iPad & iPhone/Android Tablet & Android Phone), Mac or PC. You may want to check VZ-X’s remaining battery power by pressing the Battery Check Button before you start using it. To use it wirelessly with your device, please follow the steps below: 1 Visualizer Download Whiteboard For iOS and Android devices, please download the free software “IPEVO Visualizer” or “IPEVO Whiteboard” from App Store or Play Store.
Connecting Wirelessly to Your Devices 4 Turn on your device's Wi-Fi. Browse the available Wi-Fi connections and connect to VZ-X’s SSID. The SSID can be found on the label located on the bottom of VZ-X. 5 Visualizer Launch Whiteboard Launch IPEVO Visualizer or IPEVO Whiteboard and choose VZ-X as your camera device. A live image from VZ-X should appear on your device. VZ-X is now ready for use.
Connecting to Your HDMI Displays Please follow the steps below to connect your VZ-X directly to a TV, projector or monitor via HDMI: 1 Connect an HDMI cable (not included) to the HDMI port of VZ-X. Then, connect the other end of the cable to the HDMI port of a TV, projector or monitor. 2 Connect the included Micro-USB cable to the Micro-USB port of VZ-X. Then, connect the other end of the cable to the USB port of your TV, projector or computer to provide power for VZ-X.
Connecting to Your Computer via USB You can use VZ-X with your computer (Mac/PC/Chromebook) via USB. You may use it with IPEVO Visualizer or other compatible third party software. If your computer is connected to a projector, you can then project the live image from VZ-X to a large screen. To use VZ-X with your computer, please: 1 Connect the included Micro-USB cable to the Micro-USB port of VZ-X. Then, connect the other end of the cable to the USB port of your computer. 2 Check the Mode Switch of VZ-X.
Accessing VZ-X’s Advanced Settings You can access VZ-X’s advanced settings to manage its Wi-Fi network settings, setup password protection, update firmware, and do a quick functionality test. To do so, please ensure VZ-X is connected to your device wirelessly and that no other software is accessing it. Then, follow the steps below: 1 Launch your browser and type 10.10.10.1 into the address bar. 2 Enter your login account and password. For first-time login, the default account and password is admin.
Resetting VZ-X Should you need to reset VZ-X to its factory default, you can do so by: 1 Turn VZ-X off if it is still on. off 2 Press and hold on both the Increase Exposure and Decrease Exposure buttons. 3 Turn VZ-X on while holding down the buttons. The LED Indicator will briefly show three colors – Green, Amber and White. You can then release the buttons. VZ-X is now reset.
Product Safety Certification CE Mark Warning Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Do not use/store the product in the following places: ! Precaution ・Near heat sources ・Near steam or greasy smoke ・Locations with high humidity ・Sandy or dusty places 15
