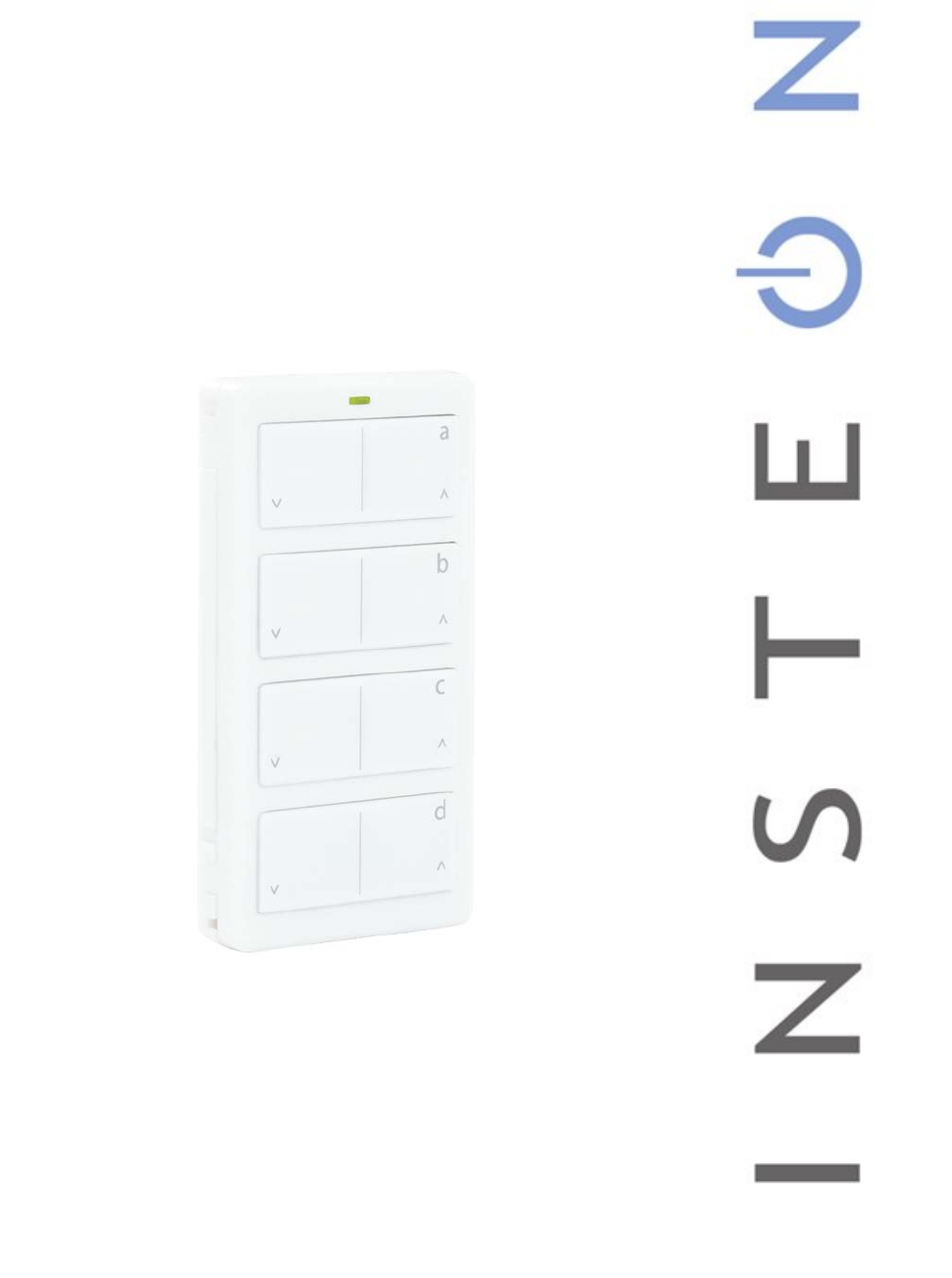

Mini Remote INSTEON® Remote Control Keypad, 4 Scene (formerly RemoteLinc 2) Owners Manual 2342-232, 2444A2WH4 (US) 2342-432 (EU) 2342-532 (AUS/NZ) Page 1 of 16 2342-232/2444A2WH4, 2342-432, 2342-532 Rev: 1/21/2014 7:14 AM
About Mini Remote ..................................................................................................................................... 3 Features & Benefits .................................................................................................................................... 4 What’s in the Box? ..................................................................................................................................... 4 Required Accessories ...........................
About Mini Remote Mini Remote is the smallest and most versatile INSTEON remote control in the world. The 4 scene controller can easily be reconfigured to give you toggle control of up to 8 scenes and/or devices.
Features & Benefits • Small, elegant design • Super-easy setup • Rechargeable battery included • Discreet On and Off buttons for 4 scenes • Can be reconfigured for 8 scene triggers or 8 scene On/Off toggle control • Can be installed into a single Decorator style opening (requires Wall-Mount Bracket, sold separately) • Can be used as a table-top controller (requires Tabletop Stand, sold separately) • Can be used as a visor-mounted remote control for lights, garage door opener etc.
Optional Accessories • • • • • • Wall Mount Bracket (2444B4) Wall mount your Mini Remote anywhere Gang two or more together for more control Can be installed adjacent to existing wired-in switches Mini Remote can easily be removed for portability or recharging Use with any decorator wall plate Pair the Wall Mount Bracket with any decorator style wall plate (sold separately) for the perfect wireless wall switch solution.
Getting Started Fully charge your Mini Remote prior to programming or anytime the unit is not responding. Mini Remote charges via a USB cable (Type A to Micro-B, sold separately). The red charging LED will turn off once the battery has been fully charged (approximately 1 hour). To turn on Mini Remote, simply slide the power switch to the on position. Note: Mini Remote uses a subtle beeper sound to assist setup. It is recommended that you program the unit in a quiet area.
1) Tap the Mini Remote scene button of choice (on or off buttons will both work) The Responder will respond 2) Press & hold the Mini Remote’s Set button until it beeps Mini Remote’s LED will blink green 3) Press & hold the Mini Remote’s Set button until it beeps again Mini Remote’s LED will blink red 4) Press & hold the Responder’s Set button until it double-beeps (or LED blinks) Mini Remote will double-beep and its LED will stop blinking 5) Confirm that Unlinking was successful by tapping the scene button
LED Behavior Mini Remote has a two-color LED (Green & Red) which momentarily indicates whether an on or an off is being sent. LED State Meaning Blink Green (Once) On Sent Blink Red (Once) Off Sent Blink Red (for a few seconds) One or more scene members did not acknowledge (note: scene members may still have heard the scene command and adjusted their settings) Turn Unit On/Off (Pocket Mode) The Mini Remote features a power switch located next to the Set button.
2) Press & Hold Set Button for 3 seconds - until you hear a beep Mini Remote’s LED will blink green nd 3) Press & Hold Set Button a 2 time for 3 seconds - until you hear a beep Mini Remote’s LED will blink red 4) Tap Set Button Mini Remote’s LED will double-blink red 5) For each Responder you wish to remove from scene, Press & Hold its Set Button until Mini Remote double-beeps Mini Remote’s LED will continue to double-blink red 6) When all your devices have been removed, tap Mini Remote’s Set Button Mini R
Turn LED Off (or Back On) 1) Press & Hold Set Button for 3 seconds - until you hear a beep LED will blink green nd 2) Press & Hold Set Button a 2 time for 3 seconds - until you hear a beep LED will blink red rd 3) Press & Hold Set Button a 3 time for 3 seconds - until you hear a beep LED will blink green 4) Press the appropriate button for the desired button/scene configuration Desired LED Mode Button to Press LED Off Top Row, Left Side LED On (default) Top Row, Right Side Mini Remote will double-b
Beeper Behavior Command Method Beeper Disabled (Default) Beeper Enabled On Tap - Single Beep Off Tap - Single Beep Fast-On Double-Tap - Single Beep Fast-Off Double-Tap - Single Beep Begin Bright Press & hold - Single Beep Begin Dim Press & hold - Single Beep Setup Action Beeper Enter Setup Mode, Transition to next setup mode or Exit Setup Mode Single Beep Setup successful, return to Ready Mode Double-Beep Return to Ready Mode after a longer than 3 minute timeout Long Beep
Mini Remote will emit a long beep 5) Continue to Hold Set Button until the long beep stops LED turns solid red 6) Release Set Button Mini Remote will double-beep and its LED will turn off Specifications General Product Name Mini Remote 4-Scene (formerly RemoteLinc 2) Brand INSTEON Manufacturer Product Number 2342-232, 2444A2WH4 (US) 2342-432 (EU) 2342-532 (AUS/NZ) UPC 813922010701 (US) 813922012583 (EU) 813922012590 (AUS/NZ) FCC ID SBP2444A Patent Number Protected under U.S.
Fast-Off Red Blink for ~3 Seconds Scene Acknowledge Missing LED Always used for setup, default On during use Setup Button Yes On/Off Switch Yes Beeper Yes, configurable Battery Charging LED Yes, Embedded (shines red through case during charge) RF Range 50’ Line-of-Sight RF Frequency 915MHz (US) 869MHz (EU) 921MHz (AUS/NZ) Retains all settings without power Yes, all saved in Non-volatile EEPROM Mechanical Color White Plastic UV Stabilized ABS Dimensions 2.6" H x 1.3" W x 0.
Problem Possible Cause Large appliances, such as refrigerators or air conditioners, may be producing electrical noise on the power line Other electrical devices, such as computers, televisions, or power strips, may be absorbing the INSTEON signal Solution Install a power line noise filter (e.g.
- Increase the distance between this device and the receiver - Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver - Consult the dealer or an experienced radio/TV technician WARNING: Changes or modifications to this device not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
INSTEON ATTN: Receiving 16542 Millikan Ave. Irvine, CA 92606-5027 Limitations The above warranty is in lieu of and Seller disclaims all other warranties, whether oral or written, express or implied, including any warranty or merchantability or fitness for a particular purpose. Any implied warranty, including any warranty of merchantability or fitness for a particular purpose, which may not be disclaimed or supplanted as provided above shall be limited to the one-year of the express warranty above.
