Product Manual

IBRIDGE- 4 Port Contact Closure Toggle Switch

Users Manual –IBRIDGE 4Port Contact Closure Toggle Switch Page 1

www.idealindustries.com

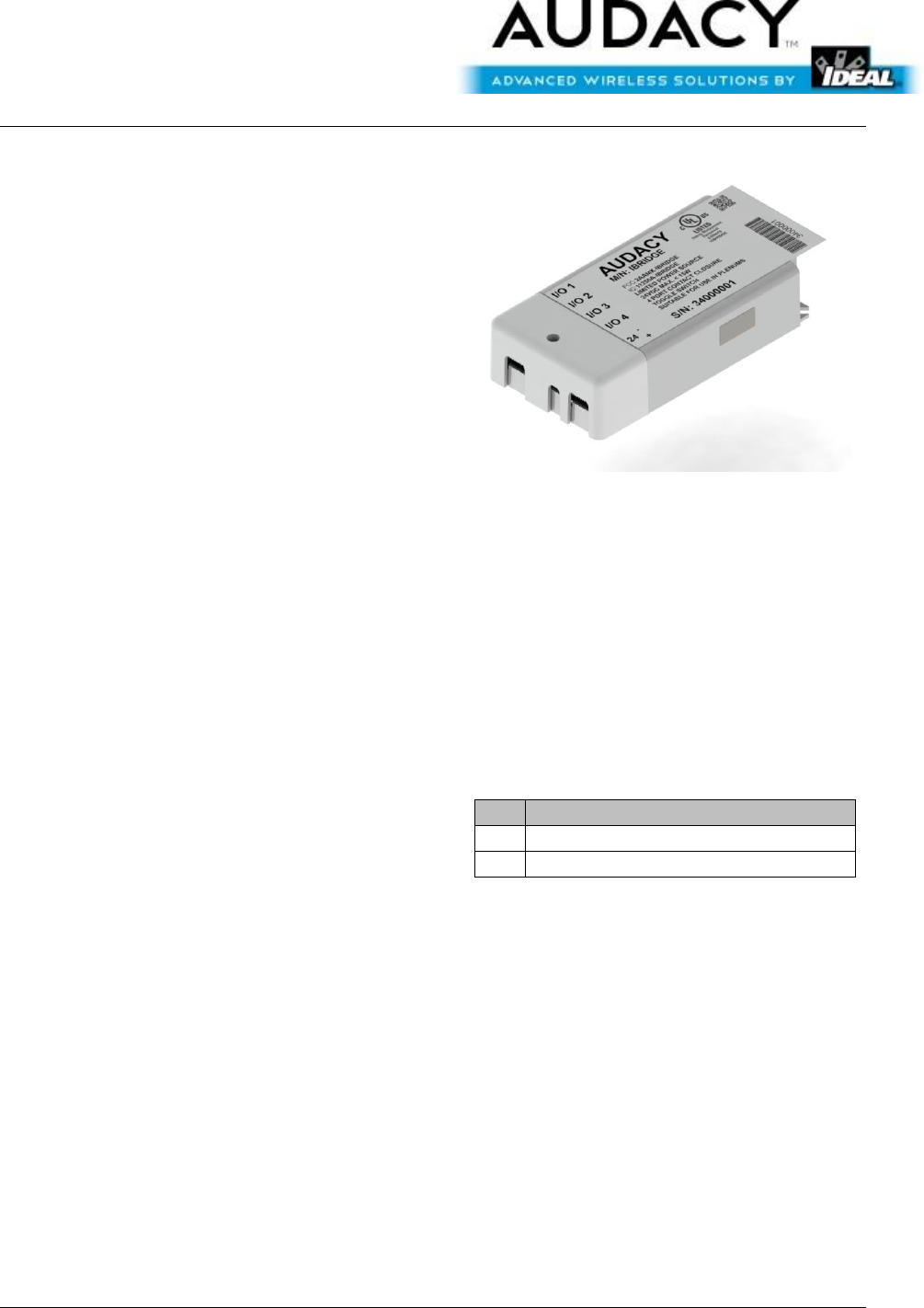

PRODUCT DESCRIPTION

The Audacy IBRIDGE toggle switch is a DC

powered device specially designed to allow

a building occupant to turn on or off lights

from an external device’s contact closure.

The Toggle Switch wirelessly communicates

with the light fixtures via the Audacy Smart

Connector which resides at the fixture and

also physically performs the corresponding

control of the fixture(s).

KEY FEATURES

FCC and IC approved

Flexible wall mounting options

Small form factor with internal antenna

RoHS compliant

Factory configurable for custom

applications

PRODUCT CONTENTS

The following items are included inside the

package:

Qty

Description

IBRIDGE Toggle Switch

Instruction card

Audacy®, Smart Connector® are registered trademarks of IDEAL INDUSTRIES.

All other trademarks are the property of their respective owners.

Summary of content (7 pages)

PAGE 1
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch PRODUCT DESCRIPTION The Audacy IBRIDGE toggle switch is a DC powered device specially designed to allow a building occupant to turn on or off lights from an external device’s contact closure. The Toggle Switch wirelessly communicates with the light fixtures via the Audacy Smart Connector which resides at the fixture and also physically performs the corresponding control of the fixture(s).
PAGE 2
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch SET-UP AND OPERATION 1. Connect DC power to the +/- input of the IBRIDGE toggle switch to activate device. 2. Mount device where desired. Avoid placing radio device near metal objects if at all possible. 3. Connect necessary contact closure inputs to an I/O input. 4. When the green LED illuminates during switch actions, the is active and transmitting radio frequency (RF) energy.
PAGE 3
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch MECHANICAL (SIDE VIEW) *Dimensions in inches MECHANICAL (TOP VIEW) *Dimensions in inches Users Manual –IBRIDGE 4Port Contact Closure Toggle Switch www.idealindustries.
PAGE 4
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch SUPPORT Technical support for IDEAL INDUSTRIES products can be initiated through the following methods: Website: http://www.idealindustries.com/support/ Telephone: +1 800-435-0705 Email: contactus@idealindustries.com Users Manual –IBRIDGE 4Port Contact Closure Toggle Switch www.idealindustries.
PAGE 5
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch COMPLIANCE STATEMENTS This device is intended for commercial and industrial applications. Changes or modifications not expressly approved by IDEAL could void the user’s authority to operate the equipment. Use and maintain device only as specified in this manual. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
PAGE 6
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch IMPORTANT NOTICE Information furnished by IDEAL INDUSTRIES, INC. is believed to be accurate and reliable. No license, express or implied, to any intellectual property rights is granted by this document. No responsibility is assumed by IDEAL INDUSTRIES, INC. for its use, nor for any infringements of patents or other rights of third parties that may result from its use. IDEAL INDUSTRIES, INC. assumes no liability for misuse of this product.
PAGE 7
Product Manual IBRIDGE- 4 Port Contact Closure Toggle Switch WARRANTY THIS LIMITED WARRANTY applies solely to standard transmitters manufactured by or on behalf of IDEAL.
