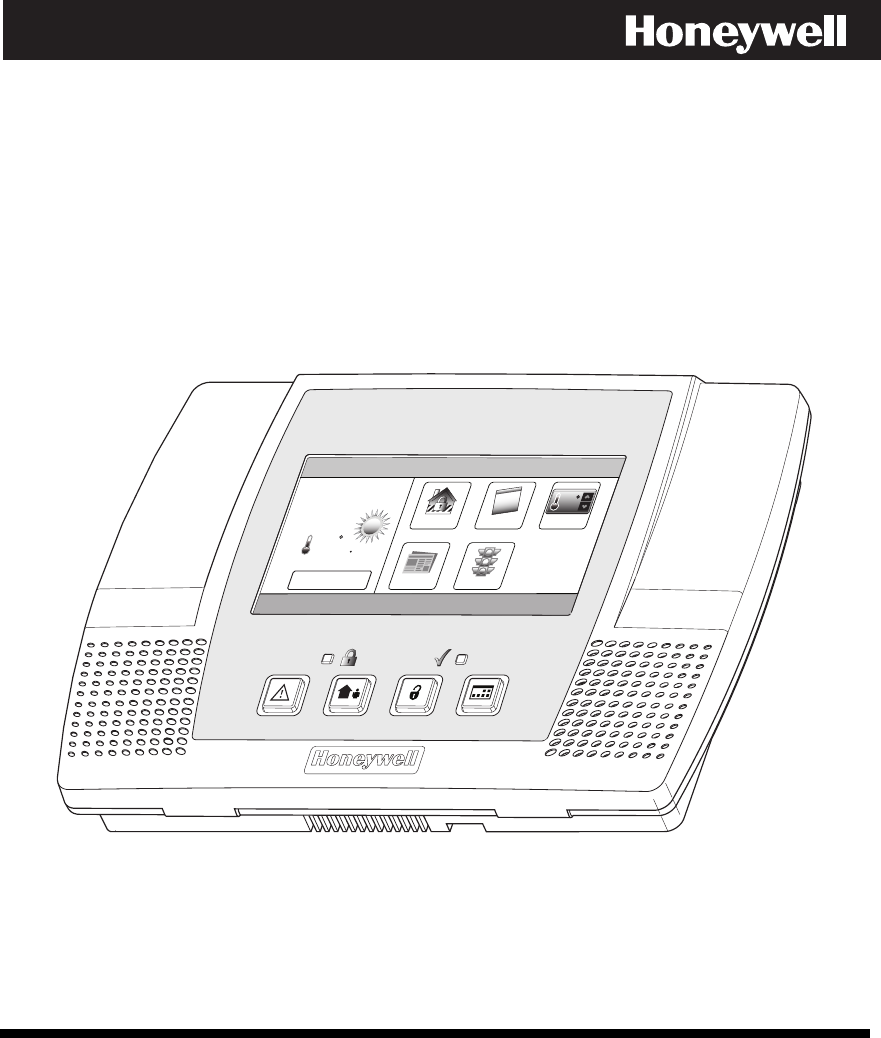

LYNX Touch Security System User Guide Ready To Arm 12:35 PM October 26, 2011 68 F Feels Like 71 Messages Automation F 5-Day Forecast 800-10615 1/12 Rev.
Your Honeywell security system is designed for use with devices manufactured or approved by Honeywell for use with your security system. Your Honeywell security system is not designed for use with any device that may be attached to your security system's control or other communicating bus if Honeywell has not approved such device for use with your security system.
TABLE OF CONTENTS SYSTEM OVERVIEW..................................................................................................................................5 Features ...................................................................................................................................................5 General Operation...................................................................................................................................6 Quick View of System Functions ........
TABLE OF CONTENTS SYSTEM FUNCTIONS..............................................................................................................................74 Testing the System................................................................................................................................74 Maintaining Your System.....................................................................................................................77 SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS ...............
SYSTEM OVERVIEW Features General Information This system offers you three forms of protection: burglary, fire, and emergency, depending on the configuration of your system. The system consists of a touch screen control for system operation, various wireless sensors that provide perimeter and interior burglary protection, and optional smoke or combustion detectors to provide early fire warning.
SYSTEM OVERVIEW Features • Device activation: Allows you to send “Follow-Me” or e-mail messages, as a result of a system event such as an alarm or trouble condition. Refer to the Rules section for detailed information. • Schedules feature: Allows you to schedule the automatic activation or deactivation of program events (e.g. alarm clock, reminder, and latch key). Refer to the Schedules section for detailed information.
SYSTEM OVERVIEW General Operation Security Codes At the time of installation, you were asked to provide a personal 4-digit security or “Master User” code. You must enter the user code when arming and disarming the system, and when performing other system functions. As an additional security feature, other users who do not need to know your code can be assigned up to 14 different security codes. Refer to the Security Codes section for procedures on adding security codes to the system.
SYSTEM OVERVIEW General Operation LYNX Touch SIA False Alarm Prevention Features Many false alarms are caused by simple accidents, like forgetting to close a door when you leave. The LYNX Touch SIA includes several features that help prevent false alarms and some of these are optional or programmable. Although turning off some of these features may provide additional security, it may also increase the chance of false alarms. Your installer can help you decide whether to use the features or not.
SYSTEM OVERVIEW Quick View of System Functions SECURITY FUNCTIONS Check System status: ................................................. Select “System” icon. To arm in STAY mode: .............................................. Select “Arm Stay” icon then enter Code. To restart exit delay: ................................................... Select “Restart Exit Delay” icon. To arm in AWAY mode: ............................................. Select “Arm Away” icon or depress “Away” key then enter Code.
SYSTEM OVERVIEW About the Touch screen Control General **IMPORTANT** If the LYNX Touch is beeping rapidly upon entering the premises, an alarm has occurred during your absence and an intruder may still be on the premises. LEAVE IMMEDIATELY and CONTACT THE POLICE from a nearby safe location. The touch screen icons and keys allow you to control all system functions. Additionally, the touch screen display shows the zone and description of all system occurrences.
SYSTEM OVERVIEW About the Touch screen Control Note: The system functions described below are for reference only and require additional key entries to activate. Index 1 Item Description Display Window Color Liquid Crystal Display (LCD) Touch screen. Displays system status icons, time, system status information, user menus and the virtual keypad.
SYSTEM OVERVIEW About the Display and Indicators Display Definitions ICON OR DEFINITION TEXT Ready to Arm Displayed along with the the text “Ready To Arm” when system is Disarmed and ready to arm. Armed Away “Armed Away” is displayed along the top of the screen. An armed away icon along with “Armed Away” is displayed after the exit delay expires. Armed Stay “Armed Stay” is displayed along the top of the screen. An armed stay icon along with “Armed Stay” is displayed after the exit delay expires.
SYSTEM OVERVIEW About the Display and Indicators ICON TEXT Alarm 96 Medical Alarm 99 Police CO Alarm Cover Tamper Reporter Failure Low Battery 90 RF Jam DEFINITION The Medical icon displayed when a medical alarm is activated. “Alarm” is also displayed in a red band along the top of the screen. (If programmed for display by your installer) The alarm (bell) icon when a burglary alarm is activated. “Alarm” is also displayed in a red band along the top of the screen.
SYSTEM OVERVIEW Navigating Menus LCD Display LYNX Touch’s Liquid Crystal Display (LCD) touch screen displays variable icons and text on “screens”. The screen displays status icons and associated text, the current time, system status information and menu choices. The system status is displayed in a colored band along the top of the screen. The band color is variable and will change between red, yellow and green as the system status changes.
SYSTEM OVERVIEW Navigating Menus Navigation Keys Navigating through the screens is accomplished by lightly touching the menu item on the touch screen. Once activated, the control will take you to the next screen. Selecting the “Home” (cancel) key will return you to the dashboard at any time unless System Programming mode is active. Pressing the or the “2” Key will return you to the previous screen. Note: You may find it convenient to adjust the volume setting before entering the Program (Tools) Mode.
SYSTEM OVERVIEW Navigating Menus Menu Screens System Status is displayed at the top of each screen. The time and date are displayed at the bottom of the Home Screen. Menus Unrestricted Menu The first page of the Home Screen provides access to an Unrestricted Menu displays the system status and eight selection icons or “buttons”. • Zones – Provides access to Zone information and options. • Automation – Provides access to the Home Automation features. • Arm Away – Used to Arm the system in Away mode.
SYSTEM OVERVIEW Navigating Menus Master Menu The User Menu provides access to User configurable features and displays eight options. Entering the Master User Code is required to access the Master menu. • Users – Allows Master User to add or remove User Codes. • Events – Allows Master User to view system events. • Test – Allows Master User to Test the system. • Keypad – Allows Master User to enroll and view information associated with Mobile Interface Device(s). • Date Time – Used to program date and time.
SECURING THE PREMISES System Status General Information Before arming your system, all protected doors, windows, and other protection zones must be closed or bypassed (see the BYPASSING PROTECTION section). Ready LED: The Green (Ready) indicator on the control will be lit if the system is ready to be armed. If blinking, the system is not ready. NOTE: The phrases shown in brackets are variable, and are announced only if appropriate in the current state of the system.
SECURING THE PREMISES Arming the System Arming in Stay Mode Use this mode when you are staying home, but expect someone to use the entrance door later. Close all protected perimeter windows and doors before arming. The green Ready indicator on the control should be lit if the system is ready to be armed. When armed in STAY mode, the system will sound an alarm if a protected door or window is opened, but you may otherwise move freely throughout the premises.
SECURING THE PREMISES Arming the System Armed Stay 3. 72 Disarm Zones Automation Message Phone 10:18 AM June 8, 2010 At the end of the exit delay the system announces “Armed Stay” and displays the “Armed Stay” screen. More 5000-100-056-V1 If an invalid User Code is entered, the system will return to the home screen.
SECURING THE PREMISES Arming the System Arming In Away Mode Use this mode when no one will be staying on the premises. Close all protected perimeter windows and doors before arming. The green Ready indicator on the control should be lit if the system is ready to be armed. When armed in AWAY mode, the system will sound an alarm if a protected door or window is opened, or if any movement is detected inside the premises, when infrared detection devices are used.
SECURING THE PREMISES Arming the System Armed Away 3. 72 Disarm Zones Automation Message Phone 10:18 AM June 8, 2010 If “Exit Warning” has been enabled, the system will continue to beep throughout the exit delay. Rapid beeps will sound for the final 10 seconds of the delay period. At the end of the exit delay the system will announce “Armed Away” and displays the “Armed Away” screen. More 5000-100-057-V1 If an invalid User Code is entered, the system will return to the home screen.
SECURING THE PREMISES Arming the System Arming the System with no delay (Instant) Use “Instant” with Stay mode when you are staying home and do not expect anyone to use the entrance door. Use “Instant” with Away mode when the premises will be vacant for extended periods of time such as vacations, etc. When armed with “Instant”, the system will sound an alarm if a protected door or window is opened, including the entrance door.
SECURING THE PREMISES Entry/Exit Delays Exit Delay Exit delay begins immediately after arming the system, and gives you time to leave through the designated exit door without setting off an alarm. The system display will count down the time remaining in the exit delay, if programmed by your installer. If the system has been Armed Away, a slow beeping will sound throughout the exit delay period, if programmed by your installer. The exit door must be closed before the end of the exit delay.
SECURING THE PREMISES Entry/Exit Delays system/zone status area. The alarm will continue to sound until the system is disarmed or timeout ocurs. To stop the alarm, the system must be disarmed by selecting the “Disarm” icon OR depressing the “Off” key and then entering your security code. The message “Alarm Cancelled" is displayed, in the system bar, indicating that the alarm has been cancelled (if this feature is enabled by the installer).
SECURING THE PREMISES PREMIS ES Disarming the System Select the “Disarm” icon or the “Off” key to disarm the system and to silence alarm and trouble sounds. See the Summary of Audible Notification section for information, which will help you to distinguish between fire and burglary alarm sounds. During Entry Delay or when an Alarm Condition exists, the system will be disarmed as soon as the correct user code is entered on the touch screen. Selecting the Off key is not required.
SECURING THE PREMISES Disarming the System Disarming the System During Entry Delay Upon entering the premise when the system is armed, the control announces “disarm system now”. 1. Enter a valid Code. The system beeps once and announces “Disarmed Ready to Arm”. Note: If a valid user code is not entered before the programmed entry delay occurs, the system enters alarm mode.
SECURING THE PREMISES Bypassing Protection Zones Bypassing Individual Zones The Bypass feature can be used when you want to intentionally arm your system with one or more zones unprotected. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed. All bypasses are removed when an Off sequence is performed. The system will not allow panic, fire or CO zones to be bypassed. Bypassing Zones Ready To Arm 1.
SECURING THE PREMISES Bypassing Protection Zones Displaying/Clearing Bypassed Zones Ready To Arm - Bypass 72 Arm Away Delay Arm Stay Zones Automation Message Phone More 10:18 AM June 8, 2010 5000-100-210-V0 Ready To Arm - Bypass 2. Front Door BYPASSED 3. Garage Door 1. With the system in the disarmed state, select the “Zones” icon. The system displays the Zone screen and the status for each zone will be indicated. 2.
SECURING THE PREMISES Panic Keys Panic Keys Your system may have been programmed to use special keys to manually activate panic functions. The functions that might be programmed are listed below. See your installer for the function(s) that may have been programmed for your system. Note: Your installer should advise which functions are active in your system. Key Function When activated, alerts the alarm monitoring company that a fire condition exists.
SECURING THE PREMISES Panic Keys Activating a Panic Alarm Ready To Arm 1. With the system in the disarmed or armed state, depress and hold the “Panic” key until the system displays the Panic screen (approximately 3-4 seconds). 72 Arm Away Arm Stay Delay Zones Automation Message Phone More 10:18 AM June 8, 2010 5000-100-006-V1 Ready To Arm Police Fire 2. Touch the desired panic icon on the screen. 3. If applicable, the alarm sounds and the associated icon is displayed.
SECURING THE PREMISES Chime Mode Chime Mode Your system can be set to provide you with an audible alert of the opening of a door, while it is disarmed, by using Chime mode. When activated, three beeps will sound at the control whenever a protected perimeter door is opened and the zone voice descriptor will be announced, if programmed. Additionally, the faulted zone information will be displayed on the home screen. Selecting the “Zones” icon displays the open protection points.
SECURING THE PREMISES Voice Mode Voice Mode Your system can be set to provide you with a voice alert of system functions by activating the Voice mode. When activated, the system will announce the system status when armed/disarmed. The Voice mode can be turned on only when the system is disarmed. Turning Voice Mode On or Off Ready To Arm 1. With the system in the disarmed or armed state, select the “Settings” icon from the second page of the Home Screen. The system displays the Keypad screen.
USER FUNCTIONS User Access General Information For additional security you (the Master User Code) can assign secondary user codes to individual users enabling them to perform specific system functions. These secondary users are identified by "User Numbers" when their codes are assigned. You can assign up to 14 user codes. Note that the Master User is the only one who can assign codes to secondary users.
USER FUNCTIONS User Access Ready To Arm Program the system Enter Code: Cancel 1 2 3 4 5 6 7 8 9 Clear 0 2. Enter your 4-digit Master User Code. The system displays the Master User programming screen. 5000-100-009-V0 Ready To Arm 3. Select the “Users” icon. The system displays the Master User screen. Users Events Test Keypad Date Time Reminders Slide Show WiFi Config Back 5100-100-006-V0 Ready To Arm Master **** 4. Select the “Add New” key. The system displays the User screen.
USER FUNCTIONS User Access Ready To Arm 123!@# Q W E A Clear 6. If desired you can enter a User Name. Select the “Clear” key and then enter up to 10 characters of text. User3 R T Y U I O S D F G H J K Z X C V B N M abc... P Note: L Select the “ABC…” key to switch the keyboard between upper/lower case or the “123!@#” key to switch to numbers. 1. Once you are finished, select “Done”. The system displays the Keypad screen. Done 5000-100-081-V0 Ready To Arm 8.
USER FUNCTIONS User Access Editing/Deleting a User Ready To Arm 1. With the system in the disarmed state, select the “Tools” icon from the second page of the Home Screen. The system displays the Keypad screen. Tools Arm Away Arm Stay Dashboard Settings 10:18 AM June 8, 2010 Delay Back 5100-100-003-V0 Ready To Arm Program the system Enter Code: Cancel 1 2 3 4 5 6 7 8 9 Clear 0 2. Enter your 4-digit Master User Code. The system displays the Master User programming screen.
USER FUNCTIONS User Access Ready To Arm 123!@# Q W A Clear 5. If desired you can revise a User Name. Select the “Clear” key and then enter the desired text. 6. Once you are finished, select “Done”. The system displays the Keypad screen. If you wish to change the assigned User Code, proceed to Step 7 otherwise proceed to Step 9. User3 E R T Y U I O S D F G H J K Z X C V B N M abc... P L Done 5000-100-081-V0 Ready To Arm Enter Code 1 2 3 4 5 6 7 8 9 Clear 0 7.
USER FUNCTIONS View Events This feature can be used to view a number of System Events including Arming/Disarming, Zone Activity, Troubles and Alarms. Viewing System Events Ready To Arm 1. With the system in the disarmed state, select the “Tools” icon from the second page of the Home Screen. The system displays the Keypad screen.
USER FUNCTIONS View Events Ready To Arm Sun Jun 13, 2010 15:08 Disarmed User 2 E 441 Sat Jun 12, 2010 11:15 Armed Stay User 1 R 441 Sat Jun 12, 2010 11:08 Burglary Bypass Zone 3 E 570 Sat Jun 12, 2010 10:15 Disarmed User 1 E 401 Fri Jun 11, 2010 18:08 Armed Away User 2 R 401 Fri Jun 11, 2010 12:10 Disarmed User 3 E 441 Fri Jun 11, 2010 11:08 Armed Stay User 2 R 441 Fri Jun 11, 2010 10:15 Burglary Bypass Zone 3 E 570 4. If you wish to view specific system history, select “All”.
USER FUNCTIONS Message Recording and Playback The LYNX Touch Message Center allows you to record, play and delete messages. The maximum message duration is 184 seconds. NOTES: (1) If the system loses electrical power, all messages will be erased. (2) Message Play/Record will not be available if a report must be sent. Entering Message Mode Ready To Arm 1. 72 Arm Away Delay Arm Stay Zones Automation Message Phone With the system in the disarmed state, select the “Message” icon from the Home Screen.
USER FUNCTIONS Message Recording and Playback 6. When you have finished recording, select “2”. The system displays the recorded messages. 7. To record additional messages (if recording time is available) repeat steps 1 through 3. Ready To Arm Message 1 2:48 PM September 1, 2010 Message 2 5:09 PM September 5, 2010 Add New Play Delete All 5000-100-046-V0 NOTE: If you are trying to record a new message and the message center is already full, “Add New” will not be displayed.
USER FUNCTIONS System Settings The volume level of message playback, system announcements, and status beeps can be changed if desired. Additionally, you can adjust the display’s brightness and contrast and turn on or off the Chime or turn off the telephone Ringer. Change System Settings Ready To Arm 1. With the system in the disarmed or armed state, select the “Settings” icon from the second page of the Home Screen. The system displays the Settings screen.
USER FUNCTIONS Clock/Calendar Note: If your system is equipped with a GSMVLP5 or ILP5 Communication Module, the time and date will be programmed and updated automatically via Central Station. You may still program the correct Time Zone as shown below. Check with your installer to see if your system is equipped with a Communications Module. Setting the Date and Time Note: The system must be disarmed in order to set the date and time. Ready To Arm 1.
USER FUNCTIONS Clock/Calendar System Programming... June SUN 4. Select the correct month by using the “W” and “X”. 5. Select the correct year by using the “W” and “X”. 6. Select the correct day on the calendar. 7. When you have finished select the “T” icon. The system advances to the time screen. 2010 MON TUE WED THU FRI SAT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Save 5000-100-016-V0 System Programming ...
USER FUNCTIONS Clock/Calendar Ready To Arm January February March April May June July August 12. Select “Start Month”. The system displays a calendar. Select the correct month. 13. Select “Start Week”. The system will toggle between: Second Third Fourth Last Next to Last 3rd from Last First 5000-100-075-V0 14. Select “End Month”. The system displays a calendar. Select the correct month. 15. Select “End Week”.
USER FUNCTIONS Automation General Information Automation is used to program triggers, home automation features, send Follow-Me or Email messages of system events or program home automation features (Z-Wave) including Rules and Scenes (if Z-Wave communications have been enabled). Up to 40 rules can be programmed. Rules 1 through 20 are used for Triggers, Z-Wave Scenes and Follow-Me Messages.
USER FUNCTIONS Automation Ready To Arm 2. Select the “Rules” button. The system displays the Rules screen. Switches Rules Thermostat Schedules Locks Scenes 68 Tools 5100-100-007-V0 Ready To Arm 4. Select a “Rules” key followed by the Edit button. The system displays a keyboard. Rules 2 Rules 1 New New Rules 3 Rules 4 New New Rules 5 Rules 6 New New Note: Rules 21-40 are only TotalConnect Service. Edit accessible through Delete 5100-100-070-V0 Ready To Arm 4.
USER FUNCTIONS Automation 7. Select “Action”.
USER FUNCTIONS Automation Ready To Arm 9. Select “Stop Zone Type” or “Zone Type Restore” (if “Scene” was selected in Type field). The system displays the same options as the previous step.
USER FUNCTIONS Automation Ready To Arm Zone Number Operation Fault First Start Zone First Stop Zone Disabled Disabled Second Start Zone Second Stop Zone Disabled Disabled Third Start Zone Third Stop Zone Disabled Disabled Save 5000-100-192-V0 OR Ready To Arm Zone Number Operation Fault First Zone Fault Disabled 13. Select the First, Second or Third “Start Zone” or “Zone Fault” (The name of this field is dependant upon the “Type” that was selected in Step 6.
USER FUNCTIONS Automation Schedules The Schedules Feature can be used to program the system to automatically perform certain functions (i.e.; automatically arming the system in Stay mode and activating output [ZWave] devices). Programming a Scheduled Function Ready To Arm 1. With the system in the disarmed state, select the “Automation” icon from the Home Screen. The system displays the Keypad screen.
USER FUNCTIONS Automation 4. Select “Name”. The system displays a keypad. Ready To Arm Name Frequency None Type None Save 5000-100-144-V0 Ready To Arm User3 123!@# Q E W A Clear abc... R T Y U I O S D F G H J K Z X C V B N M P L Done 5000-100-081-V0 5. Enter a name (up to 13 digits long) for the scheduled function on the displayed keypad then select “Done”. 6. Select “Frequency” then select one of the following displayed options: None Once Daily Weekday Weekly Monthly 7.
USER FUNCTIONS Automation Ready To Arm Enter Time 10:21 AM AM / PM 1 2 3 4 5 6 7 8 9 Clear 0 Done 5000-100-147-V0 9. If Auto Stay is selected, select “Clear” then enter a 4-digit time on the displayed keypad then select “Save”. If “Rules” is selected proceed to Step 11. If “Disarm Notification” is selected proceed to Step 12. 10. Select “Rules” then select a Rule from the displayed list (Rules 1 through Rules 20). 11.
USER FUNCTIONS Automation Scenes Scenes are used to control a single or group of devices together, turning them OFF, ON, ON to a preset lighting level, temperature or mode, or lock/unlocked. The LYNX Touch has 20 Scenes which may each be configured with up to 10 devices each. Scenes can be manually activated or activated by a Rule. Rules are used to control Scenes by pre-set “Conditions” and “Triggers”. Up to 20 Rules may be programmed locally into the LYNX Touch. Programming a Scene Ready To Arm 1.
USER FUNCTIONS Automation 4. Ready To Arm Switches 68 Thermostat Locks 5100-100-083-V0 Select the “Add New Device” button. The system displays the available Z-Wave device types. Select one of the following options: Switches Thermostats Locks 5. Select the desired device type, then select the applicable device from the list of installed devices. The device’s operational screen is displayed. Up to 10 devices may be associated with a scene. 6. Set the desired options.
USER FUNCTIONS Automation Editing/Deleting a Scene Ready To Arm 1. With the system in the disarmed state, select the “Automation” icon from the Home Screen. The system displays the Keypad screen. 72 Zones Arm Away Arm Stay Message 10:18 AM June 8, 2010 Delay Automation Phone More 5100-100-004-V0 Ready To Arm 68 Switches Rules Thermostat Schedules Locks Scenes 2. Select the “Scenes” button. The system displays the Scenes screen.
USER FUNCTIONS Automation Running a Scene Ready To Arm 1. With the system in the disarmed state, select the “Automation” icon from the Home Screen. The system displays the Keypad screen. 72 Zones Arm Away Arm Stay Message 10:18 AM June 8, 2010 Delay Automation Phone More 5100-100-004-V0 Ready To Arm 68 Switches Rules Thermostat Schedules Locks Scenes 2. Select the “Scenes” icon. The system displays the Scenes screen.
USER FUNCTIONS Reminders The Reminder Feature can be used to program/record reminders that can be displayed on the touch screen, announced by the control and/or sent to one or two pre-programmed phone number(s). Check with your installer to see if the latter feature has been programmed on your control. Programming a Reminder Ready To Arm 1. With the system in the disarmed state, select the “Tools” icon from the second page of the Home Screen. The system displays the Keypad screen.
USER FUNCTIONS Reminders Ready To Arm 4. Select “Add New”. The system displays the Reminder programming screen. No items to display! Edit Add New Delete 5000-100-178-V0 Ready To Arm Name Frequency None Voice Acknowledge No No Save 5000-100-176-V0 Ready To Arm 123!@# Q E W A Clear R T Y U I O S D F G H J K Z X C V B N M abc... P L 5. Select “Name”. Enter a name for the scheduled function on the displayed keypad then select “Done”. 6.
USER FUNCTIONS Reminders Ready To Arm Name Frequency Walk Dog Once Date January 1, 2011 Start Time 3:00 PM Voice Follow Me Acknowledge No Disabled No Save 5000-100-183-V0 10. If a “Follow Me” phone number(s) was programmed by your installer you can send a reminder to the phone number(s). Select “Follow Me” option. The system toggles between “Disabled”, “To Ph. 1”, “To Ph. 2” and “To Ph. 1 & 2”, as applicable. Note: For important reminders you should program the “Acknowledge” option.
USER FUNCTIONS WiFi Configuration View/Join Available WiFi Networks Ready To Arm 1. At the Master User screen select the WiFi Config icon. The system displays the WiFi options screen. Users Events Test Keypad Date Time Reminders Slide Show WiFi Config Back 5100-100-006-V0 Ready To Arm 2. Select the “Scan Access Points” button to view the available networks. The available networks are displayed. Use the down T arrow to scroll to the next page of options.
USER FUNCTIONS WiFi Configuration Manually Configure Access Point Ready To Arm 1. At the Master User screen select the WiFi Config icon. The system displays the WiFi options screen. Users Events Test Keypad Date Time Reminders Slide Show WiFi Config Back 5100-100-006-V0 Ready To Arm 2. Select the “Manually Configure AP” button to view the available networks. The WiFi enrollment screen is displayed. Scan Access Points Manual Configure AP 5100-100-032-V0 System Programming... 3.
USER FUNCTIONS WiFi Configuration Enrolling/Syncing Auxiliary Keypads The LYNX Touch will support up to four Mobile Internet Devices (MID) (or tablets) that can be used as auxiliary keypads. A WiFi communication device is required. The “Keypad” button is used to enroll/sync the MID with the control. Refer to the documentation provided with the MID to enroll/sync the keypad. Viewing or Deleting Enrolled Keypads Ready To Arm 1. At the Master User screen select the Keypad icon.
USER FUNCTIONS Speaker Phone Feature If this feature has been programmed the LYNX Touch is capable of operating as a speaker phone. During speaker phone operation the system will provide the following functions: • All function/event processing will continue to operate, but there will be no announcements. NOTE: The system will enter the Speaker Phone mode even if an alarm or trouble is stored in the system memory.
USER US ER FUNCTIONS Speaker Phone Feature Placing a Call Ready To Arm 72 Arm Away Delay Arm Stay Zones Automation Message Phone 1. With the system in the disarmed or armed state, select the “Phone” icon from the Home Screen. The system displays the Keypad screen. More 10:18 AM June 8, 2010 5000-100-006-V1 Ready To Arm 1 2 3 4 5 6 7 8 9 Talk Redial 0 Volume Flash 5000-100-148-V0 2. Select the “Talk” icon and then enter the number you wish to dial.
USER FUNCTIONS Remote Phone Control Feature The LYNX Touch Series is equipped with a remote interactive phone capability that permits access to the security system from any off-site touch-tone telephone using all user codes. The system will provide the appropriate voice messages and any system beeping sounds indicating the status of the security system over the phone line. Refer to Summary of Audible Notification section for further information.
USER FUNCTIONS Remote Services Your security system may be capable of providing a series of web-based services that allow you to communicate with your security system remotely in a number of ways.
USER FUNCTIONS Slide Show The LYNX Touch features a Slide Show/Screen Saver feature. The feature allows images to be displayed on the touch screen when it is not in use. Connection to Total Connect Service is required in order for your installer to upload images to your panel. For more information about this option, speak to your installer. Activating the Slide Show Ready To Arm 1. With the system in the disarmed state, select the “Tools” icon from the second page of the Home Screen.
USER FUNCTIONS FUNCTIONS Slide Show Ready To Arm 1 Slide Internal 5 Seconds 2 Slide After Disabled Delete All Save 5000-100-196-V0 4. Select the “Slide Show” icons that you do not wish to display or select “Delete All”. Use the “S” “T” buttons to scroll to second and subsequent pages of screens. 5. Select the “Slide Interval” button. The system scrolls through the following options: Slide Interval 5 Seconds Slide Interval 10 Seconds Slide Interval 15 Seconds Slide Interval 20 Seconds 6.
FIRE/CO FIRE/CO ALARM SYSTEM (If Installed) General Information UL LYNX Touch is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-SHA) is installed. General Your fire alarm system (if installed) is active 24 hours a day, providing continuous protection. In the event of an emergency, the installed smoke, heat and/or carbon monoxide detectors will automatically activate your security system, triggering a loud, intermittent sound from the touch screen.
FIRE/CO FIRE/CO ALARM SYSTEM National Fire Protection Association’s Smoke Detector Recommendations UL LYNX Touch is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-SHA) is installed. With regard to the number and placement of smoke and heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.
FIRE/CO FIRE/CO ALARM SYSTEM Emergency Evacuation UL LYNX Touch is not intended for UL985 Household Fire applications unless a 24-hour backup battery (P/N LYNXRCHKIT-SHA) is installed. Establish and regularly practice a plan of escape in the event of fire. The following steps are recommended by the National Fire Protection Association: 1. Position your detector or your interior and/or exterior sounders so that they can be heard by all occupants. 3. Sketch a floor plan of the building.
SYSTEM FUNCTIONS Testing the System (to be conducted weekly) Test Modes The Test icon provides access to the Walk Test, Dialer Test and Reboot functions. The Walk Test mode allows each protection point to be checked for proper operation. When the Walk Test mode is active, the control sounds a single beep every 30 seconds as a reminder that the system is in the Test mode. The Dialer Test performs a check of the system dialer. The Reboot feature allows you to reboot the system if required.
SYSTEM FUNCTIONS Testing the System (to be conducted weekly) Ready To Arm 3. Select the “Test” icon. The system displays the Test screen. Users Events Test Keypad Date Time Reminders Slide Show WiFi Config Back 5100-100-006-V0 Ready To Arm Prod. Id. : DE Sw. Rev.: 05.00 CRC Number: 0X**** Walk Test Dialer Test Reboot Back 5100-100-087-V0 4. Select the “Walk Test”, “Dialer Test” or “Reboot” icon. If Walk Test is selected proceed to Step 5. If Dialer Test is selected proceed to Step 6.
SYSTEM FUNCTIONS Testing the System (to be conducted weekly) If a problem is experienced with any protection point (no confirming sounds, no display), notify your service company. When all protection points have been checked and are intact (closed), there should be no zone identification numbers displayed on the touch screen. Exiting Test Mode When testing is completed, exit the Walk Test or Dialer Test mode by entering an Off sequence.
SYSTEM FUNCTIONS Maintaining your system The components of your security system are designed to be as maintenance-free as possible. To make sure that your system is in working condition, do the following: 1. Test your system weekly (see the TESTING THE SYSTEM section). 2. Test your system after any alarm occurs (see the TESTING THE SYSTEM section). 3. Clean the touch screen weekly. Routine Care • Treat the components of your security system as you would any other electrical equipment.
SYSTEM FUNCTIONS Maintaining your system Low Battery Conditions in Wireless Sensors Each wireless sensor in your system has an internal battery. The system detects low battery conditions in wireless sensors, including smoke detectors, personal emergency transmitter, and the portable wireless keypad, and displays a “Battery Low” message on the touch screen, which also beeps. A low battery in a wireless keypad is detected as soon as one of its keys is pressed.
SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS SOUND INTERRUPTED CAUSE FIRE ALARM (3 beeps) OR CARBON MONOXIDE ALARM (4 beeps) CONTINUOUS BURGLARY/AUDIBLE EMERGENCY ALARM ONE SHORT BEEP (not repeated) a. SYSTEM DISARM b. SYSTEM ARMING ATTEMPT WITH AN OPEN ZONE. c. BYPASS VERIFY a. SYSTEM IS IN TEST MODE b. LOW BATTERY AT A TRANSMITTER c. SYSTEM LOW BATTERY d. FAIL TO COMMUNICATE ARM AWAY ONE SHORT BEEP (once every 45 secs) TWO SHORT BEEPS THREE SHORT BEEPS RAPID BEEPING SLOW BEEPING a.
SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS System Displays The following icons will be displayed on the Home screen along with specific zone status information (if applicable) to indicate system status.
SUMMARY OF AUDIBLE & VISUAL NOTIFICATIONS Zone Status Icons The following icons may be displayed on the Zone Status screen. DEFINITION ICON ICON Alarm Fault (Yellow) DEFINITION Trouble (red) Bypass Ready LED Meanings Armed LED (Red): ON = System armed OFF = System disarmed Blinking = System armed, but a fault exists or alternating with Ready LED when AVM (VOX or Talk) or speaker phone mode is active.
REGULATORY AGENCY STATEMENTS Federal Communications Commission (FCC) Part 15 The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or modifications could void the user's authority to operate the equipment. CLASS B DIGITAL DEVICE STATEMENT NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
REGULATORY AGENCY STATEMENTS TELEPHONE/MODEM INTERFACE Federal Communications Commission (FCC) Part 68 This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains the FCC registration number and Ringer Equivalence Number (REN). You must provide this information to the telephone company when requested. This equipment uses the following USOC jack: RJ31X This equipment may not be used on telephone-company-provided coin service.
IN THE EVENT OF TELEPHONE OPERATIONAL PROBLEMS In the event of telephone operational problems, disconnect the control by removing the plug from the RJ31X (CA38A in Canada) telephone wall jack. We recommend that your certified installer demonstrate disconnecting the phones on installation of the system. Do not disconnect the phone connection inside the control/communicator. Doing so will result in the loss of your phone lines.
OWNER'S INSURANCE PREMIUM CREDIT REQUEST This form should be completed and forwarded to your homeowner's insurance carrier for possible premium credit. A. GENERAL INFORMATION: Insured's Name and Address: Insurance Company: Policy No.: LYNX Touch Series _________________________________________________ Type of Alarm: Burglary Fire Installed by: Other Both Serviced by: Name Name Address Address B. NOTIFIES (Insert B = Burglary, F = Fire) Local Sounding Device Central Station Police Dept.
OWNER'S INSURANCE PREMIUM CREDIT REQUEST (cont.) E. SMOKE DETECTOR LOCATIONS Furnace Room Kitchen Bedrooms Attic Basement Living Room Dining Room Hall All Exterior Doors F. BURGLARY DETECTING DEVICE LOCATIONS: Front Door Basement Door Rear Door 1st Floor Windows All Windows Interior Locations All Accessible Openings, Including Skylights, Air Conditioners and Vents G.
SERVICING INFORMATION Your local Honeywell dealer is the person best qualified to service your alarm system. Arranging some kind of regular service program with him is advisable.
WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. For example: • Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or disconnect an alarm warning device. • Intrusion detectors (e.g.
– NOTES – – 89 –
– NOTES – – 90 –
– NOTES – – 91 –
– NOTES – – 92 –
– INDEX – E E-Mail Events ..................................................47 Entering Test Mode .........................................74 Entry Delay....................6, 11, 19, 21, 23, 24, 25 Exit Alarms..................................................8, 24 Exit Delay ........................................................24 Exit Time Restart-Exit Delay Restart/Reset....8 Exit/Entry Delays ..............................................8 A Alarm Cancelled ....................................
T Tablets..............................................................64 Test Mode...............................................9, 74, 76 Time And Date.......................................9, 16, 44 Touchscreen Control..............................5, 10, 11 Two-Way Voice...............................................5, 7 Q Quick Arm..............................................9, 19, 21 Quick Exit ........................................................23 R Ready Indicator .............................
