PRODUCT DATA

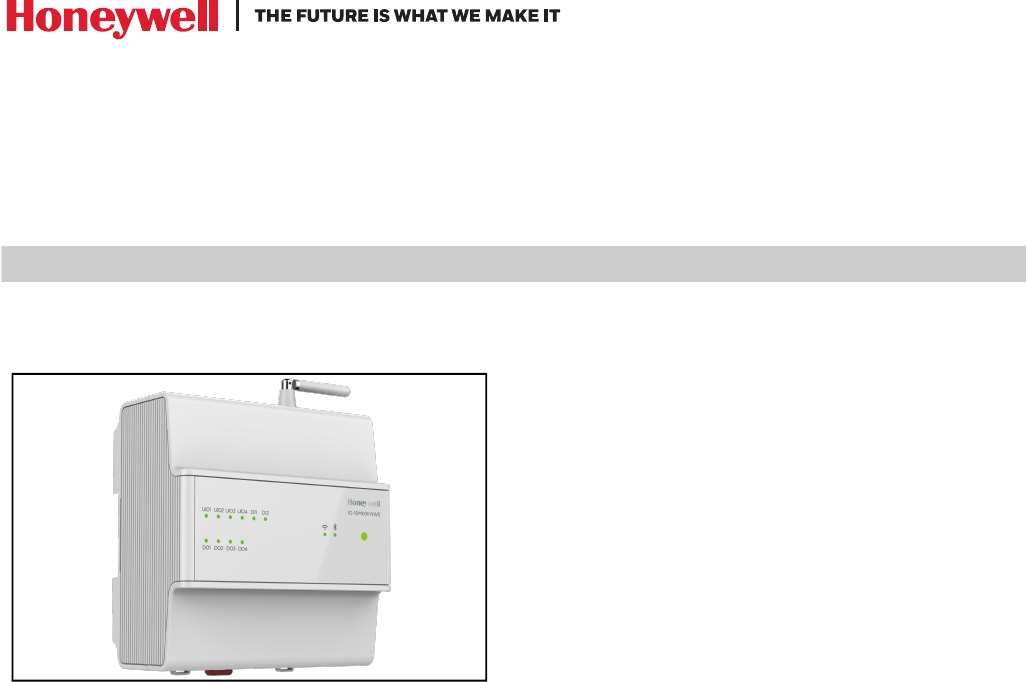

Smart IO

IO-10MIXR-WE/IO-10MIXR-NWE

Disclaimer

All images used in this document are for illustrative

purposes only and may not match the actual product.

APPLICATION

The Smart IO is an advanced wireless device that provides

equipment monitoring and on/off control of VRF/VRV

systems, lighting, exhaust fans, and other loads that need

to be controlled based on a schedule and/or

analog/digital input signals. Each Smart IO adds 10

points with a mix of inputs and outputs for installation

flexibility.

The device includes 4 Universal Inputs/Outputs (UIO), 4

Digital Outputs (DO) and 2 Digital Inputs (DI). It also has 2

Ethernet ports, Wi-Fi, and Bluetooth connectivity. This

device can be commissioned using a mobile app. The

firmware of the device can be upgraded via the Wi-Fi

network.

The device can be mounted on the wall, panel, and DIN

rail.

FEATURES

• Plug-and-play functionality for easy installation and

maintenance.

• Supports a wide range of sensors such as 20KNTC,

PT1000, and other resistive sensors.

• 16-bit A/D conversion resolution for accurate

measurement.

• Indication LEDs for all Inputs and Outputs.

• Compact size for small installation housings.

• Field configurable and programmable for control of

the input and output functions using the mobile app.

• Supports OTA (Over the Air) firmware updates via Wi-

Fi.

• Each UIO channel supports six configurable modes

such as Voltage input, Current input, Voltage output,

Current output, Digital input, and RTD measurement.

• An onboard 20VDC output is used to power external

sensors.

• Compatible component in SaMBa (Small and

Medium Building Administrator) Eco system.

• Wi-Fi and Bluetooth connectivity.

• External antenna for Wi-Fi and Bluetooth.

• Main LED to show the operational status of the

Smart IO.

• A reset button to restore the factory default settings.

• Removable terminal blocks for wiring connections.

Summary of content (8 pages)

PAGE 1
Smart IO IO-10MIXR-WE/IO-10MIXR-NWE PRODUCT DATA Disclaimer All images used in this document are for illustrative purposes only and may not match the actual product. FEATURES • Plug-and-play functionality for easy installation and maintenance. • Supports a wide range of sensors such as 20KNTC, PT1000, and other resistive sensors. • 16-bit A/D conversion resolution for accurate measurement. • Indication LEDs for all Inputs and Outputs. • Compact size for small installation housings.
PAGE 2
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO Smart IO Inputs/Outputs Supported Sensors Table 1. Smart IO Input/Outputs UIO (Configured as DI) and DI DO Relay Table 2. Supported Sensors • Pulse inputs capability — 100Hz max. Minimum duty cycle (50%/50%) = 5ms ON / 5ms OFF — Pulse counting with totalizing • Dry contact mode — Closed contact: <= 500 ohm. Wetting current: ~3.5mA — Open contact: >= 3k ohm. • Logic input mode — Low: 0...2V — High: 4...
PAGE 3
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO INTERFACES AND TERMINALS 29 31 30 35 32 34 33 28 Table 3. Device Terminals (Continued) Table 3.
PAGE 4
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO Table 3. Device Terminals (Continued) Table 3.
PAGE 5
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO TECHNICAL SPECIFICATIONS Standards Table 7. Standards System Data Table 4. System Data Operating Voltage (AC) 19 to 29 Vac (50/60Hz) Operating Voltage (DC) 23 to 29 Vdc Overvoltage Protection Protected against overvoltages of max. 29 Vac or 40 Vdc. Terminals protected against short-circuiting. Protection Class According to final product evaluation, meet requirements of IP20 Product Standards CAN/CSA-E60730-1:02, Ethernet Protocol version IEEE 802.
PAGE 6
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO Restrictions in the 5 GHz band Restrictions dans la bande de 5 GHz Within the 5.15 to 5.25 GHz band, UNII devices will be restricted to indoor operations to reduce any potential for harmful interference to co-channel Mobile Satellite System (MSS) operations.
PAGE 7
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO DIMENSIONS 105 mm (4.13”) 130.7 mm (5.15”) 110 mm (4.33”) 45 mm (1.77”) 57.5 mm (2.26”) 7 31-00427 | Rev.
PAGE 8
IO-10MIXR-WE / IO-10MIXR-NWE SMART IO GENERAL SAFETY INFORMATION The Smart IO is used for the purpose of building HVAC control and is suitable for use only in non-safety controls for installation on or in appliances. • When performing any work (installation, mounting, start-up), all manufacturer instructions and in particular the Installation and Commissioning Instructions (EN1B-0206IE10) are to be observed.
