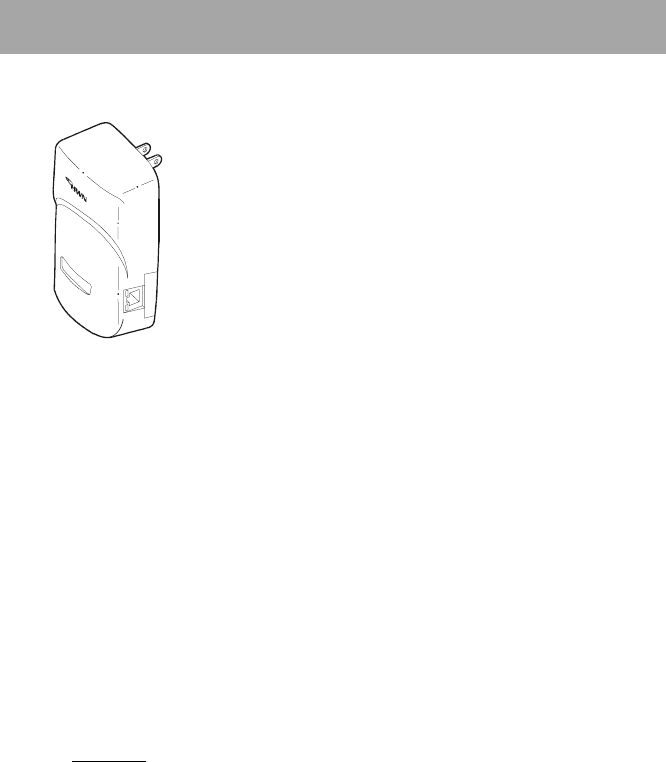

The HWN500 Phone Jack allows you to connect

analog devices such as standard telephones, modems,

FAX machines, and answering machines to your Home

Wireless Network.

Note: The network Controller must already be installed

and incoming phone lines connected to it in order to

add a Phone Jack to the network. You must also have

already installed either a HWN500 Data Jack or

HWN500 Handset to the network. For additional

information, refer to the Network Reference Guide

packaged with the Controller.

1. On an idle Handset, press MENU until you reach the screen containing the

Setup option.

2. Press 9 (Setup).

3. Press 2 (Network).

4. Press 2 (Access Jack).

5. Press 1 (Add).

6. Enter the serial number of the Phone Jack being added to the network.

Press END when finished.

Note: the serial number is located on the plug side of the jack.

7. Use the keypad to enter a name for the Phone Jack.

Example

To enter the name “Fax:”

1. Press 3 three times to add “F”;

2. Press 2 one time to add “a”;

3. Press 9 three times to add “X”;

4. Press # to advance to the next space;

5. Press 0 as many times as necessary to delete the remaining unwanted

text;

6. Press END.

Note: Use the * and # keys as needed to move forward or backward.

Installing HWN500 Phone Jacks

Summary of content (8 pages)

PAGE 1
Installing HWN500 Phone Jacks The HWN500 Phone Jack allows you to connect analog devices such as standard telephones, modems, FAX machines, and answering machines to your Home Wireless Network. ,1 Register the Phone Jack with the Controller On an idle Handset, press MENU until you reach the screen containing the Setup option. 2. Press 9 (Setup). 3. Press 2 (Network). 4. Press 2 (Access Jack). 5. Press 1 (Add). 6. Enter the serial number of the Phone Jack being added to the network.
PAGE 2
Connect the Phone Jack 1. Plug the phone line from the analog device into the Phone Jack. 2. Plug the Phone Jack into a standard 110v power outlet. 3 5 ( / ,0 ,1 $ 5 < Note: The green LED on the Phone Jack illuminates when it has power and is in communication with the network Controller.
PAGE 3
Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Do not use this product near water or when you are wet (for example, near a bath tub, kitchen sink, laundry tub, wash bowl, wet basement, or swimming pool). Unplug this product from the wall outlet before cleaning.
PAGE 4
instructions - improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. Preventing static electricity damage The components inside your system are extremely sensitive to static electricity, also known as electro-static discharge (ESD). Static electricity can cause irreparable damage to your system.
PAGE 5
Regulatory Information Information for general telephones This equipment complies with Part 68 of the FCC rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. 2. The applicable registration jack (connector) USOC-RJ11C is used for this equipment. 3.
PAGE 6
1. Remain on the line and briefly explain to the dispatcher the reason for the call. 2. Perform such activities in off-peak hours, such as early morning or late evenings. Caution Your are cautioned that any changes or modifications not expressly approved in the product documentation could void your authority to operated this equipment.
PAGE 7
Warranty Information Warranty Statement Warranty Instruction 3 5 ( / ,0 ,1 $ 5 < Return Instructions 7
