Installation Sheet

83669

CEILING PAN

ASSEMBLY INSTRUCTIONS

Assembly of this ﬁxture will be accomplished by ﬁrst preparing the min-pendants for

hanging, attaching the swivels to the ceiling pan, installing the mounting hardware to

the junction box, making all necessary electrical connections, and then hanging the

ﬁxture.

SAFETY WARNING: Read wiring and grounding instructions [FRIS 18]

and any additional directions. Turn power supply o during installation. If new wiring

is required, consult a qualiﬁed electrician or local authorities for code requirements.

STEP 1

1 To prepare the mini-pendants (purchased separately) for hanging from the

accessory canopy, it will be necessary to remove the swivel (1) from the canopy

(2) supplied with the mini-pendant. This is done by removing hex nut (4) and

lock waser (3) - See Drawing 1

2 Proceed to assemble mini-pendant according to instructions supplied with

ﬁxture. Do not attach the swivel (1) removed from canopy (2) to the end of rods at

this time. The swivel is needed to assemble the accessory canopy

S TEP 2

1 Take pan (5) and place reinforcement plate (6) inside and line up the holes - See

Drawing 2

2 Slip one of the swivel from the mini-pendant through one of the three holes (a)

spaced 120 degrees apart from center.

3 Slip lockwasher (3) onto swivel and then thread hex nut (4) onto swivel and

hand-tighten only at this time. Repeat process for the remaining two swivels.

4 Make sure center hole (b) of pan (5) and reinforcement plate (6) are aligned.

5 All hex nuts (4) can be tightened at this time.

6 Mini-pendants can now be assembled to the pan.

S TEP 3 Refer to Hanging Instruction Sheet [FRIS19-07] to hang ﬁxture.Then refer

back to this sheet to continue ﬁxture installation.

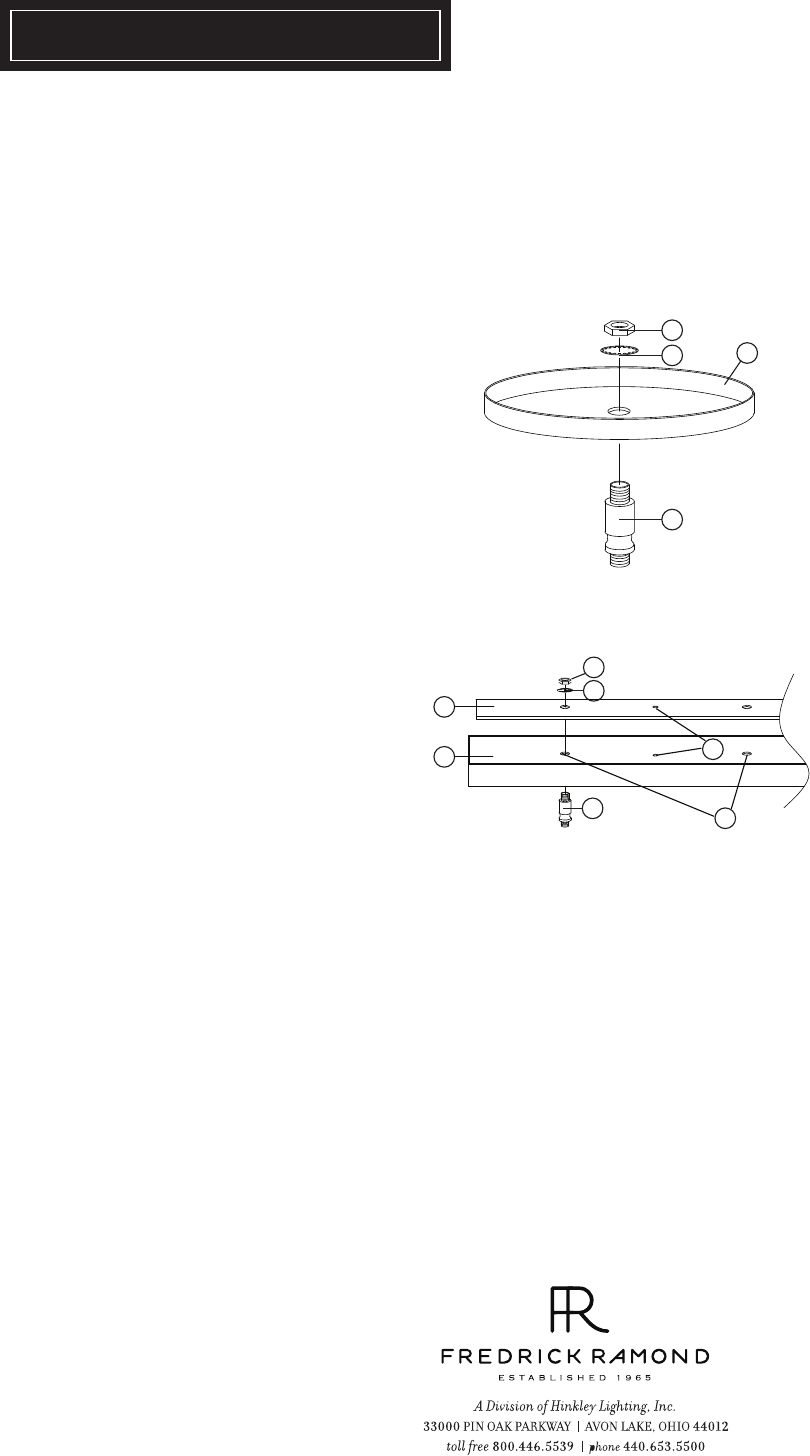

[DRAWING 1]

[DRAWING 2]

6.15.10

PAGE 1
