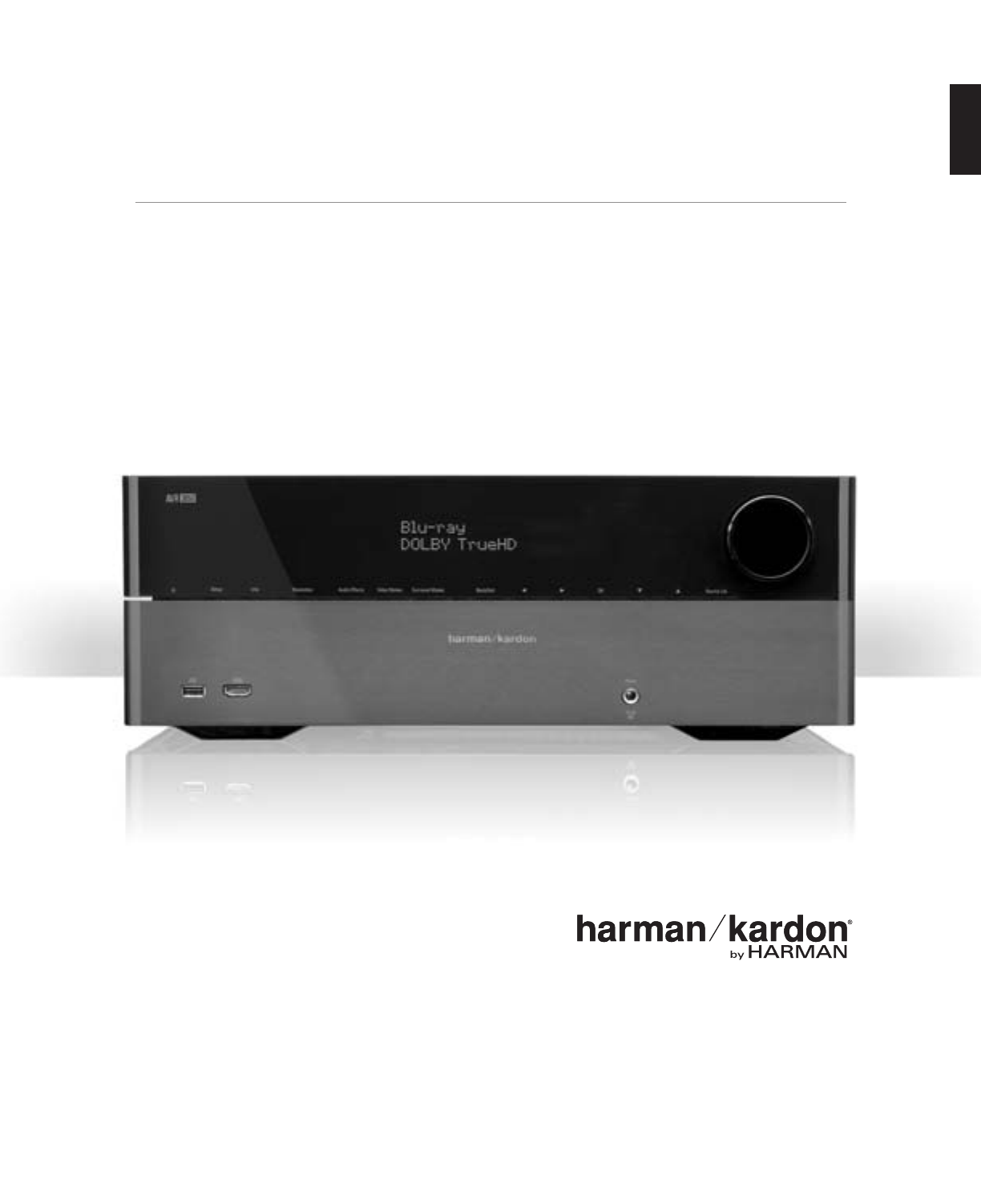

ENGLISH AVR 3650, AVR 365 AVR 2650, AVR 265 Audio/video receiver Owner’s Manual 0295CSK - HK (x65Series) AVR3650_365_2650_265 CORE OM, WORK18 danny.
AVR Table of Contents Introduction 3 Set Up the Remote Control Supplied Accessories 3 Install the Batteries in the Remote Control 23 Important Safety Information 3 Place the Receiver 3 Program the Remote to Control Your Source Devices and TV 23 Front-Panel Controls 4 Rear-Panel Connectors 6 Turn On the AVR 25 System Remote Control Functions 8 Using the On-Screen Menu System 25 Configure the AVR for Your Speakers 25 Set Up the AVR 23 25 Zone 2 Remote Control Functions (A
Introduction IMPORTANT SAFETY INFORMATION Thank you for choosing this Harman Kardon product! Verify Line Voltage Before Use For more than fifty years, the Harman Kardon mission has been to share a passion for music and entertainment, using leading-edge technology to achieve premium performance. Sidney Harman and Bernard Kardon invented the receiver, a single component designed to simplify home entertainment without compromising performance.
AVR Front-Panel Controls Front-Panel Controls power button power Indicator Info button Setup button uSb port Ir Sensor resolution button hdmI® front Input connector back/exit button video modes button Audio effects button up/down buttons message display Surround modes button ok button left/right buttons volume knob Source list button headphone Jack/ ezSet/eq mic Input Continued on next page 4 0295CSK - HK (x65Series) AVR3650_365_2650_265 CORE OM, WORK18 danny.
AVR Front-Panel Controls, continued Power Indicator: this led has three possible modes: • led is off: Indicates that the Avr is unplugged or the rear-panel main power switch is off. • led glows amber: Indicates that the Avr is in the Standby mode. • led glows white: Indicates that the Avr is turned on. IMPORTANT NOTE: If the protect message ever appears on the Avr’s frontpanel message display, turn off the Avr and unplug it from the Ac outlet.
AVR Rear-Panel Connectors Rear-Panel Connectors composite video Input connectors Analog record out connector digital Audio Input connectors hdmI monitor out connector radio Antenna connectors Zone 2 out connector composite video record out connector composite video Input connectors hdmI Input connectors Subwoofer connector composite video monitor out connector optical digital output connector Speaker connectors network connector Analog Audio Input connectors SIrIuS® tuner connector (Avr 365
AVR Rear-Panel Connectors, continued Composite Video Monitor Out connector: If your tv or video display does not have an hdmI connector, use a composite video cable (not included) to connect the Avr’s composite video monitor out connector to your tv’s composite video input. NOTE: the hdmI connection to your tv is preferred. If you use the composite video connection to your tv, you will not be able to view the Avr’s on-screen menus.
AVR System Remote Control Functions System Remote Control Functions Ir transmitter lens Avr power on/off buttons device power on/off buttons Source Selector buttons (Avr 2650/Avr 265) Source Selector buttons (Avr 3650/Avr 365) Audio effects button video modes button last channel button back/exit button Surround modes button number buttons Activity button menu button up/down/left/right buttons ok button backlight button (Avr 3650/Avr 365 only) disc menu button A/b/c/d buttons volume up/down butto
AVR System Remote Control Functions, continued In addition to controlling the Avr, the Avr remote is capable of controlling eight other devices, including an ipod/iphone device docked in a the bridge IIIp docking station connected to the Avr. during the installation process, you may program the codes for each of your source components into the remote. (See program the remote to control your Source devices and tv, on page 23, for programming information.
AVR Zone 2 Remote Control Functions (AVR 3650/AVR 365 only) Zone 2 Remote Control Functions (AVR 3650/AVR 365 only) Ir transmitter lens power off button mute button Source Selector buttons Sleep button Avr button back/exit button menu button up/down/left/right buttons ok button volume up/down buttons transport control buttons Zone Selector button Zone Indicator light Continued on next page 10 0295CSK - HK (x65Series) AVR3650_365_2650_265 CORE OM, WORK18 danny.
AVR Zone 2 Remote Control Functions (AVR 3650/AVR 365 only), continued by installing an Ir receiver in the remote zone of a multizone system and connecting it to the Avr’s Zone 2 Ir Input connector, you can use the Zone 2 remote to control the sound in the remote zone from within the remote zone.
AVR Introduction to Home Theater Introduction to Home Theater This introductory section will help you to familiarize yourself with some basic concepts unique to multichannel surround-sound receivers, which will make it easier for you to set up and operate your AVR.
AVR Place Your Speakers Determine the locations for your system’s speakers according to their manufacturer’s directions and the layout of your listening room. Use the illustrations below as a guide for 7.1-channel and 5.1-channel systems. To create the most realistic surround-sound environment possible, you should place your speakers in a circle with the listening position at its center. You should angle each speaker so it directly faces the listening position. Use the diagrams below as a guide.
AVR Types of Home Theater System Connections Types of Home Theater System Connections There are different types of audio and video connections used to connect the AVR to your speakers, your TV or video display, and your source devices. The Consumer Electronics Association has established the CEA® color-coding standard.
Types of Home Theater System Connections Digital Audio Connections – Coaxial Video Connections Coaxial digital audio jacks are usually color-coded in orange. Although they look like standard RCA-type analog jacks, you should not connect coaxial digital audio outputs to analog inputs or vice versa. Many source devices output both audio and video signals (e.g., Blu-ray Disc, DVD player, cable television box, HDTV tuner, satellite box, VCR, DVR).
AVR Types of Home Theater System Connections Radio Connections USB Port Your AVR uses separate terminals for the included FM and AM antennas. The FM antenna uses a 75-ohm F-connector. The USB port on your AVR is used for firmware upgrades. If an upgrade for the AVR’s operating system is released in the future, you will be able to download it to the AVR using this port. Complete instructions will be provided at that time.
AVR Making Connections CAUTION: Before making any connections to the audio/video receiver, ensure that the AVR’s AC cord is unplugged from the receiver and the AC outlet. Making connections with the receiver plugged in and turned on could damage the speakers. Connect Your Speakers After you have placed your loudspeakers in the room as explained in Place Your Speakers, on page 13, connect each speaker to its color-coded terminal on the AVR as explained in Speaker Connections, on page 14.
AVR Making Connections Connect Your Audio and Video Source Devices Your receiver has several different types of input connectors for your audio and video source devices: HDMI, component video, composite video, optical digital audio, coaxial digital audio and analog audio. The connectors are not labeled for specific types of source devices; they are labeled numerically, so you can connect your devices according to your individual system’s makeup.
AVR Connect Your HDMI Devices Connect Your Optical Digital Video Devices If any of your source devices have HDMI connectors, using them will provide the best possible video and audio performance quality. Since the HDMI cable carries both digital video and digital audio signals, you do not have to make any additional audio connections for devices you connect via an HDMI cable. If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s optical digital audio connectors.
AVR Making Connections Connect Your Audio Recorders Connect The Bridge IIIP Connect a digital audio recorder’s optical digital input to the AVR’s optical digital output. You can record both coaxial and optical digital audio input signals. Connect an optional The Bridge IIIP to the AVR’s The Bridge IIIP connector. Insert the plug until it snaps into place in the connector. IMPORTANT: Connect The Bridge IIIP only with the AVR’s power turned OFF.
AVR Making Connections Connect the multi-pin DIN cable supplied with the SIRIUSConnect tuner to the AVR’s SIRIUS Tuner connector and to the corresponding connector on the SIRIUS module. The AVR will supply power to the SIRIUS module so you will not need to connect the power supply included with the module. You will need to purchase a SIRIUS radio subscription and activate the tuner module, following the instructions included with the SIRIUS module and from the SIRIUS Web site at www.sirius.com.
AVR Making Connections B. Connect an external amplifier to the AVR’s Zone 2 Out connectors. This method offers the benefit of retaining a 7.1-channel home theater in the main room simultaneously with multizone operation, although it does require an additional component (the Zone 2 amplifier).
AVR Making Connections, Set Up the Remote Control • If you install a multizone system, connect an Ir control device to the Zone 2 Ir In connector for remote-room control of the multizone system, source devices and volume in the remote zone. Zone 2 Speakers external Ir receiver Connect to AC Power connect the supplied Ac power cord to the Avr’s Ac Input connector and then to a working Ac power outlet.
AVR Once you have programmed the remote, you can switch the remote’s control mode to access the functions for a particular device by pressing the remote’s Source Selector button for that device. To control the receiver, press the remote’s Setup button. Follow these steps to program the Source Selector buttons for your source devices: 1. Turn on the source device you want to program the remote to control. 2. Look up the code numbers for the device in Tables A14 – A24 in the Appendix.
AVR Set Up the AVR In this section, you will configure the AVR to match your actual system’s makeup. Although it’s possible to configure the AVR using only the remote and the messages on the AVR’s front-panel display, it is easier if you use the full-screen menu system. Turn On the AVR 1. Set the rear-panel Main Power switch to “On.” (The front-panel Power indicator will glow amber.) 2. Press the front-panel Power button.
AVR Set Up the AVR 6. Use the remote’s Up/Down/Left/Right and OK buttons to select “Speaker Setup.” Speaker Setup Automatic Setup – EzSet/EQ Automated Speaker Setup and EQ Manual Setup Manually Adjust Speaker Settings 7. Select “Automatic Setup – EzSet/EQ” and then select “Continue.” 8. Select the number of speakers in your system. Select “5.1” if no surround back or front height speakers are present or if you will be using the Assigned Amp channels for multizone operation. 9. The test will begin.
AVR Resolution from Source: This line is informational only. It indicates the resolution of the video output by the source device. HDMI Bypass: This setting allows you to bypass the AVR’s internal video processing for proper display of 3-D video content and of source devices (such as some game consoles) where the AVR's video processing can create delays that can cause synchronization errors between the sound and picture.
AVR Operating Your AVR Operating Your AVR Now that you have installed your components and completed a basic configuration, you are ready to begin enjoying your home theater system.
AVR Operating Your AVR Video Troubleshooting Tips If there is no picture: •• Check the source selection and video input assignment. •• Check all connections for a loose or incorrect connection. •• Check the video input selection on the TV/display device. •• Press the front-panel Resolution button and use the Up/Down buttons until the correct video output resolution is selected and a picture appears. The CANCEL message will also appear.
AVR Operating Your AVR Listening to Media on a USB Device (AVR 3650/AVR 365) Listening to an iPod/iPhone Device Your AVR is compatible with MP3 and WMA media.
AVR If a video monitor is connected to the AVR and the system is not in iPod manual mode, a The Bridge screen will appear and display the play mode icon, song title, artist and album. A graphic bar indicates the current play position within the track. If random or repeat play has been programmed, an icon will appear in the upper right corner. Due to the wide variety of applications and many factors affecting them, playback is not guaranteed.
AVR Operating Your AVR Listening to Media via Your Home Network Your AVR can play MP3 and WMA audio media that is stored on a PC when both the PC and the AVR are connected to your home network router. MP3 compatibility: Mono or stereo, contstant bit rates (CBR) from 8kbps to 320kbps, variable bit rates (VBR) from lowest to highest quality, with sample rates from 8kHz – 48kHz. WMA compatibility: Ver. 9.
AVR Much of the adjusting and configuration your AVR requires is handled automatically, with little intervention required on your part. You can also customize your AVR to suit your system and your tastes. In this section we will describe some of the more advanced adjustments available to you. Audio Processing and Surround Sound Audio signals can be encoded in a variety of formats that can affect not only the quality of the sound but the number of speaker channels and the surround mode.
AVR Advanced Functions Audio Effects Button To adjust other audio settings, such as the tone controls, press the Audio Effects button to display the Audio Effects menu. You can also access the menu by pressing the Info button and selecting Audio Effects. Treble/Bass: These settings boost or cut the treble or bass frequencies by up to 10dB. Use the Left/Right buttons to change the setting. The default setting is 0dB, at the center of the bar.
AVR Plasma and CRT monitors may suffer from “burn-in” when the same image, such as the horizontal or vertical bars, is left on screen for a long period of time. Adjust the picture so that it fills the display’s screen. Highlight this setting and press the OK Button. Each press of the Up/Down buttons changes the setting. Press the OK button when the desired setting appears in the display box at the lower right corner of the video screen.
AVR Advanced Functions, Manual Speaker Setup Manual Speaker Setup Contrast Adjustment 1. Adjust the contrast on your TV until you see a bright white bar in the lower right corner of the screen and a deep, dark, black bar to the left. 2. If the brightness of the white bar no longer increases when the Contrast is turned up or the borders of white letters bloom (overlight) into the black areas (drastically decreasing the sharpness of the letters), the contrast has been turned up too much.
AVR If you have already run the EzSet/EQ process as explained in Configure the AVR for Your Speakers, on page 25, the AVR saved the results. To fine-tune the EzSet/EQ results, or to configure the AVR from scratch, select Manual Setup. A screen similar to the one shown below will appear. Crossover (Size) After you return to the Manual Speaker Setup menu, navigate to the Crossover (Size) line and press the OK button to display the Adjust Crossover Frequencies menu.
AVR Manual Speaker Setup All of the system’s speakers will appear with their current level settings. You can adjust each speaker’s level between –10dB and +10dB in 1dB increments. Set the Speaker Distances As described above in Step Two, when you measured the distances from each of your speakers to the listening position, your AVR provides an adjustment that compensates for the different distances so that the sound from each speaker will reach the listening position at the proper time.
AVR Manual Speaker Setup, System Settings Unit of Measure: Language: Dolby Vol. Calibration: RS232 Control: With the multizone system in use, you may enjoy an exciting 5.1-channel home theater presentation in the main listening area, while others listen to the same program or an entirely different source in another room. See Install a Multizone System, on page 21, for installation information.
AVR System Settings General AVR Settings Network Settings: Select this to set up your AVR for connection to your home network. Network Settings RS232 Control: If you have connected the AVR to an external control system via its RS-232 port, set this line to On to enable the AVR to be controlled by the external control system. Refer to the control system’s documentation for details.
AVR Advanced Remote Control Programming Remote Channel-Control Punch-Through The punch-through feature allows you to operate one component while setting certain groups of controls to operate another component. For example, while using the AVR controls for surround modes and other audio functions, you may also use the remote to operate the transport controls of your Blu-ray Disc player.
AVR Advanced Remote Control Programming 4. If the message indicates that an update is available, press the front-panel OK button to begin the update. 5. During the update a progress bar and status messages will appear on the Message Display. Do not touch any controls on the AVR and do not interrupt the network connection during the update. 6. When the update is completed the AVR will automatically power off, and after five seconds will automatically power back on.
AVR ENGLISH Troubleshooting Symptom Cause Solution Unit does not function when Main Power switch is turned on ••No AC power ••Ensure that the power cord is plugged into a live AC power outlet ••Check if the AC outlet is switch-controlled Front-panel Message display lights, but there’s no sound or picture ••Intermittent input connection No sound from any speaker; PROTECT message appears on Message display ••Amplifier is in protection mode due to possible short circuit ••Dolby Digital Plus via HD
AVR Specifications Specifications Audio Section Stereo power: Video Section AVR 3650/AVR 365: 110W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, <0.09% THD AVR 2650/AVR 265: 95W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, <0.09% THD Multichannel power: AVR 3650/AVR 365: 110W per channel, two channels driven @ 8 ohms, 20Hz – 20kHz, <0.
AVR Appendix ENGLISH Appendix – Default settings, worksheets, remote product codes Table A1 – Recommended Source Component Connections Device Type AVR Source Digital Audio Connection Analog Audio Connection Video Connections Cable TV, satellite TV, HDTV or other device that delivers television programs Cable/SAT HDMI 2 Analog 1, 2 or 3 HDMI 2 DVD Audio/Video, SACD, Blu-ray Disc, HD-DVD player Blu-ray HDMI 1 Analog 1, 2 or 3 HDMI 1 Media Server, including Harman Kardon DMC 1000 Media Serve
AVR Appendix Table A3 – Speaker/Channel Setting Defaults All Digital and Two-Channel Analog Audio Input Connectors Left/Right Speakers ON Center Speaker ON Left/Right Surround Speakers ON Left/Right Surround Back Speakers OFF Subwoofer 1 ON Subwoofer 2 ON Left/Right Speakers Crossover Frequency 100Hz Center Speaker Crossover Frequency 100Hz Left/Right Surround Speakers Crossover Frequency 100Hz Left/Right Surround Back or Left/Right Front Height Speakers Crossover Frequency 100Hz Subw
AVR Appendix Cable/Sat Blu-ray Disc Media Server Radio USB (AVR 3650/ AVR 365) TV Device Type Network Game AUX The Bridge DVR (AVR 2650/ AVR 265) ENGLISH Table A5 – Source Settings USB Surround Modes Video Input N/A The Bridge III Audio Input USB The Bridge III Change Name N/A N/A Audio Auto Polling N/A N/A Zone 2 Audio USB The Bridge III Resolution to Display Adjust Lip Sync Dolby Volume Table A6 – Audio Effects Settings Default Dolby Volume See Source Tone Control On
AVR Appendix Table A7 – Video Modes Settings Default Cable/Sat Video Mode Off Brightness* 50 Contrast* 50 Color* 50 Sharpness* 50 Picture Adjust Auto Adjust Overscan Off Noise Reduction** Off MPEG Noise Reduction** Off Cross Color Suppressor** Off Flesh Tone Enhancement** Off Black Level** Off Deinterlacing** Off Film Mode Detect** Off Blu-ray Disc Media Server Radio TV USB (AVR 3650/ AVR 365) DVR (AVR 2650/ AVR 265) Network Game AUX The Bridge USB (AVR 3650/ Netwo
AVR Appendix Table A9 – Remote Control Codes Source Input Device Type (if changed) Product Brand and Code Number ENGLISH Cable/Sat Blu-ray Disc DVR (AVR 2650/AVR 265) Media Server TV Game AUX Table A10 – System Settings Feature Default Your Settings Front Panel Dimmer On 100% HDMI Audio to TV Off HDMI Control Off Audio Return Channel Off Power Control Off TV Control Off Network Settings Automatic Volume Units dB Volume Default Off Volume Default Level –25dB Unit of Measure Feet
AVR Appendix Table A12 – Surround Modes Surround Mode Description Incoming Bitstream or Signal Dolby Digital Provides up to five separate main audio channels and a dedicated low-frequency effects (LFE) channel. ••Dolby Digital 1/0/.0 or .1, 2/0/.0 or .1, 3/0/.0 or .1, 2/1/.0 or .1, 2/2/.0 or .1, 3/2/.0 or .1 ••Dolby Digital EX (played as 5.1) ••Dolby Digital Plus decoded and delivered via coaxial or optical connection Dolby Digital EX An expansion of Dolby Digital 5.
AVR Appendix Surround Mode Description Incoming Bitstream or Signal Dolby Pro Logic IIx Music This mode is similar to Dolby Pro Logic II Movie, with an added surround back channel. ••Dolby Digital 2/0/.0 or .1, 2/2/.0 or .1, 3/2/.0 or .1, EX ENGLISH Table A12 – Surround Modes – continued ••Analog (two-channel) ••Tuner ••PCM (32kHz, 44.
AVR Appendix Table A12 – Surround Modes – continued Surround Mode Description Incoming Bitstream or Signal DTS Neo:6 Mode Group DTS Neo:6 analog processing is available with DTS and DTS 96/24 signals and two-channel analog or PCM signals to create a 3-, 5- or 6-channel presentation. See below DTS Neo:6 Cinema Depending on the number of speakers in your system, select 3-, 5- or 6-channel modes, enhanced for movie or video presentations. ••DTS 2/2/.0 or .1, 3/2/.0 or .
AVR ENGLISH Appendix Refer to the numbered buttons when using the Function List in Table A13. Remote Control Function List Reference 53 0295CSK - HK (x65Series) AVR3650_365_2650_265 CORE OM, WORK18 danny.
AVR Appendix Table A13 – Remote Control Function List No.
AVR Appendix No.
AVR Appendix Refer to Tables A14 through A24 when programming the codes for your components into the remote.
AVR Appendix Table A16 – Remote Control Product Codes: AUX-VCR (cont.
AVR Appendix Table A17 – Remote Control Product Codes: AUX-CD Table A17 – Remote Control Product Codes: AUX-CD (cont.
AVR Appendix SAT Manufacturer/Brand Setup Code Number Table A20 – Remote Control Product Codes: Game BIRDVIEW 425 GAME Manufacturer/ Brand CHANNEL MASTER 320 321 325 361 Microsoft (XBOX, XBOX 360) 001 003 CHAPARRAL 315 316 451 NYKO (PS3) 005 CITOH 360 SONY (PS2, PS3) 002 004 DIRECTV 309 310 314 DISH NETWORK 364 DRAKE 313 317 318 413 481 DX ANTENNA 331 352 379 483 ECHOSTAR 364 395 397 452 453 463 477 478 484 485 Cable Manufacturer/Brand Setup Code Number ELECTRO HOME 392 ABC 0
AVR Appendix Table A21 – Remote Control Product Codes: Cable (cont.
HARMAN Consumer, Inc. 8500 Balboa Boulevard, Northridge, CA 91329 USA © 2011 HARMAN International Industries, Incorporated. All rights reserved. Harman Kardon and Logic 7 are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. EzSet/EQ is a trademark of HARMAN International Industries, Incorporated. Blu-ray Disc is a trademark of the Blu-ray Disc Association. CEA is a registered trademark of the Consumer Electronics Association.
