Specifications

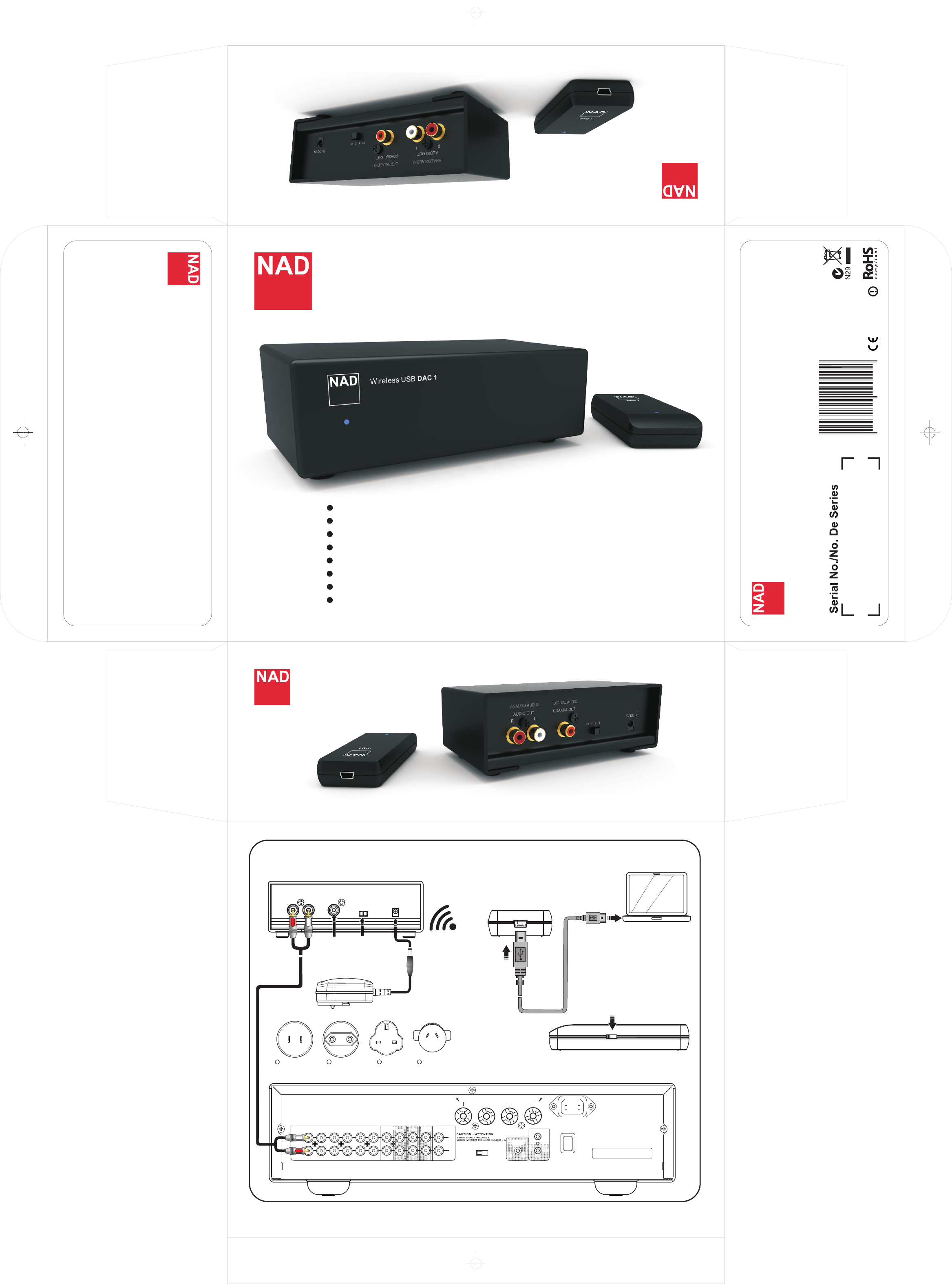

DAC 1 GIFT CARTON, ISSUE V4, 24 NOV 2011, PANTONE INK COLOURS REFER TO SEPARATIONS,
CARTON SIZE WHEN FOLDED 215mm X 180mm X 78mm. RIGHT READING, EMULSION SIDE UP, POSITIVE FILM
© NAD 2011. DRAWN BY GARY
Wireless USB DAC 1
MODEL NO. : DAC 1
www.NADelectronics.com
Wireless USB DAC 1
Wireless USB DAC 1
Contents
1 x DAC 1 USB Transmitter
1 x USB mini to USB cable
1 x DAC 1 Receiver/D-to-A Converter
1 x Power Supply : Universal switching Adaptor with global plugs
1 x Stereo Audio Cables
Wireless USB DAC 1
Wireless USB DAC 1
No audio compression
2.4GHz Point-to-Point Wireless - up to 40 meter range
Digital Audio: SPDIF coax output
True CD sound quality: 16 Bit/48kHz resolution
24Bit/192KHz DAC
3 RF channels allow multiple receivers and transmitters
Detachable USB cable for transmitter allows option for extension
Selected close tolerance components for low noise and distortion
Ch. 1 2 3
ANALOG AUDIO DIGITAL AUDIO
AUDIO OUT
R
L
COAXIAL OUT
NAD reserves the right to change specifications or design at any time without notice. All specifications are those in effect at the time of printing & packing.
Designed & Engineered in Canada, Custom manufactured to NAD specifications in China.
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited. © NAD All Rights Reserved
Installation of Wireless USB DAC 1
mini USB to USB
DAC 1 Receiver Rear Panel
Ch. 1 2 3
Stereo Amplifier
PC or MAC with
compatible USB
IN
AUXDISC
TUNERCD
MP
L
R
IR
SOFT
CLIPP ING
ON
OFF
IN
MAIN
L
R
PRE
SUB 1
POWER
ON
OFF
IN
OU T
VIDEO
SUB 2
TAPE
OUT
SPEAKERS
+12V TRIGGER
OUT
R
L
NOT TO SCALE
OU T
Serial No./No. De Series
2.4GHz
Wireless
Set channel of DAC 1
Receiver to correspond
to the DAC 1 Transmitter
setting
Set channel of DAC 1 Transmitter
to correspond with DAC 1 Receiver setting.
For DIGITAL AUDIO
connect to AV Receiver
with Digital Input such
as NAD AV Receivers,
e.g. T748, T757, T787 etc.
DAC 1 Transmitter Side Panel
5V DC IN
Interchangeable Plugs
Universal Switching
Adaptor
Australian Plug
4
UK Plug
3
2
European Plug
North American Plug
1
Transmitter and Receiver LED
LED Blue Locked
LED Red Searching
=
=
