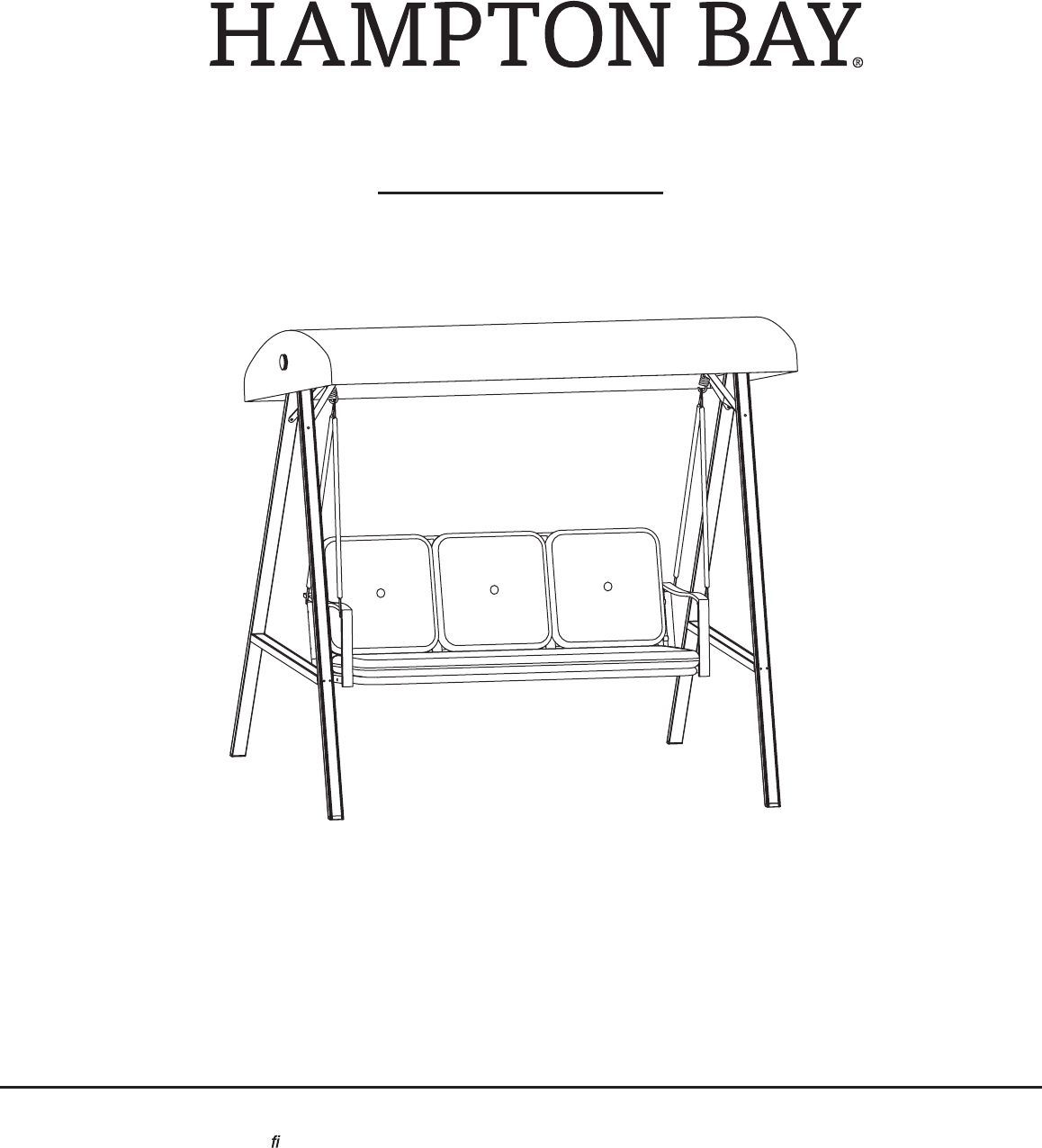

Item #1001 868 823 Model #GSS00132D USE AND CARE GUIDE 3 PERSON SWING WITH CANOPY Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU We appreciate the trust and con dence you have placed in Hampton Bay through the purchase of this swing. We strive to continually create quality products designed to enhance your home.
Table of Contents Pre-Assembly ................................................................ 3 Planning Assembly .................................................................. 3 Hardware Included.................................................................... 3 Package Contents................................................................... 4 Assembly......................................................................... 5 Care and Cleaning....................................................
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive use.
Pre-Assembly (continued) PACKAGE CONTENTS J I H A K F B G D E C L Part Description Quantity A Top bar 1 B Leg 4 C Side bar 2 D Seat 1 E Arm 2 F G H Long swing pipe Short swing pipe Curved bar 2 2 2 I Support bar 1 J Canopy 1 K Back cushion 3 L Seat cushion 1 4
l Assembly 1 Assembling the swing frame Attach two sets of the legs (B) to the top bar (A) using M8x100 combination bolts, washers and nuts (AA). Attach the support bars (JJ) to the legs (B) and the top bar (A) using M8x50 combination bolts, washers and nuts (CC) and M8x45 combination bolts, washers and nuts (DD). Attach the two side bars (C) to the legs (B) using M6x40 combination bolts (GG). Once all of the bolts are in place, fully tighten the bolts.
l (continued) Assembly 2 Attaching the arms to the seat Attach the arms (E) to the seat (D) using M8x90 combination bolts, washers and nuts (BB) and M6x85 combination bolts, washers and nuts (EE). Once all of the bolts are in place, fully tighten the bolts.
l (continued) Assembly 3 Attaching the long swing pipes and the short swing pipes to the arms Attach the long swing pipes (F) and the short swing pipes (G) to the arms (E) using M6x60 combination bolts, washers and nuts (FF). Connect the top of the two swing pipes (F and G) using the hooks (II). Once all of the bolts are in place, fully tighten the bolts. II 2X FF E 2X II FF F G II F G D FF FF E FF E FF 7 HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
l (continued) Assembly 4 Attaching the seat to the swing frame Attach the assembled seat to the swing frame using the hooks (II).
l (continued) Assembly 5 Assembling the top frame Attach the support bar (I) to the curved bars (H) using M6x30 bolts (HH). Fully tighten all of the bolts on the top frame using the hex wrench (LL) before placing the canopy. Place the canopy (J) on the assembled top frame and tie the canopy (J) to the curved bars (H) by affixing the Velcro. NOTE: Pay attention to the direction of the curved bars (H). J HH HH I I I HH HH H I HH HH H H HH HH J H H J Velcro Velcro 9 HAMPTONBAY.
l (continued) Assembly 6 Attaching the top frame to the top bar Attach the top frame to the top bar (A) using the screw knobs (KK) on both sides. Adjust the angle of the top frame and fully tighten the screw knobs (KK) in the clockwise direction. Place the back cushions (K) and the seat cushion (L) on the seat.
l (continued) Assembly 7 Tightening the bolts Ensure the swing is tightly assembled and stable before use. Care and Cleaning For best results, clean the swing with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Store the swing in a dry, sheltered place when not in use.
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.COM Retain this manual for future use.
