User's Manual

ManualsBrandsGTO Access Systems ManualsElectronicsINTERCOM BASE UNIT

Crystal clear two-way communication up to 500 feet wireless.

Wireless Gate Entry Intercom

Thank you for purchasing the Mighty Mule Wireless Gate Entry Intercom.

Please read the directions carefully and completely before installing.

Instructions for Wireless and Wired Installations

Nortek Security & Control • Telephone (800) 543-4283 • Fax (850) 575-8912 • website www.mightymule.com

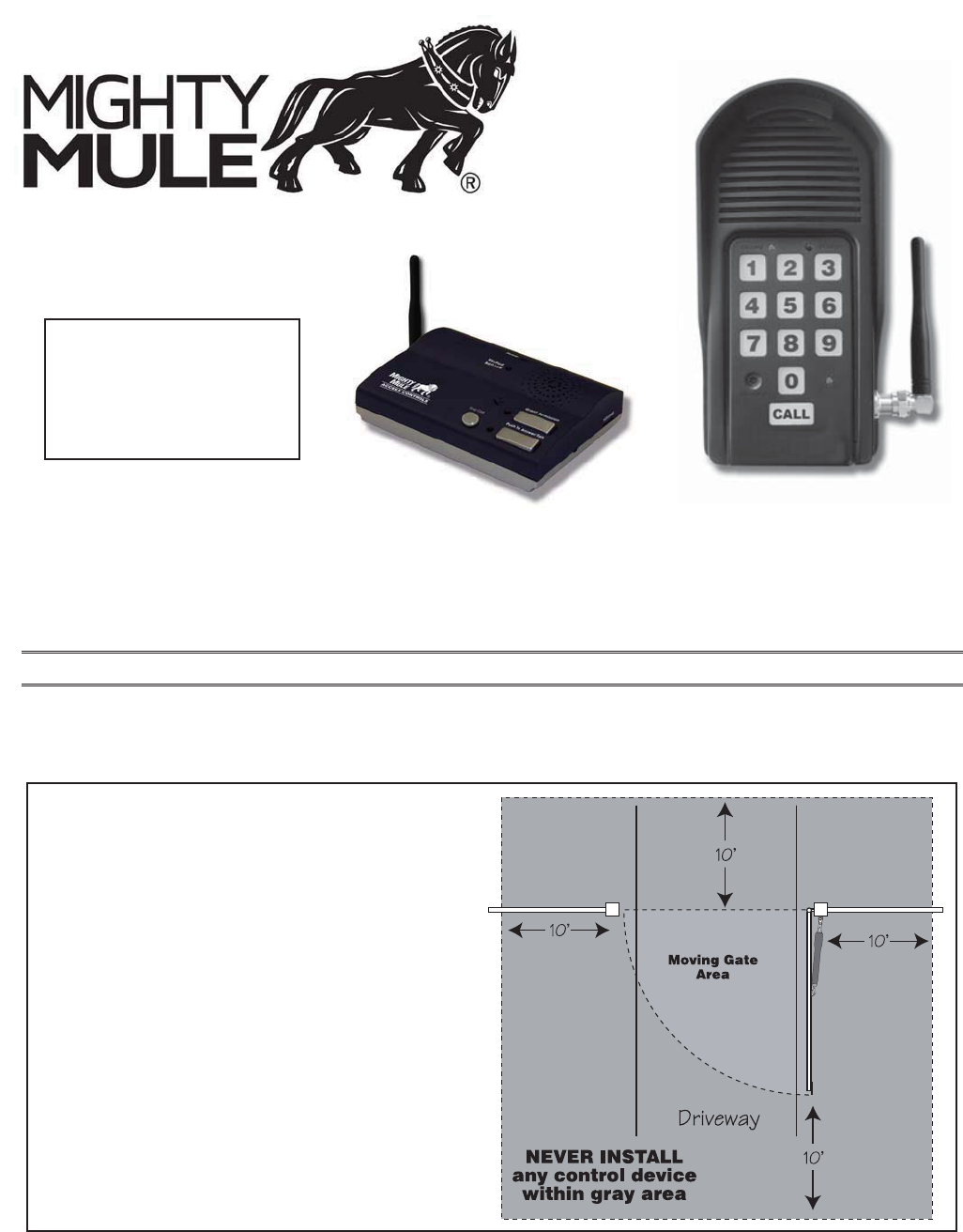

SAFETY NOTE: Never install the keypad

portion of this unit where a person can

reach through the gate to activate it, or

where a person can touch the gate while

activating the keypad. The recommended

minimum distance between the gate and

keypad is 10 ft.

IMPORTANT:

Allow the

intercom base unit’s battery

to charge for 12 hours before



time. See page 6 for details.

Keypad Unit

Base UnitBase Unit

Summary of content (11 pages)

PAGE 1
IMPORTANT: Allow the intercom base unit’s battery to charge for 12 hours before time. See page 6 for details. Base Unit Keypad Unit Wireless Gate Entry Intercom Instructions for Wireless and Wired Installations Crystal clear two-way communication up to 500 feet wireless. Thank you for purchasing the Mighty Mule Wireless Gate Entry Intercom. Please read the directions carefully and completely before installing.
PAGE 2
Features of the Intercom/Keypad The INTERCOM has two separate units. The KEYPAD (outside unit) should be mounted outside the gate allowing the driver of the vehicle approaching the property to press the CALL button from their vehicle. The BASE (inside unit), with it’s rechargeable battery, can be plugged into any 110 Volt AC outlet for use while charging. It can also be disconnected from the charger allowing it to go any where within range for convenience.
PAGE 3
Keypad Description Keypad - Inside Keypad - Front CALLING 1 4 GHI 7 PRS GRANTED 2 ABC 5 JKL 8 TUV 3 DEF 6 MNO 9 WXY 0 STATUS PROGRAM CALL CALLING Light: LED is RED when calling and turns GREEN when call is answered. GRANTED Light: LED turns GREEN when access permission is granted. o DIP Switches: Match these switches to your remote transmitter to program the keypad. +6.1&3 2%,!9 /54054 !# $# 0/7%2 ).
PAGE 4
NOTE: For a hard-wired application the jumper between the two terminals on the keypad control board must be connected (ON) as shown. This will disable the 318 MHz RF transmitter. CALLING GRANTED 2 1 ABC GHI 4 JKL 7 8 3 DEF 5 6 123456789 RELAY OUTPUT #1 AC/DC POWER IN Power Supply from Opener Battery #2 Hard-wire from Gate Opener Step 3: Slide the keypad into the cover and secure with the small screws provided.
PAGE 5
Programming the Keypad Programming Interface: Program (Add) New Temporary Entry Code: • • • • • Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button. • Enter 8, and any number between 1 thru 7 then press and release the PROGRAM button.
PAGE 6
Delete ALL Entry Codes: Normal Keypad operation: • Press and release PROGRAM button. • Enter the Master Code then press and release PROGRAM button. • Enter 0, 7 then press and release PROGRAM button. { ? > | + ~ deleted. • If the user enters a 4-digit code that is matched to one of the 25 stored codes, the STATUS light should blink twice and the > > entered.
PAGE 7
Intercom Base Unit Installation Connecting the Battery Remove the battery access cover using a small phillips head screwdriver. Plug the rechargeable Ni-MH battery into the receptacle inside the battery compartment. See diagram to the right. When this is done, replace the battery access cover. ID S ET IMPORTANT: Allow the intercom base unit’s battery to charge for 12 hours before time. See page 7 for details.
PAGE 8
Intercom ID Codes The Base and Keypad that came in this kit are programmed at the factory to communicate with each other, and do not need the ID Codes programmed. This Base is the MASTER or #1 unit. Adding Additional Base Units If you have purchased additional Base units to enhance your system, each additional unit’s ID Code must be programmed into the Keypad so they can communicate. Follow the steps below to set the ID codes. ID SET button o +6.
PAGE 9
Test the System IMPORTANT: The Base unit and the Keypad can not be within 30 feet of each other when operating. If units are closer than 30 feet the signal will be inconsistent as well as emit speaker feed back. Also, multiple Base units must be no closer than 10 feet from each other to prevent interference. Have someone press the CALL button on the keypad at the gate. When the base unit inside the house rings, press the ANSWER button and talk to the person at the gate to check the connection and range.
PAGE 10
Hole Template for Mounting the Base Unit % 318MHz from keypad to gate opener 900MHz from keypad to base station Memory - Keypad Stores up to 25 four digit entry codes Power Consumption – Keypad 60 ma when relay is closed Power Supply – Keypad 8-24vdc or four AA batteries Power Supply – Base Station 9 vdc 300ma transformer; 3.
PAGE 11
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
