GEP C2 User Manual
Important notes: Use only the power adaptor attached with the product. Use unauthorized power adapter may cause damage to your IP Camera. IP Camera terminal shall be installed in an indoor environment where the rain or snow could not pour it. Do not touch the lens of the IP Camera at will. The optimum focus range has been set before it is delivered out of the factory. If you turn the lens, it may cause incorrect focus and vague images.

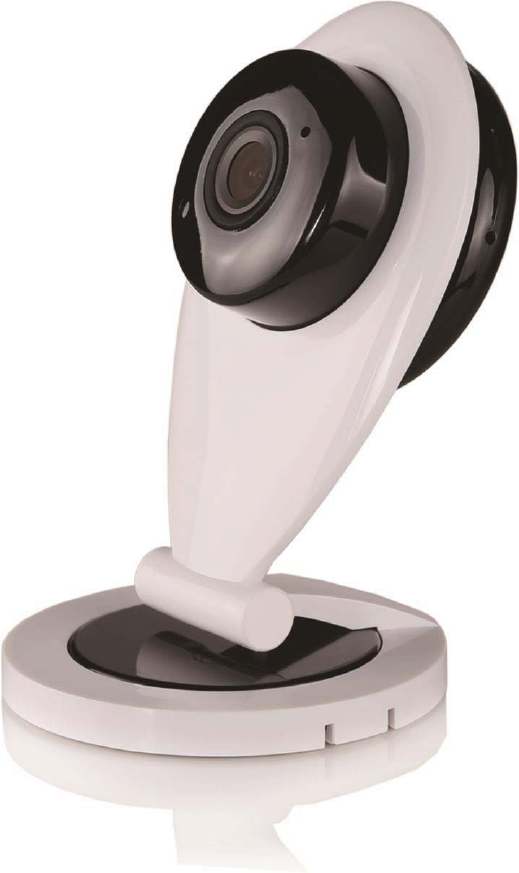

1 WELCOME GEP C2 is a high-resolution (720P), feature-rich digital wireless IP Camera, designed for superior performance in home/office environments. It combines a high quality digital Video Camera with network connectivity and powerful android/IOS Apps to bring clear live video to you wherever you are over the Internet. You can use this IP Camera to monitor some special places such as your home and your office. Also controlling and managing images are simple by clicking the app through the network.
. Camera installation 4.1 Scan below QR Code to install app “MyCam Pro” into mobile device. IOS Android 4.2. Plug the power adaptor into camera. 4.3. It takes approx 120 seconds to boot up the camera, Until the indicator red led will flash slowly. 4.4 For Android user: (Please make sure your mobile device has been connected to a local Wi-Fi) 1. Sign up to use “cloud” Functions or “skip” to process 2. Press “+” at the center of each view window to add camera 3.
4. Press “Wireless” for Model C1 and C3 7. Press “+” to proceed 6. Connect to the camera by selecting Camera Wi-Fi SSID “IPCAM-AP-XXXXXXXXXXX” Note: a. Camera Wi-Fi SSID can be found in the list when Blue LED flashes slowly. b. Camera is connected to local Wi-Fi when 5. Input your local Wi-Fi Blue LED stops flashing. At this time, Camera password Wi-Fi SSID can’t be found. 8. Input device password, the default is “admin”. This password needs to be changed later for safety reason. 9.
4.5 “Android” Advanced setting Device Security Code (Device Password) must be reset after initial installation to enhance safety. Users can alter Wi-Fi connections remotely by selecting the detachable wifi signal around the camera and input wifi password. Users can active /close motion detection function. And can also select type of notifications such as by ringtone and/or vibration. This function works only when using micro SD card. By selecting “ALARM” mode, less storage will be occupied.
4. Press “Wireless” for Model C1 and C3 5. Input your local Wi-Fi password 7. Input device password, the default is “admin”. This password needs to be changed later for safety reason. 6. Follow below instruction to connect to the camera at “setting” page of mobile devices. Note: a. Camera Wi-Fi SSID is “IPCAM -AP-XXXXXXXXXXX”. b. Camera Wi-Fi SSID can be found when Blue LED flash slowly. c. Camera is connected to local Wi-Fi when Blue LED stops flashing. At this time, Camera Wi-Fi SSID can’t be found.
4.7 “IOS” Advanced setting Device Security Code (Device Password) must be reset after initial installation to enhance safety. Users can alter Wi-Fi connections remotely by selecting the detachable wifi signal around the camera and input wifi password. With Micro SD card, users can record the video stream locally. By selecting “ALARM” recording mode, less storage will be occupied. And this “Alarm” mode only valid when “motion detection” is NOT “off”.
7 Trouble shooting 7 Trouble shooting 7.1 Have forgotten the device password. --To reset the password, press and hold down the RESET BUTTON for at least 8 seconds. (Please keep the power on when do RESET). Default device password: admin 7.2 Can’t find the camera Wi-Fi name “IPCAM-AP-XXXX” in mobile Wi-Fi list during initial installation process. -- Wait about 2 to3 minutes after power on the camera until the indicator LED flash slowly. 7.
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
