FSC LM7WV User Guide 1
N otebook User Guide Copyright©2006 All Rights Reserved - Printed in Taiwan Notebook Computer User Guide Original Issue: 2006/06 This manual guides you in setting up and using your new notebook computer. Information in this manual has been carefully checked for accuracy and is subject to change without notice.
N otebook User Guide FCC Information to User Safety and Care Instructions No matter what your level of experience with computers, please make sure you read the safety and care instructions. This information can help protect you and your computer from possible harm. Radio and television interference Warning: Use the specified shielded power cord and shielded signal cables with this computer, so as not to interfere with radio and television reception.
N otebook User Guide You may find helpful the following booklet, prepared by the Federal Communications Commission: Interference Handbook (stock number 004000-00345-4). This booklet is available from the U.S. Government Printing Office, Washington, DC20402 Warning: The user must not modify or change this computer without approval. Modification could void authority to this equipment.
N otebook User Guide Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment 5.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
N otebook User Guide Peripheral Devices Notice Only peripherals (input/output devices, terminals, printers, etc) certified to comply with Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception. Optical Disk Drive Notice The optical disk drive is Class 1 Laser Product.
N otebook User Guide (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: EN 300 328 V.1.6.1 : 2004 EN 301 489-1-17 V.1.2.1: 2002 EN 50371: 2002 EN 60950: 2000 EN 55022: 1998+A1:2000+A2:2003 EN 55024: 1998+A1:2001+A2:2003 EN 61000-3-2: +A1 2001 EN 61000-3-3: 2002 802.11b & 802.
N 51505350MHz otebook User Guide Austria Limited to 5150 – 5250 MHz Belgium 5250 - 5350 MHz excluded Croatia Licence required Italy General authorization required if used outside own premises Latvia Limited to 5150 – 5300 MHz, Under Study Luxembourg None; General authorization required for public service 54705725MHz Austria Not implemented; Military band Bulgaria Not implemented Croatia Not implemented Czech Republic Not implemented; Planned France Not implemented; France will implem

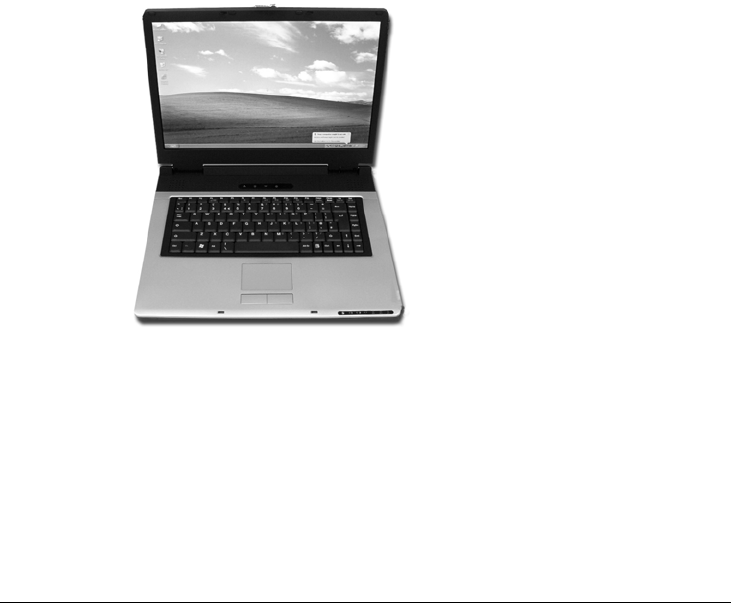

N otebook User Guide About Your Notebook Computer Congratulation for having purchased your new Professional Multimedia Notebook. This notebook incorporates the strongest features, which integrate the latest technologies available in the notebook industry. Your new notebook computer not only drives today multimedia applications but also be ready for tomorrow exciting new software.
N otebook User Guide About Your User Guide Welcome to your Professional Multimedia Notebook User Guide. This manual covers everything you need to know in learning how to use your computer. This manual also assumes that you know the basic concepts of Windows and the PC. You will start doing a lot of great and fun things with your computer. This manual is divided into eight chapters. Chapter 1 gives introduction on your computer features.
N otebook User Guide Table of Contents ABOUT YOUR NOTEBOOK COMPUTER........................................ 10 ABOUT YOUR USER GUIDE............................................................... 11 1 INTRODUCTION............................................................................. 17 1.1 1.2 1.3 FEATURE HIGHLIGHT .................................................................... 18 UNPACKING THE COMPUTER ......................................................... 20 THE INSIDE OF THE NOTEBOOK .
N 2.6 3 Installing the Audio Device Driver............................................... 43 Installing the Modem Device Driver ............................................ 44 Installing ENE - Keyboard Controller driver .............................. 44 Installing the Wireless LAN Device Driver .................................. 45 Installing the LAN Device Driver................................................. 45 TURNING OFF YOUR COMPUTER ....................................................
N otebook User Guide 4.2 4.3 4.4 4.5 4.6 4.7 4.8 5 CONNECTING TO PERIPHERALS ............................................. 81 5.1 5.2 5.3 5.4 5.5 5.6 6 6.3 6.4 6.5 6.6 6.7 14 USING THE USB PORT ................................................................... 82 USING AN EXTERNAL MONITOR PORT .................................................. 83 USING THE EXTERNAL AUDIO SYSTEM ......................................... 84 USING THE LAN PORT ..........................................................
N otebook User Guide SYSTEM UPGRADE ................................................................................. 104 7.1 MEMORY UPGRADE ..................................................................... 104 Installing Memory Module ......................................................... 105 7.2 HARD DISK UPGRADE.................................................................. 106 7.3 WIRELESS MODULE INSTALLATION ............................................. 107 8 CARING FOR YOUR NOTEBOOK .....
1 Introduction 1 Introduction Your Notebook PC is a fully Windows compatible portable personal computer. With the latest features in mobile computing and multimedia technology, this notebook makes a natural traveling companion. With leap of technology and compact, your Notebook PC runs on a whole wide range of general business, personal productivity, entertainment, and professional applications. It is ideal for use in the office, at home, and on the road.
N otebook User Guide 1.1 Feature Highlight Before we go to identify each part of your Notebook PC, we will first introduce you to other notable features of your computer. Processing Unit • Your notebook runs on Intel® Celeron® M Yonah microprocessor that is integrated with 1MB L2 Cache. Check with your dealer on the CPU type and speed. • Fully compatible with an entire library of PC software based on operating systems such as Windows XP.
1 Introduction Graphic System Provides blazing graphics controller embedded in VIA VN800 chipset. PCMCIA Provides one PCMCIA slot that allows you to insert one Type II card. PCI Local Bus Architecture • 32-bit PCI Enhanced IDE optimizes the data transfer between the CPU and SATA hard disk drives. Support ultra DMA ATA-150 PIO Mode up to PIO Mode 4, bus mastering for LBA Scheme. • 32-bit PCMCIA CardBus PCI technology that is also backward compatible with 16-bit PC cards.
N otebook User Guide • 1.2 System Password for User and Supervisor included on the BIOS SETUP Program to protect unauthorized use of your computer. Unpacking the Computer Your computer comes securely packaged in a sturdy cardboard shipping carton. Upon receiving your computer, open the carton and carefully remove the contents.
1 Introduction 1.3 The Inside of the Notebook The notebook computer is compact with features on every side. First, look at the inside of the system. The following sections describe inside features. 1. Color Widescreen LCD Display 3. 7. Built-in Stereo Speaker 5. Power On/Resume Button 8. Touchpad Pointing Device • 2. Easy Buttons 4. Keyboard 6. LED Indicators Color Widescreen LCD Display The notebook computer comes with a color LCD that you can adjust for a comfortable viewing position. The LCD is 15.
N otebook User Guide TFT color LCD with Widescreen 15.4” 1280x800 (Wide XGA) resolution panels. Capable of displaying 16M colors (32-bit true color) on either size panels. LCD display control hot-keys allows you to adjust the brightness of the LCD. Simultaneous display capability for LCD and external desktop computer monitor. • Easy Buttons There are three easy buttons used for E-mail, accessing Internet and Wireless LAN functions instantly and easily.
1 Introduction • LED Indicators Keeps you informed of your notebook computer’s current power status and operating status. Description of the status icons appears in the latter part of this section. • Touchpad Pointing Device Microsoft mouse compatible with two Touchpad click buttons. The two select buttons located at each side support tapping selection and dragging functions. These buttons work like a standard computer mouse.
N otebook User Guide • Power Indicator Lets you know that power to the system is turned on. This LED is positioned so that you can see the power state whether the LCD panel is opened or closed. Lights green when the system is powered on. Lights green blinking when the system is in Standby mode. Lights yellow when the battery power is low. Lights orange when the battery power is critical low. • Battery Charging LED Lights to indicate battery in charging status.
1 Introduction • Scroll Lock When LED turns on indicates that the Scroll Lock key on the keyboard is activated. The Scroll Lock key has different functions depending on the software you are using. • Num Lock When LED turns on indicates that the Num Lock key on the keyboard is activated. When activated, the embedded numeric keypad will be enabled. THE FUNCTION OF EASY BUTTONS 1. E-mail Button 2. Internet Button 3.
N otebook User Guide • 1.4 Wireless LAN Button Push this button to activate or inactivate the Wireless LAN. When you activate the wireless LAN function, it will search the wireless LAN signal automatically if you had installed the driver. The Front Side of the Notebook 1. Cover Switch • 26 Cover Switch The cover (LCD panel) is locked when it is closed. Slide the button right aside to release the latch for opening the cover of the computer.
1 Introduction 1.5 The Rear Side of the Notebook The system ports at the back of your notebook computer can connect various devices. Each port is described as followings. 1. USB 2.0 Ports 2. VGA Port 3.Kensington Lock Hole • USB 2.0 Ports The Universal Serial Bus (USB) port allows you to connect USB 2.0compliant devices (for example, printers, scanners and so on) to your notebook computer. • VGA Port Lets you attach an external monitor or projector for wider display.
N otebook User Guide 1.6 The Left Side of the Notebook The left side of your notebook computer provides the features shown in the following figure. 1. Modem Port 3. Headphone Jack • 2. Optical Disk Drive 4. Microphone Jack Modem Port A 56K internal fax/data modem is installed. It keeps you connected to the outside world through phone line. For electrical safety concerns, only use telephone cables rated 26AWG or higher.
1 Introduction 1.7 2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 3. Do not use the telephone to report a gas leak in the vicinity of the leak. 4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
N otebook User Guide 1. PCMCIA Slot 3. Air-Outlet Vent 5. LAN Port 2. USB Ports 4. DC Power Port Right Side Features • PCMCIA Slot Lets you connect various PC cards such as memory card Supports both 3V, 5V 32-bit CardBus and 16-bit PC cards. 30 • USB 2.0 Ports The Universal Serial Bus (USB) port allows you to connect USB 2.0compliant devices (for example, printers, scanners and so on) to your notebook computer.
1 Introduction • 1.8 LAN Port An internal 10Base-T/100Base-TX Ethernet LAN module connects your computer to other computers/networks through a local area network (LAN). The Underside of the Notebook The bottom of the notebook computer offers the following features. 1. Hard Disk Compartment 3. Battery Bay 5. Battery Release Latch 2. Battery Lock Latch 4. Memory Compartment Bottom of the System • Hard Disk Compartment Open this cover of this compartment to replace with other Hard Disk Drive.
N otebook User Guide 1.9 • Battery Bay Equipped with a choice of Lithium-Ion (Li-Ion) battery pack. • Memory Compartment There are two SO-DIMM memory slots. One memory slot is empty for upgrade usage. • Battery Release Latch To release the battery, first locate the Battery Lock Latch at the left side with unlock status, then push the Battery Release Latch to the right end to remove the battery pack.
1 Introduction Battery Pack Aside from the AC adapter, your computer can also be powered through the internal battery pack. The battery pack uses rechargeable Lithium-Ion (Li-Ion) battery cells that provide long computing hours when fully charged and power management enabled. You should always leave the battery inside your computer even when using the AC adapter as it also acts as a back-up power supply in case power from the AC adapter is cut off.
Getting Started 2 2 Getting Started Your Notebook is designed and pre-configured for easy setup and use. This chapter describes the installation steps you should follow to get the notebook up and running as quickly as possible. Contact your dealer if they have pre-installed all the needed drivers to fully operate your computer or if there is an update on the driver installation of the notebook.
N otebook User Guide 2.1 Using the Battery Pack The notebook is designed to operate with one of the following power sources: • With AC power using the AC adapter connected to an electrical outlet. • With a Lithium-Ion (Li-Ion) battery pack. You should use the AC adapter whenever it is possible, relying on the battery pack only when AC power is unavailable. Before you use your notebook computer, install and recharge the battery pack first.
Getting Started 2 Installing the Battery Pack This notebook provides the most convenient way to install the battery pack into your computer. With the extended nose directed toward the compartment, insert and push the battery pack.
N otebook User Guide When your notebook estimates that the battery only has enough charge to continue for a few minutes, it will alert you with a battery low warning beep. If you are consuming a lot of power by using the audio system, the PCMCIA slots, the hard disk drives, and optical disk drive, your notebook might run out of charge much sooner than you expect.
Getting Started 2.2 2 Connecting the AC Power Source The AC adapter provides external power source to your computer and charges the internal battery pack at the same time. The AC adapter also has an autoswitching design that can connect to any 100VAC ~ 240VAC power outlets. To connect the power adapter: 1. Plug the AC power cord into the power socket of the AC power adapter. 2. Plug the other end of the AC power cord to a live AC wall outlet. 3.
N otebook User Guide y For the power supply of this equipment, an approved power cord has to be used. y Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices. y Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e. AC adapter). 2.3 Starting Your Computer The Power/Resume button is found on the top of the base unit.
Getting Started 2 After the test, the screen will also display a message "press to enter SETUP". You don’t need to run this program at the moment as your dealer already made the necessary settings for your computer optimal operation. Refer to Chapter 6 on running the SETUP program later. After the test has completed, your computer will start to search and boot up the operating system from your hard drive.
N otebook User Guide first if they have already installed all the drivers along with the operating system. If not, follow the procedures below: INSTALLING WINDOWS XP FROM OPTICAL DISK DRIVE To install Windows XP directly from your optical disk drive, please go to Boot menu of BIOS setup menu. Use arrow key to select "CD-ROM Drive", then use "+" or "-" to move it to the top. Go to Exit menu and select "Exit Saving Changes".
Getting Started 5. Click “Yes” to accept the License Agreement . 6. Click “Next” twice to start installation. 7. Click “Next” to continue. 8. Tick the option "Yes, I want to restart my computer now.", and press “OK” to restart your system. 2 INSTALLING THE VGA DEVICE DRIVER Following is the procedure for installing the Video Accelerator 3D Adapter VGA driver to your computer: Installing VGA device driver for Windows XP 1. Click the Start button, then point to Run. The Run dialog box appears. 2.
N otebook User Guide 4. Click “Next” to continue. 5. Tick the option "Yes, I want to restart my computer now.", and press “Finish” to restart your system. INSTALLING THE MODEM DEVICE DRIVER Please follow the procedures below for installing the AC97 Modem driver: Installing Modem driver for Windows XP 1. Click the Start button, then point to Run. The Run dialog box appears. 2. Click Browse button and navigate to the directory as "E:\Drivers\WinXP\Modem\ssetup.exe" 3.
Getting Started 2 INSTALLING THE WIRELESS LAN DEVICE DRIVER INSTALLING THE WIRELESS LAN DRIVER Please follow the procedures below for installing the Gemtek Wireless LAN Mini PCI Adapter driver: Installing Wireless LAN driver for Windows XP 1. Click the Start button and then click Run. The Run dialog box appears. 2. Click Browse button and specify the directory as “E:\Drivers\WinXP\ Wireless Lan\ setup.exe” 3. Click “OK” to continue installing the WLAN driver. 4.
N otebook User Guide 2.6 Turning off Your Computer If you are not going to use the computer for a while, it is best to turn off the power of the computer for longer use. Before turning off the power, you need to close first all application programs and shutdown the operating system. After turning off the computer, make it a habit to leave the LCD panel open for a while whenever used for an extended period of time. This allows the inside parts of the computer to cool off.
Using Your Notebook 3 3 Using Your Notebook This chapter describes how to operate the standard built-in features of the notebook that you normally would use in your day-to-day computer work. If you are new to computers and to your operating system, you also need to read the manual for the operating system on how to work with your computer. It is very important to familiarize yourself well with the operating system.
N otebook User Guide 3.1 Starting Your Operating System The operating system is a must ingredient in using your computer. Without an operating system, it is like playing chess without the chessboard. It is the platform for all your software application programs to run on. The most popular operating system today is Microsoft Windows. You should have installed one operating system by your dealer unless you are an expert computer user and would need a more powerful operating system.
Using Your Notebook 1. Function Keys 3. Windows Start Menu Key 5. Windows Shortcut Key 3 2. Control Keys 4. Control Keys 6. Cursor Control Keys Keyboard Key features and operations are described below: • Function Keys Function keys are application-driven, like F1 through F12 can be found on the keyboard. These keys work together with the Fn key to activate special functions. Some keys (printed in blue on keypad) are preprogrammed with dual functions.
N otebook User Guide • Windows keys Use the following two keys to facilitate your work: Start Menu key Displays the Start menu. Shortcut/Application key Provides quick access to shortcut menus. This key acts like a right mouse button. 50 • Cursor Control keys Cursor control keys let you position the cursor on the screen where you want. In the screen, the cursor is a blinking underline, block, or vertical bar depending on the application. The cursor indicates where the next text typed is inserted.
Using Your Notebook 3 BASIC KEYBOARD FUNCTIONS Keypad Function Description key. Execute a command. Within many text editing application programs, the key inserts a hard carriage return, just like what ordinary typewriter does. key. Press this key to cancel or escape from a command or function. key. Known as the Insert key. Press this key to toggle the keyboard data entry from insert to type over mode. key. Known as the Print Screen key.
N otebook User Guide Keypad Function Description key. Known as the Control key. Used in most application program in combination with other keys to execute a certain command. + key. Known as the Alternate key. Used in most application program in combination with other keys to execute a certain command. + key. Activates the embedded 15-key numeric keypad. The keys are color coded blue. + key.
Using Your Notebook 3 SCREEN CONTROL KEYS Keypad Function Description key. Moves the cursor to the beginning of a screen or line. key. Moves the cursor up one screen at a time key. Moves the cursor down one screen at a time key. Moves the cursor to the end of a screen or line. WINDOWS HOT KEYS Keypad Function Description key. Pulls up the Windows Start menu. key. Performs a mouse right-click function for Windows system.
N otebook User Guide Keypad Function Description + Switches display between LCD, CRT, or LCD and CRT simultaneously. + To shut down or resume the built-in system speaker volume. + Increases the brightness of LCD display incrementally. Decreases the brightness of LCD display incrementally. + 3.3 + Decreases the audio volume of the notebook incrementally. + Increases the audio volume of the notebook incrementally.
Using Your Notebook 3 functions. To access these options, locate the Control Panel and double click on the Mouse icon. The options let you control the size and color of the cursor, cursor speed, the accepted double-click speed, and selection button orientation. The Touchpad works a mouse pointing device replacement that is used under Windows-based operating system.
N otebook User Guide 1. The rectangular surface acts like a miniature duplicate of your display screen. To move the mouse cursor, place the finger lightly on the sensor pad and move in the desired direction. If you reach the end of the pad, lift your finger and place it back down on the other side of the pad. 2. To select an item, click on the item by pressing the left button control or by simply tapping on the surface once. A light, quick tap always works best.
Using Your Notebook 3 notebook computer model provides 15” 1024x768 XGA resolution panels. You would also probably want to set the amount of color output to display sharper images and photos. POSSIBLE DISPLAY CONFIGURATIONS The table below shows you the possible display resolution you can set when using either the LCD display or the external monitor (CRT): Display Possible Resolution Maximum Colors Widescreen 15.
N otebook User Guide your screen. Click on the Settings tab to set your desired configuration. Make sure to follow the configuration table above. If you cannot configure the display properties, change the display driver first as mentioned on Section 5 "Installing the Notebook Device Drivers" of Chapter 2 in this manual. Consult your dealer for the latest Windows VGA driver. 3.
Using Your Notebook 3 of power indicator flashes. To resume your working again, you can press the power button to return your work to the screen where you left off. Hibernation Mode In Hibernation mode, all system devices are powered down and the contents of RAM are stored on your hard drive. Hibernate mode uses less power than Standby mode, but takes a bit longer time to resume. When your notebook goes into hibernation, Windows saves your entire desktop state before powering down your computer.
N otebook User Guide before using. The internal hard disk is normally assigned as Drive C after formatting. Sometimes divided into two partitions, adding a Drive D. Since your computer supports different hard disk capacities (up to 80 GB), you also need to setup the disk type first on your computer’s BIOS SETUP program before formatting the disk drive. Your computer supports Auto-detect hard disk type, so you do not need to set it manually. Your dealer should already have done all of this for you.
Using Your Notebook 3 2. Place the disc on top of the CD tray with the label side facing up. Gently press the compact disc onto the center spindle to secure the disc. 3. To remove the disc, press on the center spindle and pull up the disc from the side until the disc snaps out of the spindle lock. If the eject function is disabled by software or a power failure occurs, the Emergency Eject Hole allows you to manually remove a CD from the reader. 4.
N otebook User Guide • Always pick up the CD by its edges. • Avoid scratching or soiling either side of the CD. • Do not write with the hard ball-point pen or apply labels on either side of the CD. • Keep the CD away from direct sunlight or high temperatures. • Clean fingerprints or dust from the CD by wiping it with a soft cloth. The above points also apply to other optical storage media. The Combo drive is a Class 1 Laser Product. 3.
Using Your Notebook Type II Type III 5.0 mm 10.5 mm 3 Fax/Modem & Network Cards Hard Disks (ATA Cards) Type II Cards Type II card has a thickness of 5.0 millimeters (mm). Type II cards are often storage or communications devices such as Flash Memory, LAN, and Small Computer System Interface (SCSI). Typical Type II cards include input/output (I/O) features such as modems and LANs.
N otebook User Guide The following table provides sample drive designations. Sample Drive Designations Drive letter C: D: E: F: Location/Device Internal hard disk Internal hard disk, 2nd partition CD/DVD/RW/Combo drive Slot 0, high-speed memory card Type III Cards Type III cards are thicker (10.5 mm) than Type II cards and allow no extensions. This notebook does not support Type III Card. WHAT IS CARDBUS? CardBus is the high-performance 32-bit PCI bus master interface from PCMCIA.
Using Your Notebook 3 2. Insert the side of PC card with the 68-pin socket into the PC slot. The face label of the card should also be facing up. 3. When the full length of the card is almost inside the slot, push firmly but slowly, to ensure full connection with the computer. The PC card will be detected and once the needed driver is installed, it will generate a beep sound to indicate that the card is detected.
N otebook User Guide 3. Then you can remove the inserted PC card, push the button found on the right side of the PC slot to release the eject button. Then push it again to release the PC card. 4. When the PC card has moved out a space out of the slot, hold the edges of the card and slowly slide it out. MAKING PC CARDS WORK Since PC cards come in different types and brands, making every card work on your computer may not that be easy.
Using Your Notebook 3 insert the driver CD provided by the PC card manufacturer into the combo drive and install to Windows system. You need to read the manual guide of the PC card on how to configure and operate the card. Some PC cards require additional system resources. Before inserting a PC card you may have to disable either the USB port, or the 56K internal modem. Check the Windows device manager to ensure that there are no conflicts of resource amount those devices.
Fun with Multimedia 4 4 Fun with Multimedia This chapter lets you make full use of all the multimedia features of your computer in having fun and excitement during work or leisure. You will learn how to mix and match the built-in sound system, use Combo drive in creating an exciting full multimedia presentation.
N otebook User Guide 4.1 Notebook Multimedia Features Your notebook computer is rich in multimedia features that make your computing fun, comfortable, exciting and easy. Your computer is well able to perform all multimedia tasks through the following: 4.2 • Intel® Celeron® M Processor Yonah • Up to 2GB DDR2 SDRAM • DVD/CD-RW Combo or DVD Dual • Integrated VIA VN800 graphics engine. • 16-bit Audio Sound System with built-in speaker and microphone.
Fun with Multimedia 4.3 4 Setting up the Audio Driver Properties Before you can start using the audio capabilities of your computer, you need first to setup properly the audio driver after installing Windows. If you bought your computer with Windows pre-installed, it is most likely that your dealer have configured the sound driver for you. If not, you must refer to Chapter 2 on how to setup the sound drivers for Windows. 4.
N otebook User Guide Figure 4-1 Entertainment Programs Group The standard multimedia components are as follows: • Windows Media Player - for playing sound, video and animation files • Sound Recorder - for recording sounds and playback • Volume Control - for adjusting the volume of mixer For more information on how to operate these multimedia components, run the program and click on the Help menu. 4.
Fun with Multimedia 4 be played back through the internal speaker or earphone jack using an external speaker, headphone, or earphone set. You can also use the files as voice annotations on many applications for more real presentation. This section will describe briefly how you can record sounds under Windows operating system. To record sounds, you need to run the Sound Recorder program from the Multimedia program groups.
N otebook User Guide 2. Click Properties in the Options main menu. 3. Click the round button for Recording and tick off each component that list in the "Shows the following Volume Controls" box. Figure 4-3 Audio Properties 4. 74 Click OK and the Recording Control dialog box will appear. Here, you will select the input device for the recording source. If you want to record from the Combo drive with audio music, you must click on CD Player.
Fun with Multimedia 4 Figure 4-4 Recording Volume Control USING AN EXTERNAL MICROPHONE Your computer allows you to connect an external microphone for high quality recording. The external microphone jack is found on the left side of your computer. Use only microphone with 1/8-inch mini-jack connector. Follow the same procedure for recording voice. USING THE BUILT-IN COMBO DRIVE You would normally use the Combo drive for recording audio music from the Audio CD. Follow these steps: 1.
N otebook User Guide Figure 4-5 Play Audio CD by Windows Media Player 4.6 4. Select the starting point where you want to start recording. 5. Switch to the Sound Recorder and press the Record button. 6. Switch immediately to the Windows Media Player and press the Play button. You can adjust the volume control so you can also hear the music while in recording. Playing Audio and Sound Your computer has built-in twin speakers to playback audio and sound.
Fun with Multimedia 4 For more quality sound output, you can choose to connect an external amplified speaker or earphone from headphone jack. Always minimize the volume first before placing the phone set to your ear. USING THE WINDOWS MEDIA PLAYER The easiest way to playback multimedia media files is to run the Windows Media Player. Follow these steps: 4.7 1. Click on Start, point to Programs, Accessories, and then Entertainment. 2. Click on Windows Media Player to start program. 3.
N otebook User Guide Figure 4-6 Windows Media Player 4.8 Using DVD DVD is the breakthrough in superb full-motion picture playback. One disc can contain at least 4.7GB of information, capable of holding one full-length movie with soundtracks, subtitles, and different languages. Much more, the DVD-ROM drive of your computer is backward compatible with CD-ROM drive so it allows you to use any CD as well. It also works the same as the CDROM.
Fun with Multimedia 4 You can use Windows Media Player to watch DVDs on your Notebook computer. Like a conventional DVD player, by using the Player, you can skip to specific titles and chapters, play sequences in slow motion, gain access to special features, and switch audio and caption languages. In addition to these conventional DVD player tasks, you can also retrieve information about each disc from the Internet.
N otebook User Guide 4.9 Using Rewritable Optical Disk Drive DVD/CD-RW Combo or DVD+RW combo drive is a device that can write digital data to CD-R and CD-RW or DVD+R and DVD+RW media. With this device, you can backup your own data to CD-R or CD-RW disc for mass data storage and safely retaining. The CD-R disc can be written several times until the CD-R is full; the CD-RW disc, furthermore, can write and erase data repeatedly. Please refer to the related user manual about the CD-RW software.
Connecting to Peripherals 5 5 Connecting to Peripherals This chapter describes how you attach peripheral devices to your notebook. You can attach a printer or mouse; connect an external monitor and keyboard, or any other peripheral device. You will learn how to use these peripheral devices with the step-by-step instructions depicted in this chapter.
N otebook User Guide 5.1 Using the USB Port USB (Universal Serial Bus) is a hardware interface that enables you to connect multiple devices (such as printers, mice, keyboards, storage devices, joysticks, digital cameras, and video conference cameras, etc.) to your notebook computer, and up to 127 devices can be attached. Besides, USB’s hot swap capability allows everything to be plugged in and unplugged without turning the system off.
Connecting to Peripherals 5 The USB bus distributes 0.5 amps (500 milliamps) of power through each port. For the purpose of power saving, please disconnect your USB device while not in use. 5.2 Using an External Monitor Port Your computer has a 15-pin Monitor port for supporting any external CRT or LCD color monitor. You need a display signal cable (usually provided with the monitor). One end of the cable must have a 15-pin connector for the system. To connect an external monitor: 1.
N otebook User Guide 6. If you only want to show the display on the external monitor or projector and shut off the LCD display, you can use the + hot-key to switch display type between LCD and external monitor. Keep pressing the hot-key until you get the display to external monitor only. Refer to Chapter 3 regarding the possible External CRT resolutions and how to change the display properties. 5.
Connecting to Peripherals 5.4 5 Using the LAN Port This notebook comes with an internal 10Base-T/100Base-TX LAN module that connects your computer to other computers/networks through a local area network (LAN) and supports data transfer rates at 10Mbps and can be up to 100Mbps. The 10Base-T standard also called Twisted Pair Ethernet is connected with RJ-45 connectors. The 100Base-TX is based on the older Ethernet standard.
N otebook User Guide 5.5 Using the Wireless LAN Wireless LAN is the major breakthrough in computer communication technology. It lets user connect to the LAN environment without using any wire to traditional RJ-45 jack. User can enjoy the wireless connection within the range of Access Point (AP) of LAN. Access Point (AP) is the wireless transmission and receiving device, it generally connects to the server of a LAN environment or act as a LAN hub with wireless connection.
Connecting to Peripherals 1. Locate the analog phone cable in the accessories box in notebook shipping carton. Each end of the cable has a RJ-11 connector. 2. Connect one end of the cable into a standard wall outlet. 3. Connect the other end of the cable into the computer modem port. 5 The speed of data transmission is dependent on the quality of telephone lines. Digitally terminated lines improve the speed of data transmission. Contact your service provider for more information.
Customizing Your Notebook 6 6 Customizing Your Notebook Your computer uses the Phoenix BIOS Setup program that allows you to set several system configuration in changing the way your computer performs. This includes your system time and date, disk drive configuration and password setup. This information is then stored in the CMOS RAM and will remain permanent unless you change it again.
N otebook User Guide 6.1 Running the BIOS Setup Program Your computer is likely to have been properly setup and configured by your dealer prior to delivery. However, you may find it necessary to use the computer’s BIOS (Basic Input-Output System) Setup program to change system configuration information, such as the current date and time, or your hard disk drive type. The Setup program can be accessed when you power on the system and pressing the function key.
Customizing Your Notebook 6 • Item Specific Help The right side of the screen. This area describes each parameter and its available settings. • Menu Bar The top line of the screen. Each of the five selections displays its own screen. • Parameters The left side of the screen. This area lists the parameters and their current settings. • Key Status Bar The bottom part of the screen. These lines display the keys available to move the cursor, select a particular function and so forth.
N otebook User Guide 6.2 Using the Main Menu Setup Phoenix BIOS Setup Utility Main Advanced Security Boot Exit Item Specific Help System Time: [09 :07 :32] System Date: [05/30/2006] , , or selects field. 4 4 [ST98823AS-(S1)] IDE Channel 1 Master [Philips CD-RW/DVD-ROM-(SM)] System Memory: 640 KB Extended Memory: 457728 KB CPU Type: Celeron ® M Processor CPU Speed: 1730 MHz BIOS Version: 0.
Customizing Your Notebook 6 • System Date Allows you to set the system date using the month/date/year format. Enter the current time for reach field and use the , +, or key to move from one field or back to another. You can also change the system time from your operating system. • IDE Channel 2 Master This field display various parameters for the hard disk drive. If type [Auto] is selected, the system automatically sets these parameters.
N otebook User Guide 6.2.1 INTERNAL HDD SUB-MENU Phoenix BIOS Setup Utility Main Advanced Security Boot Item Specific Help IDE Channel 2 Master: [ST98823AS-(S1)] Type: [Auto] Auto = autotypes Hard- LBA Format disk drive installed here.
Customizing Your Notebook Main Advanced Security IDE Channel 1 Master: [Philips CD-RW/DVD-ROM-(SM)] Type: [Auto] Boot 6 Exit Item Specific Help Auto = autotypes Harddisk drive installed here.
N otebook User Guide 6.
Customizing Your Notebook • 6 Display Device Selection [All items on this menu cannot be modified in user mode. If any item requires changes, please consult your system Supervisor.] • Local Bus IDE adapter Enable the integrated local bus IDE adapter 6.4 • Legacy USB Support Enable or disable the USB Bus support when in connection with USB device. • LAN Boot Control: Lets you specify Enabled or Disabled for booting the notebook from Network or not.
N 98 otebook User Guide F1 Help ÇÈ Esc Exit Å--> Select Menu Enter Select Item -/+ Change Values F9 Setup Defaults Select Sub-Menu F10 Save and Exit • Supervisor Password Is Set/Clear selections show that the notebook is under controlled by Supervisor Password or not. • User Password Is Set/Clear selections show that the notebook is under controlled by User Password or not. • Set Supervisor Password Supervisor password gives you the authority in accessing the setup utility.
Customizing Your Notebook 6.5 6 Using the Boot Setup This item allows you to set the search drive sequence where the system will try to boot up first. Phoenix BIOS Setup Utility Main Advanced Security Boot Exit Item Specific Help Boot priority order 1: USB Floppy Drive 2: CD-ROW/DVD-ROM Keys used to view or 3: Hard Drive configure devices: 4: USB Storage Disk Up or Down arrows 5: Boot from LAN Select a device. <+> and <-> moves the device up or down.
N otebook User Guide 6.6 How to Exit the Setup Program There are two choices to escape from the Setup program. Phoenix BIOS Setup Utility Main Advanced Security Boot Exit Item Specific Help Exit Saving Changes Exit Discarding Changes Exit System Setup and Load Setup Defaults save your changes to Discard Changes CMOS.
Customizing Your Notebook • 6.7 6 Save Changes Saves Setup data to CMOS. How to Upgrade the BIOS Your computer uses EPROM Flash BIOS chip that allows you to easily upgrade the BIOS program. When you update the BIOS, any customized settings you made are lost. To upgrade the BIOS: 1. Insert the BIOS Update diskette into the diskette drive. 2. Power on the system with the diskette in the diskette drive. 3. On the DOS prompt, type the following command. A:\>Phlash XXXXXX.ROM (BIOS filename) or A:\>XXX
Using Options 7 7 Using Options This chapter describes the advanced features and expandable architecture in your notebook. You can upgrade your system for specific requirements.
N otebook User Guide System Upgrade This section provides some steps in doing system upgrade for your notebook computer. The upgrade procedures include the following: 7.1 Memory Upgrade Your notebook computer offers 200-pin SODIMM (Small Outline Dual Inline Memory Module) at least 256MB DDR2 SDRAM. The memory compartment is located inside your computer. The table below lists the possible combinations of different memory module and memory size.
Using Options 7 INSTALLING MEMORY MODULE Your computer comes with standard 256 MB, 512MB or 1024MB of synchronous DDR2 SDRAM. You can increase system memory to a maximum of 2048 MB in the system, by installing two small outline double inline memory modules (SO-DIMMs) with installed base memory in the system. The 256MB, 512MB and 1024MB memory modules are available: To install the memory module: 1.
N otebook User Guide Avoid touching the exposed components inside the system. Doing so may damage the system. 5. Insert the connector of the memory module into the socket. Make sure the notch of the memory module fits the nose of the socket. y Hold the memory module at a 30-degree angle and push its connector into the memory socket of the notebook. y Press down on the edge of the memory module until the locking tabs on both sides is locked. 6.
Using Options 7 2. Take out the hard disk from the compartment by finger carefully 3. Remove the connector from the hard disk gently. 4. Remove the crane screws located at each side of the hard disk. 5. Rotate and tighten the crane screws to the new hard disk. 6. Attach the connector to the new hard disk precisely. 7. Place the hard disk back to the compartment. 8. Cover the lid, then rotate and tighten the screws. 9.
N otebook User Guide Please contact dealer for adding or changing this module.
Caring for Your Notebook 8 8 Caring for Your Notebook Your Notebook PC is a fully IBM compatible portable personal computer with the latest features in mobile computing and multimedia technology. Lightweight and compact, your Notebook PC runs on a whole wide range of general business, personal productivity, and professional applications, it is ideal for use in the office, at home, and on the road.
N otebook User Guide 8.1 Important Safety Instructions Portable computers take the most beating from end users. This section gives you detailed information about how to maintain a safe working environment while using the notebook computer. You can maintain its condition and performance by following these guidelines. Please read it carefully to ensure maximum safety. 110 • Before cleaning the notebook computer, make sure it is disconnected from any external power supplies (i.e.
Caring for Your Notebook 8 • While unplugging the power cord, disconnect it by the plug head, not by its wire. • Make sure the socket and any extension cords you may use can support the total current load of all the connected devices. • Though your AC adapter is suitable for universal international voltage, it still requires a stable and continual power supply. Make sure the voltage of the power source when connect the notebook computer to the power outlet.
N otebook User Guide The notebook computer has dropped and damaged. The notebook computer has obvious sign of breakage. • Do not leave this notebook computer in an environment unconditioned. Storage temperature above 60ºC (140ºF) may damage the notebook computer. • An approved power cord has to be used for the notebook computer’s power supply. For a rated current up to 6A and an equipment weight more than 3 kg, a power cord not lighter than H05VV-F, 2G, 0.75mm2, has to be used.
Caring for Your Notebook 8.3 8 Maintaining the LCD Quality When it comes to screen problems, heat plays a big part. After a good working session, the typical routine is to shut the machine and close the cover. But the display surface - no matter what type it is - and the components inside the computer radiates heat; when you close the cover, you trap the heat against the screen. Leave the computer's cover open for about ten minutes while the heat disperses. Make this a habit.
N otebook User Guide 8.5 • Use hard disk maintenance programs like Disk Defragmenter of Windows. These reorganize your hard disk by eliminating fragmentation and improving your hard disk access time. • Install a system password in your computer so others won't be able to use the hard disk. Battery Care Guidelines The battery pack furnished with the computer requires reasonable care and handling to ensure efficient operation and maximum life.
Caring for Your Notebook • 8.6 8 You should always discharge your battery before recharging it on either of these two conditions: first, this is the first time you start to use your battery; second, you had not charge the battery for more than 2 months. To discharge the battery, please execute the "Battery Refresh" function in the BIOS Setup Utility.
N 116 otebook User Guide
System Specification A APPENDIX A System Specification This appendix gives information on the technical and hardware specifications of your computer. Please note that the information mentioned here may not be exactly the same with your computer as specification is subject to change without notice or modifying this manual. Designed with an advanced modular architecture, your Notebook PC also allows you for several levels of customization and expansion that are previously available only on desktop PCs.
N otebook User Guide PROCESSOR UNIT • Intel® Celeron® M Processor Yonah • Above 1.46 GHz CPU • 1MB integrated L2 cache for the processor SYSTEM MEMORY • Two 200-pin memory slots • User-upgradeable to maximum 2GB using 200-pin SODIMM 256MB, 512MB or 1024MB modules • DDR2 –400/533 SDRAM modules LCD DISPLAY • Widescreen 15.
System Specification A STORAGE • 2.5” Format 9.
N otebook User Guide KEYBOARD • Full-sized 87-keys keyboard with Windows systems hot-keys, inverted Tcursor keys, 6 hot keys, 12 function keys, and embedded numeric keypad • Provides international language keyboard FLASH BIOS 512K Flash ROM BIOS for easy BIOS upgrade I/O PORTS • 1 x 15-pin VGA port • 4 x Universal Serial Bus (USB 2.0) • 1 x LAN port • 1 x Modem port WIRELESS DEVICES Mini PCI 802.
System Specification A WEIGHT AND DIMENSION • 357(W) x 271(D) x 26 ~ 42 (H) mm • Approximately 2.
N 122 otebook User Guide
