ENPHASE Q CABLE TERMINATOR
© 2017 Enphase Energy. All rights reserved.

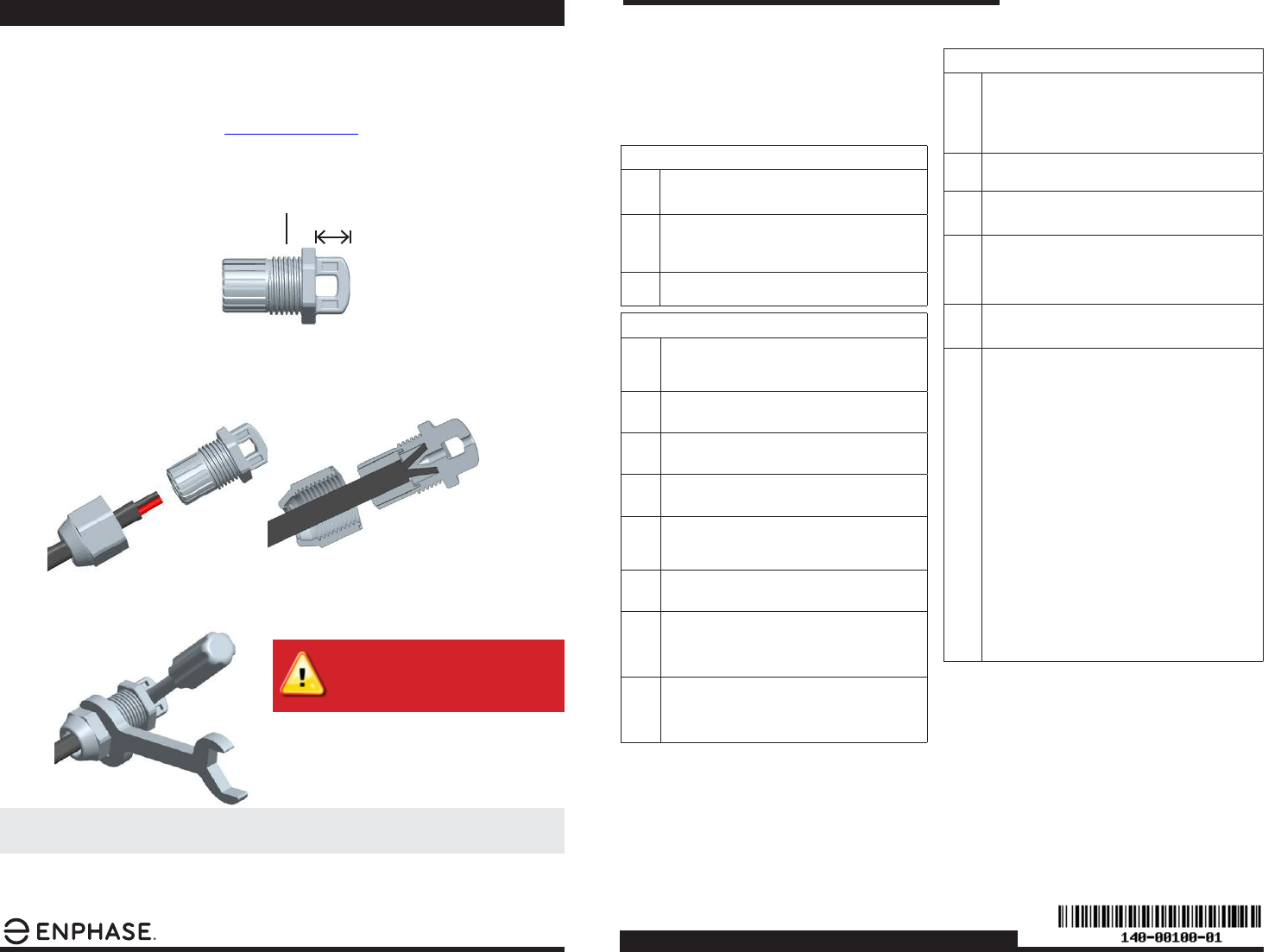

Terminating the End of the Q Cable
Use the Enphase Q Cable Terminator to seal unused cable ends.
For full installation instructions for the Enphase IQ 6 and IQ 6+ Microinverters, read and follow
all warnings and instructions in this guide and in the Enphase IQ 6 and IQ 6+ Microinverter
Installation and Operation Manual at:
enphase.com/support. Safety warnings are listed to the
right of this guide.
A ) Remove 13 mm (1/2”) of the cable sheath from the conductors. Use the terminator loop
to measure.
B ) Slide the hex nut onto the cable. There is a grommet inside of the terminator body that
should remain in place.
C ) Insert the cable into the terminator body so that each of the two wires land on opposite
sides of the internal separator.
D ) Insert a screwdriver into the slot on the top of the terminator to hold it in place, and tight-
en nut with 27 mm open-end wrench or channel lock pliers until fully tightened.
E ) Manage the terminated cable end to the PV racking with a cable clip or tie wrap so that
the cable and terminator do not touch the roof.
Terminator Body
13mm
WARNING: Never unscrew the
hex nut. Unscrewing the hex nut
destroys the locking feature, and
you must replace the terminator.
SAFETY
IMPORTANT SAFETY INSTRUCTIONS.
SAVE THIS INFORMATION.
This guide contains important instructions to
follow during installation.
Safety Symbols
+
DANGER: This indicates a hazardous situation,
which if not avoided, will result in death or
serious injury.
*
WARNING: This indicates a situation where fail-
ure to follow instructions may be a safety hazard
or cause equipment malfunction. Use extreme
caution and follow instructions carefully.
✓
NOTE: This indicates information particularly
important for optimal system operation.
Safety Instructions
+
DANGER: Risk of electric shock. Do not use
Enphase equipment in a manner not specied by
the manufacturer. Doing so may cause death or
injury to persons, or damage to equipment.
+
DANGER: Risk of electric shock. Be aware that
installation of this equipment includes risk of
electric shock.
+
DANGER: Risk of electric shock. Always de-ener-
gize the AC branch circuit before servicing. Never
disconnect the DC connectors under load.
+
DANGER: Risk of electric shock. Risk of re. Only
use electrical system components approved for
wet locations.
+
DANGER: Risk of electric shock. Risk of re. Only
qualied personnel should troubleshoot, install, or
replace Enphase Microinverters or the Enphase Q
Cable and Accessories.
+
DANGER: Risk of electric shock. Do not install
the Enphase Q Cable terminator while power is
connected.
+
DANGER: Risk of electric shock. Risk of re.
When stripping the sheath from the Enphase
Q Cable, make sure the conductors are not
damaged. If the exposed wires are damaged,
the system may not function properly.
*
WARNING: Before installing or using the Enphase
Microinverter, read all instructions and cautionary
markings in the technical description, on the
Enphase Microinverter System, and on the photo-
voltaic (PV) equipment.
Enphase Customer Support: enphase.com/en-us/support/contact
Safety Instructions Continued
*
WARNING: Use the terminator only once. If you
open the terminator following installation, the
latching mechanism is destroyed. If the latching
mechanism is defective, do not use the termina-
tor. Do not circumvent or manipulate the latching
mechanism.
*
WARNING: When installing the Enphase Q Cable,
secure any loose cable to minimize tripping hazard
✓
NOTE: To ensure optimal reliability and to meet
warranty requirements, install the cable terminator
according to the instructions in this guide.
✓
NOTE: Perform all electrical installations in accor-
dance with all applicable local electrical codes: the
Canadian Electrical Code, part 1; and the National
Electrical Code (NEC); ANSI requirements, and NFPA
70.
✓
NOTE: When looping the Enphase Q Cable, do not
form loops smaller than 4.75 inches (12 cm) in
diameter.
✓
NOTE: When installing the
Enphase Q Cable and accessories, adhere to the
following:
• Do not expose the terminator or cable connec-
tions to directed, pressurized liquid (water jets,
etc.).
• Do not expose the terminator or cable connec-
tions to continuous immersion.
• Do not expose the terminator or cable connec-
tions to continuous tension (e.g., tension due to
pulling or bending the cable near the connection).
• Use only the connectors and cables provided.
• Do not allow contamination or debris in the
connectors.
• Use the terminator and cable connections only
when all parts are present and intact.
• Do not install or use in potentially explosive envi-
ronments.
• Do not allow the terminator to come into contact
with open ame.
• Fit the terminator using only the prescribed tools
and in the prescribed manner.
• Use the terminator to seal the conductor end of
the Enphase Q Cable; no other method is allowed.
Hold the terminator body stationary with the screwdriver and turn only the hex nut to
prevent conductors from twisting out of the separator.
