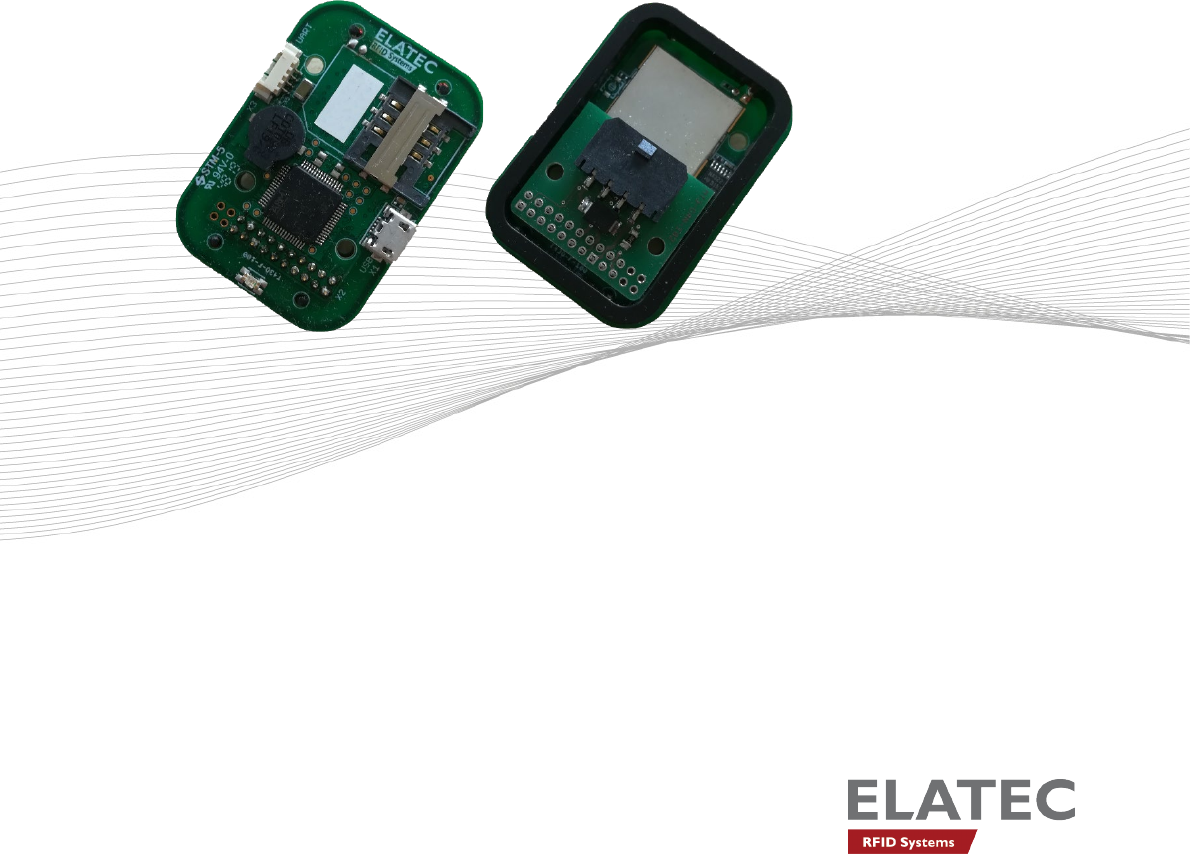

TWN4 MULTITECH 3C M USER MANUAL
TABLE OF CONTENTS 1 INTRODUCTION .................................................................................................................................................................. 3 1.1 ABOUT THIS MANUAL ..................................................................................................................................................3 1.2 ELATEC SUPPORT .........................................................................................................................
1 INTRODUCTION 1.1 ABOUT THIS MANUAL This user manual is intended for the user and enables a safe and appropriate handling of the product. It gives a general overview, as well as important technical data and safety information about the product. Before using the product, the user should read and understand the content of this user manual. For the sake of better understanding and readability, this user manual might contain exemplary pictures, drawings and other illustrations.
3 SAFETY INFORMATION Installation • The installation of the product should be done by a trained and qualified personnel only. Do not install the product by yourself. • Metallic materials on or in direct vicinity to the product might reduce the reading performance of the product. In some circumstances, plastic screws should be preferred to metallic screws when installing the product. Refer to the installation instructions or integration manual of the product for more information.
If you are unsure about any part of the safety information above, contact ELATEC support. Any failure to observe the safety information above will be considered misuse and will void the warranty. ELATEC is not responsible for any damage or injuries resulting from any misuse of the product. 4 TECHNICAL DATA Power supply 4.3 V - 5.
5 MODE OF OPERATION 5.1 OPERATING MODE In order to start operating TWN4 MultiTech 3C M, it simply has to be connected directly to a host device. 5.2 POWER UP In case of an external power supply unit is used, the following requirements must be satisfied: • Short-circuit current < 8 A Once TWN4 MultiTech 3C M is connected to the host, it detects the type of communications cable (e.g. USB or CAN), with which it is connected to the host. 5.
6 COMPLIANCE STATEMENTS 6.1 FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
APPENDIX A – TERMS AND ABBREVIATIONS FCC HF IC LF NFC RFID TERM Federal Communications Commission high frequency Industry Canada low frequency near field communication radio frequency identification EXPLANATION B – RELEVANT DOCUMENTATION ELATEC documentation • TWN4 MultiTech 3C M data sheet • TWN4 MultiTech 3C M integration manual • TWN4 MultiTech 3 technical handbook © 2021 ELATEC GmbH – TWN4 MultiTech 3C M user manual DocRev1 – 09/2021 Page 8 of 9
