The EE741 inline flow meter is dedicated for accurate metering and
monitoring of compressed air and technical gases. With three different
gauge mounting blocks, one and the same transmitter unit can be
installed on DN15, DN20 and DN25 pipes.
The thermal measuring principle and the well-proven E+E hot film
sensor element lead to best long-term stability and fast response time.
Outstanding measuring accuracy, even in the lower measuring range
is achieved by an application-specific multi-point factory adjustment,
which is performed at 7 bar (102 psi). This allows reliable leak detection
and corresponding energy savings.
The construction of the EE741 is optimized for easy installation and
maintenance.
The EE741 is user configurable and can be easily adapted to any
measuring task. The configuration can be set either using the optional display and push buttons or with the free product
configuration software EE-PCS.

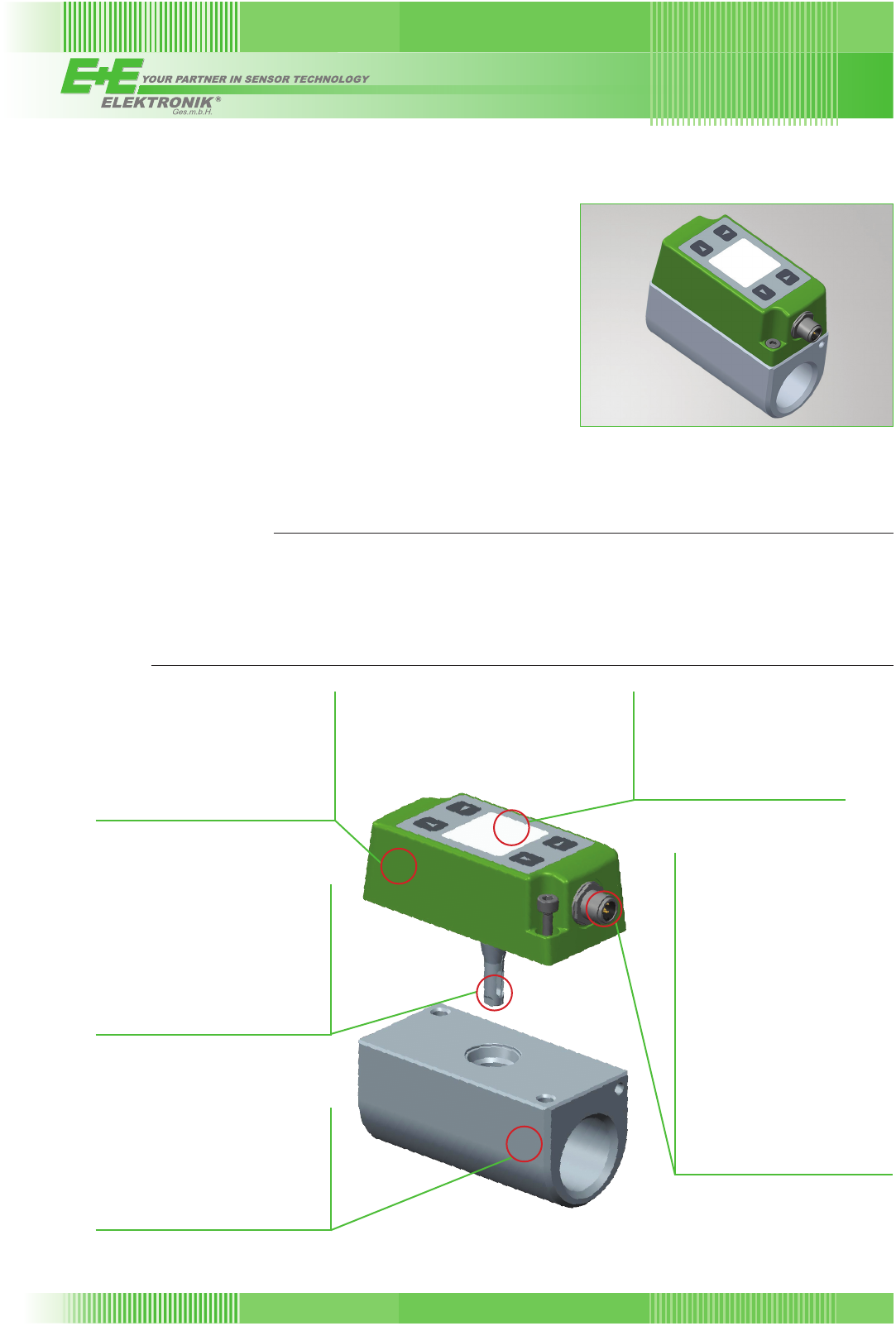

EE741
Modular, compact, inline ow meter
for compressed air and gases
Features
Transmitter
» Can be used for three different pipe
diameters
» Installation and removal without dis-
assembling the pipework facilitates
regular calibration
» Application-specific adjustment
under pressure for best accuracy
Display (optional)
» Shows instantaneous values and
overall consumption
» Intuitive device setup with push
buttons
» Can be rotated in 90° increments
Gauge mounting block
» Precise and reproducible inline
installation of the transmitter for best
accuracy
» Aluminum or stainless steel
» Can be operated with sealing plug
also without transmitter
Output
» User configurable via display or
software
» Analogue 0-20 / 4-20 mA
» 2 switch outputs
» Pulse output
» Modbus RTU
» M-Bus
Measurands
» Standard volume flow
» Mass flow
» Standard flow
» Temperature
» Integrated consumption meter
(totalisator) for cost-effective
consumption analysis without
additional datalogger
Sensor head and thermal ow sensor
» Robust design in stainless steel
» Very fast response time
» Wide measuring range
» Long-term stable and accurate
» Negligible pressure drop
» Highly insensitive to contamination
» No additional pressure and
temperature compensation required
EE741
Typical applications
• Compressed air consumption measurement
• Flow measurement of technical gases
(O
2
, N
2
, Ar, CO
2
, He)
• Nitrogen generators
• Leak detection
