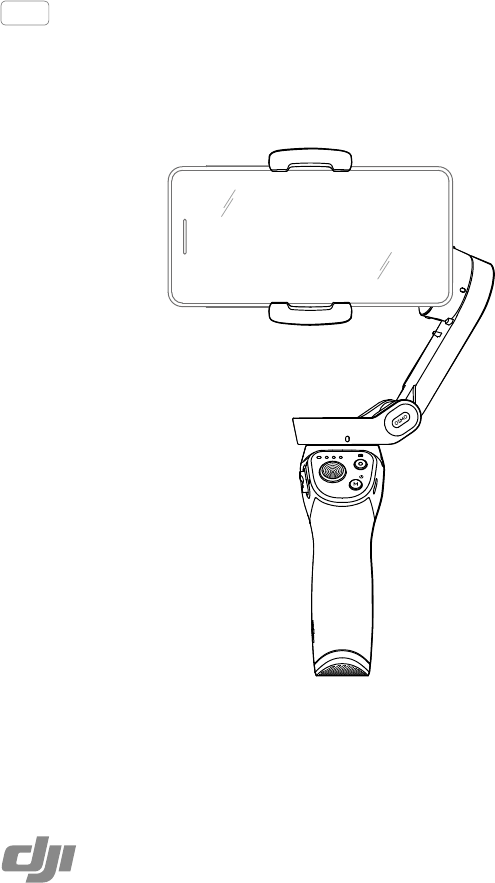

OSMO MOBILE 3 User Manual v1.0 2019.
Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Printing this Document This document supports high resolution printing.
Contents Using this Manual 2 Legend 2 Download the DJI Mimo App 2 Introduction 4 Overview 4 Getting Started 5 Charging 5 Mounting and Balancing a Mobile Phone 5 Using Osmo Mobile 3 6 Controls and Operations 6 Operation Modes 9 DJI Mimo App 10 Updating the Firmware 13 Maintenance 14 Specifications 14 After-Sales Information 15 © 2019 DJI OSMO All Rights Reserved.
OSMO MOBILE 3 User Manual Introduction Equipped with 3-axis stabilization, OSMOTM Mobile 3 turns your mobile phone into a camera that can deliver a stabilized and super-smooth image. The foldable design makes Osmo Mobile 3 easy to transport and store. Lightweight and ergonomic, Osmo Mobile 3 puts seamlessly smooth video creation at your fingertips. Osmo Mobile 3 is easy to use and the mobile phone can be manually adjusted by hand in Follow mode.
OSMO MOBILE 3 User Manual Getting Started Charging • To charge Osmo Mobile 3, connect a USB adapter (not included) to the charging port using the power cable (included). The battery is fully charged when the battery level indicators turn off. Charging time: 2.5 hours (when using a 10 W charger) Max. runtime: 15 hours* • Connect your mobile phone to the USB-A port. If Osmo Mobile 3 is powered on, the mobile phone will begin to charge.
OSMO MOBILE 3 User Manual • Hold the tilt motor and move the phone holder left or right until the mobile phone remains balanced when released. Make sure the mobile phone is properly installed and balanced on the holder of Osmo Mobile 3 before each use. Mount your mobile phone before powering on Osmo Mobile 3. Osmo Mobile 3 will enter standby mode when no mobile phone is detected. Using Osmo Mobile 3 Controls and Operations The buttons on the handle allow greater control over the gimbal and mobile phone.
OSMO MOBILE 3 User Manual 2. Shutter Button Press once to take a photo or start or stop recording. Press and hold for burst shooting when in photo mode. 3. Battery Level Indicators Indicates the battery level of Osmo Mobile 3. With Osmo Mobile 3 powered off, press the M button once to check the battery level. 4. System Status LED Indicates the current status of Osmo Mobile 3.
OSMO MOBILE 3 User Manual The differences between the head and shoulder tracking and face track are that head and shoulder tracking supports 360° tracking while face tracking does not. Also, the detection range of the camera are different. The detection range between the back camera and the gesture is 0.5 to 3 m, and the distance between the front camera and the gesture is 0.5 to 2 m. Note that ActiveTrack 3.0 may increase the power consumption and the temperature of the mobile phone.
OSMO MOBILE 3 User Manual 11. Lanyard Hole The lanyard hole can be used to attach a wrist strap. 12. Combination Operation Press the M button, shutter button, and trigger simultaneously to reset the Bluetooth connection. Osmo Mobile 3 will be powered off automatically if there is no operation for 10 minutes in standby mode. Operation Modes The figures below depict the operation modes when using Osmo Mobile 3 in landscape mode. The same operation modes apply when used in portrait mode.
OSMO MOBILE 3 User Manual DJI Mimo App Watch a live HD video feed on your mobile screen through the DJI Mimo app. The app also allows you to use Story mode, Hyperlapse, Timelapse, ActiveTrack 3.0, and Pano, or configure camera and gimbal settings in just a few taps.
OSMO MOBILE 3 User Manual DJI Mimo App Settings Camera View 1 2 3 4 5 6 7 PANO S 4K 60 11 1/100 1/100 100 100 0 8 9 TIMELAPSE OFF VIDEO 12 SLOWMOTION PHOTO AUTO 0 10 1. Home : Tap to return to home page. 2. Gimbal Battery Level : Displays the current battery level of the gimbal. 3. Mobile Phone Battery Level : Displays the current battery level of the mobile phone. 4. Flash : Displays the flash status. 5. Gimbal Mode : Displays the current gimbal mode: Follow, Tilt Locked, and FPV.
OSMO MOBILE 3 User Manual Slow Motion: tap to shoot video at 8x slow motion. Only available on iOS devices. Video: tap to shoot a normal video. Photo: tap to take a single shot or interval photo. Press and hold for burst shooting. Pano: tap to take a 3x3 or 180° panorama photo. Story: Refer to Number 6 for more information about Story mode. 10. Playback : Tap to preview photos and videos. 11.
OSMO MOBILE 3 User Manual 12. Camera Settings Shooting Mode Settings Hyperlapse Resolution and FPS*, Speed, ISO, Shutter, and EV* Timelapse Resolution and FPS*, Video Frame Rate, ISO, Shutter, and EV* Slow Motion ISO, Shutter, and EV* Video Glamour Effects**, Resolution and FPS*, Video Frame Rate, ISO, Shutter, and EV* Photo Glamour Effects, Count Down, ISO, Shutter, and EV* Pano 3×3 and 180° Pano, ISO, Shutter, and EV* * FPS, ISO, Shutter, and EV settings are only available for iOS devices.
OSMO MOBILE 3 User Manual Maintenance Osmo Mobile 3 is designed to be folded for easier storage and transportation. Ensure to fold the Osmo Mobile 3 when it is powered off. Rotate the pan and tilt axis to align with the marks on the gimbal, and then fold Osmo Mobile 3. Note that the hole on the pan motor should be matched with the marker on the arm. Press the M button to power off Osmo Mobile 3. Osmo Mobile 3 will enter storage mode and can be folded.
OSMO MOBILE 3 User Manual Charging Time 2.5 hours (Measured with a 10W charger) Operating Time 15 hours (Under ideal conditions with the gimbal fully balanced) After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. For online support, please scan this code with Facebook Messenger © 2019 DJI OSMO All Rights Reserved.
This content is subject to change. Download the latest version from www.dji.com/osmo-mobile-3 OSMO is a trademark of DJI OSMO. Copyright © 2019 DJI OSMO All Rights Reserved.
