Installation Manual

DL-HDE100 Installation Guide

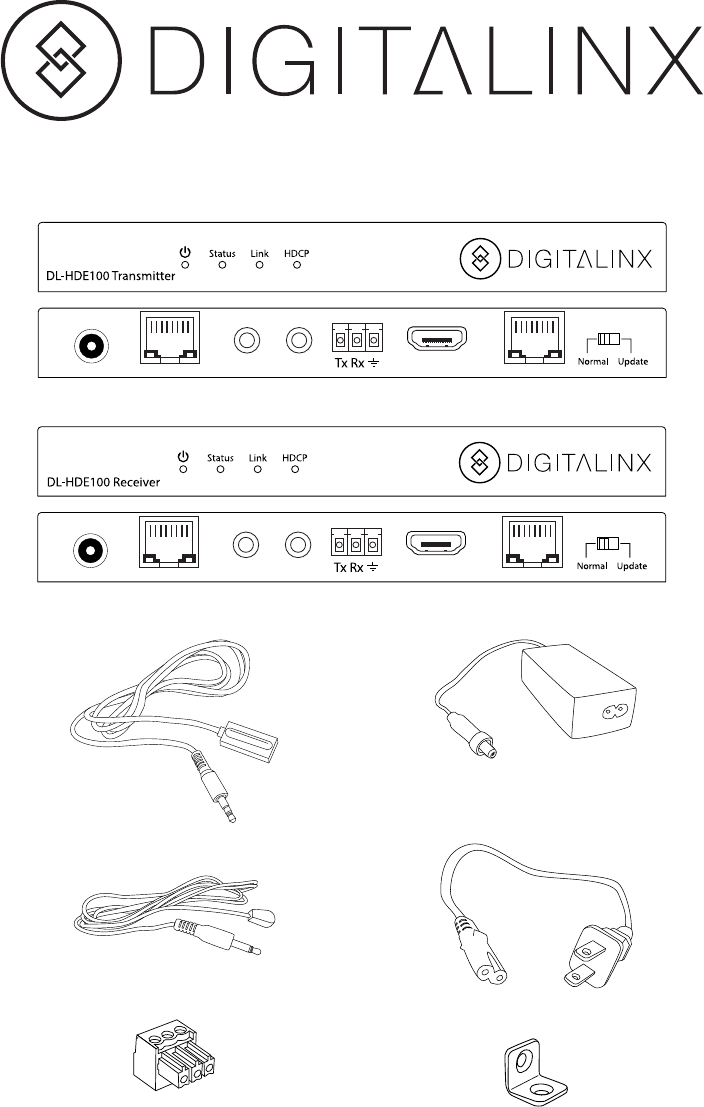

Included Accessories:

IR Receiver (IR eye) - 2 ea

IR Transmitter (IR emitter) - 2 ea

Power Supply with

locking connector

US Power Cable

3-pole Terminal Block - 2 ea

(attached to the extenders)

Mounting brackets with screws - 4 ea

PAGE 1
DL-HDE100 Installation Guide Included Accessories: Power Supply with locking connector IR Receiver (IR eye) - 2 ea IR Transmitter (IR emitter) - 2 ea US Power Cable 3-pole Terminal Block - 2 ea (attached to the extenders) Mounting brackets with screws - 4 ea
PAGE 2
The DigitaLinx DL-HDE100 HDBaseT extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D) including HDCP 2.2, Ethernet, bidirectional IR, and RS232 up to 100 meters away using a single Category 6 twisted pair cable. Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required.
PAGE 3
Instructions 1. Verify all components included with the extender set are present before installation. 2. If the extenders are going to be permanently mounted to a surface, attach the included mounting brackets with the supplied screws. 3. Turn off power and disconnect the audio/video equipment by following the manufacturer’s instructions. 4. Connect Category 6 or greater twisted pair cable with RJ45 connectors between the transmitter (DL-HDE100-TX) and the receiver (DL-HDE100RX).
PAGE 4
Technical Specifications Supported Audio and Video Maximum Video Compatibility 100 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k Video Compliance HDMI, HDCP 2.
