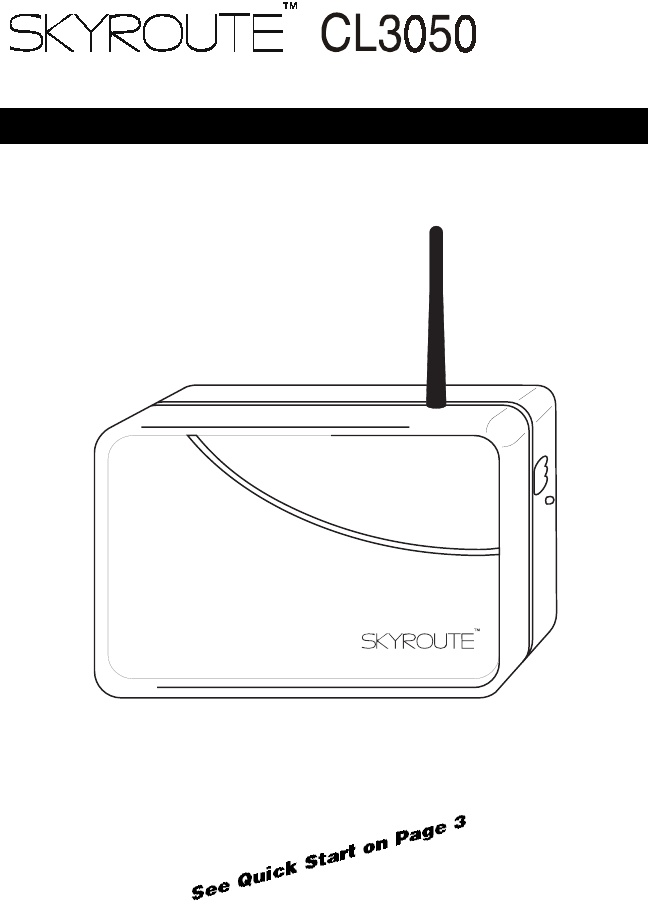

ver 1.2 Universal Wireless Communicator Compatible with all PowerSeries keypads Installation & Programming Guide CL3050 WARNING: This manual contains information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. Read the entire manual carefully.
For Your Records Location Test Time & Day Additional Notes CONNECT 24TM Enrollment Information Note: Only authorized dealers can enroll a wireless system to Connect 24. Dealer application forms and additional information on the Connect 24 Voice Response Unit can be found at the Connect 24 web site. http://www.connect24.com/dealer.htm The information required for activation is listed below. Ensure that all information is available before calling the Connect 24 Voice Response Unit.
Table of Contents Section 1: Introduction............................................................................ 1 1.1Specifications.......................................................................................................... 2 1.2Unpacking .............................................................................................................. 2 Section 2: Quick Start.............................................................................. 3 2.1Installation ....................
NOTE: ii
Introduction Section 1: Introduction The Skyroute CL3050 is a standalone wireless communicator that sends alarm system information to Connect 24. Connect 24 then forwards this information to the central station. The Skyroute CL3050 has four modes of operation. It can operate in one of three operational modes or; if it is connected to a keypad, in the programming mode. The Skyroute CL3050 is pre-programmed with the most commonly used settings for quick installation.
Introduction 1.1 Specifications • • • • • • • • • • • Power Supply Ratings Voltage: 10.6-14 VAC or VDC Current: 500 mA (Max) Low DC Trouble: 8.8 VDC Low DC Restore: 9.0 VDC Low AC Trouble: 7.5 VAC Low AC Restore: 8.0 VAC Current Drain Standby: 100 mA Receiving: 150 mA Transmitting: 850 mA (350 mA from external power supply) RF Power Output: 600 mW Antenna Gain: 0 db Battery Charging Voltage: 6.87 VDC Low Battery Restore: 5.87 VDC Low Battery Trouble: 5.72 VDC Critical Shutdown: 5.
Skyroute CL3050 Universal Wireless Communicator Section 2: Quick Start 2.1 Installation 1 Determine The Operating mode required The operating mode (modes 1, 2, or 3) will determine how the unit is to be wired up. Refer to section 6, Programming Descriptions, section [10] for available options and for programming defaults. See section 4, Power up Sequence for selection of Operating and Programming modes. NOTE: For UL Installations, use only mode 2 or 3.
Quick Start 5 Mount Unit • • Remove the front cover if required Disconnect flying leads from battery and power leads from the RED and BLK terminals (if connected). • Remove two screws securing battery clamp. Remove battery • Mount backplate of unit to wall or over electrical junction box using the four screws provided. NOTE: DO NOT connect the battery to the flying leads and AC or DC power to the terminal strip until all other wiring connections are completed.
Skyroute CL3050 Universal Wireless Communicator Section 3: Controls and Indicators Figure 2 Antenna Mounting Holes Green LED Yellow LED Red LED Battery (6 V VDC) DC) 1.3 Ah SW1 Enroll Button SW2 Wire Access Tamper Switch RED BLK YEL GRN COM PGM 3.1 LED Indicators (see figure 2) Yellow LED During normal operation, the yellow LED will indicate the system status with a series of flashes as indicated below. No.
Controls and Indicators NOTE: Multiple trouble conditions are displayed (flashed) in sequence. Red LED The red LED will flash to provide event transmission status for the following events: 1 Flash 1 Flash 2 Flashes Enroll button held down for 2 seconds Event transmitted to cellular network Event acknowledged by Connect 24. Green LED The green LED will light continuously if the (RSSI) signal is acceptable. If strength is not acceptable the LED will turn OFF.
Skyroute CL3050 Universal Wireless Communicator PGM - The PGM output is dedicated for Skyroute CL3050 trouble indications. If a control panel is not monitoring the Skyroute CL3050, an LED or a buzzer can be connected between this terminal and the RED terminal for trouble indication. The PGM terminal switches low from an open-collector state. Connect to the control panel using a Single EOL configuration as shown in 6 Programming Descriptions Section [13] on page 11.
System Programming Section 5: System Programming The Skyroute CL3050 is programmed using any PowerSeries keypad. Refer to Section 1.1 Specifications. NOTE: Power down the Skyroute CL3050 when connecting or removing other Keybus modules from the system. If the Skyroute CL3050 is connected to a control panel (mode 1), the control panel must also be powered down. 1. Connect keypad Keybus connections to the RED, BLK, YEL and GRN terminals of the Skyroute CL3050.
Skyroute CL3050 Universal Wireless Communicator Mode 3 [02] Zone 3 - 8 Definitions This allows programming of the six additional zone definitions when operating in mode 3 with a PC5108 zone expander. See section [01] for details Default - [01] zones 3 - 8 Modes 2 [03] Zone 1, 2 Loop Response This entry determines how quickly a zone will respond to changes in state. NOTE: This does not affect zones on a PC5108 zone expander card. Default - 05 (0.5 seconds) 01-FF Hex x 0.1 seconds.
Programming Descriptions [02] Mode 2 - (2) 24-Hour Zones In this mode, the YEL and GRN terminals on the Skyroute RED BLK CL3050 will be used as zone inputs. These zones will support the DSC standard EOL configura- Input Voltage tion and loop response. Pro- 10.6-14 VAC or VDC gramming sections will allow the Zone 1 Input installer to change the default Zone 2 Input zone types and attributes.
Skyroute CL3050 Universal Wireless Communicator Option 3 - Double EOL Resistors/Single EOL Resistors Mode 2, 3 This option selects Double EOL resistors (ON) or Single EOL resistors (OFF) wired as indicated Single EOL resistors allows the use of N/C and/or Normally Open contacts. C Zx C Zx C Zx Double EOL resistors allows the zone to be monitored for fault, tamper, secure and violated conditions. Only Normally Closed contacts can be used in this configuration C Zx Tamper Contact 5.6K ohm 5.
Programming Descriptions . Control Panel Skyroute CL3050 Zx COM RED BLK YEL GRN COM PGM 5.6K NOTE: A relay may be required for proper operation in other configurations. See paragraph 3.3 Terminal Connections. Option 1 - Low battery All Modes If the battery voltage drops below 5.72VDC a trouble will be indicated until the battery voltage rises to 5.87VDC. Default - ON Option 2 - Input Supply Failure All Modes If AC power is absent or if DC power drops below 8.
Skyroute CL3050 Universal Wireless Communicator NOTE: If AC Power is detected, it will be used to provide the time base for the internal clock. If AC power is not detected the internal clock will automatically use the crystal time base. All Modes [16] System Day of the Week See section [15]. Option 1. (Sunday) Default - ON Option 2 - 8.
Programming Descriptions When the system sees an open circuit across any zone a zone tamper is generated. DEOL resistors are required for zone tamper reporting. In Section [11], Option [2] must be set to OFF and Option [3] must be set to ON. In Section [13], Option [3] must be set to ON and the Skyroute CL3050 must be operating in mode 2 or 3. Option 5. Default - OFF, Option 6.
Skyroute CL3050 Universal Wireless Communicator [21] System Event Communication Options NOTE: Section [20], Option [7] must be enabled for these events to be communicated. Option 1 - Input Supply Failure All Modes If AC power is absent or if DC power drops below 8.8VDC on the RED and BLK terminals, a trouble will be sent after the delay programmed in section [22] has expired. Default - ON, Option 2 - Low Battery All Modes If the battery voltage drops below 5.72VDC a trouble will be sent to Connect 24.
Programming Worksheets Section 7: Programming Worksheets Zone Definitions (For Sections [01] -[02]) 00 Null Zone (Not Used) 01 Burglary 02 Fire 03 Panic 04 Technical * Not for use in UL Installations. 05 Gas* 06 High Temp* 07 Medical* 08 Emergency 09 Water Level* 10 Low Temp* 11 Sprinkler* 12 Hold-up 13 CL3050 Communications Zone (1 zone max.) 14 Trouble Zone (1 zone max.
Skyroute CL3050 Universal Wireless Communicator [12] Skyroute CL3050 Configuration Options 2 Default Opt Option On Option Off Swinger Shutdown Enabled Swinger Shutdown Disabled ON I___I 1 OFF I___I 2-8 For Future Use NOTE: Option must be disabled for UL Installations.
Programming Worksheets [18] Test Transmission Day Default Opt *Selected at random on power up Option On Option Off * I___I 1 Sunday Disabled * I___I 2 Monday Disabled * I___I 3 Tuesday Disabled * I___I 4 Wednesday Disabled * I___I 5 Thursday Disabled * I___I 6 Friday Disabled * I___I 7 Saturday Disabled * I___I 8 For Future Use [20] Transmission Options Default Opt Option On Option Off ON I___I 1 Zone Alarms Disabled OFF I___I 2 Zone Alarm Restores Disab
Programming Worksheets [24] Number of Attempts Default 03 Range I___I___I 01-FF (Hex) [25] Response Wait Time Default FA Range I___I___I 01-FF For UL Installations program 5A.
Glossary of Terms Glossary of Terms Cellemetry A network allowing short data packets to be sent on cellular control channels. Connect 24 Connect 24 is the service provider that provides the Skyroute service to the security industry and links the Skyroute cellemetry communicator to the central station. RSSI Radio Signal Strength Indication - This value is transmitted to Connect 24 during the periodic test transmission and can be viewed after power up by pressing the enroll button.
Skyroute CL3050 Universal Wireless Communicator Appendix A: Reporting Codes Events Reporting Codes SIA Events Reporting Codes SIA Contact ID Contact ID Zone Alarms Zone Restores Burglary Zone BAXX E130 Burglary Zone BHXX R130 Fire Zone FAXX E110 Fire Zone FHXX R110 Panic Zone PAXX E120 Panic Zone PHXX R120 Technical Zone UAXX E140 Technical Zone UHXX R140 Gas Zone* GAXX E151 Gas Zone* GHXX R151 High Temp Zone* KAXX E158 High Temp Zone* KHXX R158 Medical Zone*
Skyroute CL3050 Universal Wireless Communicator Event Reporting Code SIA Event Reporting Code SIA Contact ID Contact ID Zone Tamper Alarms Zone Tamper Restores Burglary Zone BTXX E380 Burglary Zone BJXX R380 Fire Zone FTXX E373 Fire Zone FJXX R373 Panic Zone PTXX E380 Panic Zone PJXX R380 Technical Zone UTXX E380 Technical Zone UJXX R380 Gas Zone* GTXX E380 Gas Zone* GJXX R380 High Temp Zone* KTXX E380 High Temp Zone* KJXX R380 Medical Zone* MTXX E380 Medical
FCC COMPLIANCE STATEMENT CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use this equipment. This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the manufacturer’s instructions, may cause interference to radio and television reception.
©2003 Digital Security Controls Ltd. Toronto, Canada • www.dsc.com Tech Support: 1-800-387-3630 (Canada & US) or 905-760-3036 Printed in Canada 29034673 Rev 001 Direct all comments concerning this publication to pubs@dscltd.
