Technical Specifications

Complies with:
• ASME A112.18.1 / CSA B125.1
■ R10000-UN
■ R10000-UNBX
■ R10000-UNBXT
■ R10000-UNWS
■ R10000-PX
■ R10000-PXWS
■ R10000-IP
■ R10000-IPWS
■ R10000-MF
■ R10000-MFWS
■ R10000-UNBXHF
■ R10000-UNWSHF
■ R10000-UNWSBXT
Submitted Model No.: _________________________________________________
Specific Features: ____________________________________________________
stANDARD speCiFiCAtioNs:
• Forged brass body.
• Back-to-Back installation capabilities.
• Can be tested with air (200 PSI) or water
(300 PSI) without valve using supplied test cap.
• Square plasterguard allows for right angle cuts.
• Thin wall mounting.
• For use with Multi Choice
TM
Universal single or
dual function trim. Cartridge ships with trim.
Note: No tub outlet in HF model.
Note: Should use proper fitting with each type
(copper tubing, iron pipe, and pex fitting).
Note: Should use proper tooling with crimping pex
fitting and cold expansion pex models.
®
®
U
P
C
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
wARRANty
• Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from
defects in material and workmanship.
• 5 Year Limited Warranty for usage in all industrial,
commercial and business applications.

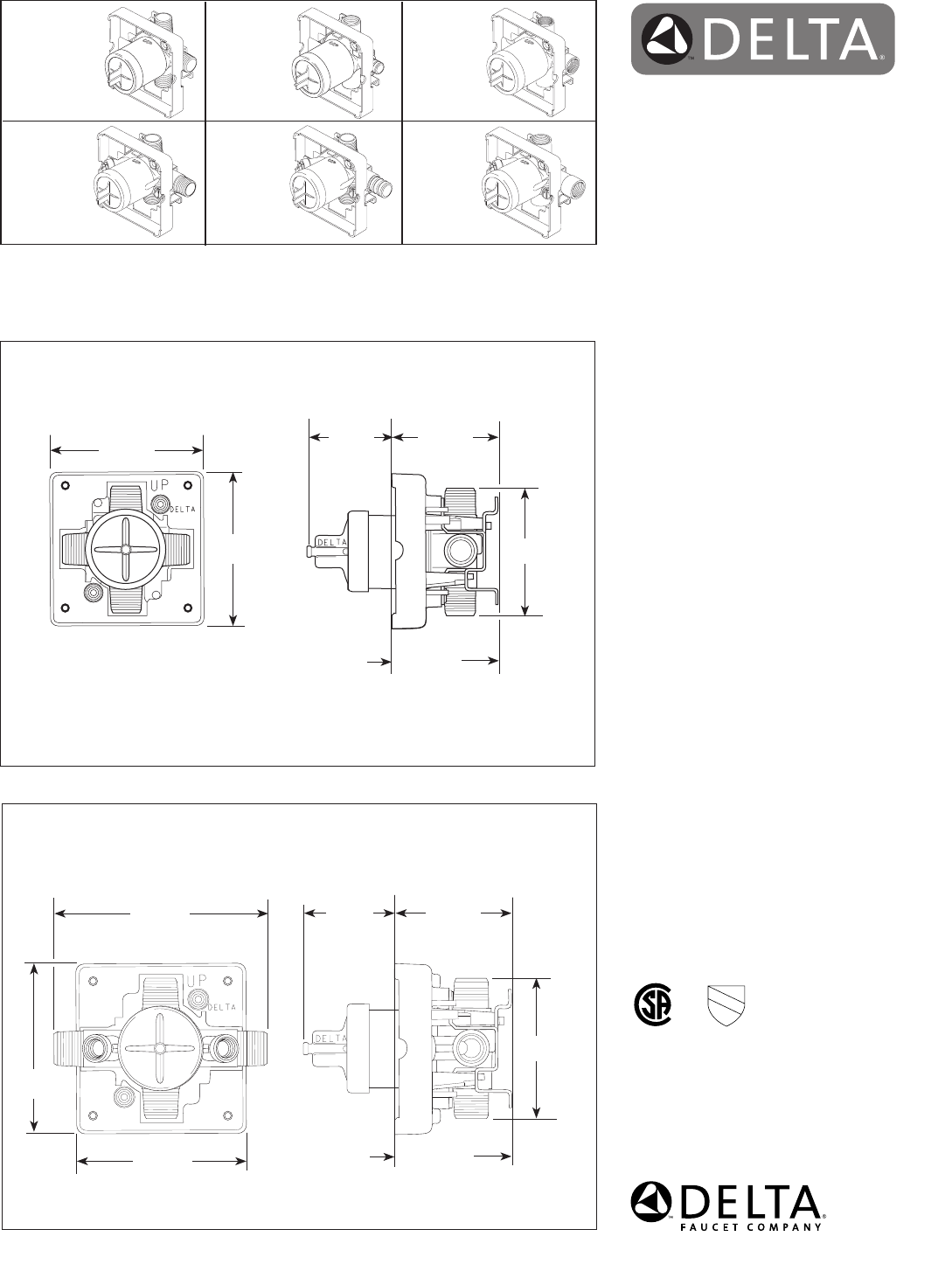

R10000-UN
R10000-UNBX
R10000-UNBXT
R10000-UNBXHF
R10000-UNWS
R10000-UNWSHF
R10000-UNWSBXT
R10000-MF
R10000-PX
R10000-MFWS
R10000-PXWS
R10000-IP
R10000-IPWS
MULTICHOICE
®
UNIVERSAL
ROUGH VALVE
BODY
4"
(102 mm)
4"
(102 mm)
3 3/8"
(86 mm)
2 1/8"
(54 mm)
2 3/4"
(70 mm)
Stringer
Finished Wall
R10000-UN
R10000-UNBX
R10000-UNBXT
4"
(102 mm)
5 1/16"
(135 mm)
R10000-UNWS
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2011 Masco Corporation of Indiana
DSP-B-R10000 Rev. F
3 3/8"
(86 mm)
2 1/8"
(54 mm)
2 3/4"
(70 mm)
StringerFinished Wall
4"
(102 mm)
