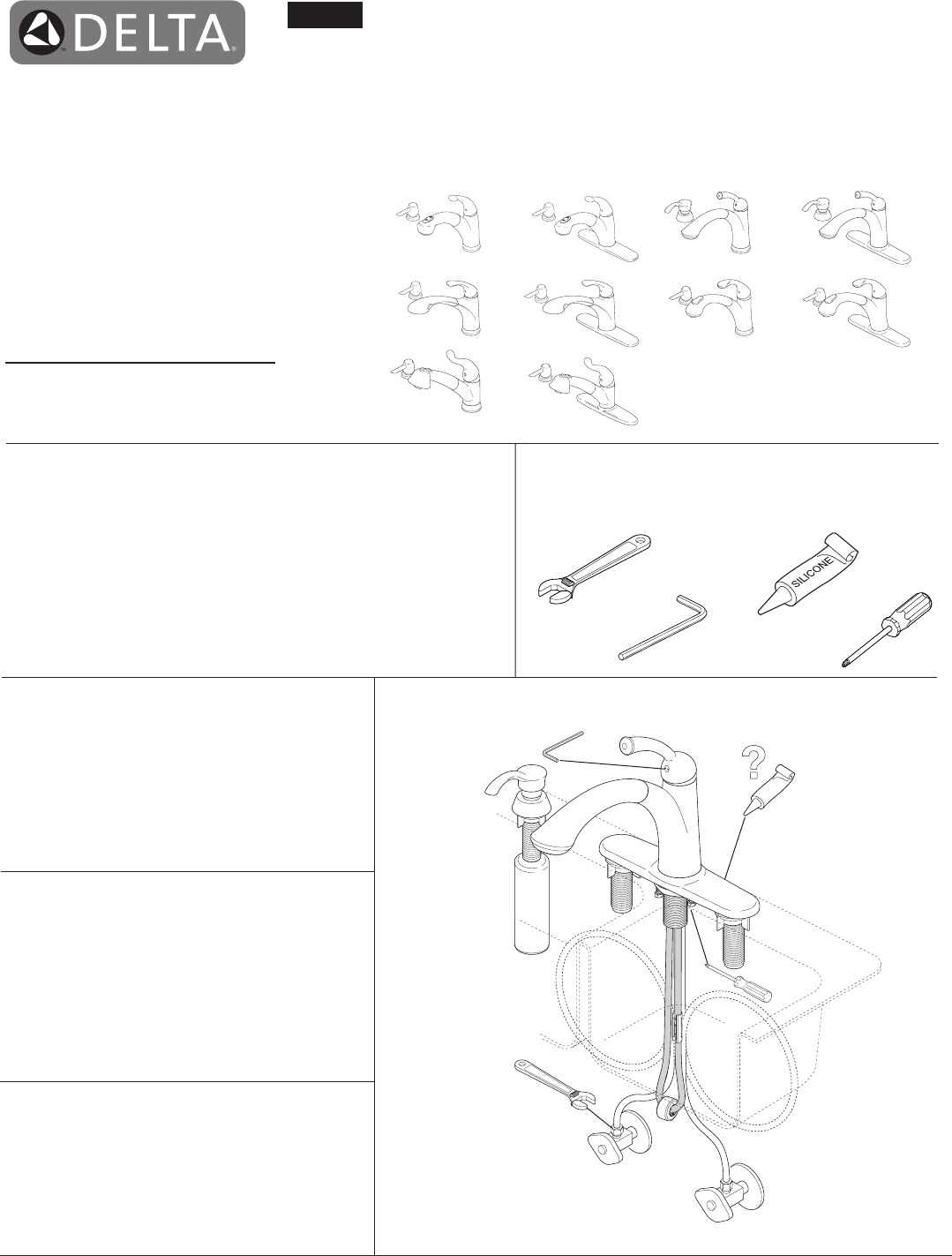

Installation Guide

ManualsBrandsDelta ManualsKitchen Faucets16927-SSSD-DST

Write purchased model number here.

Escriba aquí el número del modelo comprado.

Inscrivez le numéro de modèle ici.

You may need/Usted puede necesitar/

Articles dont vous pouvez avoir besoin:

Para instalación fácil de su llave Delta

usted necesitará:

• LEER TODAS las instrucciones completamente

antes de empezar.

• LEER TODOS los avisos, cuidados, e

información de mantenimiento.

For easy installation of your Delta

faucet you will need:

• To READ ALL the instructions completely

before beginning.

• To READ ALL warnings, care, and maintenance

information.

Pour installer votre robinet Delta

facilement, vous devez:

• LIRE TOUTES les instructions avant de débuter;

• LIRE TOUS les avertissements ainsi que toutes

les instructions de nettoyage et d’entretien.

Models/Modelos/Modèles

468-SD-DST, 16926-SD-DST,

16927-SD-DST, 16929-SD-DST &

16997-SD-DST

Series/Series/Seria

SILICONE

Icons

10/14/15 Rev. Jwww.deltafauet.com

WARNING: THIS FAUCET IS NOT TO BE USED WITH PORTABLE

DISHWASHERS! / ADVERTENCIA: ¡SESTA LLAVE NO SE

DEBE UTILIZAR CON MAQUINAS LAVAPLATOS PORTATILES! /

AVERTISSEMENT: ON NE DOIT PAS BRANCHER UN LAVE-VAISSELE

PORTATIF SUR CE ROBINET!

SINGLE HANDLE PULLOUT TALBOTT

™

DEBONAIR

LEWISTON

AND CICERO

KITCHEN FAUCETS

LLAVES EXTRAÍBLES DE AGUA PARA COCINAS

TALBOTT

™

DEBONAIR

, LEWISTON

Y CICERO

ROBINETS À UNE MANETTE À BEC-DOUCHETTE

RÉTRACTABLE TALBOTT

™

DEBONAIR

, LEWISTON

ET CICERO

POUR ÉVIERS DE CUISINE

SILICONE

Icons

60930

1/8" (3.17mm)

Summary of content (12 pages)

PAGE 1
60930 SINGLE HANDLE PULLOUT TALBOTT™, DEBONAIR®, LEWISTON® AND CICERO® KITCHEN FAUCETS LLAVES EXTRAÍBLES DE AGUA PARA COCINAS TALBOTT™, DEBONAIR®, LEWISTON® Y CICERO® ROBINETS À UNE MANETTE À BEC-DOUCHETTE RÉTRACTABLE TALBOTT™, DEBONAIR®, LEWISTON® ET CICERO® POUR ÉVIERS DE CUISINE Models/Modelos/Modèles 468-SD-DST, 16926-SD-DST, 16927-SD-DST, 16929-SD-DST & 16997-SD-DST Series/Series/Seria TEF LON LIC ON You may need/Usted puede necesitar/ Articles dont vous pouvez avoir besoin: SI WARNING: THIS FA
PAGE 2
CLEANING AND CARE Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel.
PAGE 3
1 B. A. C. A. 1 2 1 B. 3 1 2 3 3 1 1 1 2 2 2 Faucet Installation Faucet Installation DECK MOUNT STYLE A. Place baseplate shanks (1) through mounting holes in deck. Option: If sink is uneven, use silicone sealant under the baseplate. 2 CENTER MOUNT STYLE C. Secure faucet to sink with mounting nut and washer (1). Tighten securely by hand. Using a Phillips screwdriver, tighten locking screws (2). Install locknuts (3) and hand-tighten. A. Install round escutcheon (1) onto faucet (2).
PAGE 4
2 B. A. Side View Vista Lateral Vue de Côté 3 2 1 3 2 2 1 3 4 2 1 1 3 3 1 Hose Installation A. Pass hose (1) through faucet (2). Thread wand assembly (3) onto hose (1) to prevent it from becoming lodged in faucet when installing weight (4). Slide hose weight (4) over other end of hose. B. Push hose end (1) onto faucet outlet (2). Attach clip (3) over hose and outlet as shown. Pull down moderately to ensure connection has been made. Instalación de la Manguera A.
PAGE 5
3 B. A. 2 OR 2 1 O 2 OU 3 1 3 4 1 2 4 A. Water Line Connections Ensure all fittings and end connections are free of debris. Faucet fittings (1) are 3/8" compression, with ends colored red for hot and blue for cold. Loop tubing (2) if it is too long. Note: Recommended tubing minimum bend diameter is 8". Secure metal nut (3) on faucet tube to supply valve connection (4) and hand tighten, then tighten one additional turn with wrench. DO NOT OVERTIGHTEN. Repeat for other tube.
PAGE 6
Correct method Método Correcto Bonne méthode Incorrect Installation Instalación Incorrecta Installation Incorrecte 2 3 1 4 Custom Fit Connections - Plastic Sleeve Installation Instructions 1. Identify desired length of tube (1). Leave 1" - 2" of extra length to allow for easier installation and cut tube. Ensure cut is straight and burr free. 2. Slide nut (2) and plastic sleeve (3) onto cut tube. Ensure sleeve is oriented as shown. 3. Insert tube into outlet fitting (4).
PAGE 7
4 5 2 A. B. 3 4 6 2 3 4 1 5 1 Soap Dispenser Installation Remove nut (1). Separate head (2) from body (3). Insert body (3) and gasket (4) through selected hole in sink. Make sure gasket (4) is properly seated in the base. Secure body to sink with nut (1). From under the sink screw the bottle (5) onto the body assembly shank. Insert pump (6) into head (2), then drop into body (3). NOTE: To fill, lift the head and pump assembly out of the bottle and pour not more than 8 oz. into bottle.
PAGE 8
6 1 2 Setting The Handle Limit Stop (Optional) This faucet includes an integrated handle limit stop that has two positions. Position 1, to the left, allows full handle motion (the full range between “all cold” to “all hot”). The faucet is set in position 1 in the factory. Position 2, to the right, allows half of the normal handle motion (“all cold” to “mixed hot/cold”). The handle limit stop can be adjusted by the homeowner once the faucet is installed.
PAGE 9
Backflow Protection System Your Delta Faucet pull-out spout incorporates a backflow protection system that has been tested to be in compliance with ASME A112.18.3 and ASME A112.18.1 / CSA B125.1. It incorporates two certified check valves in series, which operate independently and are integral, non-serviceable parts of the wand assembly.
PAGE 10
60930 Rev.
PAGE 11
60930 Rev.
PAGE 12
www.deltafaucet.com 12 60930 Rev.
