Bluetooth USB Adapter

Quick Installation Guide

Product Introduction

The Bluetooth USB Dongle allows a computer with a USB port to communicate with other

Bluetooth-enabled devices. When used with the Bluetooth application software, it can perform

wireless network applications such as information exchange, file transfer, network access,

dial-up networking, headset, audio gateway, printer application, and so on.

Package Contents

- Installation CD ROM

- Bluetooth USB dongle

-Quick Installation Guide

System Requirements

- IBM compatible PC with Pentium, Celeron processor or equivalent CPU or higher.

- RAM 64M or above

- Screen: 800*600 or above

- Display: adapter True Color 16bits or above.

-Microsoft Windows 98SE/ME/2000/XP/x64 Edition

Installation Steps

Step 1:

Uninstall previous version of Widcomm Bluetooth software.

Step 2:

Plugged Bluetooth USB dongle in your

PC. Insert the

Installation software CD into the

CD-ROM of your machine,

an auto-install program will start to guide

you to complete

Summary of content (8 pages)

PAGE 1
Bluetooth USB Adapter Quick Installation Guide Product Introduction The Bluetooth USB Dongle allows a computer with a USB port to communicate with other Bluetooth-enabled devices. When used with the Bluetooth application software, it can perform wireless network applications such as information exchange, file transfer, network access, dial-up networking, headset, audio gateway, printer application, and so on.
PAGE 2

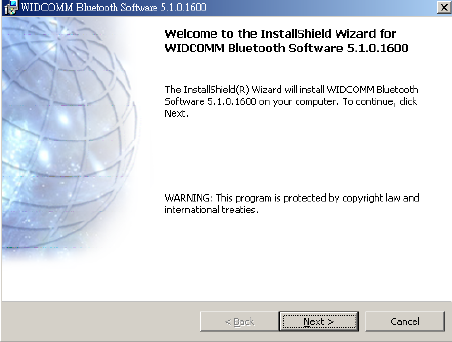

the installation step by step. You also can find Setup.exe from the given Widcomm Drive CD, double click on it the installshield wizard dialog box will open. Click Next. Step 3: Accept the software license agreement. Click Next. Step 4: Select destination folder, you can choose The default or change to your favorite.
PAGE 3
Click Install to start the installation and Files coping in processing… Step 6: Installation is complete. My Bluetooth place should appear on your desktop and a similar icon alsoappears on the lower right corner of your screen. Select Bluetooth Service When the first time Widcomm driver is installed, and Bluetooth USB dongle is plugged to your system, you can configure your Bluetooth services for your system.
PAGE 4
Double-click on the Bluetooth icon on the lower-right corner of the screen, you will see configuration wizard. Click Next bottom. Step 2: Assign computer name and specify Computer type, then click Next buttom. These can be defined by customer. Step 3: Click Next bottom to configure bluetooth services.
PAGE 5
Step 4: The default setting is that all services are available, you can check or uncheck one or more services, then click Next bottom. Step 5: Click Skip.
PAGE 6
Step 6: Configuration is completed. Click Finish.
PAGE 7
FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
PAGE 8
DELTA Bluetooth USB Adapter Model: DFBD-B4321 FCC ID: H79DFBD-B4321 Made in Taiwan DELTA Bluetooth USB Adapter Model: CN-514 FCC ID: H79DFBD-B4321 Made in Taiwan
