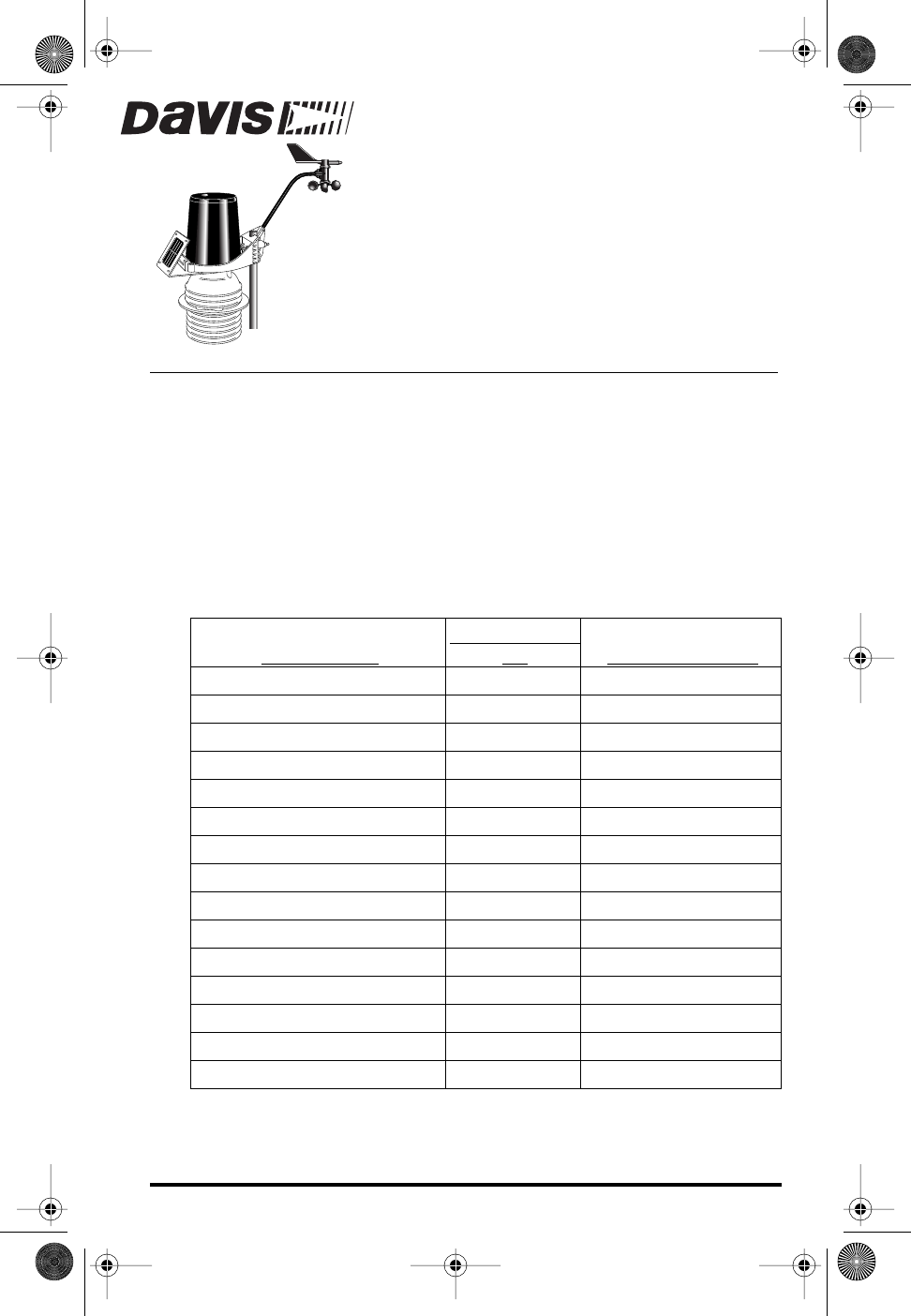

Draft 07/02/01 Product # 6151, 6151C, 6161, 6161C

-A

SPIRATED

ADIATION

HIELD

For Vantage Pro

or Vantage Pro Plus

DDENDUM

THE

NTEGRATED

ENSOR

UITE

NSTALLATION

ANUAL

The Vatage Pro Integrated Sensor Suite (ISS) with the Fan-Aspirated Radiation

Shield uses a combination of fan-aspiration and passive shielding to minimize

the effects of solar radiation-induced temperature error.

Fan-Aspirated ISS Addendum Overview

This addendum provides additional information speciﬁc to the installation and

use of the fan aspirated radiation shield only, and is intended to be used in con-

juction with the “Integrated Sensor Suite Installation Manual.”

The Table below shows the location of the information required to install and

maintain your Fan-Aspirated ISS.

ECTION

ROCEDURE

SPIRATED

DDEN-

DUM

ISS I

NSTALLATION

ANUAL

Tools for Setup

Preparing the Anemometer

Disassembling the Radiation Shield

Making Terminal Block Connections

Powering ISS and Testing Communications

Powering and Testing the Fan

Reassembling the Radiation Shield

Preparing the Rain Collector

Choosing a Site for the ISS

Mounting the ISS

Additional Mounting Options

Fan-Aspirated ISS Options

Fan-Aspirated ISS Maintenance

Fan-Aspirated ISS Troubleshooting

Fan-Aspirated ISS Specifications

ISS FARS D014 Page 1 Thursday, July 5, 2001 4:18 PM

Summary of content (12 pages)

PAGE 1
ISS FARS D014 Page 1 Thursday, July 5, 2001 4:18 PM FAN-ASPIRATED RADIATION SHIELD For Vantage ProTM or Vantage Pro PlusTM ADDENDUM TO THE INTEGRATED SENSOR SUITE INSTALLATION MANUAL The Vatage Pro Integrated Sensor Suite (ISS) with the Fan-Aspirated Radiation Shield uses a combination of fan-aspiration and passive shielding to minimize the effects of solar radiation-induced temperature error.
PAGE 2
ISS FARS D014 Page 2 Thursday, July 5, 2001 4:18 PM Components The Fan-Aspirated ISS includes these components: Debris Screen (place inside rain collector cone after installation) Solar Panel (wireless models only) Anemometer Vane Drip Ring Aspirated Radiation Shield Wind Cups Anemometer Arm Anemometer Base 40 feet (12.2 meter) Anemometer Cable 3 Volt Lithium Battery 1.
PAGE 3
ISS FARS D014 Page 3 Thursday, July 5, 2001 4:18 PM The hardware shown here is provided for assembly and mounting: U-Bolts 1/4" x 3" Lag Screws 1/4" Flat Washers #4 x 1-1/8" Machine Screw 1/4" Lock Washers 1/4" Hex Nuts #4 Tooth Lock Washer #4 Flat Washer .05" #4-40 Vantage Allen Wrench Hex Nut Pro Plus ISS Nut Plate Additional Components on Vantage Pro Plus Vantage Pro Plus includes an ultraviolet (UV) sensor and a solar radiation sensor. These two sensors are on the rain collector side of your ISS.
PAGE 4
ISS FARS D014 Page 4 Thursday, July 5, 2001 4:18 PM The ISS sensors are connected by cables to the Sensor Interface Module (SIM), located inside the radiation shield. The SIM contains electronics which measure and store weather values for transmission to the console via cable or radio waves. The radiation shield’s white plastic plates protect the SIM from sun and other sources of radiated and reflected heat, and from precipitation.
PAGE 5
ISS FARS D014 Page 5 Thursday, July 5, 2001 4:18 PM 2. 3. Remove the three wing nuts, lock washers and flat washers located on the underside of the radiation shield. Turn the ISS right-side up with the rain collector on top. #8 Wing Nuts #8 Lock Washers #8 Flat Washers Removing the Wing Nuts 4. Hold onto the rain collector and left off the top part of the ISS, exposing the fan plate on the bottom part of the radiation shield.
PAGE 6
ISS FARS D014 Page 6 Thursday, July 5, 2001 4:18 PM Verifying Sensor Connections: 1. 2. 3. Sensor Interface Module Locate the SIM inside the radiation shield. Verify that the rain sensor cable is plugged into the receptacle labeled “RAIN” on the SIM. If you have a Vantage Pro Plus, verify that the UV and solar radiation sensors are plugged into the SIM.
PAGE 7
ISS FARS D014 Page 7 Thursday, July 5, 2001 4:18 PM Cabled Vantage Pro: Powering the Fan 1. 2. 3. 4. 5. 6. Locate the Junction Board on the fan plate. Connect the AC-power adapter to the +5V connector on the Junction Board. Plug the AC-power adapter into an AC outlet. Check to see that the fan is turning. Unplug the AC power adapter from the AC outlet until it has been mounted. Secure the AC power cable to the fan plate with the supplied cable clip.
PAGE 8
ISS FARS D014 Page 8 Thursday, July 5, 2001 4:18 PM Wireless Vantage Pro: Powering the Fan Installing the Batteries 1. Insert the O-ring in the groove around the edge of each battery compartment. 2. Insert a NiCad battery in each compartment, matching the plus sign on the battery with the plus sign in the battery compartment. 3. Verify that the fan is working. 4. Remove the batteries unless you are ready to install the ISS in it’s final location.
PAGE 9
ISS FARS D014 Page 9 Thursday, July 5, 2001 4:18 PM Fan-Aspirated ISS Options Low-Current Fan Unit The optional low-current fan unit uses less power than the standard fan. This allows the solar-powered Fan-Aspirated ISS to run for a longer period of time during low-light conditions. It is recommended for use in extreme latitudes during the Winter months, in climates that experience extended periods of cloudy weather, or for any location with limited solar exposure.
PAGE 10
ISS FARS D014 Page 10 Thursday, July 5, 2001 4:18 PM Replacing the Motor 1. 2. 3. 4. Retrieve your Fan-Aspirated ISS and place on a stable work surface. Disassemble the Radiation Shield (See page 3). Remove the Junction Board Cover. Lift the Fan Unit from the Radiation Shield. Fan Unit Motor Connector Fan Deflector Junction Board 5. 6. 7. 8. 9. Page 10 Unplug the Motor Connector from the Junction Board. Install the replacement motor in the Radiation Shield.
PAGE 11
ISS FARS D014 Page 11 Thursday, July 5, 2001 4:18 PM Fan-Aspirated ISS Troubleshooting If you are unable to solve a problem with your Fan-Aspirated Radiation Shield, please call Davis Technical Support. We’ll be glad to help. Most questions can be answered while you’re on the phone. You can also email us for support, or visit our website. Sorry, we are unable to accept collect calls. Contacting Davis Instruments (510) 732-7814 for Technical Support, Monday – Friday, 7:00 a.m. – 5:30 p.m. Pacific Time.
PAGE 12
ISS FARS D014 Page 12 Thursday, July 5, 2001 4:18 PM Draft 07/02/01 FCC Part 15 Class B Registration Warning This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
