Features

•

2.4GHz I EEE 802.11n draft compliant and backward compatible with 802.11b/ g

•

Single-band 2x2 MIMO spatial multiplexing technique

•

Atheros XSPAN family chipset

•

Deliver 10 times the throughput and widen twice the range of legacy 802.11b/ g

•

Support up to 300Mbps physical data rates

•

Transmission Power Control (TPC)

•

Multi-Country Roaming Support (I EEE802.11d)

•

2 X MMCX Antenna Connector

• Maximum 26dBm output Power

•

Support Linux OS

•

Wireless Encryption and Authentication are supported

2 x 2 802.11N Single-band MIMO mini-PCI

Radio module

WLM200N2-26 MINIPCI

Summary of content (8 pages)

PAGE 1

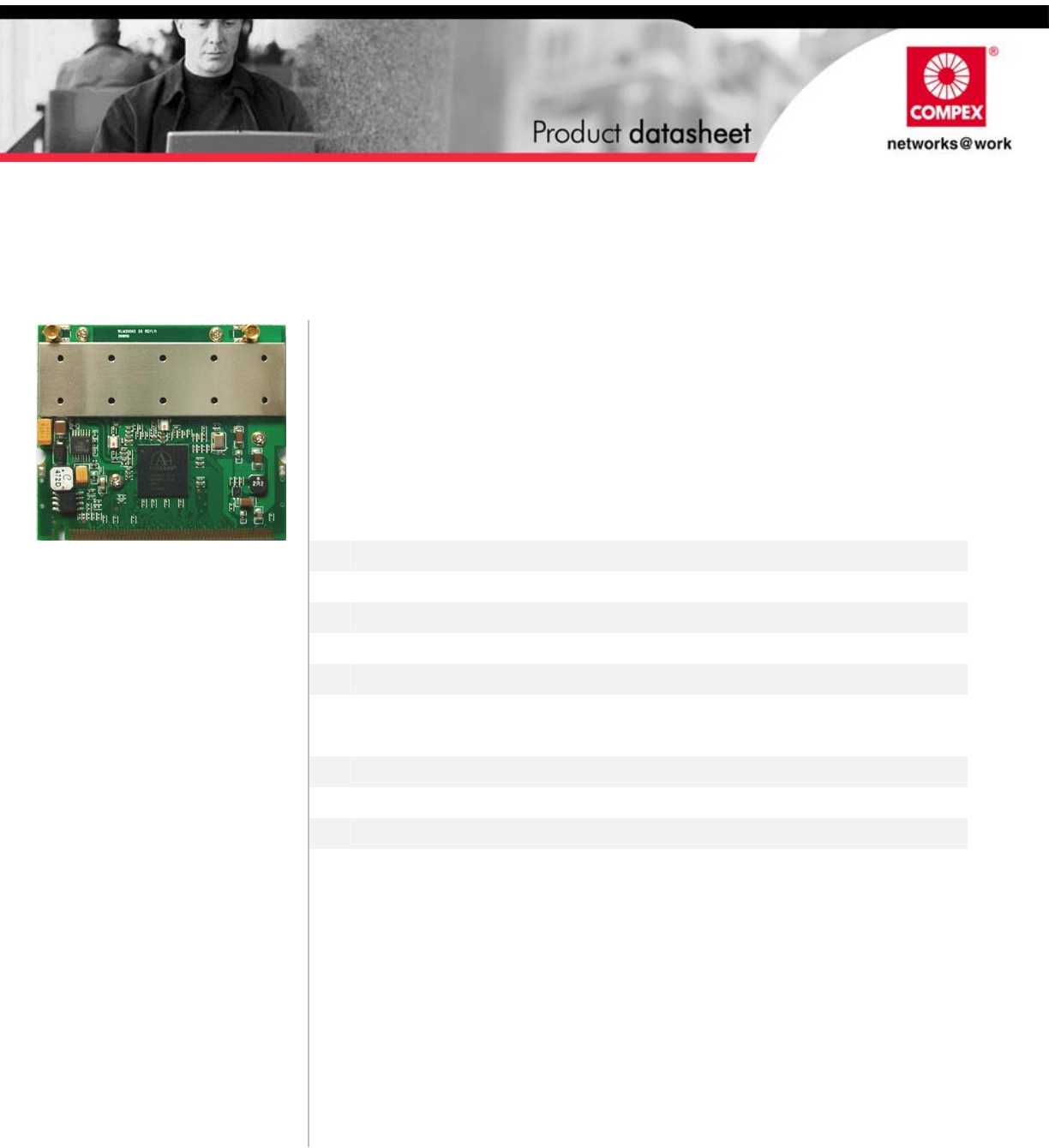

Radio module WLM200N2-26 MINIPCI 2 x 2 802.11N Single-band MIMO mini-PCI Features • • • • • • • 2.4GHz I EEE 802.11n draft compliant and backward compatible with 802.11b/ g Single-band 2x2 MI MO spatial multiplexing technique Atheros XSPAN family chipset Deliver 10 times the throughput and widen twice the range of legacy 802.11b/ g Support up to 300Mbps physical data rates Transmission Power Control (TPC) Multi-Country Roaming Support (I EEE802.
PAGE 2
Technical Specifications Chipset AR9223 Host I nterface PCI I nterface v2.3 (Type I I I -A Mini PCI form factor) Operating Voltage Pow er Consumption Antenna Connector 3.3 VDC 6.0 W 2 x MMCX Antenna Connector I EEE 802.11b: 11Mbps 5.5Mbps 2Mbps 1Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps I EEE 802.11g: Standards 6Mbps Automatically fallback to 5.5Mbps, 2Mbps, 1Mbps 20MHZ Max. 65Mbps(72.2Mbps physical) @ MCS7: 1Nss 40MHz Max. 135Mbps( 150Mbps physical) @MCS7: 1Nss Max.
PAGE 3
WLM 200N2 MI MO MI NI PCI CARD RADI O OPERATI NG FREQUENCE TX SPECI FI CATI ONS DataRate TX Pow er 802.11b 2.4Ghz 11n HT20 Tolerance 11Mbps 5.
PAGE 4
DRI VER I NFORMATI ON Driver Linux Madwifi, WindowsXP , Windows 2000,Windwos Vista ORDERI NG CONFI GURATI ONS CODES SPEED Carton Dimension Up to 300 Mbps WLM200N2-26 6AA1100 physical data rates For 50pcs (pcs/ ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG For 250pc (pcs/ ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.
PAGE 5
COMPLIANCE INFORMATION FC C C o m plia nc e Sta te m e nt: This d e vic e c o mp lie s with Pa rt 15 o f the FC C Rule s . O p e ra tio n is sub je c t to the fo llo wing two c o nd itio ns: 1. This d e vic e ma y no t c a use ha rmful inte rfe re nc e , a nd 2. This d e vic e must a c c e p t a ny inte rfe re nc e re c e ive d , inc lud ing inte rfe re nc e tha t ma y c a use und e sire d o p e ra tio n.
PAGE 6
FCC ID: TK4-WLM200N2-26 IMPORTANT NOTE: EQUIPMENT MANUFACTURERS COMPEX FOR DISPLAYING WLM200N2-26 MODULAR FCC ID ON FINAL INTEGRATED IMPORTANT NOTE REGARDING ANTENNA USE Antenna Use (Point to Multipoint) 2x2 Operation Chain1 Chain2
PAGE 7
DIMENSIONS DRAWING
PAGE 8
WLM FAMILY SERIES OF MINIPCI b / g ( 2.4GHz) a / b / g ( 2.
