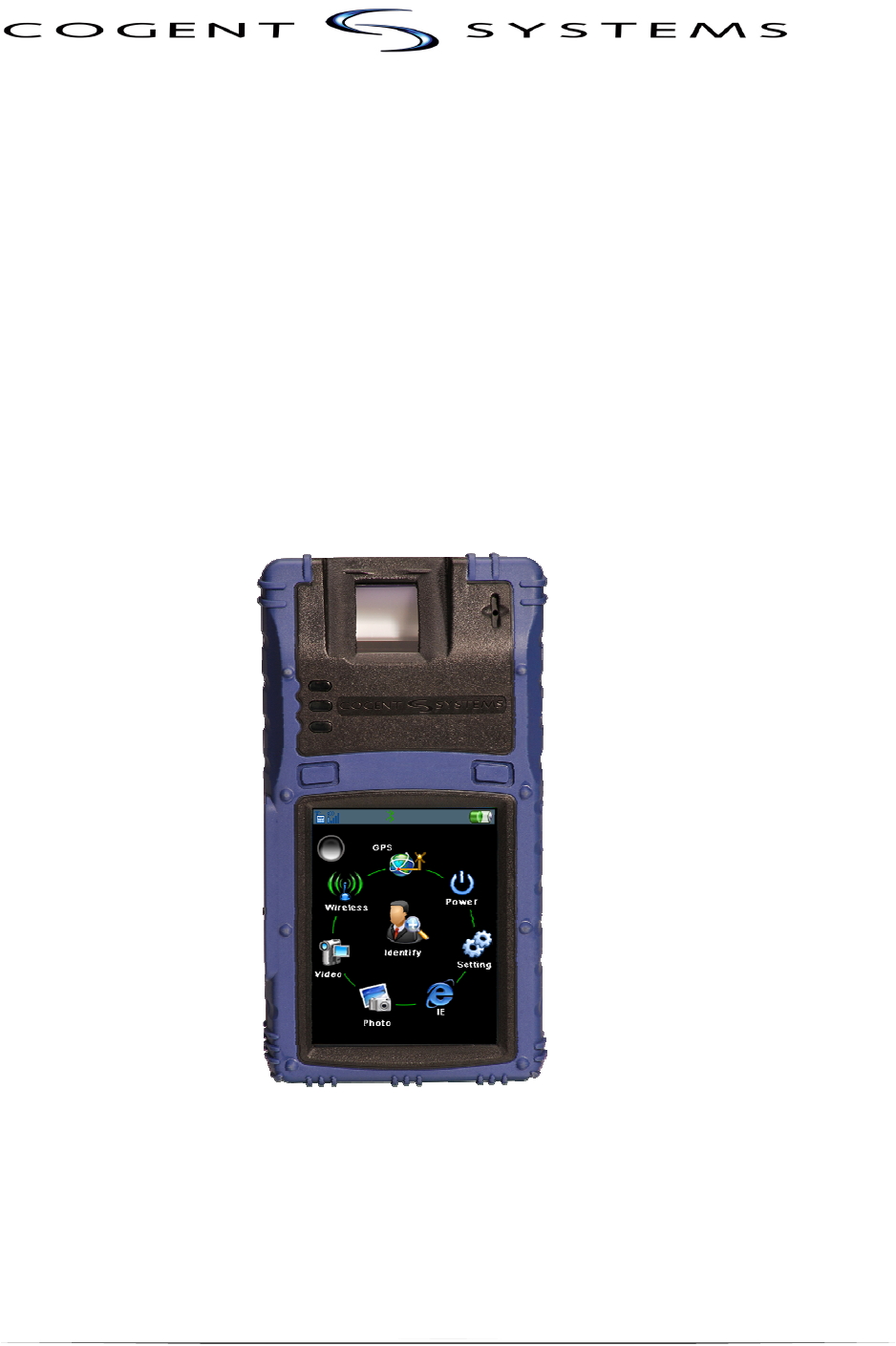

Mobile IdentTM II 2008 Cogent Systems Instruction of Mobile IdentTM II 1
Mobile IdentTM II 2008 Table of Content 1. Power On………………………………………………………………...…………………..3 2. Login the Mobile Ident II (MI2)………………………………………………...………….3 3. Home Page………………………………………………………………...………………..4 4. Settings………………………………………………………………………………………..4 4.1. Volume…………………………………….…………………………………………….5 4.2. Date………………………………...…………………………………………………….5 4.3. Users………………………………………………………………………………………6 5. Wireless……………………………………...………………………………………………..6 6. Identify…………………………………….………………………………………………….7 6.1. Search………………………...
Mobile IdentTM II 2008 1. Power On To turn on and shut down the device, press power button for 2-3 seconds (Figure 1). Power button Figure 1 2. Login the Mobile IdentTM II In order to access the systems, you have to get a valid user name and password. Enter your user name and password and then tap ‘Login’, as Figure 2 shown below. Administrators create user accounts using ‘Users’. For details, please refer to 4 ‘Users’.
Mobile IdentTM II 2008 3. Home Page After login, you will get into the main page of MI2 as Figure 3 shown below. All function of Mobile IdentTM II will display in this page. Tap the icon (function) you wish to operate. Figure 3 4. Settings Select and enter ‘Settings’, you can set the data be yourself (Figure 4).
Mobile IdentTM II 2008 4.1. Volume Tap ‘Save’ to save your setting (Figure 5). Figure 5 4.2. Date Set the time, date and time zone, then tap save (Figure 6).
Mobile IdentTM II 2008 4.3. Users Tap ‘New’ to add user. Enter the information in the page, then tap save to save your setting (Figure 7). Figure7 5. Wireless Select ‘Wireless’ and get into the power control. Tap the On-Off button to control the wireless function (Figure 8). Please note that GPRS, WIFI and BLUETHOOTH cannot work together. It is impossible to send data with all systems at the same time and it cannot send data during the scan process.
Mobile IdentTM II 2008 6. Identify ‘Identify’ is the main function of MI2. It is use to enroll fingerprint, edit and search the demographics (Figure 9). Figure 9 6.1. Search ‘Search’ is for searching the data in the database. You can search by finger and facial (Figure 10). If it finds a match in the database, the information will be displayed.
Mobile IdentTM II 2008 6.2. Enroll 6.2.1. Demographics Tap ‘Enroll’ and get into the demographics. Tap the information you wish to enter and edit it. After editing demographics, tap ‘OK’ go to the nest step (Figure 11). Figure 11 6.2.2. Fingerprints Tenprints is required. Follow the instruction to enroll tenprints (from R Thumb to L Little) (Figure 12). Select the finger you wish to enroll. If the quality of fingerprint is poor, the system will ask for capture again.
Mobile IdentTM II 2008 6.2.3. Photo After capturing the fingerprint, it will go to the next step ‘Photo’ automatically. It will take 5 photos for 5 different face angles. One photo captured at front, two captured at 90 degree (left and right), two captured at 45 degree (left and right) (Figure 13). Figure 13 6.3. Database Check the data you entered (Figure 14). You can edit the information you entered previously.
Mobile IdentTM II 2008 FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
