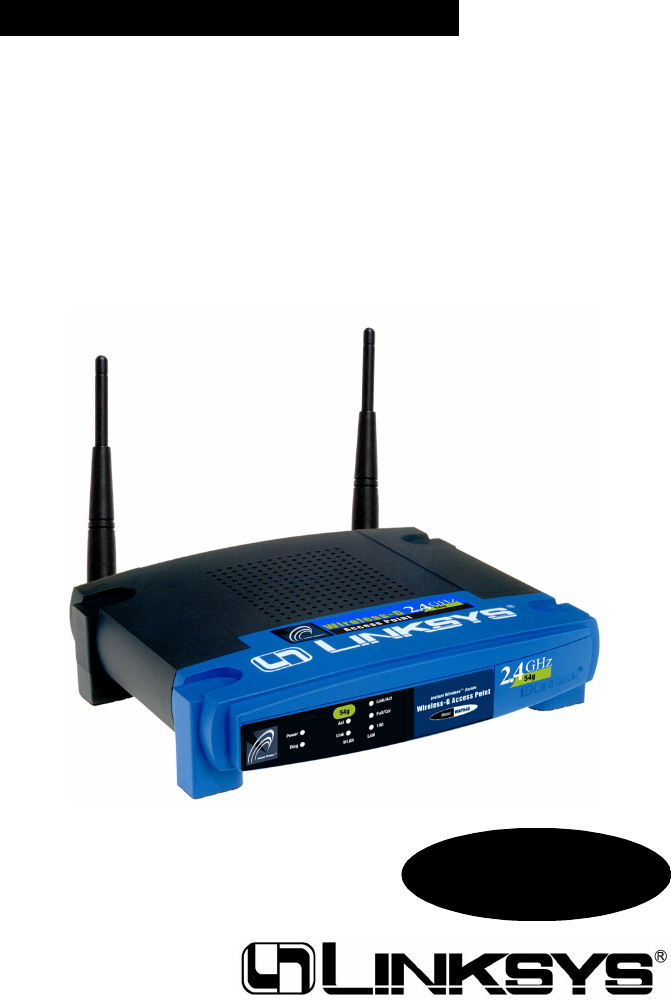

Instant Wireless® Series Wireless-G Access Point Use this guide to install: WAP54G User Guide
COPYRIGHT & TRADEMARKS Specifications are subject to change without notice. Copyright © 2002 Linksys, All Rights Reserved. Instant Wireless, Linksys, and the Linksys logo are registered trademarks of Linksys Group, Inc. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors.
Wireless-G Access Point Note: Combinations of power levels and antennas resulting in a radiated power level of above 100 mW equivalent isotropic radiated power (EIRP) are considered as not compliant with the above mentioned directive and are not allowed for use within the European community and countries that have adopted the European R&TTE directive 1999/5/EC and/or the CEPT recommendation Rec 70.03. For more details on legal combinations of power levels and antennas, contact Linksys Corporate Compliance.
Instant Wireless® Series Wireless-G Access Point Chapter 1: Introduction The Instant Wireless Wireless-G Access Point Appendix B: Setting Up the TCP/IP and IPX Protocols Setting Up TCP/IP in Windows TCP/IP Setup for Windows 98 and Millennium IPX Setup for Windows 98 and Millennium TCP/IP Setup for Windows NT 4.0 IPX Setup for Windows NT 4.
Instant Wireless® Series Wireless-G Access Point Chapter 2: Planning Your Wireless Network Chapter 3: Getting to Know the Wireless-G Access Point Network Topology The Wireless-G Access Point’s Back Panel A wireless LAN is a group of computers, each equipped with one Instant Wireless Series adapter. Computers in a wireless LAN must be configured to share the same radio channel. The Access Point’s ports, where a network cable is connected, are located on the Access Point’s back panel.
Instant Wireless® Series T The Wireless-G Access Point’s Front Panel Wireless-G Access Point Chapter 4: Connecting the Wireless-G Access Point 1. Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network, with line of sight to all of your mobile stations. Figure 3-2 Power Green. The Power LED lights up when the Access Point is powered on. Diag Red.
Instant Wireless® Series Wireless-G Access Point Chapter 5: Setting Up the Wireless-G Access Point Have You: Connected the Access Point to a hub, switch or router on your wired network as shown in Chapter 4: Connecting the Wireless-G Access Point? The Access Point can only be set up through your wired network. Now that you’ve connected the Access Point to your wired network, you are ready to begin setting it up.
