CUBO INSTRUCTION MANUAL Model：CB1-0-01 Read this instruction manual carefully before operating this machine!
IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: a ) Read all instructions. b ) To protect against risk of electrical shock do not put in water or other liquid.
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments.
Content PRODUCT OVERVIEW .......................................................................... 1 OPERATING INSTRUCTIONS .............................................................. 1 1. Before use ...................................................................................... 1 2. First time cleaning ........................................................................ 2 3. Variations and adjustments ........................................................ 3 4. Auto cleaning ...............
ERROR SCREENS .................................................................................... 11 1. CUBOPOD errors .......................................................................... 11 2. Crushing errors .............................................................................. 11 3. Preparation error ............................................................................ 12 4. Power-on exception ...................................................................... 12 5.

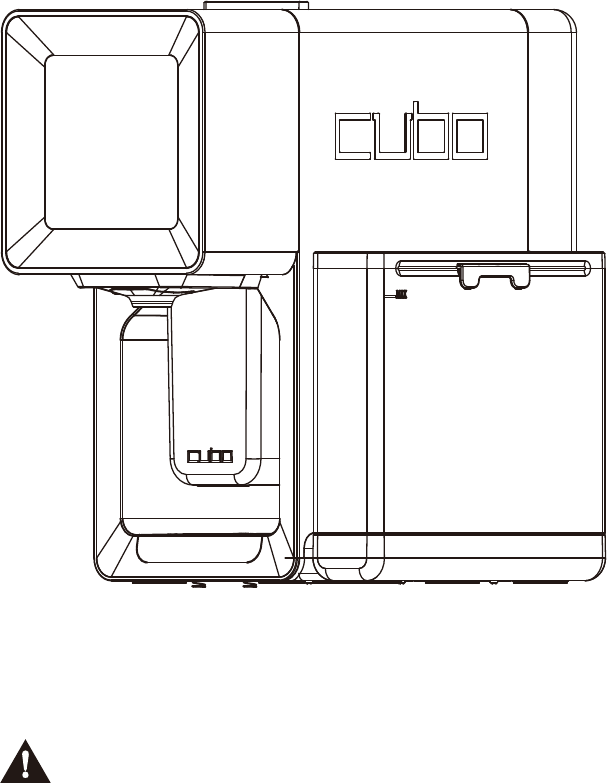

>> PRODUCT OVERVIEW LID LED DISPLAY WATER TANK LID （Add water without removing lid) SPOUT TANK LEVEL MAGNET PODBIN WATER TANK DRIPTRAY AND DRIPGRID POWER ON SWITCH (behind) >> OPERATING INSTRUCTIONS 1. Before use Connect power cable. Fill the water tank up to the MAX indication. Make sure the water tank is properly seated. Check if the tank level magnet can freely move inside the rail. Place magnetic podbin beneath the machine body. Make sure the spout is properly placed and latched.
Switch On. Close the lid making sure no CUBOPOD is inserted. 2. First time cleaning When you turn on the machine for the first time, after the welcome screen appears, you will be asked to watch a brief presentation. Touch WATCH NOW or MAYBE LATER to skip. On any animation screen, if you touch LINK, a QR Code will appear linking you to online help resources. All SHOW ME buttons direct to a brief demonstration. At the first time, it is mandatory to do a self-cleaning cycle. Touch CLEAN to get started.
Open lid. Insert frozen CUBOPOD. Close lid. Extend tray and place a cup. After reading the CUBOPOD, machine will display the START screen: Touch START to begin preparation. 3. Variations and adjustments It is possible, for most drinks, to add a personal touch by changing the temperature and dilution. ▪ Dilution selection.
▪ Hot beverage selection. If you touch HOT button in a hot beverage preparation, the icon will change indicating the current temperature selection: Hotter – hotter than standard temperature Hot – standard temperature for hot serving Warm – mildly hot serving The temperature of each selection is predetermined. Some CUBOPODS have fewer options and others do not allow changes. In this case, the icon and button will not be displayed. ▪ Cold or Hot serving selection. Some CUBOPODS can be enjoyed cold or hot.
▪ Order CUBOPODS Displays a QR code linking to our website where you can order more CUBOPODS to enjoy. ORDER CUBOPODS BACK button takes you back to SETTINGS menu.. EXIT button takes you back to home screen. ▪ Cleaning options menu You may need (or want) to perform different cleaning procedures over time. Select them here. CLEANING MENU BACK button takes you back to SETTINGS menu. NEXT button moves selection bar to next option. ENTER button starts selected cleaning procedure.
If you chose BACK and the detergent cleaning has been automatically called after a preparation, you will see a warning screen: EXIT button takes you back to homescreen. CLEAN button takes to detergent cleaning screen. Skipping this step allows the user to save time and water to prepare the same drink more than once in a row. IN ANY OTHER SITUATION WE STRONGLY RECOMMEND THAT YOU DO NOT SKIP DETERGENT CLEANING WHEN REQUESTED, AS THE TASTE OF THE NEXT CUBOPOD COULD BE AFFECTED. 3.
▪ Empty podbin and put it in position. ▪ Fill with white vinegar. Touch YES to start descaling. Rinse the machine after the first part of the process.
▪ Empty podbin, rinse it and put back in place. ▪ Rinse water tank and fill it with 530ml (18oz) of clean water. Touch START to rinse the descaling agent from the internal pipes. When the process is complete, wash all removable parts before the next preparation. >> FUNCTIONAL INFORMATION 1. CUBOPOD reading All information for a beverage preparation is contained in the CUBOPOD. After starting the process, the CUBOPOD is registered and cannot be reused.
▪ Water tank ▪ Podbin 4. LEDs The LEDs on the machine's side change color according to status. Whenever the lid is open, the led flashes red, indicating the need for attention. When a removable part is missing or not properly fitted or locked, the LEDs also flash red. If the machine is ready for use, the LEDs will remain deep blue. When in cleaning mode, the LEDs remain cyan. When reading the capsule label, they turn pink. During preparation, the LEDs display the drink color. >> WARNING SCREENS 1.
▪ If the water tank temperature sensor reads more than 40°C (104°F), a warning will be displayed. You can ignore it if you are not going to prepare cold drinks (center button) or replace the water otherwise. Touch OK to dismiss the message. Note: After replacing the water it may take some time for the temperature sensor to normalize. 2. Podbin warnings ▪ When the Podbin is removed, a warning screen is displayed. Just put it back in place to normalize.
3. Spout warning ▪ When the Spout is removed, a warning screen is displayed. Just put it back in place and latch it to normalize. >> ERROR SCREENS 1. CUBOPOD errors All information about the preparation of the drink is available on the CUBOPOD. In case of errors, they will be displayed on the screen. The machine could not validate the CUBOPOD. The CUBOPOD has been tagged as used. In any of the cases you should use a new original CUBOPOD. 2.
▪ Obstructed way If during crushing, the sensor detects an obstruction, the same error screen will be displayed, and the same procedure will apply. ▪ Jammed CUBOPOD When the CUBOPOD is crushed, it falls into the podbin. If it does not occur as expected, a jammed CUBOPOD error message will be displayed: If this happens, open the lid and manually push the empty CUBOPOD.
5. System errors ▪ AC frequency failure Error indicating that machine did not detect the AC frequency, thus cannot operate. ▪ Temperature sensor failure Error indicating that one of the temperature sensors has failed, thus machine cannot operate. ▪ Crusher sensors failure Error indicating that one of the sensors has failed. ▪ Crusher motor failure Error indicating that crusher motor has failed.
▪ Mixer failure Error indicating that mixer motor has failed. ▪ Heater failure Error indicating that heater has failed. ▪ Memory Access Failure Error indicating that machine has identified a memory access failure.
>> TROUBLESHOOTING PODBIN REMOVED appears on the screen · Check if the podbin is properly in place. TANK NOT DETECTED appears on the screen · Check if the water tank is correctly installed in place. JAMMED CUBOPOD appears on the screen · CUBOPOD jammed, open the lid and manually push down the empty CUBOPOD, and then close the lid. PODBIN FULL appears on the screen · The podbin is full. Empty it, wash it, and put it back in place.
>> LIMITED WARRANTY This Limited Warranty covers any defects in material or workmanship under home use only for one year from the date of purchase. During the Warranty Period, CUBO will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance. This guarantee excludes liability for consequential loss or any other loss or damage caused to property or person arising from any cause whatsoever.
IMPORTER: CUBO BEVERAGES LLC 5805 Sepulveda Blvd, 5th Floor, Sherman Oaks, CA 91411 MADE in CHINA
