Specification Sheet

ManualsBrandsBobrick ManualsAccessoriesBobrick Left Hand Folding Shower Seat with Padded Cushion

continued . . .

The illustrations and descriptions herein are applicable to production as of the date of this Technical Data Sheet. Revised 8/09/13 S/E,R/A Printed in U.S.A.

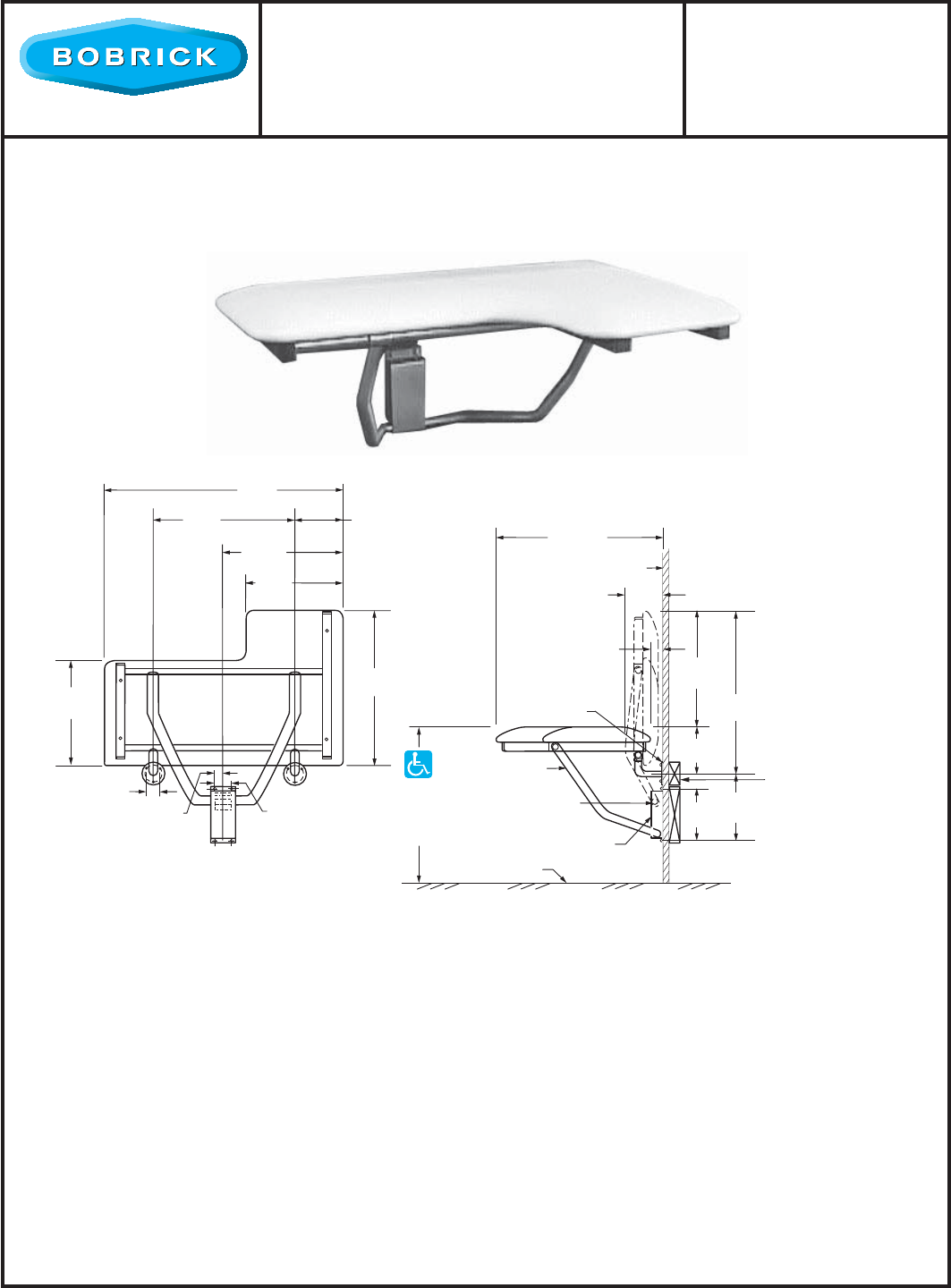

Technical Data

Universal/Accessible Design

Recommended

Mounting Height

*17'' to 19''

430 to 485mm

Base Plate

with Spring at Top

Support Bracket

Guide Bracket

Finish Face of Floor

9-3/8''

240mm

22-1/4''

565mm

6-1/16''

155mm

7-1/4''

185mm

1-7/16''

35mm

5-1/2''

140mm

Finish Face of Wall

22-11/16''

575mm

Mounting

Flange (2)

Concealed wall backing

to comply with

local building codes,

not furnished

by Bobrick.

*Consult local building codes

16-3/16''

410mm

6-11/16''

170mm

21-1/4''

540mm

13-1/4''

340mm

16-7/16''

420mm

19-1/2''

495mm

32-7/8''

835mm

14-3/4''

375mm

2-1/4''

55mm

Dia.

Bolt Circle

1-1/8''

30mm

2-1/4''

55mm

MATERIALS:

Seat — 2" (51mm) thick overall with 1-1/2" (38mm) thick, closed-cell polyurethane foam padding mounted on 1/2" (13mm)

thick plywood. Covered in white naugahyde (water-resistant, reinforced vinyl fabric).

Frame — 18-8, type-304 stainless steel with satin ﬁ nish. 16-gauge (1.6mm), 1-1/4" (32mm) square members and 18-gauge

(1.2mm), 1" (25mm) diameter tubing.

Mounting Flanges (2) — 18-8, type-304, 3/16" (5mm) thick stainless steel with satin ﬁ nish. 3" (76mm) diameter with three

mounting screw holes.

Baseplate — 18-8, type-304, heavy-gauge stainless steel.

Spring — 17-7, type-301, 24-gauge (0.6mm) stainless steel. Spot-welded to baseplate.

Guide Bracket — 18-8, type-304, 16-gauge (1.6mm) stainless steel with satin ﬁ nish.

 Model B-517 right-hand seat

 Model B-518 left-hand seat (shown)

Specify Model Required:

FOLDING

SHOWER SEAT

WITH PADDED CUSHION

B-517

B-518

Summary of content (2 pages)

PAGE 1
FOLDING SHOWER SEAT WITH PADDED CUSHION Technical Data B-517 B-518  Model B-517 right-hand seat  Model B-518 left-hand seat (shown) Specify Model Required: 32-7/8'' 835mm 6-11/16'' 19-1/2'' 170mm 495mm 22-11/16'' 575mm 16-7/16'' 420mm Finish Face of Wall 13-1/4'' 5-1/2'' 340mm 140mm 1-7/16'' 35mm 16-3/16'' 21-1/4'' 410mm 540mm Mounting Flange (2) 14-3/4'' 375mm 22-1/4'' 565mm 6-1/16'' 155mm Support Bracket S S 2-1/4'' 55mm Dia.
PAGE 2
OPERATION: Shower seat can be folded up against the wall when not in use. The spring at the top of baseplate locks seat into this upright position until released by pulling the top of seat away from wall. Support system with guide bracket allows varying mounting heights and leaves floor clear for easier cleaning. Bobrick shower seats when properly installed, have sufficient strength to support 360 lbs., (16 kg) complying with accessible design (including ADAAG in the U.S.A.) for structural strength.
