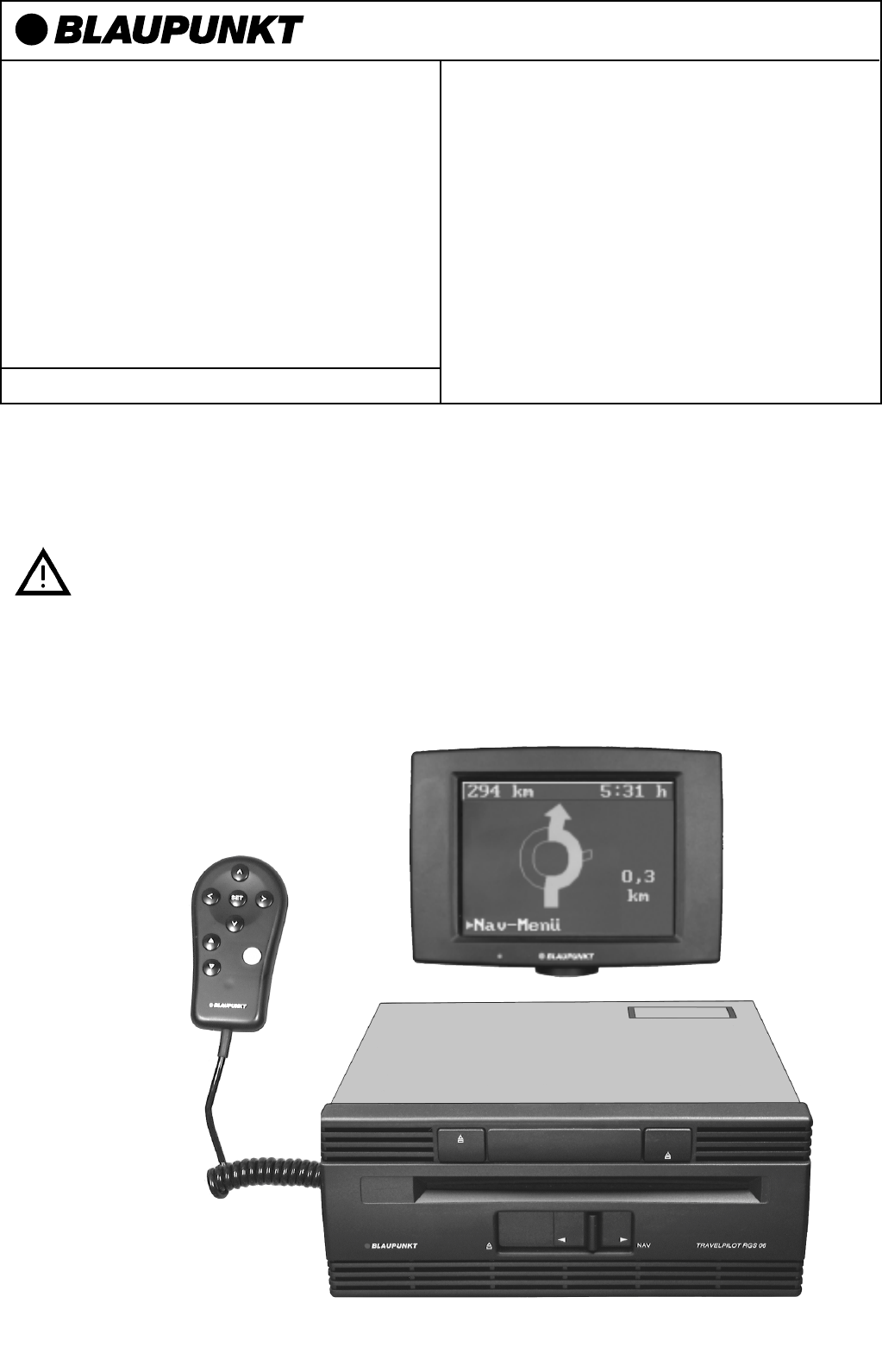

TravelPilot RGS 06 5" TFT Display 7 612 001 126 Installation notes for authorired service workshopsInstructions de montage pour atelier service après-vente agréé -1-
Table of contents Safety information ........................................................................... 3 Installation and connection regulations ..................................................................... 3 Product information ................................................................................................... 3 Notes on the operation of the equipment .................................................................. 3 Preparing for installation ...........................
Safety information Because of the integrated gyro and CD-ROM drive, it is essential that the basic navigation unit be installed in a horizontal position. Installation and connection regulations Preparing for installation You must disconnect the negative terminal of the battery during the installation and connection of the equipment. Warning! Before beginning your work, check the equipment to make sure that everything has been included: ............................
Fig. 7 The display is mounted directly on a console (telephone console) with the ball joint. antenna must not be exposed to temperatures of less than -20 °C or more than +80 °C. If necessary, use protective sheathing to protect the antenna cable from being pinched. The adherent surface of the antenna must be free of dirt, snow, ice, etc. You must not lengthen, shorten or put a kink in the antenna cable. Do not remove the plug during the installation.
Connecting the speedometer signal Installing the wheel sensor Important: Only an authorised customer service centre should make this connection. Screw the wheel sensor onto the sensor carrier and look for a suitable mounting location. The sensors must not swing mechanically and they should be placed in a sheltered location, Fig. 10. While mounting the wheel sensors, it is essential to comply with the installation tolerances.
RGS 06 Service Menu Insert navigation CD into the basic unit Enter test stretch in m. (min. 100 m) and drive stretch Reset standby time to 0 min. in the DSC menu System install. - Strech calibr. Display values: Gyro, wheel sensor, speedometer, km/h, direction - Sensor- test - GPS status TURN OFF the ignition - Keyboard test - RETURN Press the DOWN key for > 5 sec.
Scope of delivery 1 Navigation unit with integral gyro and GPS receiver 1 2 GPS-antenna 3 Colour display 4 Loudspeaker 2 5 Control unit including bracket 5a 8 618 841 480 Remote control extension cable, 4 m 6 Fixings 7 8 618 841 985 Adapterkabel voor sensor- interface, ca. 25 cm 3 1,45 m 8 8 618 841 412 DC cable, 6 m 9 8 618 842 033 Reversing light cable, 4.
6 9 8 618 841 105 2 916 064 005 (4x) 2 910 645 120 (4x) gelb, yello, jaune, giallo, geel, gul, amarillo, amarelo 8 618 841 423 (58 x 13) 8 600 660 007 (6x) 8 618 841 421 (58 x 9) : 7 weiß, white, blanc, bianco, wit, vit, blanco, branco 8 -8-
Fig.1 Fig. 2 Fig. 4 Fig.
or rt +12V br Fig. 5 Fig. 8 Fig. 9 Fig. 6 Fig.
Z Fig.12 2 914 551 015 Sensor midle Y max. 10° Magnetic strip Z ≥ 5 mm Z ≤ 8 mm Fig.13 Fig.10 Z Fig.14 ≤ 10˚ max. 25 mm Interface Fig.15 12.7 mm 12.7 mm ≤ 90 mm Wheel rim 8 618 841 475 (1,5 m) Magnetic strip Fig.16 max. 20° max. 20° Metal holder max. 25 mm Magnetic strip Fig.18 a Fig.11 Magnetic strip Fig.17 - 11 - Metal holder Magnetic strip Fig.
Connection of the sensors 06 RGS br brown rt red ge yello or orange sw black w white 5" 1,45 m or GPS antenna, Klemme/Terminal/ Morsetto/Borne 58d (nur PWM-Steuerung, PWM driven only, solo comando modulaz. ampiezza imp., alleen PBM-besturing, kun PWMstyring, endast PWM-styrn, solo control PWM) - 12 - 1,45 m br br 1,45 m rt 5,5 m sw sw ge ge w ge RFLS KL. 15 sw sw 4m 4m sw 4m 12 V sw 4m 4,5 m ge 2m ge Control unit,Unité de commande 3m Sped impuls KL.
