Datasheet

BenQ Lighting

Bringing Enjoyment & Quality to life

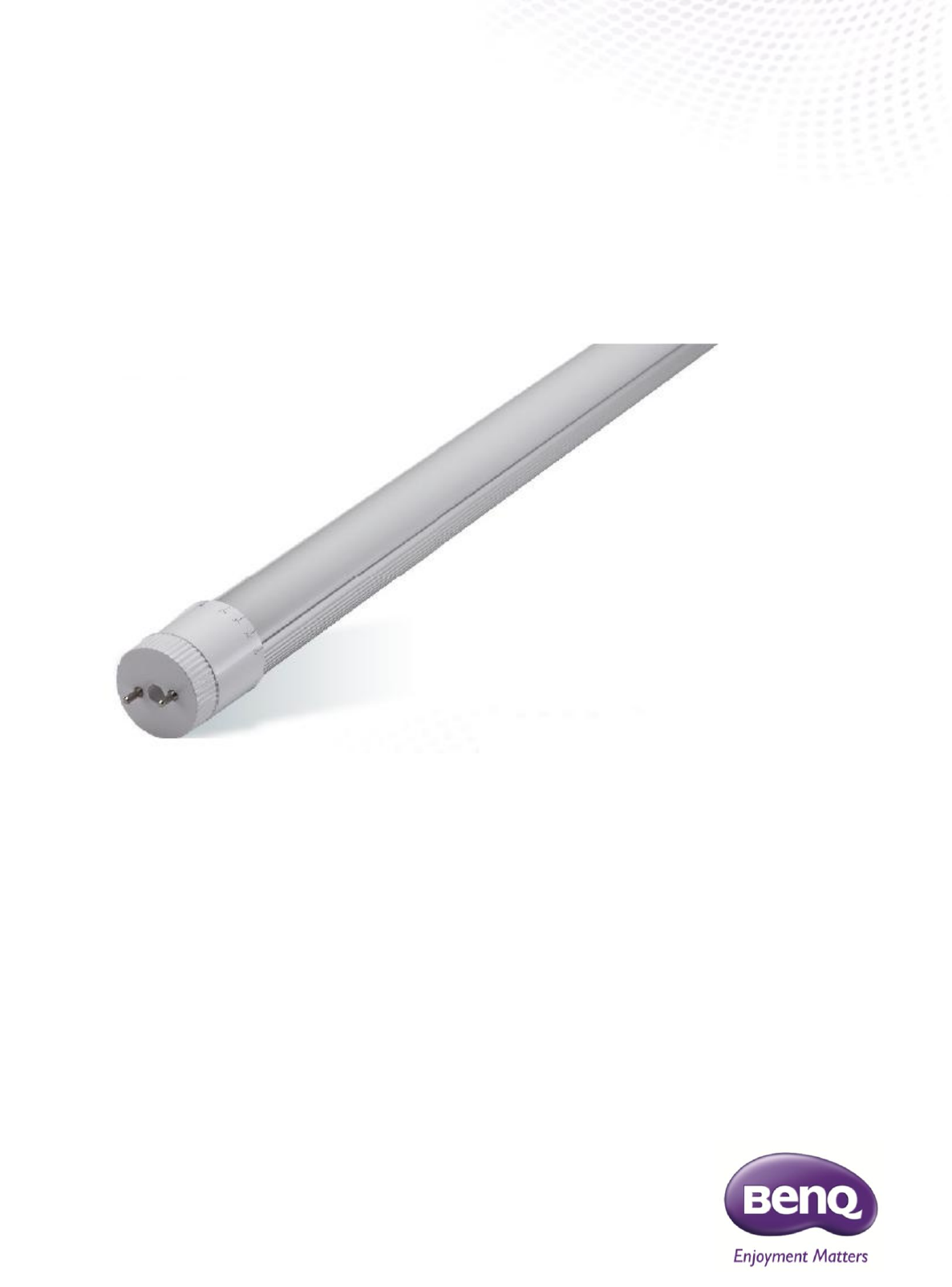

LED T8 AC Tube (T8AA4)

Features & Benefits

 On/Off 4 Step Dimmable : 100% ; 60% ; 40% ; 20%

 Rotatable End-Cap : easy to adjust light direction

 High Brightness/Power Performance: 100 lm/W

 Proven Reliability : 25,000 hrs Lamp Life

 Warranty: 2 Years

 Harmless to the Lighting Objects: UV Free

 Friendly to the Earth: Mercury Free

PAGE 1
BenQ Lighting LED T8 AC Tube (T8AA4) Features & Benefits        On/Off 4 Step Dimmable : 100% ; 60% ; 40% ; 20% Rotatable End-Cap : easy to adjust light direction High Brightness/Power Performance: 100 lm/W Proven Reliability : 25,000 hrs Lamp Life Warranty: 2 Years Harmless to the Lighting Objects: UV Free Friendly to the Earth: Mercury Free Bringing Enjoyment & Quality to life
PAGE 2
BenQ Lighting General Characteristics Marketing Name Part Number Cap-Base Dimension Weight Body Material T8AA4-09W12C730VU13D 9H.W1VST.TG3 G13 Ø 28 x 580mm 220g±10% Aluminum T8AA4-09W12C740VU13D 9H.W1VST.TG1 G13 Ø 28 x 580mm 220g±10% Aluminum T8AA4-09W12C760VU13D 9H.W1VST.TG2 G13 Ø 28 x 580mm 220g±10% Aluminum T8AA4-09W12C730VU13D 9H.W1VST.EG3 G13 Ø 28 x 590mm 220g±10% Aluminum T8AA4-09W12C740VU13D 9H.W1VST.EG1 G13 Ø 28 x 590mm 220g±10% Aluminum T8AA4-09W12C760VU13D 9H.
PAGE 3
BenQ Lighting Optical Characteristics Marketing Name Input Lamp Luminous Color Color Voltage Power Flux Temperature Rendering Index T8AA4-09W12C730VU13D 100-240V~ 9.5 W 850lm 3000K > 70 T8AA4-09W12C740VU13D 100-240V~ 9.5 W 900lm 4000K > 70 T8AA4-09W12C760VU13D 100-240V~ 9.
