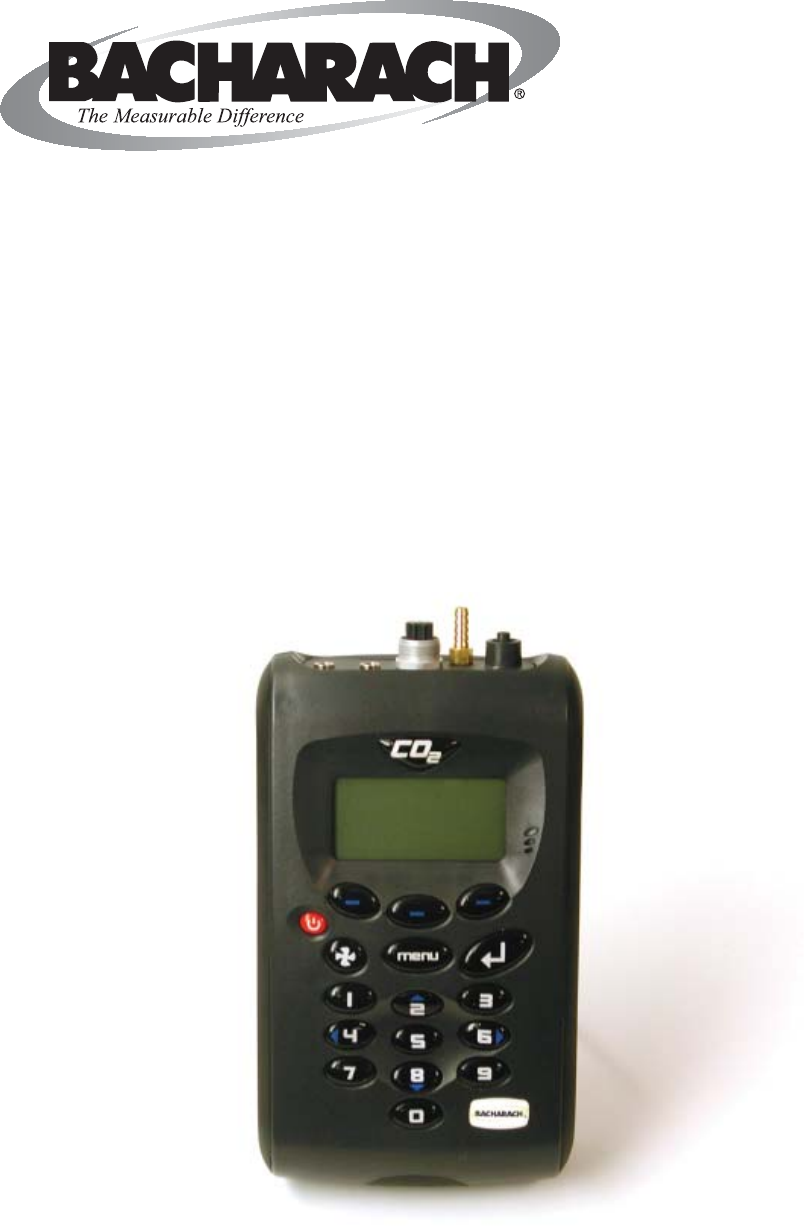

CO2 Analyzer Models 3100 & 3150 Operation & Maintenance Instruction 0019-9339 Rev.
CO2 Analyzers 3100 & 3150 WARRANTY Bacharach, Inc. warrants to Buyer that at the time of delivery this Product will be free from defects in material and manufacture and will conform substantially to Bacharach Inc.’s applicable specifications. Bacharach’s liability and Buyer’s remedy under this warranty are limited to the repair or replacement, at Bacharach’s option, of this Product or parts thereof returned to Seller at the factory of manufacture and shown to Bacharach Inc.
CO2 Analyzers 3100 & 3150 NOTES: Instruction 19-9339 3
CO2 Analyzers 3100 & 3150 1.0 Manual Guidelines ......................................................................... 6 1.1 Safety Related Information...................................................... 6 1.2 Notes ....................................................................................... 6 2.0 Introduction.................................................................................... 7 2.1 Features of the CO2 Analyzer 3100/3150 ................................ 7 2.
CO2 Analyzers 3100 & 3150 6.3.1 Logged Reading ........................................................ 32 6.3.2 Peak Reading ............................................................ 32 6.3.3 Hold Reading ............................................................. 32 7.0 Calibration ................................................................................... 33 7.1 User Calibration .................................................................... 33 7.2 Calibration Gases ...................
CO2 Analyzers 3100 & 3150 1.0 Manual Guidelines 1.1 Safety and Related Information Information in this manual that may affect the safety of the users and others is preceeded by the following symbol: WARNING Failure to follow this information may result in physical injury which in some cases could be fatal. 1.2 Notes Important / useful information and instructions are shown clearly throughout the manual in a note format. For example: NOTE: For further information, please contact your equipment supplier.
CO2 Analyzers 3100 & 3150 2.0 Introduction This manual explains how to use the instruments below: • CO2 Analyzer 3100 (0 - 20%) • CO2 • CO2 (with O2) • CO2 (with O2 and Relative Humidity) • CO2 Analyzer 3150 (0 - 10,000 PPM) • CO2 • CO2 (with O2) • CO2 (with O2 and Relative Humidity) P/N 19-7076 P/N 19-7077 P/N 19-7078 P/N 19-7136 P/N 19-7137 P/N 19-7138 NOTE: The instrument is a sensitive piece of scientific equipment, and should be treated as such.
CO2 Analyzers 3100 & 3150 2.2 Instrument Components The following items are included in the Analyzer Kit. Please check to make sure all items have been included.
CO2 Analyzers 3100 & 3150 3.0 CO2 Analyzer Accessories 3.1 Optional Products The CO2 Analyzer has a number of optional products for purchase which enhance the usability and enable further analysis of data and reading information. NOTE: For more information on the features listed in this section please contact your nearest Bacharach Service Center. 3.1.1 PC Software (Optional) The software enables the user to maximize the operation of the incubator analyzer.
CO2 Analyzers 3100 & 3150 3.1.2 Temperature Probe Reading (Optional) The instrument has the ability to read and display two temperature readings via optional temperature probes (P/N 0019-0611). When a temperature probe is fitted to one of the temperature ports on the top of the instrument, the display will automatically show the current reading and a temperature probe icon will be displayed. The display can also be changed to show a T1 - T2 calculation by pressing the appropriate soft-key.
CO2 Analyzers 3100 & 3150 4.0 Instrument Features 4.
CO2 Analyzers 3100 & 3150 4.2 Panel Key Functions KEYS FUNCTION A Main Read Screen Start and end screen when using the instrument. B Soft Keys The function of the three “soft-keys” on the front of the instrument panel are determined by menu options taken. Functions vary from screen to screen. C ON/OFF Key Press the “ON/OFF” key briefly to switch the instrument on and off. D Pump Key Press the “Pump” key to start or stop the pump. E Scroll LEFT Key Also “Key 4”.
CO2 Analyzers 3100 & 3150 4.3 Instrument Connections Top View Side View Reference Type Description A Temperature 1 Temperature 1 connector measures differential temperature - incubator and ambient temperatures. B Temperature 2 Temperature 2 connector measures differential temperature - incubator and ambient temperatures. C Humidity Probe (Optional) Humidity probe attachment point. D Gas Outlet Gas outlet port used to exhaust the gas.
CO2 Analyzers 3100 & 3150 5.0 General Operational Instructions 5.1 Switching the Instrument ON 1) To switch on the instrument, press the “ON/OFF” key briefly. There will be a short beep and a slight pause followed by the Bacharach logo. 2) The power on self-test will then commence (approximately 60 seconds). 3) If there are no warnings to display the instrument will continue to the MAIN READ SCREEN. 5.2 Switching the Instrument OFF 1) Purge the analyzer with fresh air.
CO2 Analyzers 3100 & 3150 5.3 Instrument Main Read Screen After the analyzer has been switched on and the warm-up self-tests have completed, the analyzer will display the “MAIN READ SCREEN.” CO2 Analyzer 3100 w/ O2 shown Soft-Keys: Peak - Enables the operator to display the peak reading. Store - Enables the operator to store the reading for viewing/download later. Hold - Enables the operator to hold the current reading being taken.
CO2 Analyzers 3100 & 3150 5.
CO2 Analyzers 3100 & 3150 The soft-key “DELETE” will delete the last character typed. Alternatively, the sequence can be re-typed before the “ENTER” key is pressed and the existing numbers will be replaced by the new sequence. NOTE: The instrument will not allow invalid data to be entered; this should be deleted and re-entered. 5.6 Changing Between Parameters By default, the instrument displays the MAIN READ SCREEN (for gas measurement).
CO2 Analyzers 3100 & 3150 5.9 Main Menu The “MAIN MENU” enables the operator to select options to set up specific parameters and perform operational tasks prior to sample readings being taken or to view data/information stored in the instrument. 1) Press the “MENU” key on the front of the instrument panel and the following screen will be displayed: 2) Press the soft-key “EXIT” to exit the MAIN MENU. 5.9.
CO2 Analyzers 3100 & 3150 5.9.2 Utilities The “UTILITIES” option enables the operator to configure the instrument settings prior to taking readings. 1) From the “MAIN READ SCREEN” press the “MENU” key on the instrument panel. 2) Press “KEY 2” to display the “UTILITIES” menu and the following screen will be displayed: 5.9.2.1 Time & Date The “TIME AND DATE” option enables the operator to check or set the instrument’s internal clock. The current time/date will appear on every stored reading.
CO2 Analyzers 3100 & 3150 4) Press “KEY 1” to change the time or press “KEY 2” to change the date. Type the time or date using the numeric keypad followed by the “ENTER” key. The instrument will not allow invalid times or dates to be entered. NOTE: The clock will need to be manually adjusted to cope with daylight saving changes or changes when crossing time zones. 5.9.2.
CO2 Analyzers 3100 & 3150 5.9.2.3 Alarms The analyzer has the ability to set rising or falling alarms for the two main gas channels, CO2 and O2 (if selected as an option). The alarms for each channel can be enabled or disabled independently via the “ALARMS” menu option. Once enabled these alarms become active in the “MAIN READ SCREEN”; this is indicated by a bell icon. If an alarm is triggered the screen turns red and a flashing bell icon is displayed.
CO2 Analyzers 3100 & 3150 5.9.2.4 Settings The “SETTINGS” option enables the operator to maintain information with regards to taking samples and readings. 1) From the “MAIN READ SCREEN” press the “MENU” key on the instrument panel. 2) Press “KEY 2” to display the “UTILITIES” menu.
CO2 Analyzers 3100 & 3150 Press the ‘Pump’ key again to remove the flashing pump icon NOTE: Dirty or discolored filters should be changed before use. Filters that have drawn in water should be changed immediately to prevent damage to the instrument. 1) From the “MAIN READ SCREEN” press the “MENU” key on the instrument panel. 2) Press “KEY 2” to display the “UTILITIES” menu.
CO2 Analyzers 3100 & 3150 Instruction 19-9339 24
CO2 Analyzers 3100 & 3150 5.9.2.6 Logging Data logging mode can be started or stopped via “KEY 6 - LOGGING” which is accessed from the “UTILITIES” menu. Press “KEY 4 START/STOP LOGGING” to start and stop data logging. While in data logging mode, the instrument will automatically record data at the pre-set intervals including running the pump for a preset time period. Active logging mode is indicated on the “MAIN READ SCREEN” by its icon.
CO2 Analyzers 3100 & 3150 5.9.2.7 Reset The instrument can be reset by pressing “KEY 7 - RESET” accessed via the “UTILITIES” menu. Selecting this option will clear all user settings and any stored data including the event log. A confirmation code (12345678) must be entered to confirm that a reset is initiated. 5.9.3 Calibration The instrument is fully calibrated during manufacture and when returned for service. However, to improve accuracy between services, a user/field calibration can be performed.
CO2 Analyzers 3100 & 3150 4) Press the soft-key “MORE” to refine or filter the readings to view. Setting Use 1 Delete All Enables the operator to delete all the readings stored, (see below). 2 Filter Used to refine/filter the range of readings displayed by ID or date ranges. Press between two dates, after a date, before a date, or all dates. 3 Go To Enables the operator to jump to the first or last reading in the memory or any other reading. 5.9.4.
CO2 Analyzers 3100 & 3150 2) Press “KEY 4” to view data. 3) To clear the readings press the soft-key “MORE” followed by “KEY 1 - DELETE ALL.” 5.9.5 Diagnostics The “DIAGNOSTICS” option enables remote technical support to identify and resolve issues with the instrument and readings. If required, the operator may be asked to confirm the diagnostics displayed. 1) From the “MAIN READ SCREEN” press the “MENU” key. 2) Press “KEY 5” to view diagnostics.
CO2 Analyzers 3100 & 3150 When plugged into the charger, the instrument light will power on and display charging. When complete, the display will change to show that the instrument is charged. To switch the instrument on while charging or charged is displayed, the operator will need to switch the instrument off and then on again. NOTE: A full charge will take approximately 3 hours. Typically, a fully charged battery will last 8-10 hours.
CO2 Analyzers 3100 & 3150 6.0 Taking Readings 6.1 Preliminary Checks - Best Practice Prior to use, it is good practice to ensure that: Step 1 The instrument has the correct time and date set. Step 2 The sample filter is fitted and that it is clean and dry. Step 3 The battery has a good charge (minimum 25% charge, even if only a few readings are required). Step 4 The memory has sufficient space available. Step 5 The main gases have been auto-zeroed, without gas concentration present.
CO2 Analyzers 3100 & 3150 3) Connect the sample tube, if relevent (always use the sample filter) from the sample point to the inlet port of the instrument, ensuring that the filter is seated correctly. 4) Press the “PUMP” key to draw a sample into the instrument. Notice the main gas readings start to change. It is recommended to run the pump until the gas readings have stabilized (approximately 30 seconds) then press the soft-key “STORE” if desired.
CO2 Analyzers 3100 & 3150 6.3 Alternative Reading Methods There are three other reading types or methods which each require slightly different operating procedures. • Logged reading • Peak reading • Hold reading 6.3.1 Logged Reading Logged readings need to be configured and initiated via the “UTILITIES” menu by pressing “KEY 6.” During configuration, the user will be asked to supply an ID, reading interval, and pump run-time. These parameters are used to control the reading frequency in logging mode.
CO2 Analyzers 3100 & 3150 7.0 Calibration 7.1 User Calibration The instrument is fully calibrated during manufacture and when returned for service. However, to improve accuracy between services, a user / field calibration can be performed. User calibration is a means of optimizing the performance of the instrument to the current operating conditions, such as ambient temperature and pressure, as well as correcting for instrument drift caused by lamp and filter settling.
CO2 Analyzers 3100 & 3150 7.2 Calibration Gases User calibration of the instrument will improve the data accuracy in the range of the calibrated gases used. However, it may cause less accurate readings of concentrations outside this calibrated range. Users should select the correct calibration gas for the expected gas levels on their particular application. Only use gases with a known certified gas concentration. NOTE: Certified calibration gases can be supplied by Bacharach.
CO2 Analyzers 3100 & 3150 7.4 Calibration Equipment The diagram below displays the regulator and tubing equipment for user calibration: Calibration Kits are available through Bacharach Inc. Calibration Kit: P/N 19-8027 Cylinder of N2 Gas: P/N 23-4003 Cylinder of 5% CO2 Gas: P/N 24-1126 (Model 3100) Cylinder of 2500 ppm CO2 Gas: P/N 24-1130 ( Model 3150) • Contact your nearest Bacharach Service Center for further information.
CO2 Analyzers 3100 & 3150 7.5 Calibration Method Before you begin, ensure that the unit is stabilized at its working temperature before performing any of the calibration operations. To achieve the processes set out in this section, press “KEY 3 CALIBRATION” from the “MAIN” menu. The first screen displayed provides the option to select the gas that requires calibration. The exact calibration method can vary depending on the gases used. 7.5.
CO2 Analyzers 3100 & 3150 2) Press either “KEY 1 - ZERO WITH N2” (recommended) or “KEY 2 ZERO WITH AIR” from the menu. Then, either attach the 100% N2 or sample pipe to allow access to fresh air. 3) Press the “START” key. The instrument will now wait approximately 60 seconds for the gas reading to stabilize at the correct level. Ensure the pump is on (pump icon appears in lower middle of screen when on). 4) The instrument will then indicate a successful zero has been completed.
CO2 Analyzers 3100 & 3150 3) Once a stable reading is shown, press the soft-key “ACCEPT.” A successful span calibration message will then be displayed. Press the soft-key “ACCEPT” again to confirm the calibration and “STORE” the new user span. Alternatively, press soft-key “REJECT” to exit without change. NOTE: If the calibration failed then try again using a longer purge time or different target gas. 7.5.3 Zero O2 Channel It is not necessary to zero the O2 channel.
CO2 Analyzers 3100 & 3150 7.5.5 Reset Factory Settings This option will reset the instrument to its factory programmed calibration characteristics and will clear the user calibration points for both gas channels. 1) To reset to factory settings, press “KEY 1 - FACTORY RESET” from the “CALIBRATION” menu. 2) To prevent the user calibration data being accidently erased the user must confirm the action by pressing the soft-key “ACCEPT” or soft-key “REJECT” to exit without change. 7.
CO2 Analyzers 3100 & 3150 Event Data Recorded Successful User Zero CO2 Type (N2 or Air) and Readings Before and After Successful User Span CO2 Target Value, Readings Before and After Successful User Span O2 Target Value, Readings Before and After Failed User Zero CO2 Type (N2 or Air) and Reading Failed User Span CO2 Target Value, Gas Reading Failed User Span O2 Target Value, Gas Reading Return to Factory Settings NOTE: If the calibration failed, then try again using a longer purge time or dif
CO2 Analyzers 3100 & 3150 8.0 Problem Solving This section outlines various warning and error messages which the operator may receive during general operation of the instrument. For further assistance please contact your nearest Bacharach Service Center. 8.1 Warnings and Errors When switched on, the instrument will perform a predetermined self-test sequence taking approximately 60 seconds. During this time many of the instrument’s working parameters and settings are checked.
CO2 Analyzers 3100 & 3150 Under and Over Range Codes If a reading is over range (i.e. above the maximum allowed reading) it will be displayed with ‘more than’ chevrons (>>.>). This can occur if a channel has been incorrectly calibrated or the sample gas has exceeded its specified range (e.g. CO2 >20%). If a reading is under range (i.e. below zero) it will be displayed with ‘less than’ chevrons (<<.<). Refer to Section 7.0 Calibration to remedy under-range by performing a user zero.
CO2 Analyzers 3100 & 3150 Check CO2 Cal. This warning is most commonly caused by an incorrect user calibration. Try recalibrating the sensor or press “RETURN TO FACTORY SETTINGS.” If the warning persists it may be caused by dirt or damage to the infrared sensor. The instrument will need to be returned to your nearest Bacharach Service Center for service / repair. Check O2 Cal. This warning is most commonly caused by an incorrect user calibration.
CO2 Analyzers 3100 & 3150 8.3 User Calibration Trouble Shooting Error Remedy User Zero Failed A possible reason for this is because the instrument is trying to zero to a level which is outside the predetermined range set when the unit was calibrated at the factory. To rectify this, first ensure the unit contains absolutely none of the gas which is being zeroed by flushing thoroughly with nitrogen. If it will not zero, then refer to the instructions given in the “FACTORY SETTINGS” section.
CO2 Analyzers 3100 & 3150 9.0 Service The instrument should be regularly serviced to ensure correct operation and accurate readings. Bacharach recommends a full service and factory calibration every 12 months. Depending on usage, the O2 cell should be replaced every 2-3 years. User Serviceable Parts NOTE: There are no user serviceable parts inside of the instrument. Please do not attempt any repair as this may void the warranty.
CO2 Analyzers 3100 & 3150 10.0 Warranty Policy This instrument is guaranteed, to the original end user purchaser, against defect in materials and workmanship for a period of 12 months from the date of the shipment. This period covers repair or replacement of defective parts on an exchange basis. The decision to repair or replace will be determined by Bacharach Inc. To maintain this warranty, the purchaser must perform maintenance and calibration as prescribed in the operating manual.
CO2 Analyzers 3100 & 3150 11.
CO2 Analyzers 3100 & 3150 Characteristics Temperature (optional) 32 to 122 °F (0 to 50.0 °C) Temperature accuracy, typical ±0.36°F from 89.6 to 111.2 °F, ±0.9°F over the rest of the range (±0.2°C from 32 to 44 °C, ±0.5°C over the rest of the range) Barometric Pressure 23.6 to 35.4 inHg (800 to 1200 mbar) RH Measurement (Optional) 0 to 100% non-condensing RH Accuracy ±1.
CO2 Analyzers 3100 & 3150 12.0 Event Log The following events are recorded in the instrument’s event log. The event log can only be downloaded using the additional PC software. Please refer to the PC software manual for further details.
CO2 Analyzers 3100 & 3150 13.0 Important Notice to All Customers The trash can symbol now displayed on equipment supplied signifies that the apparatus MUST NOT be disposed of through the normal municipal waste stream but through a registered recycling scheme.
CO2 Analyzers 3100 & 3150 14.0 Glossary of Terms Analyzer error messages For a list of standard error codes and for more information, please refer to Section 8.0 Problem Solving. Analyzer warnings There are two types of warning messages displayed; general warnings that may not necessarily affect the instrument’s function, for example battery power low, and operational parameters that could affect the performance of the analyzer, for example CO2 out of calibration.
CO2 Analyzers 3100 & 3150 Event log Record of significant events in the life of the analyzer. Used as an aid to monitoring the use of the analyzer. It can also be used as a diagnostic tool if there is a problem with the analyzer. The event log can be viewed via the optional software. It cannot be viewed on the analyzer screen. Exhaust port The point at which the gas exits the analyzer. This is located on the top of the analyzer.
CO2 Analyzers 3100 & 3150 Pump The device used to transfer a gas sample into the instrument where that sample is not under pressure. Select the “PUMP” key on the analyzer to activate. Regulator flow The regulator’s flow is factory set. It only requires a few turns to open, no adjustment is available. Sample tube Tube used to transfer sample gas from the source to the analyzer. Span The point at which the gas analyzer is calibrated when a known concentration of the target gas is present.
CO2 Analyzers 3100 & 3150 16.0 Service Centers United States Bacharach, Inc. 621 Hunt Valley Circle New Kensington, PA 15068 Phone: 724-334-5051 Toll Free: 1-800-736-4666 Fax: 724-334-5723 Email: help@mybacharach.com Canada Bacharach of Canada, Inc. 250 Shields Court Unit #3 Markham, Ontario L3R 9W7 Canada Phone: 905-470-8985 Fax: 905-470-8963 Email: bachcan@idirect.com México Bacharach de México Playa Regatas No. 473 Tercer Piso Col. Militar Marte Delegación Iztacalco, 08830 México D.F.
CO2 Analyzers 3100 & 3150 Instruction 19-9339 55
