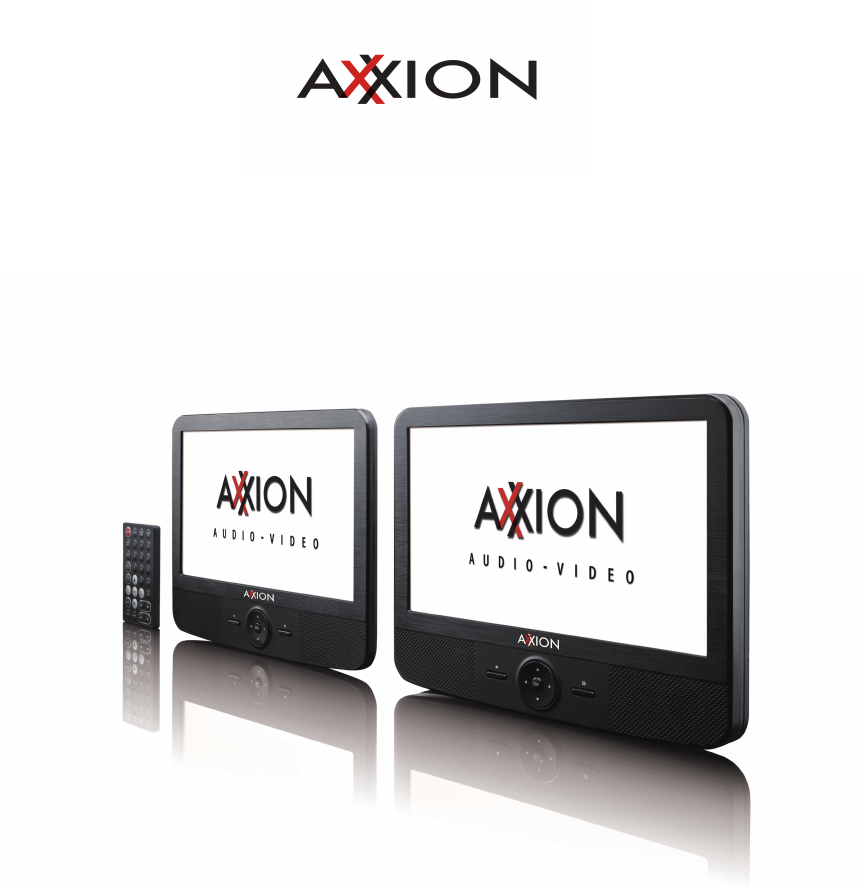

USER MANUAL DVD-MPEG4-CD-MP3-PLAYER AXX-1404 Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference. For information and support, www.lenco.
Content Important Safety Instructions ...................................... .................. .............................2 Main Panel Illustration........................................... .................. .................................. 3 Monitor Panel Illustration................................. .................. .........................................4 Remote Control.............................................. .................. ........................................ ..
Important Safety Instructions * Warning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel. * Warning: To prevent fire or electric shock hazard, do not expose the unit to rain or moisture. * Do not expose the Adaptor and Digital Photo Frame to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit.
Main Panel Illustration LCD DISPLAY OK STOP MOVE( , , OK SOURCE , ) : Increases the volume. : Decreases the volume.
Monitor Panel Illustration LCD DISPLAY MENU SPEAKER STANDBY MENU MOVE( , , , ) MUTE AV IN HEADPHONE DC9-12V INPUT JACK(power supply) POWER ( ON/OF) : Adjust the cursor position. : Adjust the Volume. MENU: Set monitor the menu.
Remote Control 1. A-B REPEAT: First press for the beginning of the chosen scene (set A); second press at the end of the chosen scene (set B), The whole selected scene automatically plays. Third press will disable the Repeat function. 2. REPEAT/PROG: Short press once will go to the Repeat Chapter, second short press will go to the Repeat Title, third short press will go to Repeat OFF. Long press will access the Prog to input with number keys the Title & Chapter. 3.
Preparation of the Remote Control Place the remote control on an even surface and insert the supplied button cell into the remote control as follows. 1. Push the button towards left. 2. Pull the battery loader out. 3. Insert the battery into the recep tacle Make sure the polarity matches the marks inside the component. 4.Insert the receptacle into the remote control.
Connecting to a TV Set Yellow CVBS VIDEO IN AUDIO IN White L Red R TV 7
Connecting to the monitor AC Adapter AV Cable 8
MP3/WMA/MPEG4 Playing The MP3/WMA/MPEG4 disc has such a directory structure as shown in the . Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired track and then press ENTER or PLAY to enjoy the music or movie. If you want to return to the upper menu, press Direction key to choose the icon and press ENTER button. Filter: Allows selecting the categories of files displayed in the browser list.
Picture CD Playback The PICTURE CD disc has such a directory structure structure as shown in the following picture. Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired picture and then press ENTER or PLAY to enjoy the picture. If you want to return to the upper menu, press Direction key to choose the icon and press ENTER button.
System Setup MENU OPERATION Press the SETUP button on the remote control, the SETUP MENU(main)will be displayed. After accessing the setup menu, press the direction buttons for up and down movement to select an item desired, then press the ENTER button to confirm. Press LEFT direction button return to the menu of upper level. To exit the setup, press the SETUP button again. In the SETUP MENU, you may choose any of the following options as you like.
VIDEO SETUP Select Video in the setup menu, and display the Video submenu: Aspect Ratio The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a widescreen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have. TV System This product supports output of various system, including NTSC, PAL.
RATING SETUP Select Rating in the setup menu, and display the Rating submenu: Note: Not all DVD support ratings. Parental Control Selecting a Rating allows the user to set the parental control feature of the player Select Parental Control, and press ENTER to change the different mode. Note: Unlock the password before setting Parental Control. Set Password Use the 0-9 keys to input four digits(password), then press ENTER to confirm.
Trouble-shooting Carry out the problem-solving measures described in the following section before contacting Customer Support. Turn off the DVD player immediately as soon as you suspect a malfunction. Unplug the power plug and check whether the DVD player is unusually warm or whether smoke is rising from it.
Specifications Play mode NTSC/PAL Disc mode DVD,VCD, CD, MP3, CD-R, CD-RW, JPEG, DVD+ -R/W, MPEG4, Video characteristic Video S/N ratio ≥ 65dB. AV out resolution ≥ 500 lines Audio characteristic Frequency response fs 96KHz: 20Hz-20KHz:+/-1dB Audio S/N ratio ≥ 90dB Dynamic range ≥80dB Distortion < 0.
This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries.
