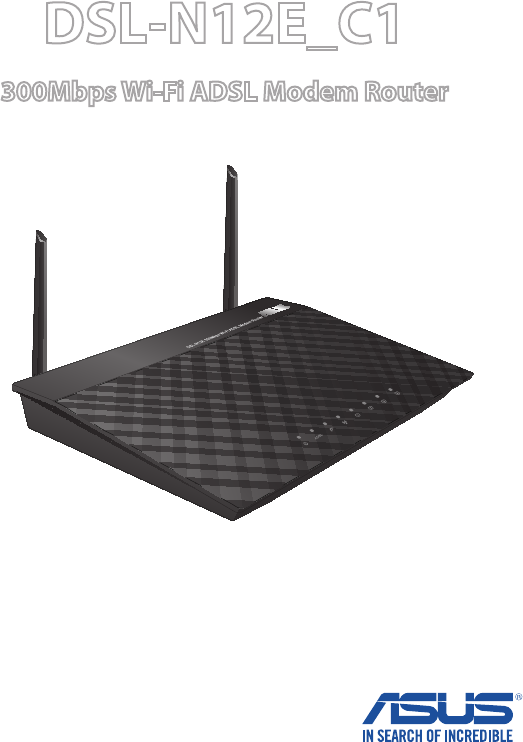

User Guide DSL-N12E_C1 300Mbps Wi-Fi ADSL Modem Router
E8796 First Edition December 2013 Copyright © 2013 ASUSTeK Computer Inc. All Rights Reserved. No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).
Table of contents 1 A quick look 5 Package contents......................................................................................... 5 Your ADSL router.......................................................................................... 6 2 Creating your network 9 Positioning your router.............................................................................. 9 What you need............................................................................................
Table of contents Notices............................................................................................................36 Networks Global Hotline Information.................................................50 ASUS Contact information......................................................................
1 A quick look Package contents ADSL WiFi modem router Network cable AC adapter Phone cable Quick Start Guide Support CD (User Manual/utilities) Splitter (varies with regions) • If any of the items is damaged or missing, contact ASUS for technical inquiries and support. Refer to the ASUS Support Hotline list at the back of this user manual. • Keep the original packaging material in case you would need future warranty services such as repair or replacement.
Your ADSL router TOP features DSL-N12E 300Mbps Wi-Fi ADSL Modem Router Power LED Off: No power. On: Device is ready. Flashing slowly: Rescue mode Flashing quickly: WPS in progress / Restore to default settings. ADSL LED Off: No ADSL link or unable to establish ADSL link. Flashing: ADSL is initializing / waiting for initializing. On: ADSL link is established. Internet LED Off: No Internet connection. Flashing: Transmitting or receiving data. On: Internet connection is established.
Wireless LED Off: No wireless signal. On: Wireless system is ready. Flashing: Transmitting or receiving data via wireless connection. LAN LED Off: No power or no physical connection On: Has physical connection to an Ethernet network Flashing: Transmitting or receiving data (through Ethernet cable) • Use only the power adapter that came with your package. Using other adapters may damage the device. • Specifications: DC Power adapter DC Output: +12V with max 1.
Rear features Reset button This button resets or restores the system to its factory default settings. Power switch Press to power on or off the system. Power (DC-In) port Insert the bundled AC adapter into this port and connect your router to a power source. LAN 1 ~ 4 ports Connect network cables into these ports to establish LAN connection. DSL port Connect to a splitter or to a telephone outlet via an RJ-11 cable. WPS button* This button launches the WPS Wizard.
2 Creating your network Positioning your router To get the best wireless network performance from your wireless router, follow the recommendations below: • Place the wireless router at the center of your network for maximum wireless coverage. • Keep the device away from metal obstructions and away from direct sunlight. • Keep the device away from 802.11g or 20MHz only Wi-Fi devices, 2.
What you need To set up your network, you need one or two computers that meet the following system requirements: • Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX) • IEEE 802.11b/g/n wireless capability • An installed TCP/IP service • Web browser such as Microsoft Internet Explorer, Mozilla Firefox, Apple Safari, or Google Chrome • If your computer does not have built-in wireless capabilities, install an IEEE 802.11b/g/n WLAN adapter to your computer to connect to the network.
Connecting your devices • Use a wired connection when setting up your wireless router to avoid possible wireless setup issues. • Before setting up your ASUS wireless router, do the following: • If you are replacing an existing router, disconnect it from your network. • Disconnect the cables/wires from your existing modem. If your modem has a backup battery, remove it as well. • Reboot your computer (recommended).
Before you proceed Before configuring your wireless router, apply the steps described in this section to each computer on the network to avoid problems connecting to the wireless network. A. Disable any configured proxy servers. Windows® 7 1. Click Start > Internet Explorer. 2. Click Tools > Internet options > Connections tab > LAN settings.
3. From the Local Area Network (LAN) Settings window, uncheck Use a proxy server for your LAN. 4. Click OK then Apply. MAC OSX 1. From your Apple Safari browser, click Safari > Preferences > Advanced. On the Proxies item, click Change Settings... 2. From the Network screen, uncheck FTP Proxy and Web Proxy (HTTP). 3. Click OK then Apply.
B. Configure TCP/IP settings to automatically obtain an IP address. Windows® 7 1. Click Start > Control Panel > Network and Internet > Network and Sharing Center > Change adapter settings. 2. On the Network Connections window, click on Local Area Connection. 3. On the Local Area Connection Network Status window, click Properties. 4. Select Internet Protocol Version 4 (TCP/IPv4) or Internet Protocol Version 6 (TCP/IPv6), then click Properties.
6. Tick Obtain an IP address automatically. 7. Click OK. MAC OSX 1. Click Apple Menu >System Preferences > Network 2. Click Ethernet on the left panel. 3. On the Configure IPv4, item select Using DHCP. 4. Cllick Apply.
Setting up your ADSL router 1. Ensure that the ADSL LED on the DSL-N12E_C1 front panel is on and not flashing or off. 2. Launch your web browser. The QIS (Quick Install Setup) web page appears automatically and starts detecting your connection type. If the QIS web page does not appear after you launched your web browser, disable the proxy settings on your web browser.
3 Network configuration using the web GUI Logging in to the web GUI (Graphical User Interface) Your ASUS Wireless Router uses a web-based user interface that allows you to configure the router using any web browser such as Internet Explorer, Mozilla Firefox, Apple Safari, or Google Chrome. To log in to the web GUI: 1. Launch your web browser and manually key in the wireless router’s default IP address: 192.168.1.1 or default domain name: http://router.asus.com. 2.
3. The wireless router GUI provides access to various configuration settings.
Setting up the wireless security settings To protect your wireless network from unauthorized access, you need to configure its security settings. To set up the wireless security settings: 1. Key in http://router.asus.com or http://192.168.1.1 on your web browser. 2. On the login screen, key in the default user name (admin) and password (admin), then click OK. The wireless router’s web GUI launches. 3.
4. On the Wireless name (SSID) field, key in a unique name for your wireless network. 5. From the Authentication Method dropdown list, select the encryption method for your wireless network. The IEEE 802.11n standard prohibits using High Throughput with WEP or WPA-TKIP as the unicast cipher. If you use these encryption methods, your data rate will drop to IEEE 802.11g 54Mbps connection. 6. Key in your security passkey. 7. Click Apply when done.
Managing your network clients To manage your network clients: 1. Launch the wireless router’s web GUI. 2. On the Network Map screen, select the Client Status icon to display information about your network clients.
Using the Traffic Manager Managing QoS (Quality of Service) Bandwidth The Quality of Service (QoS) allows you to set the bandwidth priority and manage the network traffic. To set up the bandwidth priority: 1. Launch the wireless router’s web GUI. 2. On the Traffic Manager screen, select the QoS tab. 3. Click ON to enable the default rule and fill in the upload and download bandwidth fields. • Get the bandwidth information from your ISP.
Monitoring Traffic The traffic monitor function allows you to assess the bandwidth usage and speed of your Internet, LAN, Wired connections.
Configuring the Advanced settings The Advanced Settings items allows you to configure the advanced features of your wireless router. Setting up the DHCP Server You may enable the DHCP Server function in your wireless router so your network clients can automatically obtain IP addresses from your wireless router. The ASUS Wireless Router can support up to 253 IP addresses for your network. To set up the DHCP server: 1. From the navigation panel, go to Advanced Settings > LAN. 2. Click DHCP Server tab.
3. In the Enable the DHCP Server? field, tick Yes. 4. In the IP Pool Starting Address field, key in the starting IP address. 5. In the IP Pool Ending Address field, key in the ending IP address. 6. In the Lease Time field, key in the time that the IP addresses expire and the wireless router automatically assigns new IP Addresses for the network clients. • For the IP Pool Starting and Ending IP addresses, we recommend that you use: I P address: 192.168.1.
Upgrading the firmware Download the latest firmware from the ASUS website at http://support.asus.com To upgrade the firmware: 1. Click Administration from the navigation panel. 2. Click the Firmware Upgrade tab. 3. In the New Firmware File item, click Browse. Navigate to the downloaded firmware file. 4. Click Upload. If the upgrade process fails, the wireless router automatically enters rescue mode and the power LED indicator on the front panel starts flashing slowly.
Restoring/Saving/Uploading settings To restore/save/upload wireless router settings: 1. Click Administration on the navigation panel. 2. Click the Restore/Save/Upload Setting tab. 3. Select a task from the configuration options: • To restore to default factory settings, click Restore, and click OK once prompted. • To save the current system settings, click Save, navigate to the folder where you intend to save the file and click Save.
4 Using the utilities • Install the wireless router's utilities from the bundled support CD. • If Autorun is disabled, run setup.exe from the root directory of the support CD. Device Discovery Device Discovery is an ASUS WLAN utility that detects any ASUS wireless routers available on the wireless network and allows you to configure the device. To launch the Device Discovery utility: • Click Start > All Programs > ASUS Utility > DSL-N12E_C1 Wireless Router > Device Discovery.
Firmware Restoration Firmware Restoration is used on an ASUS Wireless Router after a failed firmware upgrade. This utility uploads a firmware file to the wireless router. The process takes about three to four minutes. Launch rescue mode before using the Firmware Restoration utility. To launch rescue mode and use the Firmware Restoration utility: 1. Unplug the wireless router from its power source. 2.
5 Troubleshooting If you encounter problems that are not mentioned in this chapter, contact ASUS Technical Support. Troubleshooting I cannot access the router GUI for configuring the router. • Delete the cookies and temporary files in your web browser. To do this in Internet Explorer 8: 1. Launch your web browser, then click Tools > Internet Options. 2.On the General tab, click Delete under Browsing history. 3.Tick Temporary Internet Files and Cookies. Click Delete.
Authentication: • Use a wired connection to connect to the router. • Check the wireless security settings. • Press the Reset button at the rear panel for more than five seconds. Cannot find the router: • Press the Reset button at the rear panel for more than five seconds. • Check the settings in the wireless adapter such as SSID and encryption method. Cannot access the Internet using a wireless LAN adapter. • Place the router closer to the wireless client.
The ADSL light is ON (steady and not blinking) and means Internet access is possible, but I still cannot browse the Internet. • Restart your computer. • Check if the Interent LED on the wireless router is on. • Check the wireless encryption settings. • Check if the computer can get an IP address (using both a wired or wireless connection). • Check that your web browser is configured to use the local LAN and is not configured to use a proxy server.
How do you restore the system to its default settings? • Press the Reset button at the rear panel of the wireless router for more than five seconds. • Refer to the section Restoring/Saving/Uploading settings of this user manual. The following are the factory default settings: User name: Password: Enable DHCP: IP address: Domain name: Subnet Mask DNS Server 1: DNS Server 2: SSID: admin admin Yes 192.168.1.1 (Blank) 255.255.255.0 192.168.1.
ASUS DDNS Service The ASUS DSL-N12E_C1 WiFi Modem Router supports the ASUS DDNS service. If you have registered for the ASUS DDNS service but need to exchange devices at the service center, inform the service center that you want to keep the original domain name and retain the DDNS service. Visit your local service center for more information.
3. I have registered a domain name before and it has been working well until my friends told me that they could not access my domain name. Check the following: 1. Internet connection is available. 2. The DNS server is working properly. 3. The last time you updated the domain name. If there are still problems in accessing your domain name, contact the service center. 4. Can I register two domain names so I can access my HTTP and FTP servers separately? No, you cannot.
