Installation Guide

LED Fixed Rail Luminaires Surface Mount
Model #s: CARF, CRRF, & TRRF4200LEDSN3K 120VAC / 60Hz
8060704 Rev 1
1
of
1
Limited Factory Warranty
American Fluorescent Corporation warrants this fixture is free from defects in materials and workmanship when installed and used under normal
operating conditions for a period of 3 years from date of purchase. This warranty covers all component parts and extends only to replacement of
defective fixture or components; it does not cover failure due to improper installation, misuse, mishandling or damage incurred in transit
Safety Precautions
Read all safety precautions and installation instructions carefully
before installing or servicing this fixture. Failure to comply with these
instructions could result in potentially fatal electric shock and/or
property damage.
It is recommended that a qualified electrician perform all wiring. This
fixture must be wired in accordance with all national and local
electrical codes.
Do not handle any energized fixture or attempt to energize any fixture
with wet hands or while standing on a wet or damp surface or in water.
This fixture is designed for use in a 110-120VAC, 60Hz fused circuit
and can be used in conjunction with most 2-wire, triac dimmers.
To reduce the risk of electrical shock, and to assure proper operation,
this fixture must be adequately grounded. To accomplish proper
grounding, there must be a separate ground wire (green) contact
between this fixture and the ground connection of your main power
supply panel.
This fixture is intended to be used for general indoor lighting in dry or
damp locations only.

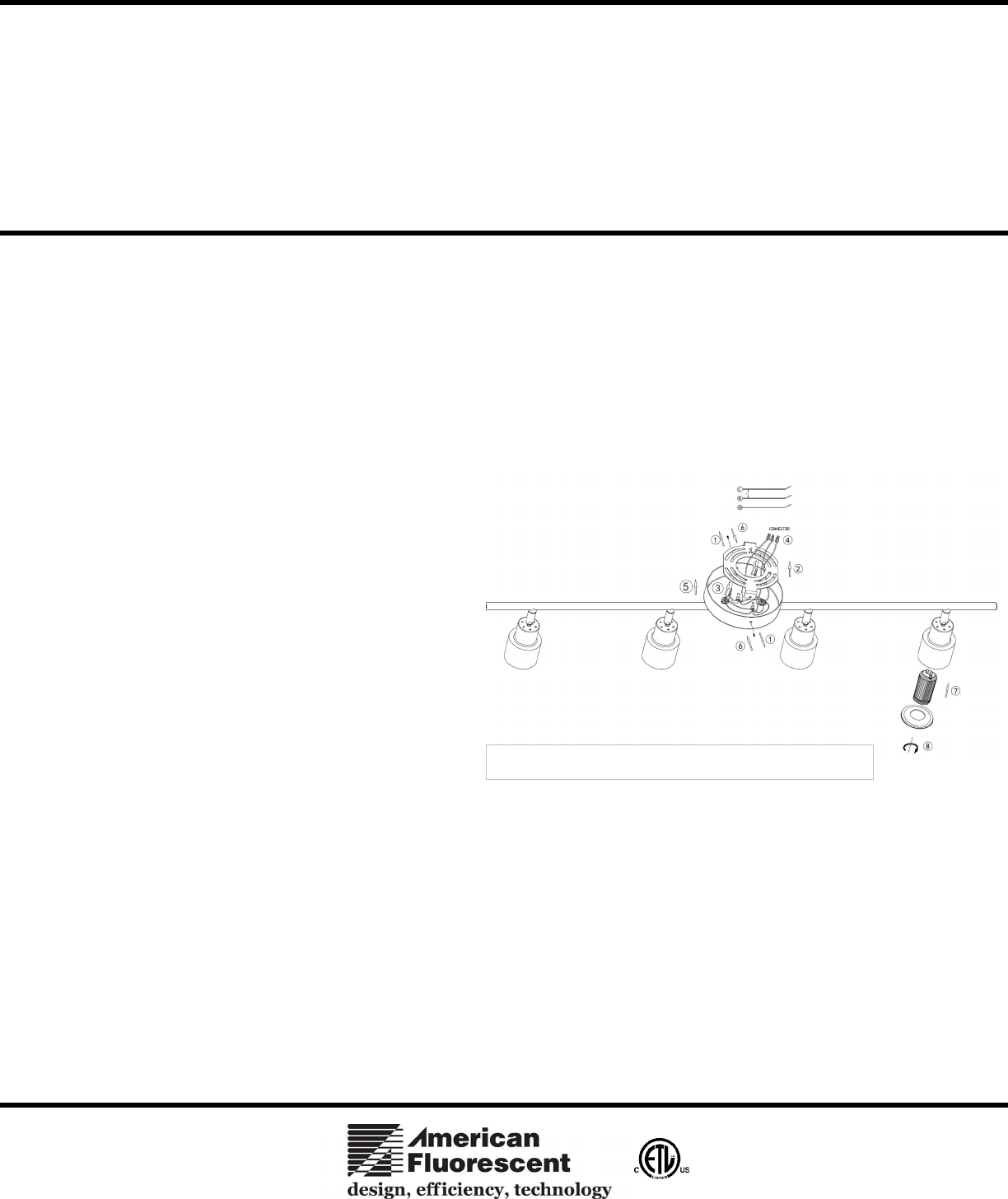

ASSEMBLY INSTRUCTIONS
Step1. Preparing for installation
A. Disconnect electrical power at fuse or circuit breaker box before installing or servicing any part of this fixture.
B. Carefully remove the fixture from the carton.
Step 2. Remove circular gem bar from the fixture base by removing two screws.
Wiring-all wiring must take place inside junction box (not included)
Caution: Make sure power is off at fuse or circuit breaker box. Check power wires for damage or scrapes. If power
supply wires are within three inches of the ballast power supply, use wire suitable for at least 90C (194F).
Note: Most dwellings built before 1985 have
supply wire rated to 60C. Consult a qualified
electrician before installing.
Step 3. Install circular gem bar (supplied) on the
junction box (not supplied) by securing it with
two screws (supplied).
Step 4.
A. Make all wire connections to appropriate
wire. Secure with wire nuts (supplied).
B. Connect the green wire from the fixture to
the power source green wire.
C. The black wire from the fixture is connected
to the black (L) wire from power source.
D. The white wire from the fixture is connected
to the white (N) wire from power source.
E. Tuck all connections neatly into the junction box.
Step 5. Place fixture base over the gem bar, align two mounting holes on both sides.
Step 6. Install fixture by securing the base with two screws (supplied).
Restore power at fuse or circuit breaker box.
For Relamping only
Step 7. Insert new LED lamp into the lamp holder and turn it counter clockwise until lamp snaps in place.
Step 8. Thread in the lamp cover.
Individual models may vary from product shown
