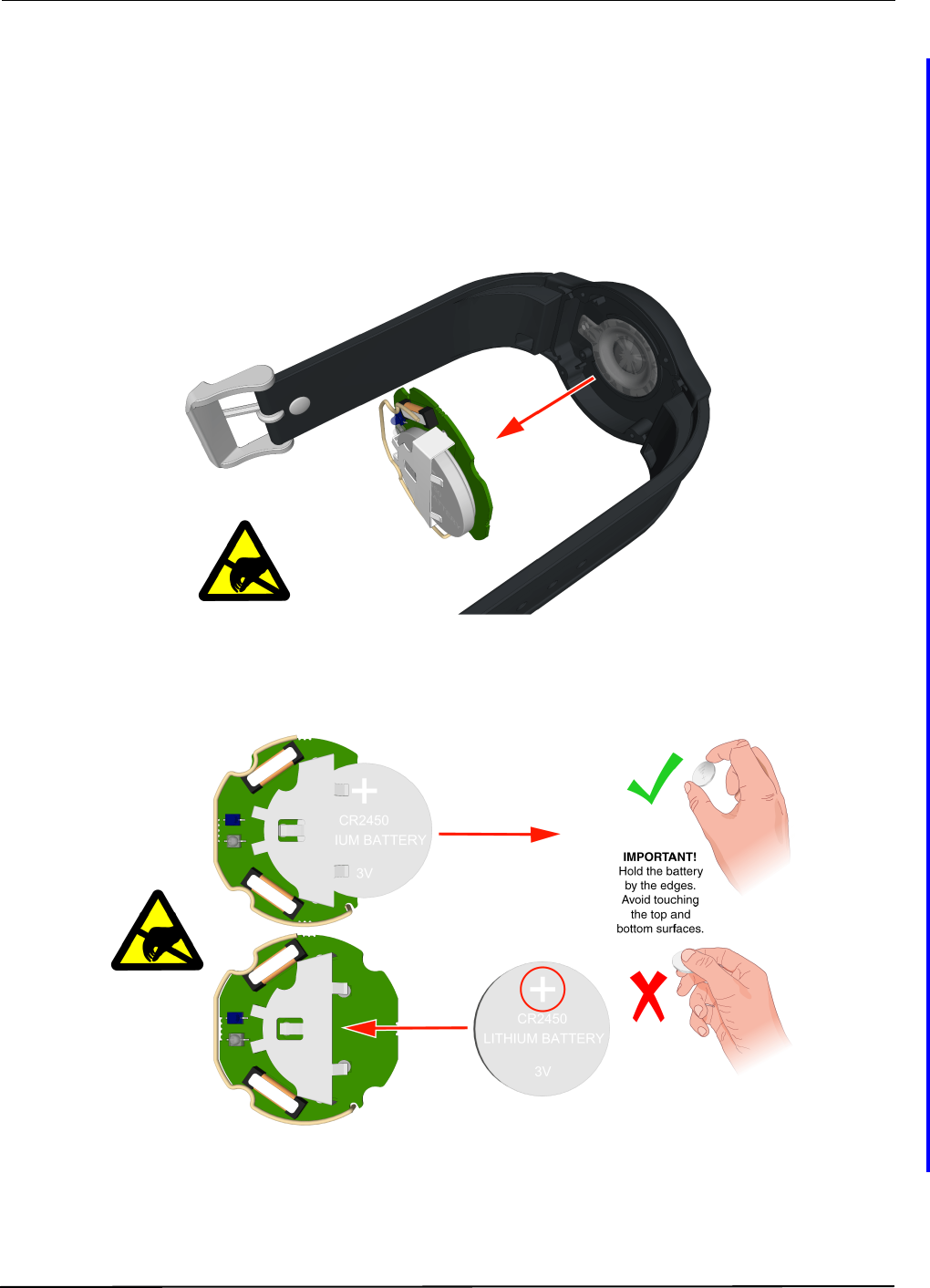

Installation Guide teleCARE IP TD 93021US Rev A Replacing the Battery The mobile transceiver is powered by a 3 volt lithium replaceable battery. The battery voltage is continually monitored and if low voltage is detected a “low battery” alarm is transmitted as part of the heartbeat transmission of the unit. Under normal circumstances the battery life is 1 to 1 ½ year.
Installation Guide teleCARE IP TD 93021US Rev A Mobile Transceiver Accessories Interchangeable rings, buttons and strap loops make it possible to customize the mobile transceiver body. The four rings and six buttons including a ring mounting tool are available as customization kit and the five strap loops including a rivet are available as an accessory kit. Figure 188.
Installation Guide teleCARE IP TD 93021US Rev A 8.3.4 NILF Low Frequency Beacon The low frequency beacon NILF is contained in a white plastic enclosure with a slim design that is suitable for surface mounting on walls or at a door post. The NILF is powered by three 1.5V “C” (R14) alkaline batteries. In situations where battery power is not suitable a 24Vdc external power supply can be used.
Installation Guide teleCARE IP TD 93021US Rev A NILF Installation The slim design makes the NILF suitable for surface mounting on walls or at a door post at approximately 4 feet (1.2 meters) from the ground. Figure 190. NILF installation example WARNING: The NILF produces a low frequency magnetic field. Installing the NILF in proximity of metal objects or electrical cables can negatively influence the magnetic field which reduces the LF field coverage.
Installation Guide teleCARE IP TD 93021US Rev A Figure 191. Removing the front cover of the NILF Place the NILF onto the door post or the wall at approximately 4 feet (1.2 meters) from the ground and mark the holes for drilling with a sharp pencil. Figure 192. Mark the holes for drilling Screws with a diameter of 1/8 in. (3.8mm) should be used to mount the NILF to the door post or the wall. Two suitably sized holes should be drilled at the marked spots.
Installation Guide teleCARE IP TD 93021US Rev A the NILF on a wall, holes should be drilled that accept a wall plug suitable for using screws with a diameter of 1/8 in. (3.8mm). Figure 193. Drill the two holes with the proper drill Mount the NILF on the door post or wall. Figure 194. Placing the NILF on the door post The two screws should be tightened carefully using the appropriate screwdriver. Make sure that the NILF does not bend when tightening the screws.
Installation Guide teleCARE IP TD 93021US Rev A Figure 195. Tightening the two screws.
Installation Guide teleCARE IP TD 93021US Rev A 8.3.5 NILF Electrical Connections The electrical connections on the component side of the low frequency beacon printed circuit board are shown in the following drawing of the NILF circuit board. Transceiver piggyback (NIRX) extension connectors J3: Internal or external antenna connection J2: External Connections Figure 196.
Installation Guide teleCARE IP TD 93021US Rev A External Connections The 8-pole external connector (J2) has connections for a second beacon used for range extending in a master/slave configuration, a galvanically separated tamper alarm relay output, the internal battery and an external 24 Vdc power supply input. Figure 199.
Installation Guide teleCARE IP TD 93021US Rev A 8.3.6 NILF DIP Switch Settings The NILF uses three sets of 8-pole DIP switches to set the ID, output power and transmission rate, master/slave mode and the active location functionality. NILF ID DIP switches SW1 (1-8) and SW2 (1-4) are used to set the 12 bit ID code of the NILF. SW 2 - bit 8 to 11 SW 1 - bit 0 to 7 Figure 200.
Installation Guide teleCARE IP TD 93021US Rev A Output Power and Transmission Rate DIP Switch Settings With the 4 bit output power DIP switch SW3 (1-4) selection the range of the LF field can be adjusted. In relation with the output power the repetition rate of the low frequency transmissions can be set to normal, high, low and very low using 2 bit DIP switch setting on SW2 (5 and 6). SW 2 Repetition Rate SW 3 Output Power Figure 201.
Installation Guide teleCARE IP TD 93021US Rev A Master / Slave Mode DIP Switch Settings With DIP switch SW2 (8) the master / slave mode of the NILF can be set. SW 2 Master / Slave Figure 202.
Installation Guide teleCARE IP TD 93021US Rev A Beacon Mode With DIP switch SW3 (5) the mode of the LF location beacon can be set to passive or active. SW 3 Beacon Mode Figure 204.
Installation Guide teleCARE IP TD 93021US Rev A Placing the Batteries The NILF requires three 1.5V “C” (R14) alkaline batteries. The battery voltage is continually monitored. A red LED will indicate low battery status (1 flash per minute) and tamper alarm (continuous rapid flashing). Under normal circumstances the battery life is minimum one year. Figure 205. Placing the three 1.
Installation Guide teleCARE IP TD 93021US Rev A External Power Supply Connection Alternatively an external 24Vdc power supply can be connected to power the NILF. 12 - 24Vdc Power adapter Figure 206. External 24Vdc power supply connection Tamper Alarm The tamper alarm output has a galvanically separated normally closed contact. The tamper alarm output can be connected to a third-party system for generating an alarm when the NILF is tampered with.
Installation Guide teleCARE IP TD 93021US Rev A IMPORTANT: The tamper alarm output is only functional when an external 24Vdc power supply is used to power the NILF. To alarm monitoring device. Figure 207.
Installation Guide teleCARE IP 9 TD 93021US Rev A Installation Examples 9.1 2-Bed Room with Active Toilet Cancel and Active Pull Cord Peripherals A typical basic installation of a teleCARE IP system consists of one room controller with integrated corridor lamp (NIRC) to which the peripherals are connected.
+24V 0V 1 1 L2 RELAYS L1 IN1 o IN0 o 2 3 1 0 NIDM PASSIVE BUS 1 2 ON ASCOM 1 1 RELAYS L1 DATA +5V5 L2 3 2 0 1 NIDM PASSIVE BUS 1 2 ON Address 1 +5V5 DATA GND L2 L1 Light Switching Circuits Room Bus 0 IN1 OUT VOICE GND +5V5 IN0 IN1 OUT GND OUT IN1 IN0 +5V5 Socket Extension Module NISE NIPC (P) PASSIVE BUS ASCOM 1 1 + 1 L2 NIDM PASSIVE BUS Address 4 (fixed) RELAYS L1 Max. 1mm² 1/4 in. (6.
Installation Guide teleCARE IP 9.2 TD 93021US Rev A 2-Bed Room with Passive Toilet Cancel and Passive Pull Cord Peripherals The following installation of a teleCARE IP system consists of one room controller with integrated corridor lamp (NIRC) to which the peripherals are connected. The room controller offers three room buses which connect the peripherals to the room controller The example shown in the Illustration below is a 3-bed room with a toilet and shower.
Installation Guide teleCARE IP TD 93021US Rev A Ethernet LAN 24Vdc Room Controller (with Corridor Lamp) Passive Bus Address 0 Room Bus 0 Address 1 Address 2 Address 3 Figure 175.
GND OUT IN1 IN0 +5V5 1 L2 RELAYS L1 ON IN0 o NISE CONNECTION IN1 o 2 3 1 0 NIDM PASSIVE BUS 1 2 1 1 RELAYS L1 L2 3 2 0 1 NIDM PASSIVE BUS 1 2 ON Address 1 Passive Bus DATA +5V5 L2 L1 Light Switching Circuits Room Bus 0 +5V5 DATA GND GND OUT IN1 IN0 +5V5 1 2 3 1 0 NISE CONNECTION VOICE GND +5V5 IN0 IN1 OUT VOICE GND VOICE GND +5V5 IN0 IN1 OUT 1 RELAYS L1 L2 NIDM PASSIVE BUS 3 1 2 0 Bedside Module NIBM ASCOM 1 1 2 ON Address 2 2 Max. 0.5mm² 1/4 in.
Installation Guide teleCARE IP 9.3 TD 93021US Rev A 2-Bed Room with a Medical Rail Socket at each Bed The example shown in the Illustration below is a 2-bed room with peripherals for the toilet and shower. Each bed is equipped with a medical rail socket (which is usually installed in the medical rail above the bed) and a handset. Ethernet LAN 24Vdc Room Controller (with Corridor Lamp) s1 re s Ad d Address 0 Ad d (fi res xe s d) 4 Ad dr es s0 Room Bus 1 Room Bus 0 Address 1 Address 2 Figure 177.
VOICE GND 1 L2 RELAYS L1 NIDM PASSIVE BUS 3 1 2 0 LAN LAN Light Switching Circuits L1 L2 Doorside Module NIDM ASCOM 1 1 2 ON Address 0 GND Light Switching Circuits L1 L2 Room Bus 0 ASCOM GND VOICE GND DATA +5V5 DATA 1 1 L2 RELAYS L1 + +5V5 DATA DATA +5V5 ASCOM 1 1 L1 L2 1 2 ON 3 2 0 1 Address 1 Room Bus 1 Cat.
Installation Guide teleCARE IP 9.4 TD 93021US Rev A Room Controller with Corridor Lamps (Master/Slave) The example below shows the combination of a room controller and 2 corridor lamps. In the example there are three resident rooms, each containing 3 beds and a toilet with shower.
Installation Guide teleCARE IP TD 93021US Rev A Figure 180.
Installation Guide teleCARE IP 9.5 TD 93021US Rev A 4-Bed Room with Speech The installation of a teleCARE IP system with speech is basically the same as without speech except that the teleCARE IP Speech Module is added at each active peripheral where speech communication is required.
1 L2 RELAYS L1 IN0 o 1 GND 2 ENABLE 3 DIR 4 VOICE 5 +5V5 ASCOM 1 1 +5V5 DATA RELAYS L1 VOICE +Vin GND GND VOICE +Vout L2 2 3 1 0 NIDM PASSIVE BUS 1 2 ON Address 1 GND GND VOICE L2 L1 Light Switching Circuits 1 L2 RELAYS L1 NIDM PASSIVE BUS 1 GND 2 ENABLE 3 DIR 4 VOICE 5 +5V5 Speech Module NISP NISP Toilet Cancel Module NITC (Active) ASCOM 1 NISE CONNECTION NISP CONNECTION Room Bus 1 VOICE GND 1 RELAYS L1 Max. 0.5mm² 1/4 in. ( 6.
Installation Guide teleCARE IP 9.6 TD 93021US Rev A Duty Selector at a staff Station The Duty Selector is an peripheral which can be connected to any one of the three room buses from the room controller. It has a fixed address number 5 on the room bus which cannot be changed. It also has two inputs and two galvanically isolated outputs via relays. The two input circuits and the two output circuits are available as interfaces to external devices.
ASCOM L2 RELAYS L1 ON Doorside Module NIDM 1 2 3 1 0 NIDM PASSIVE BUS 1 2 Address 0 IN0 o 1 LAN Room Bus 0 IN1 o VOICE GND OUT o +5V5 DATA +5V5 o VOICE +Vin GND GND VOICE +Vout GND GND +5V5 +Vout DATA GND VOICE GND +5V5 DATA DATA +5V5 LAN +24V GND (0V) LAN 0 1 2 3 Room Bus 0 Legend 1 2 ON Room Bus Address Settings Max. 1mm² ROOM BUS DUTY SELECTOR 1 2 1 1 1 2 RELAY CONTACTS 1 Max. 0.5mm² 1/4 in. (6.
Installation Guide teleCARE IP 9.7 TD 93021US Rev A Positioning of the teleCARE IP Peripherals The following illustrations show typical room installations with recommended locations for the teleCARE equipment. 9.7.1 Room Controller, Door side Module and Customizable Module: 4in. min (100mm) 7 1/4 ft. (2200mm) Customizable Module 6 in. min (150mm) 27 1/2 - 59 in. (700 - 1500 mm) 27 1/2 - 59 in. (700 - 1500 mm) 9.7.2 Toilet Cancel Module and Pull Cord Module 8 in. min (200mm) 7 1/2 ft.
Installation Guide teleCARE IP TD 93021US Rev A 9.7.3 Bedside Module 4 ft. max. (1200mm) 4 ft. max. (1200mm) 3 1/4 - 5 1/4 ft.
Installation Guide teleCARE IP TD 93021US Rev A Document History Version Date A 10 FEB 2014 Description • First released U.S.
