User Manual V 2.
CONTENTS Introduction .............................................................................1 Features ................................................................................................1 System Requirements .............................................................................1 The Remote Control..................................................................2 Buttons ..................................................................................................
Introduction Introduction Features Plays back Blu-ray ISO/H.264/WMV/VC-1/Xvid/MPEG-1/MPEG-2/RM/RMVB movie files, MP3/WMA/OGG/FLAC/AAC music files, JPEG/BMP/GIF/PNG photo and graphic files. Supports NTFS/FAT32 file system. Supports both NTSC and PAL TV systems. Supports 1080p video output. Supports HDMI and component video output. Supports Music Slideshow Supports external USB storage media playback.
The Remote Control The Remote Control Buttons 1 ○ STANDBY: Activate this device / Return to Standby 2 ○ INFO: Display file properties / played time 3 TV SYS ○ Switch output TV system to NTSC/PAL (Startup only) 4 ○ SELECT: Select a folder/a file 5 AUDIO: ○ Switch audio tracks in a movie 6 SUBTITLE: ○ Switch DVD subtitles; Switch Xvid subtitle On/Off 7 REPEAT: ○ Change the repeat mode 8 ○ HOME: Return to Home Menu 9 ○ RETURN: Return to parental folder 10 ○ MENU: Display DVD menu; Show m

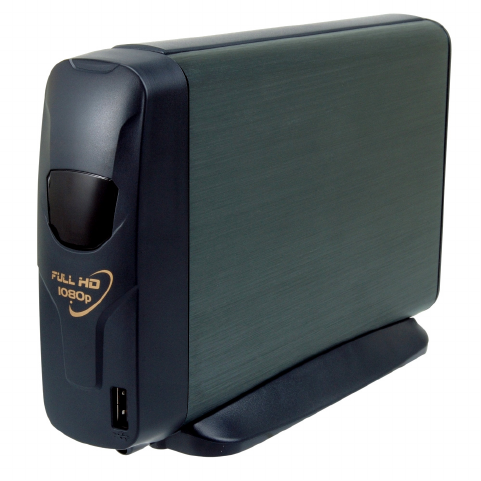

Parts and Functions Parts and Functions 1 Remote receiver ○ When using the remote, point the remote towards here. 2 Power LED: (Blue) ○ Blinking: Received a remote control signal. Off: Power off. On: Power on. Fast blinking: Booting up/ Accessing data through PC connection. 3 USB type A connector: Connect the USB mass storage devices with this device using a USB ○ cable. 4 Coaxial digital audio ○ Outputs S/PDIF digital audio signal. Connect this jack to an AV receiver connector: with a RCA cable.
Quick Start Quick Start Read before use. 1. Do not operate electronics with wet hands. 2. Do not operate this device in a bathroom or near water. 3. Do not bend cables in a sharp angle. 4. Keep this device and cables out of reach of children. 5. Keep this device and its accessories away from heat sources. How do I use this device? This device plays media contents stored in its internal HDD, or in an external USB storage connected to it.
PC Connection PC Connection OS Support This device supports Microsoft® Windows® 7 / Windows Vista™ / Windows® XP SP2. Some USB 2.0 Host Controllers may require updated device driver files to operate properly. If you have problems with your USB connection, visit the Windows Update web site to make sure you have the latest Service Packs and device drivers installed on your PC before contacting technical support. Connecting via USB 1.
PC Connection Upgrading Firmware 1. Please consult your local distributor or vendor website for a firmware file. 2. Save the firmware file to the root folder of an USB mass storage device. Note: Do not copy the firmware file to a folder, else the update will not work 3. Connect this device to a TV and then connect the USB mass storage device to this device. 4. Press the 5. Select Setup → System → System Upgrade in the Home Menu to perform upgrade.
TV Connection TV Connection Connecting to AV Equipments HDMI Connection The HDMI connector can output both digital audio/video signals. Many HDTV sets and digital AV receivers support this type of connection. To a TV: To an AV receiver: Note: Some TV sets are equipped with DVI input ports, which will receive video signals only, but these DVI ports use HDMI connectors instead of standard DVI connectors.
TV Connection Component Video Connection (Y/Pb/Pr) If your TV supports Component Video input (Y/Pb/Pr), you can connect it for better video quality. You will have to connect the audio cable for audio output. Note: Some TV sets are equipped with separate composite and component audio inputs. Be sure that you have connected the correct one.
TV Connection 2. Press the Power Switch on the rear panel, or press the STANDBY button on the remote control to activate this device. The activation takes about 5-7 seconds, and the LED will blink at the same time. 3. After the LED stops blinking and glows steadily bright, this device is ready to use for playback. 4. After playback, press the Note: STANDBY button again to return to Standby mode. • When using the remote control, point the remote control towards the front of this device.
Using the AV Playback Function Using the AV Playback Function When this device is connected to a TV and activated for playback, the Home Menu will display on the TV screen. You can also jump to the Home Menu during playback or while browsing other menus by pressing the HOME button on the remote control. You can use the cursor buttons on the remote control to navigate through menus, options, or files. Press the the ENTER button to open a folder, select an option, or play a file.
Using the AV Playback Function connected to this device. 2. Browse to the folder containing the media file you want to play (use the cursor buttons on the remote control to navigate through listed folders; press the ENTER button to open a folder or subfolder). 3. Select a media file and press the ENTER button to start playback. Playing Slideshow/Music Slideshow 1. Select the image file you want to start the slideshow, then press the ENTER button.
Using the AV Playback Function Note: Pasting a file to USB is prohibited. Adding to Quick List In the Music mode, by pressing the MENU button on a music file saved on the internal HDD, you can select Add to Quick List to add this music file to Quick List.m3u in /Playlists folder on the internal HDD. By pressing the SELECT button on multiple folders or files, you can perform operation in batch. By pressing the MENU button on selected files, you can select Add to Quick List to add them to Quick List.
Setup Setup Select SETUP in Home Menu to enter Setup Menu. Use the cursor buttons to select items. Press the ENTER button to enter a submenu or to confirm a selection. Press the RETURN button to return to previous folder. Press the HOME button to return to Home Menu. Language Menu Language Select the language used to display the OSD menus and information. Text Encoding Select a language code page for additional ANSI local code subtitle support.
Setup Adjust idle time before activating Screen Saver. Audio HDMI Audio Output RAW: STEREO: Outputs digital audio without decoding. Outputs two channel audio signal. Digital Audio Output (SPDIF) RAW: STEREO: Outputs digital audio without decoding. Outputs two channel audio signal. Volume Adjust audio volume. System Restore Default Reset all settings to default values. System Upgrade Upgrade system firmware. Slideshow Slideshow Interval Set time to display each photo during slideshow.
Appendix Appendix Specifications HARD DRIVE SUPPORT Internal Storage 3.5” SATA I/ SATA II HDD File System NTFS/FAT32 USB HDD File System NTFS/FAT32/EXT2/EXT3/HFS+ INTERFACE USB 2.0 USB 2.0 type A host port x 1 USB 2.
Appendix It is recommended to unplug the unit from the power socket completely when not in use. Always check that files have been copied to the device successfully. Always keep two copies of important files (an original and a backup). We are not liable for data loss or damage during file transfer or while store on the device. When turning the HDD into Standby mode, please avoid moving it for 2-3 minutes due to spin down of the device. Moving the HDD while it is still spinning may damage it.
