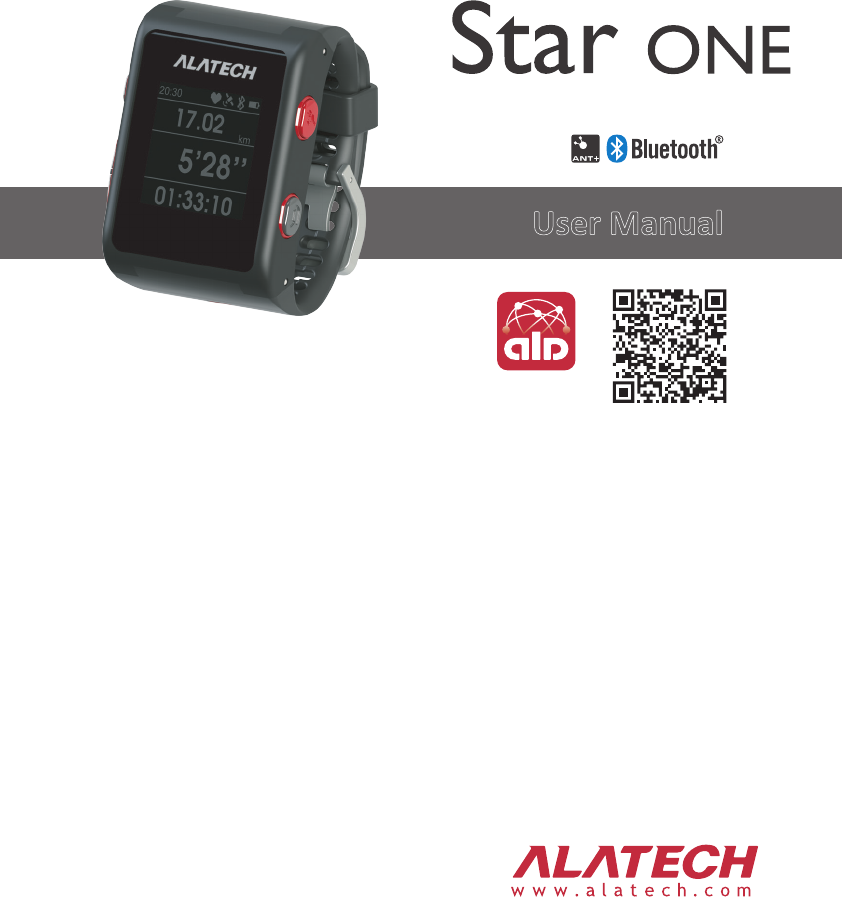

Model No.
Thank you for choosing Star ONE GPS Running Watch! Thank you for choosing ALATECH Star ONE GPS Running Watch! This smart sports watch features various transmission technologies including GPS, Bluetooth and ANT+, the device can pair with different sensors independently. To link with ALA CONNECT app (developed by ALATECH). This watch is your best partner for daily activity and workout.
Safety and product information of Star ONE GPS Running Watch Health warnings • Please consult your doctor before the activity or changing any activity habit. Please consult your doctor before using the heart rate monitor if you are wearing a pacemaker or an implanted electronic device. • Please wear appropriate clothing and sneakers when using this product to exercise. Inappropriate clothing and shoes can cause incorrect posture and lead to potential sports injury.
Contents Safety & Product Information .............................................................1~2 Chapter 1 Star ONE GPS Running Watch ................................................5~6 Buttons/Symbols ...................................................................................................5 How to wear Star ONE Watch ...............................................................................5 How to Charge.................................................................................
Chapter 6 Personal Setting.............................................................. 11~12 User Profile...................................................................................................... 11 Heart Rate Zone .............................................................................................. 11 Move Alert....................................................................................................... 12 Target Steps .......................................................
1 How to use Star ONE GPS Running Watch ATTENTION • Please read this manual thoroughly for instructions for use and notices. Please consult the doctor or evaluate your physical condition carefully before you start training with this product or change the activity plan. • This product contains lithium battery. Please read device information (P2 & P19) thoroughly to ensure your safety.
Device charging Please wipe charging pin with clean water and keep them dry and clean after the activity to avoid corrosion. Make sure charging pin and the surroundings are completely dry and clean before charging or connecting to the computer. 1) Aim the clip-on charging to the charging pin on back of watch. 2) Make sure the non-skid foam at the inner side of charger clamp is securely fixed. 3) Connect the USB plug of charging station to the USB port on computer. 4) Start charging until the battery is full.
2 Workout Settings General Mode: Hold → Setting → Applications → Select Activity→ Access Workout Settings Activity Mode: Hold → Item → reset Settings Select Modification Data Screen 1/2 Hold → Setting → Applications → Select Activity → Data Screen → Screen Set activity information display according to your needs to promptly understand the dynamic information of your running. This function helps you to understand current activity information quickly and more precisely under different modes.
HR Zone Hold → Setting → Applications → Select Activity → Data Screen → HR Zone The watch device will automatically calculate your heart rate zone when you enter personal information. 1) HR Zone: click to switch to on/off. 2) Under Activity Mode, click to check current activity information, heart beat and virtual partner. 3) Under Activity Mode, hold , select with and click to switch to on/off.
3 Sensor Setting Hold → Setting → Sensor → Access Settings You can acquire more accurate activity information via the chest heart rate monitor strap or speed & cadence sensor. You can choose detection signal from Bluetooth (BLE) or ANT+ by yourself. Remove sensors from the watch device: Hold Remove. → Setting → Sensor → Heart rate /Speed /Cadence → 1) Mode: click to choose Bluetooth(BLE) or ANT+.
5 History Hold → History Activities Hold → History → Activities Activities include recorde of activity date and period, distance, average heart rate, average speed per hour, average pace, average cadence, calories and laps. 1) Activities: click to enter; select activity with 2) Click to select activity date and click 3) Click to check all activities. and click to check. to check detailed information.
6 Personal Settings Hold → Setting → System → User Profile → Enter Personal Setting User Profile Hold → Setting → System → User Profile You can enter Gender, Age, Height, Weight and Wheel Size by yourself. The watch device will automatically calculate Heart Rate Zone according to the entered age and height. 1) Click to select and click to enter and change Settings. REMINDER The watch device will enter personal settings, including time format, unit and user profile, for first use.
Target heart rate zone displays your maximum hear rate with percentage. The target heart rate should be determined by your age, current physical condition and goal. American Heart Association suggests that the target heart rate zone should be determined as 50~85% of your maximum heart rate. It is recommended to calculate your target heart rate by deducting your age from maximum heart rate 220 and multiple by 50% and 85%. Or you may refer to the following graph.
7 System Settings Hold → Setting → System → Setting → Access System Settings Select Set Time and Date Hold → Setting → System → Time You can use the auto set time functions or set the time and date by yourself. 1) Time Format: click to switch time display format between 12- /24-hour. 2) Auto Set Time: click to switch to on/off. 2) Set Time: click to access Settings; select time with and click 3) Set Date: click to access Settings; select year/month/date with to confirm. and click to confirm.
8 Alarm clock Hold → Clock → Alarm Clock Select Item → Enter Alarm Clock Hold → Clock → Alarm Clock You can set alarm clock in the watch device by yourself. Alarm clock setting includes Once, Daily, Weekday and Weekend. 1) Alarm Clock: click to switch to on/off. 2) Time: click to access Settings; select time with 3) Freq. : click to access Settings; select date with and click and click to confirm. to confirm. Timer Hold → Clock → Timer You can set timer in the watch device by yourself.
10 Software Information Hold → Setting → System → Select Setting → Access Settings Restore Defaults Hold → Setting → System → Restore Defaults You can restore your device to defaults. Please make sure all data are synchronized to app before restore the watch device. 1) Restore Defaults: click to enter, select Yes/No and click to confirm. Software Update Hold → Setting → System → Software Update Once update is required for watch device, app will remind user to update the latest version of software.
12 Device Information Watch Face Hold → Setting → Watch Face You can select the layout of watch face according to your preference. 1) Watch Face: click to enter, select the layout with and click to confirm. Specification Name: Star ONE Model No.: WB001 Dimensions / Weight: L45 x W39.5 x D12.
Troubleshooting of Star ONE GPS Running Watch The activity screen fails to start counting: 1) During the activity, the watch device will automatically connect to GPS and optical optical heart rate monitor, please wait the watch device display "START the timer begin workout", then start workout to ensure get the most accurate workout data. It takes about 12~15 seconds to detect and please remain stable to ensure accurate detection of heart rate.
Troubleshooting of Bluetooth The sensor data is incorrect in workout: 1) If sensor disconnection in workout, the watch device will show on the screen and the watch device will also vibrate to remind you. If you do not immediately re-connect via Bluetooth, the sensor will not continue to detect the workout data, the final workout data will be incorrect. Before activity, it is recommended that you confirm that the sensor has been paired and confirm that the watch device has a normal read value.
Alatech Technology Limited Address: 39F, No. 758, Zhongming S. Rd., South Dist., Taichung City Tel: +886-4-2260 8341 Fax: +886-4 2260 8346 www.alatech.com Designed by ALATECH in Taiwan 2PF210148100003 2017/09 Ver.
