uick Star

Overview

The ADTRAN® 834-5 is a carrier-class Dual-Band Wi-Fi 5 Gigabit Ethernet router, built to deliver top-end Wi-Fi 5 performance, true gigabit routing

throughput, and advanced service delivery capabilities. This quick start describes how to install ADTRAN’s 834-5 Home Gateway Unit.

The 834-5 WiFi 5 Gigabit Router is an indoor gateway for delivering premium Gigabit services.

■ “Installing the 834-5 Gateway” on page 2

■ “Understanding the Status LEDs” on page 4

■ “Safety and Regulatory” on page 5

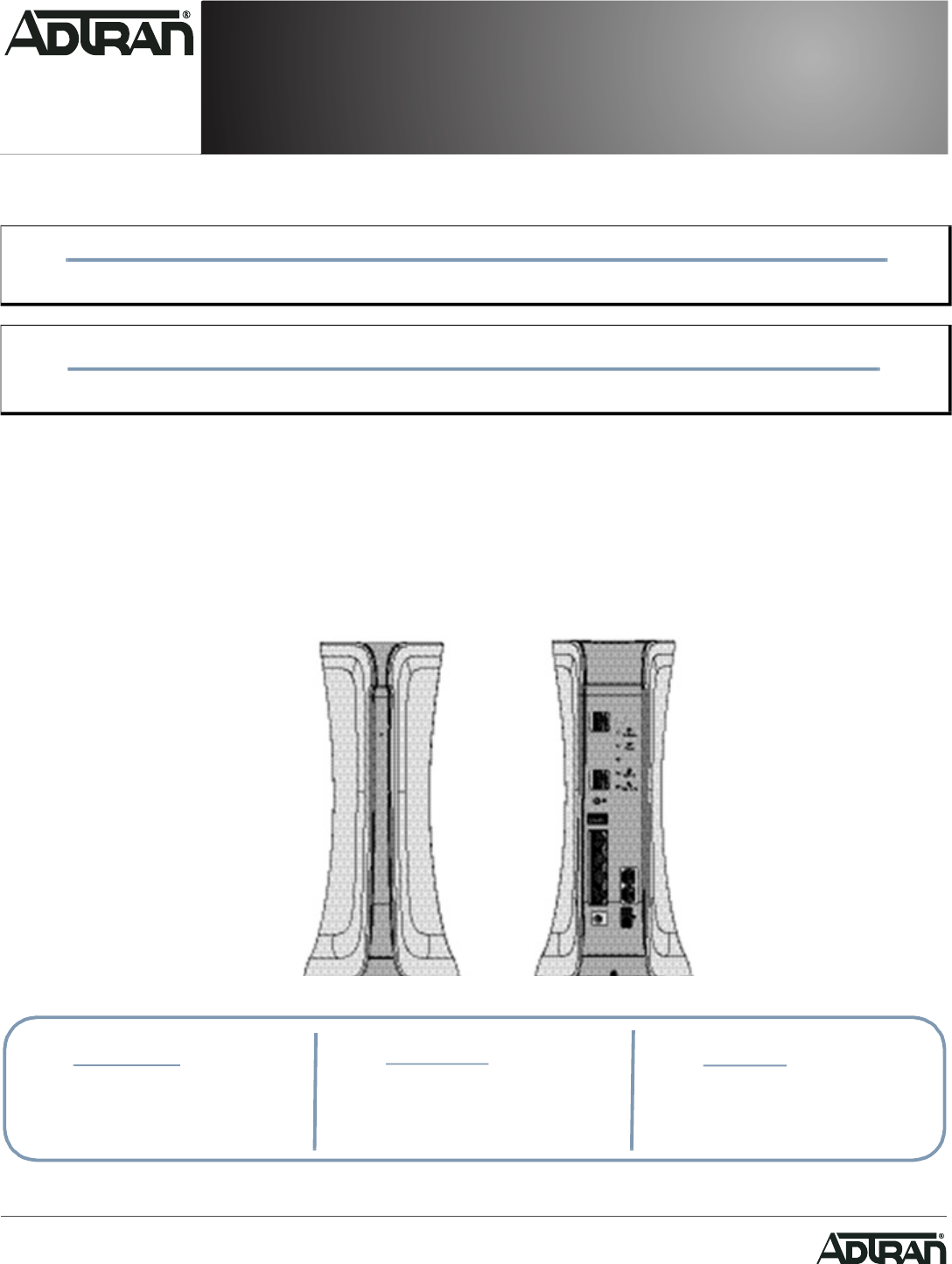

Figure 1 illustrates the front and back of the 834-5 gateway.

Figure 1. Front and Back of the 834-5 Gateway (placeholder)

WARNING!

Read all warning, cautions, notes and installation instructions before installing or servicing this equipment.

f ATTENTION!

Lisez tous les avertissements et mises en garde avant l’installation de cet équipement ou la réalisation de toute opération de maintenance

f WARNING!

f CAUTION!

g NOTE

WARNING indicates a hazard which, if

not avoided, could result in death, injury

or serious property damage.

CAUTION indicates a hazard which, if not

avoided, could result in service interruption,

damage to the equipment, or minor property

damage.

NOTES inform the user of additional, but

important, information or features.

ADTRAN

834-5 Service Delivery Gateway

Wi-Fi 5 Gigabit Router

May 2021

617600021-13A

P/N: 17600021F1

Summary of content (9 pages)

PAGE 1
ADTRAN May 2021 617600021-13A 834-5 Service Delivery Gateway Quick Start Wi-Fi 5 Gigabit Router P/N: 17600021F1 Overview f WARNING! Read all warning, cautions, notes and installation instructions before installing or servicing this equipment.
PAGE 2
Features The features of the 834-5 gateway include the following: ■ 1x Gigabit Ethernet (RJ-45) WAN interface ■ Subscriber interfaces ♦ 4x4 802.11ac @ 2.4GHz ♦ 4x4 802.11ac @ 5GHz ♦ 4x Gigabit Ethernet (RJ-45) LAN interfaces ♦ 1x USB 3.0 (Type A) Host port Installing the 834-5 Gateway The following are guidelines for basic installation of the 834-5. g f NOTE Refer to the national, state and local electrical codes for the requirements for power, grounding, wiring, and installation methods.
PAGE 3
f Household Appliance Recommended Minimum Distance (in feet and meters) Cordless phone – digital 30 feet / 9 meters Bluetooth devices 20 feet / 6 meters ZigBee 20 feet / 6 meters WARNING! Ensure that the 834-5 does not come in contact with water or other liquids. f CAUTION! Ensure that the 834-5 is not located in direct sunlight or next to any thermal obstructions. Wall Mount Installation The 834-5 can be mounted on a wall. Wall Mount Kit (17600192F1) can be ordered for mounting the 834-5.
PAGE 4
3. Confirm that the power is connected properly. The Power LED should be lit on the front of the gateway. g NOTE Alternately, the device may be powered by a supported third-party UPS which may be connected via 7-pin molex connector, labeled UPS. Resetting the Gateway A reset button is available if the 834-5 needs to be rebooted. To reboot the 834-5, press the Reset button on the rear panel of the gateway for 5 seconds or less.
PAGE 5
Environment ■ Operating Temperature: 32°F to 104°F (0°C to 40°C) ■ Storage Temperature: -40°F to 158°F (-40°C to 70°C) ■ Relative Humidity: 10 to 95 percent, non-condensing g NOTE Changes or modifications not expressly approved by ADTRAN will void the warranty. Safety and Regulatory This product meets the following compliance requirements: ■ ■ ■ ■ ■ ■ UL /cUL Listed FCC Part 15, Class B ICES-003 (Class B) IEC 62368-1 EN 62368-1, AS/NZS 60950.
PAGE 6
CX Documentation Approval Stamp Sheet Document Number: 617600137F1-17A Document Name: 865-v6 Gateway Compliance Note Date of Review: May 3, 2021 Reviewer Statement: I have read and reviewed this document and give it my approval for release. Approval Signatures: Use the Approved stamp from the Dynamic stamps list.
PAGE 7
834-5 Service Delivery Safety and Regulatory Notice Sécurité et Avis de réglementation WiFi 5 Gigabit Router Sicherheitsvorschriften und -hinweise f WARNING! f AVERTISSEMENT! f Gateway July 2021 617600021F1-17a P/N: 17600021F1 WARNUNG! ■ Read all warnings, cautions, notes, and installation instructions before installing or servicing this equipment.
PAGE 8
■ The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel mobile satellite systems. ■ Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650- 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
PAGE 9
■ ■ ■ ■ Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
