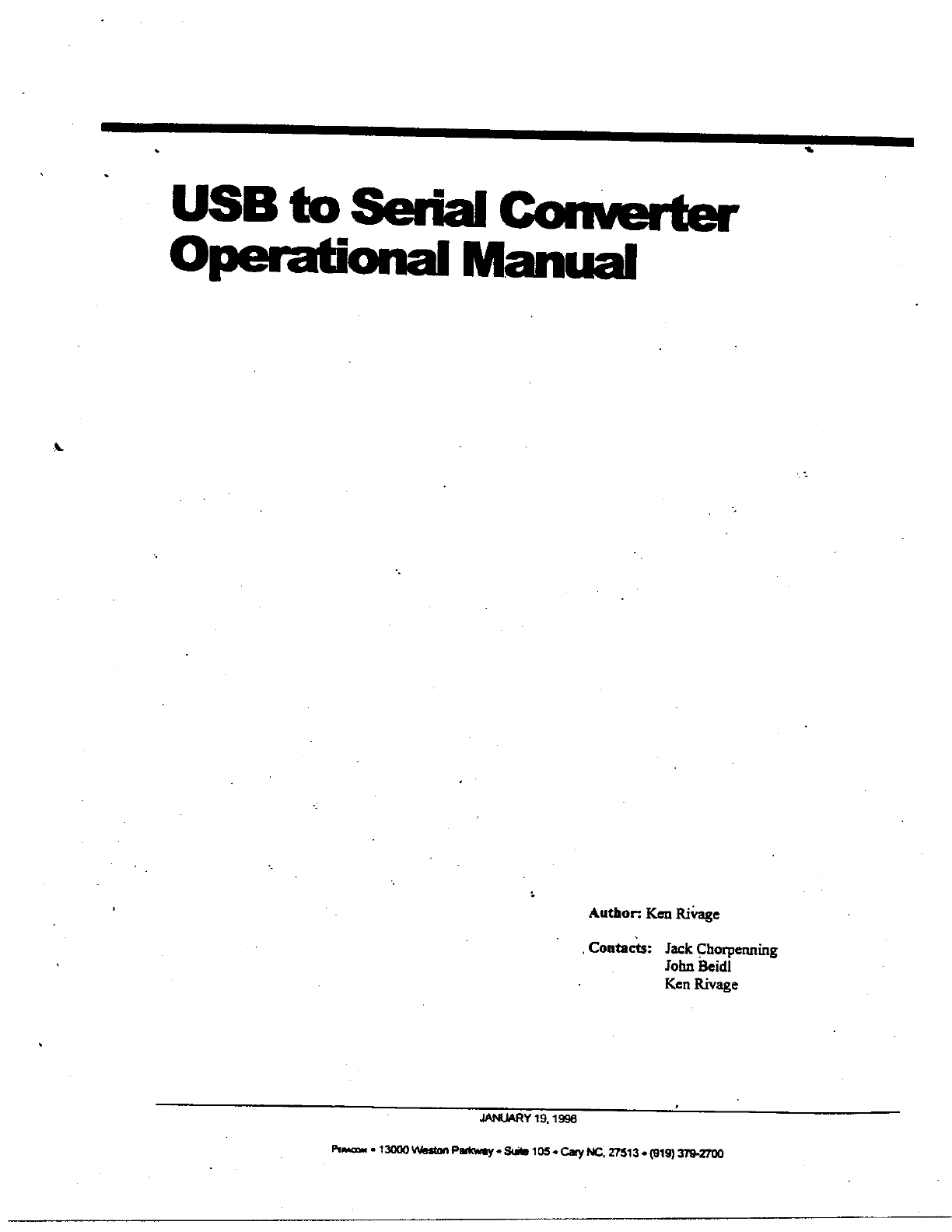

USB TO SERIAL CONVERTER OPERATIONAL MANUAL The Federal Communications Commission Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed fo provide reasonable protection against harmful interference in a residential installation.
USE TO SERIAL CONVERTER OPERATIONAL MANUAL PREFACE “ This document describes the operational aspects of the Compere USB Serial Converter, JANUARY 19, 1938 .
USB TO SERIAL CONVERTER OPERATIONAL MANUAL INTRODUCTION JANUARY 19, 1998 The Compere USB to Serial Converter is a standalone device that allows a legacy RS232 peripheral to attach to a USB Host controller on a PC ora USB hub, The device will use a USB type B connector for connection to the USB host and a DB 25 pin connector for connection fo the R$232 peripheral, Figure 1 below shows the high level bock diagram of the device connections.
USB TO SERIAL CONVERTER OPERATIONAL MANUAL. FUNCTIONAL OVERVIEW JANUARY 19, 1898 The USB to Serial Converter wil install an additional COM part an 8 PC when the USB serial converter is plugged into the PC. The installation process will choose the next available COM port to associate the COM port number with the system. This will enable any Windows application to use the USB to Serial Converter as a normal COM port. The applications do not need to be modified to access the additional USB COM port.
