All product with the Easy Chime Logo work together 1byone Products Inc. 1230 E Belmont Street, Ontario, CA, USA 91761 www.1byone.

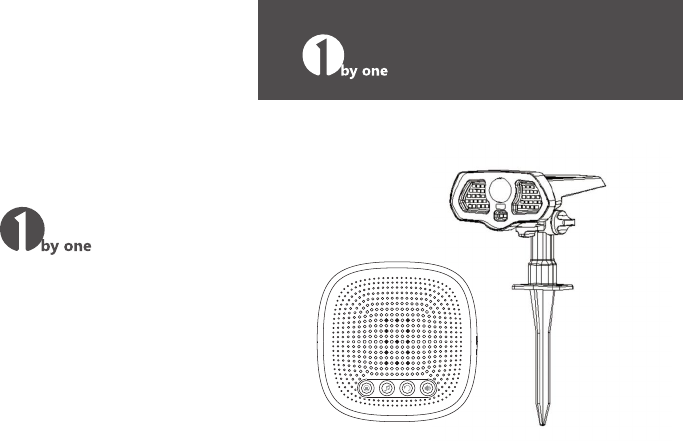

Thank you for purchasing 1byone Wireless Driveway Alert Alarm with Solar LED Light. Please read this instruction manual before use to ensure safe operation. Table of Contents 1. Package Includes............................................ 01 2. Parts Names...................................................... 02 3. Getting Started 3.1 Power for Receiver............................................. 03 3.2 Power for Solar LED Light................................... 04 3.
2. Parts Names: 3. Getting Started Zone LED Indicator DC Power Jack 3.1 Power for Receiver The receiver can be powered by 3 x AA batteries or by a power adapter (output: DC 5V). If powering by batteries, please insert the batteries using the following procedure: Remove the battery compartment cover at the back of the receiver. Insert 3 x AA type batteries into the battery compartment, using the correct polarity to eliminate fire danger. Snap the battery compartment back into place.
Note：Specifications for the power adaptor are below. Input: 110-120V for US, 220-240V for EU. Output: DC 5V/6V (Refer to the rating label on the adapter). Please note that our receiver does not use rechargeable lithium batteries; all batteries MUST BE removed from the receiver when being powered by a power adapter. 3.
Place the solar LED light and receiver nearby each other and ensure the PIR sensor on the solar LED light is turned away from you. A. When the receiver becomes powered, a ‘dingdong’ will sound to indicate the receiver is on. B. Press the pairing button and you will hear a ‘Beep’ sound.The Zone LED indicator will display the selected zone number. Press the Melody/Next button until the desired zone number is displayed.
Press the switch to turn on the light A alarm/melody sound will play to indicate that pairing is successful. You also can activate the sensor on the solar LED light again after pairing to confirm the sensor has been added to the receiver already. Follow these same steps to add more sensors / solar LED lights to the alarm receiver. The driveway alarm receiver can support up to 4 sensors/lights per zone, for a total of 16 sensors/lights per receiver.
Note: Pairing mode will stay active for 15 seconds after the sound of the ‘Beep’. If you don’t hear an alarm/melody sound, repeat the pairing process and make sure that the selected zone number is on when you activate the sensor. Note that only one solar LED light or sensor for one zone can be paired at a time. 3.4 Choose an Alarm Melody for the Sensors. The alarm melody for Zone 1 can be customized, while melodies for Zone 2, Zone 3 and Zone 4 are fixed and cannot be changed.
1. Use a pencil to mark the location of the two mounting holes on the surface where the installation base will be installed. 2. If installing on a wooden surface, only the included screws need to be used. Drill out pilot holes to help prevent stripping of the screws and hold the sensor more securely. 3. If installing on any other surface, such as brick or stone, use the included wall plugs with the screws.
5. Please point the sensor to the main detecting area, like the entrance of the driveway or walkway etc. 3. Please point the sensor towards a open field (not towards the trees or bushes). 3.6 Installing the Receiver The receiver can be placed on any flat indoor surface or mounted on any type of surface using the supplied screws. 4. Please adjust the PIR sensor on the solar light so it faces a little downward (never upward). - 14 - 1.
64mm 6mm Note: The working distance for the receiver and solar LED light is 300m (1000ft) without obstacles. Always test the working distance between the solar LED light and receiver before installing these units. 3.7 Selecting the Alert Mode for the Receiver When the PIR sensors are triggered, the alarm receiver can alert you with an auditory sound, - 16 - a flashing zone LED indicator, or sound and flashing zone LED indicator together. These are referred to as Sound, Flash, and Sound+Flash modes.
3.8 Manufacture Default Settings 3.9. Change the Volume of the Melody If the receiver rings but the PIR sensor has not been triggered, or the PIR sensor interferes with another receiver, it may be necessary to wipe the current pairings and pair again. To return the receiver back to default setting, press and hold the pairing button 3 seconds until a ‘BEEP’ is heard. The receiver will BEEP five times and the LED indicator will display “8” to indicate all pairings have been removed from the receiver.
4.Specifications: Issue Power supply : DC 4.5V ( 3 x AA batteries or by an adapter) Wireless frequency : 433MHz±20KHz Operating range：300m/1000ft (without obstacles) Receiver’s ring volume：Over 100dB within 0.5m/1.6ft Working temperature：-20°C ~ 50 °C Solar LED Light: Solar panel: 5.0V 0.95W Wireless frequency : 433MHz±20KHz Li-ion battery: 3.
Issue Cause Solution Solar light No power Make sure the solar panel is facing not lighting for the solar sunlight so as to maximize the lighting light effect. up Solar light not paired properly Reset all solar lights and pair them again. The PIR sensor on the solar led light has a transmitting frequency of 433MHz and its range can be affected by metal, concrete, and other interfering signals from electronic appliances with the same Inconsistent Signal frequency.
90-Day Replacement/Refund for QualityRelated Issues Unite Kingdom Email: ukwebhelp@1byone.com 1byone products can be replaced or refunded within 90 days of purchase for quality-related issues or breakdowns not caused by improper use or improper maintenance. German/France/Italy/Spain Email: euhelp@1byone.com 24-Month Warranty for Quality-Related Issue 1byone products that break within 24 months due to normal, proper use, can be replaced at no cost.
